Getting started: Michi

Michi is an electronic card that imitates a number of programmable keyboard and mouse buttons.

BeginnerProtip1 hour1,094

Things used in this project

Hardware components

Electronic Cats Michi

Software apps and online services

Arduino IDE

Story

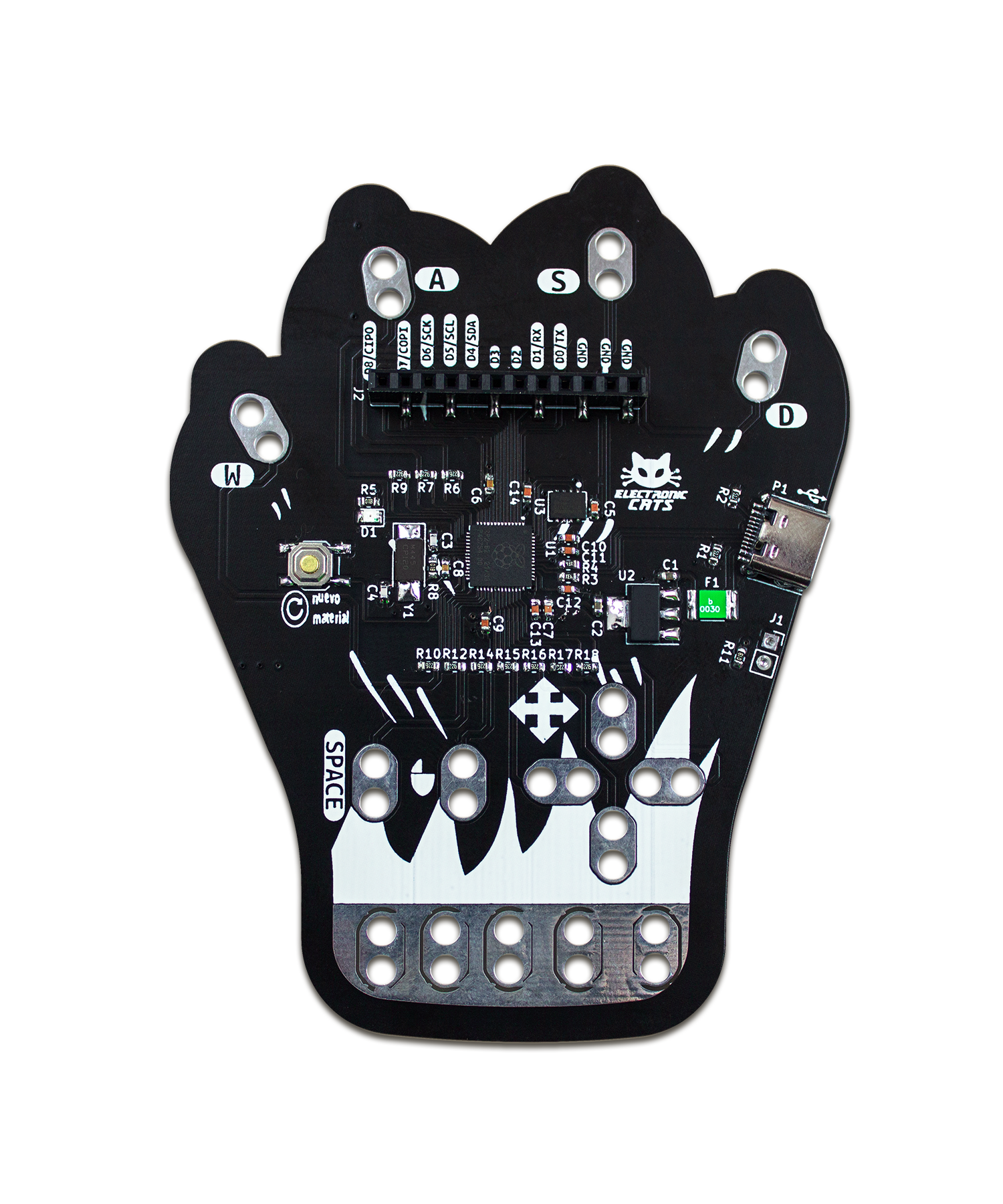

Electronic Cats' Michi is an electronic card that imitates a number of programmable keyboard and mouse buttons.

When linked to the Michi, any material that conducts electricity becomes a touch-screen gadget.

Both amateurs and experts who wish to experiment with technology and the physical world can use this kit.

Michi is qualified to work in a variety of professions, including engineering, physical therapy, athletics, music, and visual arts.

How does it work?

The Michi uses high-resistance switching to detect whether it has established a connection even with materials that aren't particularly conductive (such as leaves, paste, or people).

Michi may also be used as a mouse or a keyboard.

There are 10 inputs on the front of the board, which may be connected using alligator cables or any other method you can think of.

Five extra inputs are located on the back: two are for mouse movement and three are for keyboard keys that may be accessed through jumpers.

If you connect an apple, the computer will get a keyboard message from her when you touch it.

The computer interprets it as a regular keyboard (or mouse).

It is compatible with all applications, operating systems, and websites since they all accept keyboard and mouse input.

What materials work with Michi?

Any substance that has a modest electrical conductivity will work.

The following are a few things workshop attendees have employed:

Citrus fruits, mustard, graphite pencils, finger paint, etc.

Plants, money, cutlery, most meals, water, aluminum foil, and a plethora of other objects of a same nature make wonderful additional materials.

What I can do?

You are in control!

Start by opening any website or computer program.

Consider that you are playing a piano.

Then you can connect Michi to something fun, like bananas, and the bananas will transform into piano keys and take the place of the computer keyboard's buttons.

Or, suppose you make a controller out of paper and a pencil while hunting for a Pacman game online.

Then, you may play Pacman by touching on them.

An alligator cable, a USB cable, and a Michi Board are all included in the package.

Here is a video demonstration of how to play the popular computer game Minecraft with Michi.

Since the Michi is plug-and-play, there is no need to program anything in Arduino.

Arduino is only to be able to modify the keys if required.

Here is an illustration of how to change any of the keys on the Michi to your preferred key.

Download Arduino IDE

The Arduino Integrated Development Environment - or Arduino Software (IDE) - contains a text editor for writing code, a message area, a text console, a toolbar with buttons for common functions, and a series of menus. It connects to different boards’ hardware to upload programs and communicate with them.

You need to download and install Arduino IDE, you can find it here to different O.S.

After installing Arduino IDE, you will see the next window.

After you have installed the Arduino IDE, you will have to install some boards, don't worry, here is a quick guide on how to install them:

Installation Instructions

Install "Electronic Cats" support

To add board support for our products, start Arduino and open the Preferences window (File>Preferences).

Now copy and paste the following URL into the 'Additional Boards Manager URLs' input field:

https://electroniccats.github.io/Arduino_Boards_Index/package_electroniccats_index.json

If there is already a URL from another manufacturer in that field, click the button at the right end of the field. This will open an editing window allowing you to paste the above URL onto a new line.
Press the "OK" button.
Open the "boards manager" that is in tools --> Board --> board manager.
Now write "Electronic Cats" (without quotes) in the search bar.
Click to install, just wait to finish installing, and only close the window.

In Tools>Boards, scroll down in the board's list, you can see the Electronic Cat's boards.

For RP2040 Version

Install "Pico Boards" support

To add board support for our products, start Arduino and open the Preferences window (File > Preferences).

Now copy and paste the following URL into the 'Additional Boards Manager URLs' input field:

https://github.com/earlephilhower/arduino-pico/releases/download/global/package_rp2040_index.json

If there is already a URL from another manufacturer in that field, click the button at the right end of the field. This will open an editing window allowing you to paste the above URL onto a new line.
Press the "OK" button.
Open the "boards manager" that is in tools --> Board --> board manager.
Now write "RP2040" (without quotes) in the search bar.
Click to install, just wait to finish installing, and only close the window.

In Tools> Boards, scroll down in the board's list, you can see the boards with RP2040.

Select Adafruit Feather RP2040 and you will have everything ready to upload programs.

The Michi may then be used as a keyboard if you download the code that is provided at the bottom of this page and upload it to the Michi.

Here is an illustration of how to change any of the keys on the Michi to your preferred key.

int keyCodes[NUM_INPUTS] = {
// top side of the michi board
KEY_UP_ARROW,      // up arrow pad
KEY_DOWN_ARROW,    // down arrow pad
KEY_LEFT_ARROW,    // left arrow pad
KEY_RIGHT_ARROW,   // right arrow pad
' ',               // space button pad
MOUSE_LEFT,        // click button pad
// female header on the back left side
'w',                // pin D5
'a',                // pin D4
's',                // pin D3
'd',                // pin D2
};

This section of the program will be found at the start of the settings.h file. Here, it will be demonstrated how it should seem to replace the direction arrows with mouse movements.

int keyCodes[NUM_INPUTS] = {
// top side of the michi board
MOUSE_MOVE_UP,      // up arrow pad
MOUSE_MOVE_DOWN,    // down arrow pad
MOUSE_MOVE_LEFT,    // left arrow pad
MOUSE_MOVE_RIGHT,   // right arrow pad
' ',               // space button pad
MOUSE_LEFT,        // click button pad
// female header on the back left side
'w',                // pin D5
'a',                // pin D4
's',                // pin D3
'd',                // pin D2
};

You may view additional keys to replace in your Michi by clicking on this link.

https://docs.arduino.cc/language-reference/en/functions/usb/Keyboard/

Michi is capable of many things, making it a strong and exceptional board for academic and other applications.

This board is a fantastic choice for accessibility needs as well.

Electronic Cats invests time and resources providing this open source design, please support Electronic Cats and open-source hardware by purchasing products from Electronic Cats!

If you have any queries, comments, or worries, you can get in touch with us at the following link: Contact Us

Code

/*
 /////////////////////////////////////////////////
 /////////////HOW TO EDIT THE KEYS ///////////////
 /////////////////////////////////////////////////
 - Edit keys in the settings.h file
 - that file should be open in a tab above (in Arduino IDE)
 - more instructions are in that file

 //////////////////////////////////////////////////
 ///////// MICHI FIRMWARE v1.0.0 ////////////
 //////////////////////////////////////////////////


 /************************************************************
Michi - Using the Michi you can make anything into a key
just by connecting a few alligator clips

Andres Sabas @ Electronic Cats
Original Creation Date: Sept 6, 2022
https://github.com/ElectronicCats/MeowMeow

This example demonstrates how to use Meow Meow

Development environment specifics:
  IDE: Arduino 1.8.19
  Hardware Platform:
  Michi
  - RP2040

This code is beerware; if you see me (or any other Electronic Cats
member) at the local, and you've found our code helpful,
please buy us a round!

Distributed as-is; no warranty is given.

Based in the work by:
 by: Eric Rosenbaum, Jay Silver, and Jim Lindblom
 MIT Media Lab & Sparkfun
 start date: 2/16/2012
 release: 7/5/2012
 ***************************************************************************/

/////////////////////////
// DEBUG DEFINITIONS ////
/////////////////////////
//#define DEBUG
//#define DEBUG2
//#define DEBUG3
//#define DEBUG_TIMING
//#define DEBUG_MOUSE
//#define DEBUG_TIMING2

////////////////////////
// DEFINED CONSTANTS////
////////////////////////

#define BUFFER_LENGTH    3     // 3 bytes gives us 24 samples
#define NUM_INPUTS       10    // 6 on the front + 12 on the back
#define NUM_OUTPUTS       10    //
//#define TARGET_LOOP_TIME 694   // (1/60 seconds) / 24 samples = 694 microseconds per sample
//#define TARGET_LOOP_TIME 758  // (1/55 seconds) / 24 samples = 758 microseconds per sample
#define TARGET_LOOP_TIME 744  // (1/56 seconds) / 24 samples = 744 microseconds per sample

// id numbers for mouse movement inputs (used in settings.h)
#define MOUSE_MOVE_UP       -1
#define MOUSE_MOVE_DOWN     -2
#define MOUSE_MOVE_LEFT     -3
#define MOUSE_MOVE_RIGHT    -4

#include <Keyboard.h>
#include <Mouse.h>
#include "settings.h"

/////////////////////////
// STRUCT ///////////////
/////////////////////////
typedef struct {
  byte pinNumber;
  int keyCode;
  byte measurementBuffer[BUFFER_LENGTH];
  boolean oldestMeasurement;
  byte bufferSum;
  boolean pressed;
  boolean prevPressed;
  boolean isMouseMotion;
  boolean isMouseButton;
  boolean isKey;
}
MakeyMakeyInput;

MakeyMakeyInput inputs[NUM_INPUTS];

///////////////////////////////////
// VARIABLES //////////////////////
///////////////////////////////////
int bufferIndex = 0;
byte byteCounter = 0;
byte bitCounter = 0;
int mouseMovementCounter = 0; // for sending mouse movement events at a slower interval

int pressThreshold;
int releaseThreshold;
boolean inputChanged;

int mouseHoldCount[NUM_INPUTS]; // used to store mouse movement hold data

// Pin Numbers
// input pin numbers for kickstarter production board
int pinNumbers[NUM_INPUTS] = {
  27, 25, 29, 23, 19, 21,     // top of makey makey board
  17, 14, 12, 10        // left side of female header, KEYBOARD
     // right side of female header, MOUSE
};

int pinNumbers2[NUM_OUTPUTS] = {
  9, 11, 13, 16, 18, 20,     // top of makey makey board
  22, 24, 26, 28        // left side of female header, KEYBOARD
     // right side of female header, MOUSE
};

// input status LED pin numbers
const int inputLED_a = 15;
const int inputLED_b = 8;
const int inputLED_c = 7;
const int outputK = 0;
const int outputM = 1;
byte ledCycleCounter = 0;

// timing
int loopTime = 0;
int prevTime = 0;
int loopCounter = 0;


///////////////////////////
// FUNCTIONS //////////////
///////////////////////////
void initializeArduino();
void initializeInputs();
void updateMeasurementBuffers();
void updateBufferSums();
void updateBufferIndex();
void updateInputStates();
void sendMouseButtonEvents();
void sendMouseMovementEvents();
void addDelay();
void cycleLEDs();
void danceLeds();
void updateOutLEDs();

//////////////////////
// SETUP /////////////
//////////////////////
void setup()
{
  initializeArduino();
  initializeInputs();
  danceLeds();
}

////////////////////
// MAIN LOOP ///////
////////////////////
void loop()
{
  updateMeasurementBuffers();
  updateBufferSums();
  updateBufferIndex();
  updateInputStates();
  sendMouseButtonEvents();
  sendMouseMovementEvents();
  cycleLEDs();
  updateOutLEDs();
  addDelay();
}

//////////////////////////
// INITIALIZE ARDUINO
//////////////////////////
void initializeArduino() {
#ifdef DEBUG
  Serial.begin(9600);  // Serial for debugging
#endif

  /* Set up input pins
   DEactivate the internal pull-ups, since we're using external resistors */
  for (int i=0; i<NUM_INPUTS; i++)
  {
    pinMode(pinNumbers[i], INPUT);
    digitalWrite(pinNumbers[i], LOW);
  }

  for (int i=0; i<NUM_OUTPUTS; i++)
  {
    pinMode(pinNumbers2[i], OUTPUT);
    digitalWrite(pinNumbers2[i], HIGH);
  }

  pinMode(inputLED_a, INPUT);
  pinMode(inputLED_b, INPUT);
  pinMode(inputLED_c, INPUT);
  digitalWrite(inputLED_a, LOW);
  digitalWrite(inputLED_b, LOW);
  digitalWrite(inputLED_c, LOW);

  pinMode(outputK, OUTPUT);
  pinMode(outputM, OUTPUT);
  digitalWrite(outputK, LOW);
  digitalWrite(outputM, LOW);


#ifdef DEBUG
  delay(4000); // allow us time to reprogram in case things are freaking out
#endif

  Keyboard.begin();
  Mouse.begin();
}

///////////////////////////
// INITIALIZE INPUTS
///////////////////////////
void initializeInputs() {

  float thresholdPerc = SWITCH_THRESHOLD_OFFSET_PERC;
  float thresholdCenterBias = SWITCH_THRESHOLD_CENTER_BIAS/50.0;
  float pressThresholdAmount = (BUFFER_LENGTH * 8) * (thresholdPerc / 100.0);
  float thresholdCenter = ( (BUFFER_LENGTH * 8) / 2.0 ) * (thresholdCenterBias);
  pressThreshold = int(thresholdCenter + pressThresholdAmount);
  releaseThreshold = int(thresholdCenter - pressThresholdAmount);

#ifdef DEBUG
  Serial.println(pressThreshold);
  Serial.println(releaseThreshold);
#endif

  for (int i=0; i<NUM_INPUTS; i++) {
    inputs[i].pinNumber = pinNumbers[i];
    inputs[i].keyCode = keyCodes[i];

    for (int j=0; j<BUFFER_LENGTH; j++) {
      inputs[i].measurementBuffer[j] = 0;
    }
    inputs[i].oldestMeasurement = 0;
    inputs[i].bufferSum = 0;

    inputs[i].pressed = false;
    inputs[i].prevPressed = false;

    inputs[i].isMouseMotion = false;
    inputs[i].isMouseButton = false;
    inputs[i].isKey = false;

    if (inputs[i].keyCode < 0) {
#ifdef DEBUG_MOUSE
      Serial.println("GOT IT");
#endif

      inputs[i].isMouseMotion = true;
    }
    else if ((inputs[i].keyCode == MOUSE_LEFT) || (inputs[i].keyCode == MOUSE_RIGHT)) {
      inputs[i].isMouseButton = true;
    }
    else {
      inputs[i].isKey = true;
    }
#ifdef DEBUG
    Serial.println(i);
#endif

  }
}


//////////////////////////////
// UPDATE MEASUREMENT BUFFERS
//////////////////////////////
void updateMeasurementBuffers() {

  for (int i=0; i<NUM_INPUTS; i++) {

    // store the oldest measurement, which is the one at the current index,
    // before we update it to the new one
    // we use oldest measurement in updateBufferSums
    byte currentByte = inputs[i].measurementBuffer[byteCounter];
    inputs[i].oldestMeasurement = (currentByte >> bitCounter) & 0x01;

    // make the new measurement
    boolean newMeasurement = digitalRead(inputs[i].pinNumber);

    // invert so that true means the switch is closed
    newMeasurement = !newMeasurement;

    // store it
    if (newMeasurement) {
      currentByte |= (1<<bitCounter);
    }
    else {
      currentByte &= ~(1<<bitCounter);
    }
    inputs[i].measurementBuffer[byteCounter] = currentByte;
  }
}

///////////////////////////
// UPDATE BUFFER SUMS
///////////////////////////
void updateBufferSums() {

  // the bufferSum is a running tally of the entire measurementBuffer
  // add the new measurement and subtract the old one

  for (int i=0; i<NUM_INPUTS; i++) {
    byte currentByte = inputs[i].measurementBuffer[byteCounter];
    boolean currentMeasurement = (currentByte >> bitCounter) & 0x01;
    if (currentMeasurement) {
      inputs[i].bufferSum++;
    }
    if (inputs[i].oldestMeasurement) {
      inputs[i].bufferSum--;
    }
  }
}

///////////////////////////
// UPDATE BUFFER INDEX
///////////////////////////
void updateBufferIndex() {
  bitCounter++;
  if (bitCounter == 8) {
    bitCounter = 0;
    byteCounter++;
    if (byteCounter == BUFFER_LENGTH) {
      byteCounter = 0;
    }
  }
}

///////////////////////////
// UPDATE INPUT STATES
///////////////////////////
void updateInputStates() {
  inputChanged = false;
  for (int i=0; i<NUM_INPUTS; i++) {
    inputs[i].prevPressed = inputs[i].pressed; // store previous pressed state (only used for mouse buttons)
    if (inputs[i].pressed) {
      if (inputs[i].bufferSum < releaseThreshold) {
        inputChanged = true;
        inputs[i].pressed = false;
        if (inputs[i].isKey) {
          Keyboard.release(inputs[i].keyCode);
        }
        if (inputs[i].isMouseMotion) {
          mouseHoldCount[i] = 0;  // input becomes released, reset mouse hold
        }
      }
      else if (inputs[i].isMouseMotion) {
        mouseHoldCount[i]++; // input remains pressed, increment mouse hold
      }
    }
    else if (!inputs[i].pressed) {
      if (inputs[i].bufferSum > pressThreshold) {  // input becomes pressed
        inputChanged = true;
        inputs[i].pressed = true;
        if (inputs[i].isKey) {
          Keyboard.press(inputs[i].keyCode);
        }
      }
    }
  }
#ifdef DEBUG3
  if (inputChanged) {
    Serial.println("change");
  }
#endif
}

/*
///////////////////////////
 // SEND KEY EVENTS (obsolete, used in versions with pro micro bootloader)
 ///////////////////////////
 void sendKeyEvents() {
 if (inputChanged) {
 KeyReport report = {
 0                                                        };
 for (int i=0; i<6; i++) {
 report.keys[i] = 0;
 }
 int count = 0;
 for (int i=0; i<NUM_INPUTS; i++) {
 if (inputs[i].pressed && (count < 6)) {
 report.keys[count] = inputs[i].keyCode;

 #ifdef DEBUG3
 Serial.println(report.keys[count]);
 #endif

 count++;
 }
 }
 if (count > 0) {
 report.modifiers = 0x00;
 report.reserved = 1;
 Keyboard.sendReport(&report);
 }
 else {
 report.modifiers = 0x00;
 report.reserved = 0;
 Keyboard.sendReport(&report);
 }
 }
 else {
 // might need a delay here to compensate for the time it takes to send keyreport
 }
 }
 */

/////////////////////////////
// SEND MOUSE BUTTON EVENTS
/////////////////////////////
void sendMouseButtonEvents() {
  if (inputChanged) {
    for (int i=0; i<NUM_INPUTS; i++) {
      if (inputs[i].isMouseButton) {
        if (inputs[i].pressed) {
          if (inputs[i].keyCode == MOUSE_LEFT) {
            Mouse.press(MOUSE_LEFT);
          }
          if (inputs[i].keyCode == MOUSE_RIGHT) {
            Mouse.press(MOUSE_RIGHT);
          }
        }
        else if (inputs[i].prevPressed) {
          if (inputs[i].keyCode == MOUSE_LEFT) {
            Mouse.release(MOUSE_LEFT);
          }
          if (inputs[i].keyCode == MOUSE_RIGHT) {
            Mouse.release(MOUSE_RIGHT);
          }
        }
      }
    }
  }
}

//////////////////////////////
// SEND MOUSE MOVEMENT EVENTS
//////////////////////////////
void sendMouseMovementEvents() {
  byte right = 0;
  byte left = 0;
  byte down = 0;
  byte up = 0;
  int horizmotion = 0;
  int vertmotion = 0;

  mouseMovementCounter++;
  mouseMovementCounter %= MOUSE_MOTION_UPDATE_INTERVAL;
  if (mouseMovementCounter == 0) {
    for (int i=0; i<NUM_INPUTS; i++) {
#ifdef DEBUG_MOUSE
      //  Serial.println(inputs[i].isMouseMotion);
#endif

      if (inputs[i].isMouseMotion) {
        if (inputs[i].pressed) {
          if (inputs[i].keyCode == MOUSE_MOVE_UP) {
            // JL Changes (x4): now update to 1 + a hold factor, constrained between 1 and mouse max movement speed
            up=constrain(1+mouseHoldCount[i]/MOUSE_RAMP_SCALE, 1, MOUSE_MAX_PIXELS);
          }
          if (inputs[i].keyCode == MOUSE_MOVE_DOWN) {
            down=constrain(1+mouseHoldCount[i]/MOUSE_RAMP_SCALE, 1, MOUSE_MAX_PIXELS);
          }
          if (inputs[i].keyCode == MOUSE_MOVE_LEFT) {
            left=constrain(1+mouseHoldCount[i]/MOUSE_RAMP_SCALE, 1, MOUSE_MAX_PIXELS);
          }
          if (inputs[i].keyCode == MOUSE_MOVE_RIGHT) {
            right=constrain(1+mouseHoldCount[i]/MOUSE_RAMP_SCALE, 1, MOUSE_MAX_PIXELS);
          }
        }
      }
    }

    // diagonal scrolling and left/right cancellation
    if(left > 0)
    {
      if(right > 0)
      {
        horizmotion = 0; // cancel horizontal motion because left and right are both pushed
      }
      else
      {
        horizmotion = -left; // left yes, right no
      }
    }
    else
    {
      if(right > 0)
      {
        horizmotion = right; // right yes, left no
      }
    }

    if(down > 0)
    {
      if(up > 0)
      {
        vertmotion = 0; // cancel vertical motion because up and down are both pushed
      }
      else
      {
        vertmotion = down; // down yes, up no
      }
    }
    else
    {
      if (up > 0)
      {
        vertmotion = -up; // up yes, down no
      }
    }
    // now move the mouse
    if( !((horizmotion == 0) && (vertmotion==0)) )
    {
      Mouse.move(horizmotion * PIXELS_PER_MOUSE_STEP, vertmotion * PIXELS_PER_MOUSE_STEP);
    }
  }
}

///////////////////////////
// ADD DELAY
///////////////////////////
void addDelay() {

  loopTime = micros() - prevTime;
  if (loopTime < TARGET_LOOP_TIME) {
    int wait = TARGET_LOOP_TIME - loopTime;
    delayMicroseconds(wait);
  }

  prevTime = micros();

#ifdef DEBUG_TIMING
  if (loopCounter == 0) {
    int t = micros()-prevTime;
    Serial.println(t);
  }
  loopCounter++;
  loopCounter %= 999;
#endif

}

///////////////////////////
// CYCLE LEDS
///////////////////////////
void cycleLEDs() {
  pinMode(inputLED_a, INPUT);
  pinMode(inputLED_b, INPUT);
  pinMode(inputLED_c, INPUT);
  digitalWrite(inputLED_a, LOW);
  digitalWrite(inputLED_b, LOW);
  digitalWrite(inputLED_c, LOW);

  ledCycleCounter++;
  ledCycleCounter %= 6;

  if ((ledCycleCounter == 0) && inputs[0].pressed) {
    pinMode(inputLED_a, INPUT);
    digitalWrite(inputLED_a, LOW);
    pinMode(inputLED_b, OUTPUT);
    digitalWrite(inputLED_b, HIGH);
    pinMode(inputLED_c, OUTPUT);
    digitalWrite(inputLED_c, LOW);
  }
  if ((ledCycleCounter == 1) && inputs[1].pressed) {
    pinMode(inputLED_a, OUTPUT);
    digitalWrite(inputLED_a, HIGH);
    pinMode(inputLED_b, OUTPUT);
    digitalWrite(inputLED_b, LOW);
    pinMode(inputLED_c, INPUT);
    digitalWrite(inputLED_c, LOW);

  }
  if ((ledCycleCounter == 2) && inputs[2].pressed) {
    pinMode(inputLED_a, OUTPUT);
    digitalWrite(inputLED_a, LOW);
    pinMode(inputLED_b, OUTPUT);
    digitalWrite(inputLED_b, HIGH);
    pinMode(inputLED_c, INPUT);
    digitalWrite(inputLED_c, LOW);
  }
  if ((ledCycleCounter == 3) && inputs[3].pressed) {
    pinMode(inputLED_a, INPUT);
    digitalWrite(inputLED_a, LOW);
    pinMode(inputLED_b, OUTPUT);
    digitalWrite(inputLED_b, LOW);
    pinMode(inputLED_c, OUTPUT);
    digitalWrite(inputLED_c, HIGH);
  }
  if ((ledCycleCounter == 4) && inputs[4].pressed) {
    pinMode(inputLED_a, OUTPUT);
    digitalWrite(inputLED_a, LOW);
    pinMode(inputLED_b, INPUT);
    digitalWrite(inputLED_b, LOW);
    pinMode(inputLED_c, OUTPUT);
    digitalWrite(inputLED_c, HIGH);
  }
  if ((ledCycleCounter == 5) && inputs[5].pressed) {
    pinMode(inputLED_a, OUTPUT);
    digitalWrite(inputLED_a, HIGH);
    pinMode(inputLED_b, INPUT);
    digitalWrite(inputLED_b, LOW);
    pinMode(inputLED_c, OUTPUT);
    digitalWrite(inputLED_c, LOW);
  }

}

///////////////////////////
// DANCE LEDS
///////////////////////////
void danceLeds()
{
  int delayTime = 50;
  int delayTime2 = 100;

  // CIRCLE
  for(int i=0; i<4; i++)
  {
    // UP
    pinMode(inputLED_a, INPUT);
    digitalWrite(inputLED_a, LOW);
    pinMode(inputLED_b, OUTPUT);
    digitalWrite(inputLED_b, HIGH);
    pinMode(inputLED_c, OUTPUT);
    digitalWrite(inputLED_c, LOW);
    delay(delayTime);

    //RIGHT
    pinMode(inputLED_a, INPUT);
    digitalWrite(inputLED_a, LOW);
    pinMode(inputLED_b, OUTPUT);
    digitalWrite(inputLED_b, LOW);
    pinMode(inputLED_c, OUTPUT);
    digitalWrite(inputLED_c, HIGH);
    delay(delayTime);


    // DOWN
    pinMode(inputLED_a, OUTPUT);
    digitalWrite(inputLED_a, HIGH);
    pinMode(inputLED_b, OUTPUT);
    digitalWrite(inputLED_b, LOW);
    pinMode(inputLED_c, INPUT);
    digitalWrite(inputLED_c, LOW);
    delay(delayTime);

    // LEFT
    pinMode(inputLED_a, OUTPUT);
    digitalWrite(inputLED_a, LOW);
    pinMode(inputLED_b, OUTPUT);
    digitalWrite(inputLED_b, HIGH);
    pinMode(inputLED_c, INPUT);
    digitalWrite(inputLED_c, LOW);
    delay(delayTime);
  }

  // WIGGLE
  for(int i=0; i<4; i++)
  {
    // SPACE
    pinMode(inputLED_a, OUTPUT);
    digitalWrite(inputLED_a, HIGH);
    pinMode(inputLED_b, INPUT);
    digitalWrite(inputLED_b, LOW);
    pinMode(inputLED_c, OUTPUT);
    digitalWrite(inputLED_c, LOW);
    delay(delayTime2);

    // CLICK
    pinMode(inputLED_a, OUTPUT);
    digitalWrite(inputLED_a, LOW);
    pinMode(inputLED_b, INPUT);
    digitalWrite(inputLED_b, LOW);
    pinMode(inputLED_c, OUTPUT);
    digitalWrite(inputLED_c, HIGH);
    delay(delayTime2);
  }
}

void updateOutLEDs()
{
  boolean keyPressed = 0;
  boolean mousePressed = 0;

  for (int i=0; i<NUM_INPUTS; i++)
  {
    if (inputs[i].pressed)
    {
      if (inputs[i].isKey)
      {
        keyPressed = 1;
#ifdef DEBUG
        Serial.print("Key ");
        Serial.print(i);
        Serial.println(" pressed");
#endif
      }
      else
      {
        mousePressed = 1;
      }
    }
  }

  if (keyPressed)
  {
    digitalWrite(outputK, HIGH);
    //TXLED1;
  }
  else
  {
    digitalWrite(outputK, LOW);
    //TXLED0;
  }

  if (mousePressed)
  {
    digitalWrite(outputM, HIGH);
    //RXLED1;
  }
  else
  {
    digitalWrite(outputM, LOW);
    //RXLED0;
  }
}

#include "Arduino.h"

/*
/////////////////////////////////////////////////////////////////////////
// KEY MAPPINGS: WHICH KEY MAPS TO WHICH PIN ON THE Michi BOARD? //
/////////////////////////////////////////////////////////////////////////

  - edit the keyCodes array below to change the keys sent by the Michi for each input
  - the comments tell you which input sends that key (for example, by default 'w' is sent by pin D5)
  - change the keys by replacing them. for example, you can replace 'w' with any other individual letter,
    number, or symbol on your keyboard
  - you can also use codes for other keys such as modifier and function keys (see the
    the list of additional key codes at the bottom of this file)

*/

int keyCodes[NUM_INPUTS] = {
  // top side of the michi board

  KEY_UP_ARROW,      // up arrow pad
  KEY_DOWN_ARROW,    // down arrow pad
  KEY_LEFT_ARROW,    // left arrow pad
  KEY_RIGHT_ARROW,   // right arrow pad
  ' ',               // space button pad
  MOUSE_LEFT,        // click button pad

  // female header on the back left side

  'w',                // pin D5
  'a',                // pin D4
  's',                // pin D3
  'd',                // pin D2
};

///////////////////////////
// NOISE CANCELLATION /////
///////////////////////////
#define SWITCH_THRESHOLD_OFFSET_PERC  5    // number between 1 and 49
                                           // larger value protects better against noise oscillations, but makes it harder to press and release
                                           // recommended values are between 2 and 20
                                           // default value is 5

#define SWITCH_THRESHOLD_CENTER_BIAS 55   // number between 1 and 99
                                          // larger value makes it easier to "release" keys, but harder to "press"
                                          // smaller value makes it easier to "press" keys, but harder to "release"
                                          // recommended values are between 30 and 70
                                          // 50 is "middle" 2.5 volt center
                                          // default value is 55
                                          // 100 = 5V (never use this high)
                                          // 0 = 0 V (never use this low


/////////////////////////
// MOUSE MOTION /////////
/////////////////////////
#define MOUSE_MOTION_UPDATE_INTERVAL  35   // how many loops to wait between
                                           // sending mouse motion updates

#define PIXELS_PER_MOUSE_STEP         4     // a larger number will make the mouse
                                           // move faster

#define MOUSE_RAMP_SCALE              150  // Scaling factor for mouse movement ramping
                                           // Lower = more sensitive mouse movement
                                           // Higher = slower ramping of speed
                                           // 0 = Ramping off

#define MOUSE_MAX_PIXELS              10   // Max pixels per step for mouse movement

/*

///////////////////////////
// ADDITIONAL KEY CODES ///
///////////////////////////

- you can use these codes in the keyCodes array above
- to get modifier keys, function keys, etc

KEY_LEFT_CTRL
KEY_LEFT_SHIFT
KEY_LEFT_ALT
KEY_LEFT_GUI
KEY_RIGHT_CTRL
KEY_RIGHT_SHIFT
KEY_RIGHT_ALT
KEY_RIGHT_GUI

KEY_BACKSPACE
KEY_TAB
KEY_RETURN
KEY_ESC
KEY_INSERT
KEY_DELETE
KEY_PAGE_UP
KEY_PAGE_DOWN
KEY_HOME
KEY_END
KEY_CAPS_LOCK

KEY_F1
KEY_F2
KEY_F3
KEY_F4
KEY_F5
KEY_F6
KEY_F7
KEY_F8
KEY_F9
KEY_F10
KEY_F11
KEY_F12

*/

Credits

Andres Sabas

50 projects • 50 followers

Co-Founder of The Inventor's House Hackerspace, DIY, Workaholic

Contact

Getting started: Michi

Things used in this project

Hardware components

Software apps and online services

Story

How does it work?

What materials work with Michi?

What I can do?

Download Arduino IDE

Installation Instructions

For RP2040 Version

Schematics

Michi Repository

Code

michi.ino

settings.h

Credits

Andres Sabas

Eric Chavez

Comments

Embed the widget on your own site

Getting started: Michi

Getting started: Michi

Things used in this project

Hardware components

Software apps and online services

Story

How does it work?

What materials work with Michi?

What I can do?

Download Arduino IDE

Installation Instructions

For RP2040 Version

Schematics

Michi Repository

Code

michi.ino

settings.h

Credits

Andres Sabas

Eric Chavez

Comments

Related channels and tags
