GERBER PCB:
https://mega.nz/file/mZhX3Qgb#NIAaueqXmzOZNx2rcIKwzBzefwt4yAR39wrC0WacgBk
SCHEMATIC DIAGRAMThis schematic diagram was made in the PROTEUS V8.12 program, it is a very professional simulator and design software.

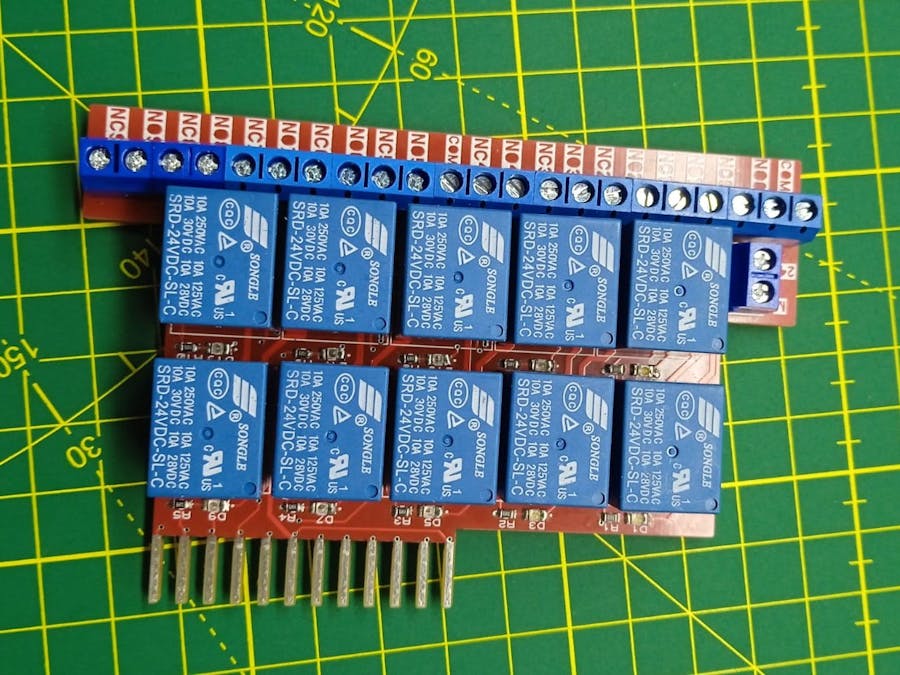

The operation is easy when an output or several outputs of the PLC are activated at the same time, they will activate our RELAYS. We have the same number of outputs as our PLC but improved in that we can conduct more current in its terminals and you have 2 states: normally open and normally closed. Opposite case of our PLC that only has normally open and conducts less current for the activation of a load.
Each relay has a signal led that will tell me when a relay is activated and its states change. These relays are being controlled by the internal voltage of the PLC that works at 24VDC.
- 10 RELAYS 5 PIN 24VDC
- 10 RES 0805 3K
- 10 DIODO LED 0805 GREEN
- 10 DIODO SMD 1N4148
- 6 BLOCK TERMINAL 3PIN BLUE
- 3 BLOCK TERMINAL 2PIN BLUE
- 1 PCB
Supply voltage 24VDC
Current consumption max 70mA
Relay Outputs (NO & NC)10
AC load 220 VAC / 10A
DC load 30VDC / 10A
Indicator Leds Yes
PROTEUSThe design of the schematic diagram and design of the PCB have been carried out in the PROTEUS V8.12 software in the images we can see the 3D images of both sides
Once the pcb is designed, we will send our friends from JLCPCB to manufacture our PCB.
5pcbs only $2
JLCPCB number 1 PCB manufacturing company worldwide professional pcbs and excellent finish.
GERBER PCB:
https://mega.nz/file/mZhX3Qgb#NIAaueqXmzOZNx2rcIKwzBzefwt4yAR39wrC0WacgBk
you can get your pcbs in different sizes and colors.
