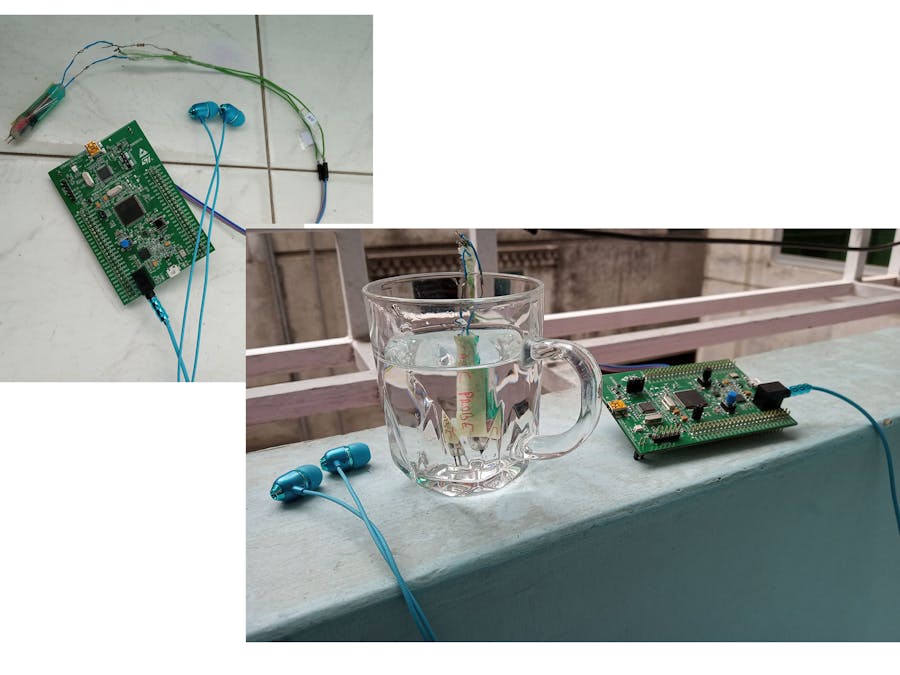

Water Purification Testing Device for Blind Person

Summary

A portable device for visually impaired persons, which helps them to determine the purification level of drinking water is presented. Without water lives won’t be exists means that water is life. The lifestyle of visually impaired person or blind people are too much challenging compared to normal people. We cannot say that, nobody can find a trouble-ness day for them. Due to their blindness they are facing huge troubles throughout their life. Smart and mobile devices are always trying to reduce their trouble-ness. In this project we present a smart device for them for determining the purity level of drinking water based on conductivity properties.

Introduction

The world is harsh for everyone but it is more difficult for persons with physical short comings. Vision Impairment is one of such a kind physical disability that many people have around the world. According to the World Health Organization(WHO), there are 253 million people living in the globe with some sort of vision impairment and around 1.1 billion people have near-vision impairment [1]. Among them 36 million are totally blind and rest of them are suffering moderate type of vision impairment [1]. Around 81 percent visually impaired people are aged 50 to above and 19 million people are suffering vision impairment whose age are less than 15 years [2]. They are facing huge amount of troubles in their daily lives, due to their blindness. They have full of emotional distress and pain [3]. Jobs sectors are not welcoming them. In Ireland only 16% of blind people are working. 41.36% and 33% blind people respectively goes for work in United Kingdom, Australia and Canada [4]. The numbers are much lower in developing countries in South Asian region.

System Description

The system collect the conductivity information of the water by using the Electrical conductivity probe. Based on the conductivity measurement we determine the water quality. The water quality is determined by comparing the conductivity readings with standard readings (REF). An audio message is has played according to the quality level of water. This device is helpful for bind person for determining the quality level of drinking water.

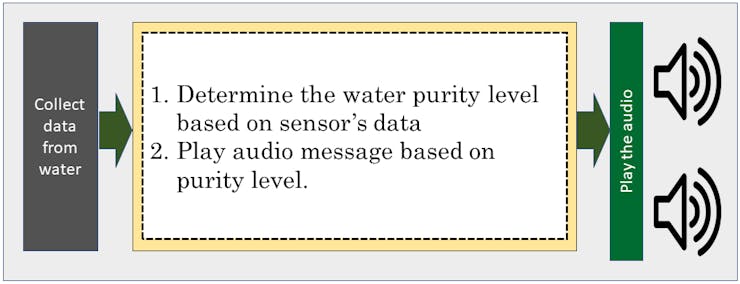

The Block diagram of the portable system is given bellow:

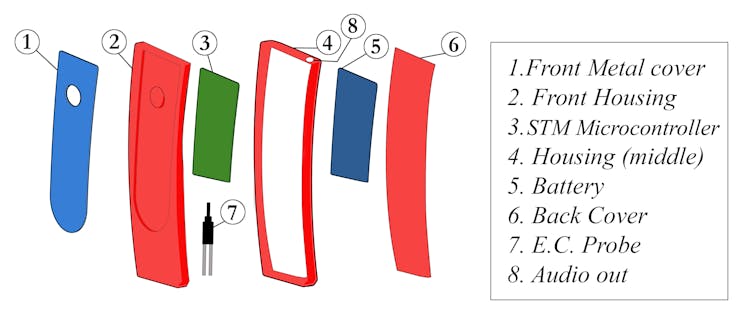

Building the Device

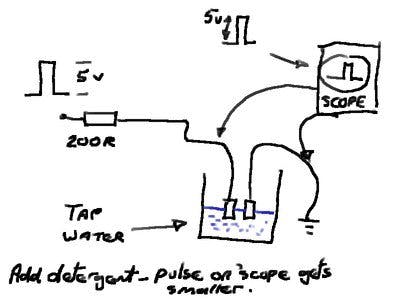

The main part of the device is the conductivity probe. we have developed our own conductivity probe. The probe measures the conductivity of water. From the conductivity value, we determine the TDS value. The mathematical calculation of TDS value is given bellow:

From Volatge divider rule we know:

V out = (R2 × V in)/ (R1 + R2)

Here Vout is voltage drop across our known valued resistor R1 and Vin is input voltage which is 5V in our case. 5V is produced by microcontroller's output pin. If we substitute Vin from Vout we can get the voltage drop across the water. Now we can determine the resistances of water from voltage divider rule, which give us the resistance of water in Ohm.

R2 = (R1 × V out) /(V in − V out)

We know conductivity is reciprocal to Ohm now we can get the conductivity in unit of micro-Siemens/cm.

microSiemens =  (1.0 / (resistance / 1000000))

From micro-Siemens we can now get TDS which formula is

TDS =  (500 × microSiemens) / 1000

Here TDS factor or ppm (Parts Per Million) is 0.5 or known as TDS/PPM 500. TDS 640, 700 is used for other types of solution. For example ppm 640 is used for KCl based solution. 500 is for mainly for NaCl solution which is applicable for drinking water.

TDS Calculation Algorithm

• Step 1: Start
• Step 2: Set Input and Output Pin
• Step 3: Output 5V from microcontroller to EC probe
• Step 4: Get the voltage drop from resistor via Input pin
• Step 6: Calculate voltage drop in water using voltage divider rule
• Step 7: Calculate the resistance
• Step 8: Calculate conductivity in micro-Siemens/cm from resistance
• Step 9: Calculate TDS from conductivity
• Step 10: Take proper decision based on TDS value
• Step 11: Play audio message respect to TDS value

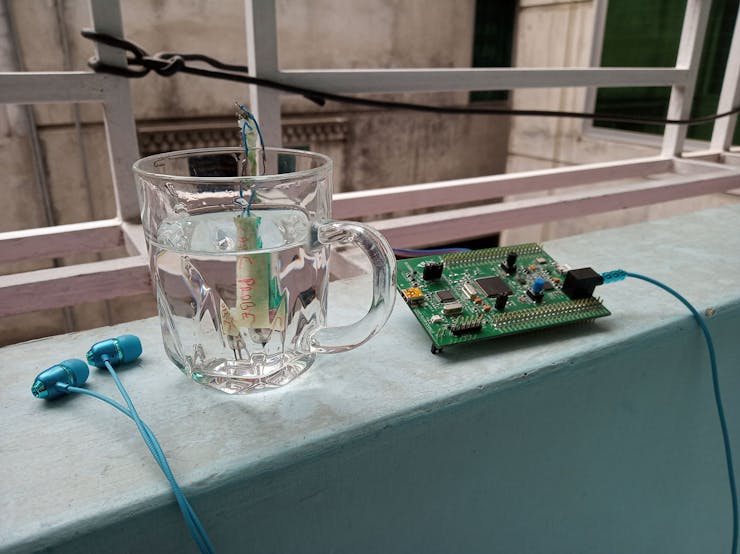

The probe and button is connected with Discovery board. The button handle the interrupts; measurement is done by pressing the button otherwise no measurement is performed. Lithium cell battery is used here as a primary power source.

Preparing the Development Environment (IDE)

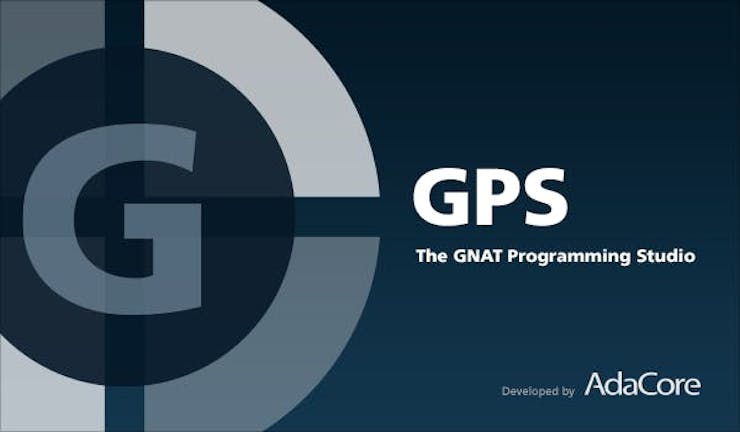

Flashing the discovery board by using the Ada programming language. To get started with the programming you need to install the discovery board drivers and GPS IDE with GNAT Community Edition. please refer the online manual for more details.

Publication

This project is the modified version of our previous publication given bellow:

Citation
@article{UDDIN2018,title = {Design and development of smart water purification level tester for visually impaired person},journal = {Proceedings of 2018 the 8th International Workshop on Computer Science and Engineering, WCSE 2018},year = {2018},pages = {818-822},author = {Uddin, M.S. and Olip, A.H. and Khabbab Hossain Tusher, Md.}}
