Measurement Of A Cistern Volume With An Ultrasonic Sensor

An IoT device that can help watch the water level of your cistern.

BeginnerWork in progress1,728

Measurement Of A Cistern Volume With An Ultrasonic Sensor

Things used in this project

Hardware components

Arduino Nano R3

Arduino Nano Ethernet Shield

Ultrasonic Sensor - HC-SR04 (Generic)

Software apps and online services

Arduino IDE

ThingSpeak API

Story

The Idea:

The ultrasonic is reflecting by the water and so the ultrasonic can measure the distance from its position to the watersurface.

Sensor:

You need only one: the ultrasonic sensor.

I used this one

Other components needed:

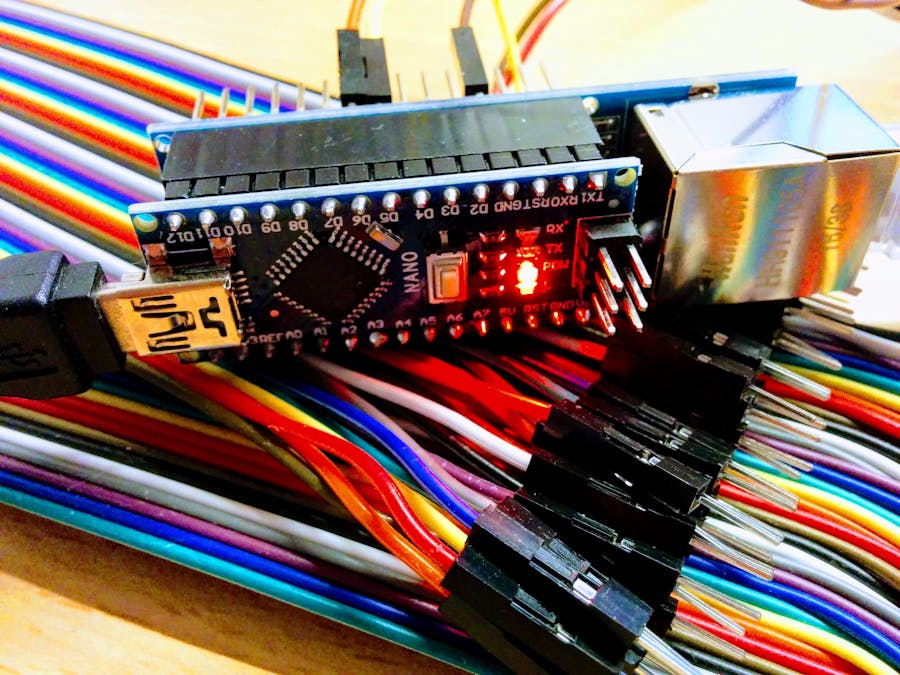

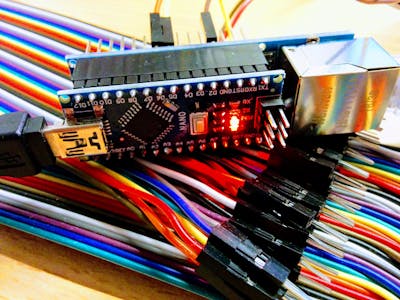

You need a Arduino Nano and a Ethernet Shield for the Arduino Nano. Alternative you can use a Arduino Uno and a matching Ethernet Shield.

ATTENTION: When you use the Arduino Uno, the <UIPEthernet.h> header must changed in <Ethernet.h> instead.

Code:

For you to use my code, some changes are necessary. First getting an write API Key from Thingspeak.com and write this key instead of mine.

Maybe you can define a sleeping interval and post it on hackster.io, I am interested.

Arduino Code

#include <stdint.h>
#include <UIPEthernet.h>
#define SENDEINTERVALL 118

const char* server = "api.thingspeak.com";
String apiKey = "XXXXXXXXXXX";

uint8_t senden_erlaubt = 0;
uint8_t zaehler = SENDEINTERVALL;
uint8_t trigger = 5;
uint8_t echo = 6;
float abstand = 0.0;
float sendewert = 3000.0;

uint32_t sent = 0;
uint32_t failed = 0;

// **** ETHERNET Einstellungen ****
byte mac[] = { 0x00, 0x78, 0x35, 0xC9, 0xF2, 0x3A  };
EthernetClient client;

void setup()
{
  Serial.begin(9600);

  Ethernet.begin(mac);

  pinMode(trigger, OUTPUT);
  pinMode(echo, INPUT);
  Serial.println("Ultraschallmessung:");
  Serial.println("Messung laeuft...");
}

void loop()
{
  delay(1000);
  zaehler--;
  if(zaehler <= 5)
  {
    ultrasonic();
  }
  if(zaehler <= 0)
  {
    sendtoThingSpeak();
    zaehler = SENDEINTERVALL;
  }
}

void ultrasonic()
{
  float dauer = 0.0;

  digitalWrite(trigger, LOW);
  delay(5);
  digitalWrite(trigger, HIGH);
  delay(10);
  digitalWrite(trigger, LOW);

  dauer = pulseIn(echo, HIGH);

  abstand = (dauer/2) * 0.03432; // in cm

  if (abstand >= 500 || abstand <= 0)
  {
    Serial.println("Kein Messwert");
    Serial.println(abstand);
  }
  else
  {
    senden_erlaubt = 1;
    sendewert = abstand;
    Serial.print(abstand);
    Serial.println(" cm");
  }
}

void sendtoThingSpeak()
{
  int ConnectionStatus = 0;

  if(senden_erlaubt == 1)
  {
    client.stop();
    do
    {
      ConnectionStatus = client.connect(server, 80);
      if (ConnectionStatus == 1)
      {
        Serial.println("LAN Client connected.");

        String postStr = apiKey;
        postStr += "&field1=";
        postStr += String(sendewert);

        client.print("POST /update HTTP/1.1\n");
        client.print("Host: api.thingspeak.com\n");
        client.print("Connection: close\n");
        client.print("X-THINGSPEAKAPIKEY: " + apiKey + "\n");
        client.print("Content-Type: application/x-www-form-urlencoded\n");
        client.print("Content-Length: ");
        client.print(postStr.length());
        client.print("\n\n");
        client.println(postStr);

        delay(1000);
        sent++;
        Serial.println(sent);
        Serial.println(sendewert);
      }
      else
      {
        Serial.println("connection failed: " + ConnectionStatus);
        failed++;
      }
      client.flush();
      client.stop();
    }
    while(ConnectionStatus != 1 && failed < 10);
    senden_erlaubt = 0;
    failed = 0;
  }
  else
  {
    Serial.println("Messfehler: Senden nicht freigegeben");
  }
}
