Alert System: Kid Opening the Fridge - SMS

Capstone project

Temperature detector : it gives you an alert whenever the temperature inside a fridge rises above 20 degree(approx)

Components required: a power source, Bolt WiFi module and an LM35

Build the setup using the above parts. Make it work using the codes provide below and obtain a graph.

For the code, use temp as the variable name and write the following code to get a graph:

setChartLibrary('google-chart');

setChartType('lineGraph');

plotChart("time_stamp","temp");

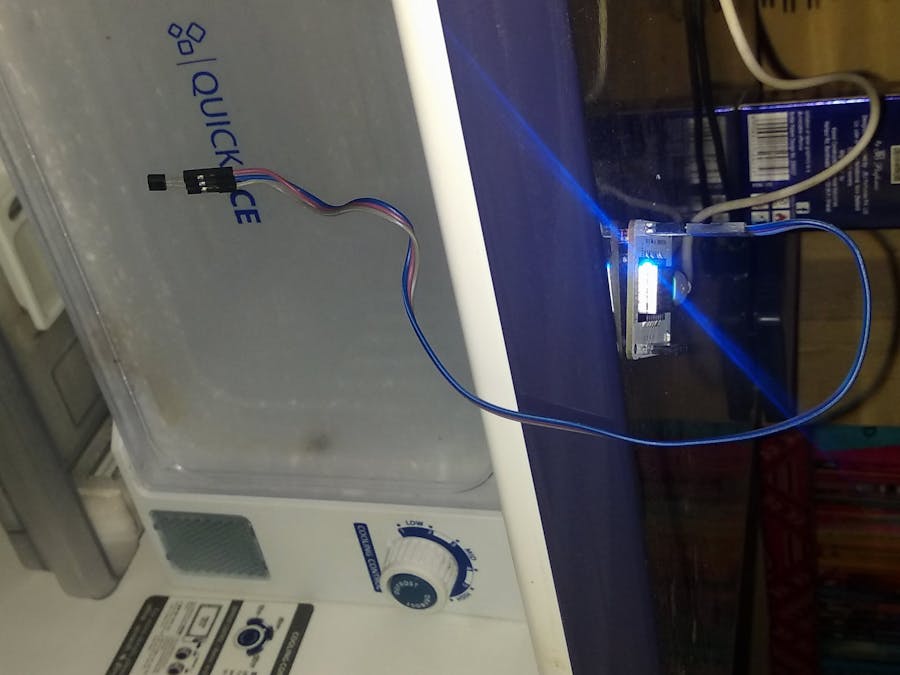

Now, install the system in the fridge:

From there, observe the graph for limits of the alert system. Here is my graph:

This graph shows that after 1 hr, the door was opened once.

This graph shows that after 2 hours, the door was opened twice.

From the graphs, the limits I put was 50 and 200.

Below is the Python code for receiving an alert message on your phone or via email:

import email_conf

from boltiot import Email, Bolt

import json, time

minimum_limit= 300 #the minimum threshold of light value

maximum_limit= 600 #the maximum threshold of light value

mybolt= Bolt(email_conf.API_KEY, email_conf.DEVICE_ID)

mailer= Email(email_conf.MAILGUN_API_KEY, email_conf.SANDBOX_URL,email_conf.SENDER_EMAIL, email_conf.RECIPIENT_EMAIL)

while True:

print ("Reading sensor value")

response = mybolt.analogRead('A0')

data = json.loads(response)

print ("Sensor value is: " + str(data['value']))

try:

sensor_value = int(data['value'])

if sensor_value > maximum_limit or sensor_value <minimum_limit:

print("Making request to Mailgun to send an email")

response =mailer.send_email("Alert", "The Current temperature sensor valueis " +str(sensor_value))

response_text = json.loads(response.text)

print("Response received from Mailgun is: " + str(response_text['message']))

except Exception as e:

print ("Error occured: Below are the details")

print (e)

time.sleep(10)

now , forthe z score analysis the python code will be

import conf, json, time, math, statistics
from boltiot import Sms, Bolt
def compute_bounds(history_data,frame_size,factor):
   if len(history_data)<frame_size :
       return None
   if len(history_data)>frame_size :
       del history_data[0:len(history_data)-frame_size]
   Mn=statistics.mean(history_data)
   Variance=0
   for data in history_data :
       Variance += math.pow((data-Mn),2)
   Zn = factor * math.sqrt(Variance / frame_size)
   High_bound = history_data[frame_size-1]+Zn
   Low_bound = history_data[frame_size-1]-Zn
   return [High_bound,Low_bound]
mybolt = Bolt(conf.API_KEY, conf.DEVICE_ID)
sms = Sms(conf.SSID, conf.AUTH_TOKEN, conf.TO_NUMBER, conf.FROM_NUMBER)
history_data=[]
while True:
   response = mybolt.analogRead('A0')
   data = json.loads(response)
   if data['success'] != 1:
       print("There was an error while retriving the data.")
       print("This is the error:"+data['value'])
       time.sleep(10)
       continue
   print ("This is the value "+data['value'])
   sensor_value=0
   try:
       sensor_value = int(data['value'])
   except e:
       print("There was an error while parsing the response: ",e)
       continue
   bound = compute_bounds(history_data,conf.FRAME_SIZE,conf.MUL_FACTOR)
   if not bound:
       required_data_count=conf.FRAME_SIZE-len(history_data)
       print("Not enough data to compute Z-score. Need ",required_data_count," more data points")
       history_data.append(int(data['value']))
       time.sleep(10)
       continue
   try:
       if sensor_value > bound[0] :
           print ("The light level increased suddenly. Sending an SMS.")
           response = sms.send_sms("Someone turned on the lights")
           print("This is the response ",response)
       elif sensor_value < bound[1]:
           print ("The light level decreased suddenly. Sending an SMS.")
           response = sms.send_sms("Someone turned off the lights")
           print("This is the response ",response)
       history_data.append(sensor_value);
   except Exception as e:
       print ("Error",e)
   time.sleep(10)

Thus, the capstone project is complete with all the objectives.
