SENSE : Smart Breath Analysis Device (A Smart Breathalyzer)

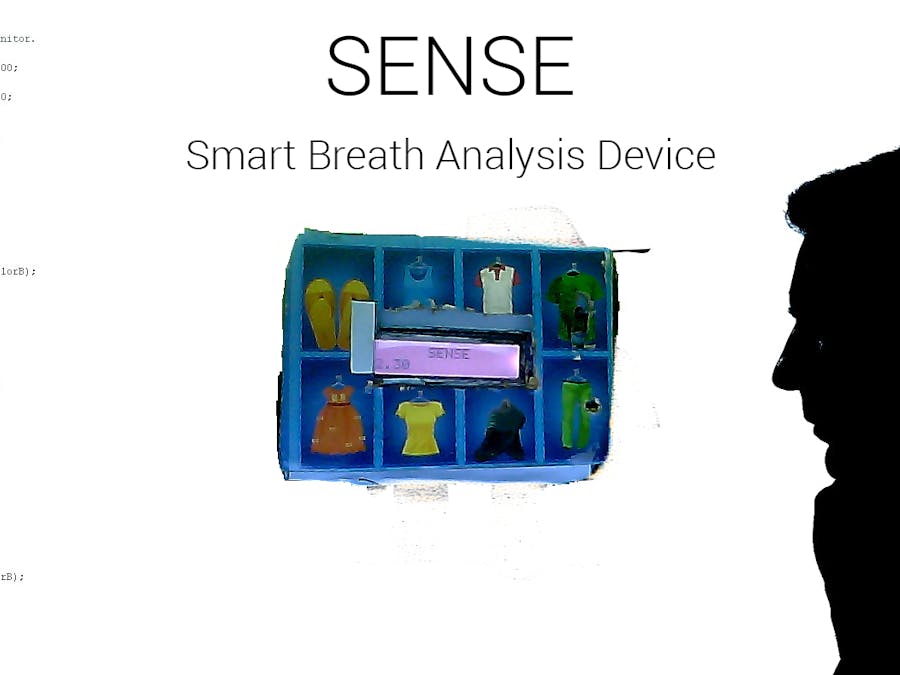

SENSE is a Smart Open Source Breath Analysis Device that can accurately predict the blood alcohol levels in your breath!

AdvancedFull instructions provided2,219
SENSE : Smart Breath Analysis Device (A Smart Breathalyzer)

Things used in this project

Hardware components

Grove Starter Kit for LinkIt ONE
Seeed Studio Grove Starter Kit for LinkIt ONE
×1
Seeed Studio Grove Alcohol Sensor
×1

Software apps and online services

AWS Cognito
Amazon Web Services AWS Cognito

Story

Read more

Custom parts and enclosures

Sense 3D Box Design

Schematics

Creating of Amazon AWS Free Account

You can use Amazon AWS for receiving and logging the breathalyzer data.
File missing, please reupload.

Code

Arduino Source Code

Arduino
/*
 * Sense : Smart
 * Author : Geeve George
*/

#define ALCOHOL_DAT A0
#define HEATER_SEL  A1

#include<Wire.h>
#include "rgb_lcd.h"

rgb_lcd lcd;

int colorR = 10;
int colorG = 10;
int colorB = 10;
int BuzzerPin = 7;


void setup()
{


    lcd.begin(16, 2);

    lcd.setRGB(colorR, colorG, colorB);



  Serial.begin(9600);  // open the serial port at 9600 bps
  pinsInit();
  switchOnHeater();
  Serial.println("Start to heat the sensor, please wait 5~10min befor exposure to alcohol");
  pinMode(BuzzerPin,OUTPUT);

}
void loop()
{



  int sensorValue;
  sensorValue = analogRead(ALCOHOL_DAT); //read the analog value
  int value = 1023 - sensorValue;
  //Disply the results in serial monitor.

 float percent = value / 1024.0 * 100;
  // round to two decimals
  percent = floor(percent*100) / 100;


    float recal = fabs(percent-10);


    if(recal>42)
    {

      colorR = 255;
      colorG = 0;
      colorB = 0;
        lcd.setRGB(colorR,colorG,colorB);
        delay(30);

      lcd.clear();
      lcd.print("Vapor Detected");
      lcd.setCursor(0,1);
      lcd.print(recal);
      lcd.print("%");
      digitalWrite(BuzzerPin,HIGH);
      delay(100);
      digitalWrite(BuzzerPin,LOW);

    }


    else
    {
      digitalWrite(BuzzerPin,LOW);
      colorR = 5;
      colorG = 5;
      colorB = 5;
      lcd.setRGB(colorR,colorG,colorB);
    lcd.clear();
    lcd.print("      SENSE");
    lcd.setCursor(0, 1);
    lcd.print(recal);



    }




/*  Serial.print("sensor test value = ");
  //sensorValue goes down when alcohol is detected. Hence subtracting from 1023.
  Serial.println(value);
  //The information below is recommended result of the judgment
        lcd.setCursor(0, 1);

  if(value < 300) {
    Serial.println("No alcohol vapor detected");

                lcd.println("No Vapor");

              }

  else if((value > 300) && (value < 750))
{

      Serial.println("High Concentration of Alcohol detected");

                lcd.print("High ");

}
  else if(value > 750){
    Serial.println("Very high Concentration of Alcohol detected");


                lcd.print("Very");
} */

  delay(100);
}

void pinsInit()
{
  pinMode(HEATER_SEL,OUTPUT);// set the HEATER_SEL as digital output.
  switchOffHeater(); //when HEATER_SEL is set, heater is switched off.
  pinMode(ALCOHOL_DAT,INPUT);
}
/*switch on the heater of Alcohol sensor*/
void switchOnHeater()
{
  digitalWrite(HEATER_SEL,LOW);
}
/*switch off the heater of Alcohol sensor*/
void switchOffHeater()
{
  digitalWrite(HEATER_SEL,HIGH);
}

AWS Lambda Function

JavaScript
var https = require('https');

var CONFIG = {

  partner_token:          'API_TOKEN',
  token:                  'USER_TOKEN',
  user_id:    "user_id",
  serial_id:   "serial_id",

},
DATA = {};

function logData(event, context) {
  var clickType = event.clickType;
  switch(clickType.toLowerCase()) {

    }
    }
    }

  var data = {

    user_name:            CONFIG.user_name;
    sl_no:           CONFIG.dl_no;
    ,
    datalog: {},
    order_comment:                  'The data was sucesfully stored'
  };


  data = JSON.stringify(data);

  var headers = {
    'Content-Type':   'application/json',
    'Content-Length': Buffer.byteLength(data)
  };


  var req = https.request(options, function(res) {
    console.log(res.statusCode);
    if (res.statusCode == 200 || res.statusCode == 201) {
      context.succeed(event);
    } else if (context) {
      context.fail(event);
    }

    res.on('data', function (chunk) {
      console.log("" + chunk);
    });
  });

  req.write(data);
  req.end();
}

exports.handler = logData;
