Secure Sensor Streaming Over HTTPS to Azure IoT Hub

Implemented on the NodeMCU and WeMos D1 Mini ESP8266 based development boards using the Arduino Core for ESP8266 V2 now with HTTPS support.

IntermediateFull instructions provided10 hours26,444
Secure Sensor Streaming Over HTTPS to Azure IoT Hub

Things used in this project

Hardware components

NodeMCU ESP8266 Breakout Board
NodeMCU ESP8266 Breakout Board
×1
WeMos D1 Mini
×1
DHT Shield
×1
Adafruit 8x8 Led Matrix
×1
BMP180
×1
Light Dependent Resistor
×1

Software apps and online services

Microsoft Azure
Microsoft Azure
Supports Azure IoT Hubs and Event Hubs
Arduino IDE
Arduino IDE
Visual Studio 2015
Microsoft Visual Studio 2015
Community Edition and above with the Visual Micro Arduino Addin

Story

Read more

Schematics

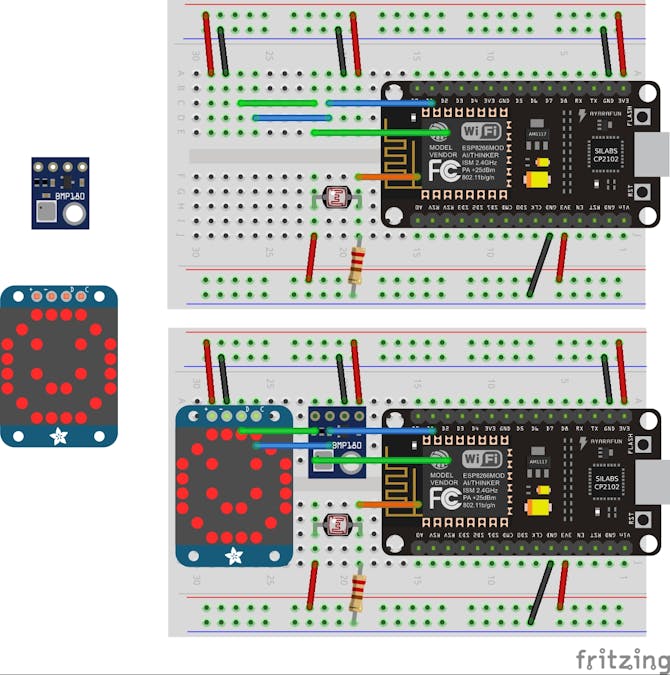

NodeMCU

Code

Publish.ino

Arduino
#include <WiFiClientSecure.h>
#include "sha256.h"
#include "Base64.h"


// Azure IoT Hub Settings
const char* TARGET_URL = "/devices/";
const char* IOT_HUB_END_POINT = "/messages/events?api-version=2015-08-15-preview";

// Azure Evet Hub settings
const char* EVENT_HUB_END_POINT = "/ehdevices/publishers/nodemcu/messages";

int expire = 1511104241;  // Expires GMT: Sun, 19 Nov 2017 15:10:41 GMT.  Todo: add expiry window - eg now plus 2 days...

String endPoint;
String fullSas;

int limit = 0; // limiter for response loop
int sendCount = 0;

WiFiClientSecure tlsClient;

const int BufferLen = 256;
char buffer[BufferLen];


void initialiseAzure(CloudMode cm){
  switch(cm){
    case IoTHub:
      initialiseIotHub();
      break;
    case EventHub:
      initialiseEventHub();
      break;
  }
}

void initialiseIotHub(){
  String url = urlEncode(cloud.host) + urlEncode(TARGET_URL) + (String)cloud.id;
  endPoint = (String)TARGET_URL + (String)cloud.id + (String)IOT_HUB_END_POINT;

  fullSas =  createIotHubSas(cloud.key, url);
}

void initialiseEventHub() {
  String url = urlEncode("https://")  + urlEncode(cloud.host) + urlEncode(EVENT_HUB_END_POINT);
  endPoint = EVENT_HUB_END_POINT;
  fullSas = createEventHubSas(cloud.key, url);
}

void connectToAzure() {
  delay(500); // give network connection a moment to settle
  Serial.print("Connecting to ");
  Serial.println(cloud.host);
  if (WiFi.status() != WL_CONNECTED) { return; }
 	if (!tlsClient.connect(cloud.host, 443)) {      // Use WiFiClientSecure class to create TLS connection
		Serial.println("Host connection failed");
		delay(5000);
	}
	else {
		Serial.println("Host connected");
    delay(250); // give network connection a moment to settle
	}
}

String createIotHubSas(char *key, String url){
  String stringToSign = url + "\n" + expire;

  // START: Create signature
  // https://raw.githubusercontent.com/adamvr/arduino-base64/master/examples/base64/base64.ino

  int keyLength = strlen(key);

  int decodedKeyLength = base64_dec_len(key, keyLength);
  char decodedKey[decodedKeyLength];  //allocate char array big enough for the base64 decoded key

  base64_decode(decodedKey, key, keyLength);  //decode key

  Sha256.initHmac((const uint8_t*)decodedKey, decodedKeyLength);
  Sha256.print(stringToSign);
  char* sign = (char*) Sha256.resultHmac();
  // END: Create signature

  // START: Get base64 of signature
  int encodedSignLen = base64_enc_len(HASH_LENGTH);
  char encodedSign[encodedSignLen];
  base64_encode(encodedSign, sign, HASH_LENGTH);

  // SharedAccessSignature
  return "sr=" + url + "&sig="+ urlEncode(encodedSign) + "&se=" + expire;
  // END: create SAS
}

String createEventHubSas(char *key, String url){
  // START: Create SAS
  // https://azure.microsoft.com/en-us/documentation/articles/service-bus-sas-overview/
  // Where to get seconds since the epoch: local service, SNTP, RTC

  String stringToSign = url + "\n" + expire;

  // START: Create signature
  Sha256.initHmac((const uint8_t*)key, 44);
  Sha256.print(stringToSign);

  char* sign = (char*) Sha256.resultHmac();
  int signLen = 32;
  // END: Create signature

  // START: Get base64 of signature
  int encodedSignLen = base64_enc_len(signLen);
  char encodedSign[encodedSignLen];
  base64_encode(encodedSign, sign, signLen);
  // END: Get base64 of signature

  // SharedAccessSignature
  return "sr=" + url + "&sig="+ urlEncode(encodedSign) + "&se=" + expire +"&skn=" + cloud.id;
  // END: create SAS
}


void publishData(SensorData data, const char *geo){
  int length;
  StaticJsonBuffer<300> jsonBuffer;
  JsonObject& root = jsonBuffer.createObject();

  preamble(root);

  root["Celsius"] = data.temperature;
  root["Humidity"] = data.humidity;
  root["hPa"] = data.pressure;
  root["Light"] = data.light;

  postamble(root);

  length = root.printTo(buffer, BufferLen);

  publishToAzure((String)buffer);
}

void preamble(JsonObject& root){
  root["Dev"] = cloud.id;
  root["Utc"] = GetISODateTime();
}

void postamble(JsonObject& root){
  root["Geo"] = cloud.geo;
  root["WiFi"] = wifiConfig.WiFiConnectAttempts;
  root["Mem"] = ESP.getFreeHeap();
  root["Id"] = sendCount++;
}

void publishToAzure(String data) {
  // https://msdn.microsoft.com/en-us/library/azure/dn790664.aspx

  String request = "POST " + endPoint + " HTTP/1.1\r\n" +
    "Host: " + cloud.host + "\r\n" +
    "Authorization: SharedAccessSignature " + fullSas + "\r\n" +
    "Content-Type: application/atom+xml;type=entry;charset=utf-8\r\n" +
    "Content-Length: " + data.length() + "\r\n\r\n" + data;

  if (!tlsClient.connected()) { connectToAzure(); }

  if (!tlsClient.connected()) { return; }

  setStatusLed(Off);

  tlsClient.print(request);

  String response = "";
  String chunk = "";
  limit = 0;

  do {
    if (tlsClient.connected()) {
      delay(5);  // give esp8266 firmware networking some time
      chunk = tlsClient.readStringUntil('\n');
      response += chunk;
    }
    limit++;
  } while (chunk.length() > 0 && limit < 100);

  Serial.print(limit);
  Serial.print(" Message ");
  Serial.print(sendCount);
  Serial.print(" Response code: ");

  if (response.length() > 12) { Serial.println(response.substring(9, 12)); }
  else { Serial.println("unknown"); }

  setStatusLed(On);
}
