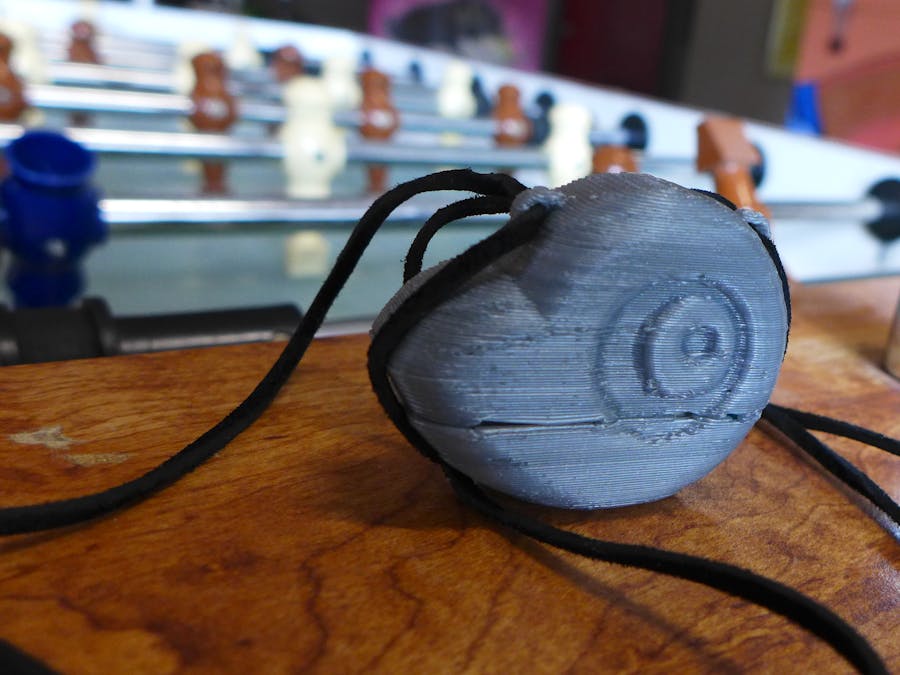

Nautilus Mind Pendant

Harness the power of hypnagogic thought!

BeginnerFull instructions provided2,164

Things used in this project

Hardware components

TinyCircuits TinyLily Mini Processor

CR2032 coin cell battery holder

Haptic motor

Switch (generic)

Story

This wearable helps you harness hypnagogia, a mental state bordering on sleep, which generates creativity and new connections.

Switch on this little device, close your eyes, and drift... Once every five minutes, a gentle vibration in your hand reminds you to come back to the waking world and record your findings. This is useful for relaxing; for sparking creativity; for problem-solving... Think of it as a gentle tether for free association.

The gadget is centered on a TinyLily, with a haptic vibration motor and a 3V battery connected to power and ground – with a toggle switch spliced into the power wire.

My haptic motor has two terminals on the end of a little orange ribbon cable (which you can see on the left side of the picture below). I soldered one directly to the GND pin on the Lily, and the other to pin 13 with a teeny bit of wire. (The tutorial by the Open Source Hardware Group explains that 13 is the left center solder pad in the middle of the board.)

1 / 2 • CR2032 coin cell

Since there are two sets of power and ground pins, I could solder on the battery holder without disrupting the motor. (This was pulled from a cool "Life Gem" circuit, built by my friend Gabe Smedresman for his Logan's Run ARG last year. Recycling FTW!)

I globbed hot glue over the exposed solder joints, for insulation and structural support.

The code is, rather obviously, just a quick mod to the Blink example function.

The enclosure is still in progress – I'm modifying one I made for the Hypnos pendant, and it's not quite the right size yet. :)

1 / 3

Code

HapticLily.ino

/*
  Blink
  Turns on an LED on for one second, then off for one second, repeatedly.

  Most Arduinos have an on-board LED you can control. On the Uno and
  Leonardo, it is attached to digital pin 13. If you're unsure what
  pin the on-board LED is connected to on your Arduino model, check
  the documentation at http://arduino.cc

  This example code is in the public domain.

  modified 8 May 2014
  by Scott Fitzgerald
 */


// the setup function runs once when you press reset or power the board
void setup() {
  // initialize digital pin 13 as an output.
  pinMode(13, OUTPUT);
}

// the loop function runs over and over again forever
void loop() {
  digitalWrite(3, HIGH);   // turn the LED on (HIGH is the voltage level)
  delay(250);              // wait for .25 seconds
  digitalWrite(3, LOW);    // turn the LED off by making the voltage LOW
  delay(300000);              // wait for 5 minutes
}

Credits

Alex Glow

149 projects • 1583 followers

The Hackster team's resident Hardware Nerd. I love robots, music, EEG, wearables, and languages. FIRST Robotics kid.
