Team GSA Owls:

•

•

•

Published May 5, 2025 © GPL3+

GSA Owls

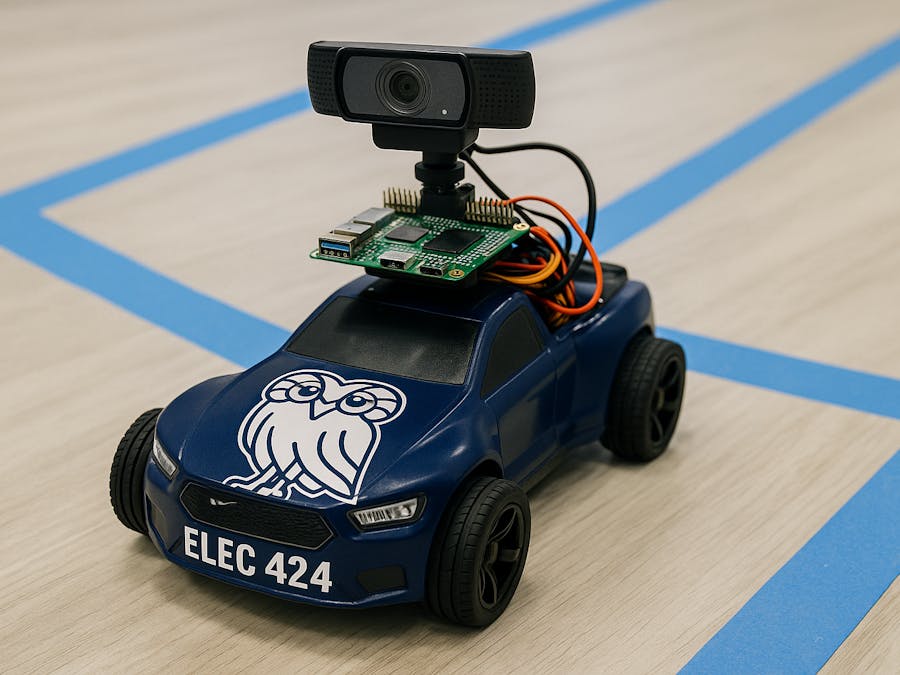

An autonomous RC car that uses a Raspberry Pi 5, computer vision, and encoder-based feedback to perform smooth lane keeping.

AdvancedShowcase (no instructions)165

Things used in this project

Hardware components

Raspberry Pi 5

Webcam, Logitech® HD Pro

52Pi Ultra Thin ICE Tower Cooler for Raspberry Pi 5

RC car

speed encoder

Adafruit RGB Backlight LCD - 16x2

Story

OverviewThis project presents an autonomous RC car, built by the GSA Owls team, capable of lane keeping, red stop sign detection, and encoder-based speed control using a Raspberry Pi 5.

We extended code from prior ELEC 424 projects and the following Instructable :https://www.instructables.com/Autonomous-Lane-Keeping-Car-Using-Raspberry-Pi-and/

PDControllerTuningWe performed parameter tuning by observing real-time system response to various gains.

Proportional Gain (Kp = 0.020) ensured the car responded quickly to deviations without overcorrecting.
Derivative Gain (Kd = 0.010) reduced oscillation, especially in turns.

The PWM output was clipped between 6.4% and 8.6% to fit the servo’s constraints.Plots of PD responses versus error confirmed stability and responsiveness during the full run

Stop Sign Handling and Object DetectionWe used OpenCV to threshold red HSV values and detect red stop paper.

When red pixels exceeded a threshold, the car stopped.
If it was the first stop, the car resumed after 3 seconds.
At the final stop, the car halted permanently.

System PlotsFigure 1

1 / 2 • Error, steering PWM, and speed PWM vs. frame number

Demonstrates how lane error triggers proportional steering changes and how speed PWM remains regulated within bounds.

Figure 2

1 / 2

Shows how the PD controller dynamically adjusts steering using both magnitude and rate of error change.

Plot of Error, Speed, Duty Cycles vs Frames

Hardware Image

Top view of the Car

Front view of the car

Demo Video

Project Demo

The demo is set up so that when the program is run, the car waits at start until the live camera feed is visible on the computer. Then the user can hit space to begin the track run. After completing the track hit ctrl+c to close the program.

Note: A similar demo (without the speed encoder) was shown to Joe, and he confirmed that it works.

TerminalOutputs

The terminal outputs our Lane error (which used by the PD controller), the steering PWM, and the speed in cm/s as measured by the speed encoder wheels.

The encoder-based speed controller driver detects both rising and falling edges of an optical encoder signal using interrupts and measures the time interval between edges with high-resolution kernel timestamps. To ensure reliable readings, it implements a 1 ms debounce filter to ignore noisy or spurious pulses. The most recent valid interval is made accessible to user space via a read-only sysfs file named speed, allowing external applications to calculate rotational speed or RPM. Additionally, the driver supports device tree integration for easy hardware configuration and portability.

1 / 3 • Terminal output at beginning of lane tracking program

LaneTracking

Typically you would use Hough lines to track both lanes to calculate your direction of travel. Our camera limits field of view and our car construction tries to compensate for that with a short tower at the front. Still the maximum view of the track is only a maximum of 18 inches using the whole frame, and typically there is a 6-12 inch blind spot in front of the car. This short range makes tracking each lane individually almost impossible, because in the corners only one lane is visible. Our solution to the limited field of view is to only track the centroid of the blue that is visible within the HSV mask. This means that as long as one lane is visible, we have a path to follow. The figures below are from preliminary code where we were testing the vision without motor control, but they demonstrate this approach nicely. This means that while our run is not centered within the lane, the centering around one of the lane lines is quite precise.

Camera View at start w/ HSV mask and centroid tracking lines

HSV masked camera view in corners w/ centroid tracking lines

ObjectDetection (video omitted due to performing live demo in the lab)

To meet the 553 requirement, we deployed YOLOv5n (320×320) for object detection and streamed labeled output to the laptop, achieving a ~5 FPS frame rate. Object detection in YOLOv5s consists of partitioning an input image into a grid and predicting class probabilities and bounding boxes directly from image features in a single pass through a neural network. The model extracts hierarchical spatial information through convolution layers. It also utilizes anchor boxes to detect objects of different sizes. During inference time, YOLOv5s returns one or more predictions for each grid cell, and these are pruned based on a confidence threshold) to prevent redundant detection. The "s" model type refers to a fast, low-complexity model designed for real-time performance. Aspects of YOLOv5s machine learning are trained across the COCO data set and generalize to common object classes.

Object detection demo

import cv2
import numpy as np
import RPi.GPIO as GPIO
import time
import os
import csv
from collections import deque

# === GPIO SETUP ===
SPEED_PIN = 18
STEERING_PIN = 19
GPIO.setmode(GPIO.BCM)
GPIO.setup(SPEED_PIN, GPIO.OUT)
GPIO.setup(STEERING_PIN, GPIO.OUT)
speed_pwm = GPIO.PWM(SPEED_PIN, 50)
steering_pwm = GPIO.PWM(STEERING_PIN, 50)
speed_pwm.start(7.5)
steering_pwm.start(7.5)

# === CONTROL PARAMETERS ===
Kp = 0.020
Kd = 0.010
last_error = 0
base_pwm = 7.5
MIN_DRIVE_PWM = 8.02
MAX_DRIVE_PWM = 8.08

# === ENCODER CONFIG ===
PPR = 20
WHEEL_RADIUS_CM = 1.19
ENCODER_PATH = "/sys/bus/platform/devices/encoder@0/speed"

def read_speed_ns():
    try:
        with open(ENCODER_PATH, "r") as f:
            val = f.read().strip()
            return int(val) if val.isdigit() else 0
    except Exception as e:
        print("Encoder read error:", e)
        return 0

def calculate_cm_per_sec(interval_ns, ppr=PPR, radius_cm=WHEEL_RADIUS_CM):
    if interval_ns <= 0:
        return 0.0
    cm_per_rev = 2 * 3.1416 * radius_cm
    pulses_per_sec = 1e9 / interval_ns
    revs_per_sec = pulses_per_sec / ppr
    return revs_per_sec * cm_per_rev

# === CAMERA SETUP ===
cap = cv2.VideoCapture(0, cv2.CAP_V4L2)
cap.set(cv2.CAP_PROP_FRAME_WIDTH, 640)
cap.set(cv2.CAP_PROP_FRAME_HEIGHT, 480)

if not cap.isOpened():
    print("Camera could not be opened.")
    exit()

print("Centering steering...")
steering_pwm.ChangeDutyCycle(7.5)
time.sleep(1.0)

print("Camera preview active. Press SPACE to start, or Q to quit.")
while True:
    ret, frame = cap.read()
    if not ret:
        print("Camera error.")
        break

    cv2.imshow("Camera Preview", frame)
    key = cv2.waitKey(1)
    if key != -1 and key & 0xFF == ord(' '):
        print("Starting lane tracking...")
        break
    elif key != -1 and key & 0xFF == ord('q'):
        print("Quitting before start.")
        cap.release()
        cv2.destroyAllWindows()
        GPIO.cleanup()
        exit()

# === Stop Sign Detection State ===
stop_counter = 0
stop_detected = False
stop_frames_between = 3
frame_count = 0
last_stop_time = 0
stop_cooldown = 15.0

# === Speed Control Timing ===
speed_control_interval = 10  # apply control every N frames
speed_history = deque(maxlen=5)

# === CSV Logging ===
log_file = open("run_log.csv", mode="w", newline="")
csv_writer = csv.writer(log_file)
csv_writer.writerow(["Frame", "Lane Error", "Speed Error", "Encoder Speed", "Steering PWM", "Speed PWM", "P Value", "D Value"])


def is_in_stop_cooldown():
    return (time.time() - last_stop_time) < stop_cooldown

# === MAIN LOOP ===
try:
    while True:
        ret, frame = cap.read()
        if not ret:
            print("Camera read failed.")
            break

        height, width = frame.shape[:2]
        roi = frame[int(height * 0.5):, :]  # Bottom half
        hsv = cv2.cvtColor(roi, cv2.COLOR_BGR2HSV)

        # === BLUE MASK FOR LANE ===
        lower_blue = np.array([100, 50, 50])
        upper_blue = np.array([130, 255, 255])
        blue_mask = cv2.inRange(hsv, lower_blue, upper_blue)
        M = cv2.moments(blue_mask)

        # === RED MASK FOR STOP SIGN ===
        lower_red1 = np.array([0, 100, 100])
        upper_red1 = np.array([10, 255, 255])
        lower_red2 = np.array([160, 100, 100])
        upper_red2 = np.array([180, 255, 255])
        red_mask1 = cv2.inRange(hsv, lower_red1, upper_red1)
        red_mask2 = cv2.inRange(hsv, lower_red2, upper_red2)
        red_mask = cv2.bitwise_or(red_mask1, red_mask2)

        current_time = time.time()
        if (
            frame_count % stop_frames_between == 0 and
            not stop_detected and
            not is_in_stop_cooldown()
        ):
            red_area = cv2.countNonZero(red_mask)
            if red_area > 500:
                stop_counter += 1
                stop_detected = True
                last_stop_time = current_time
                print(f"STOP SIGN #{stop_counter} DETECTED!")
                speed_pwm.ChangeDutyCycle(7.5)  # Stop
                time.sleep(3 if stop_counter == 1 else 9999)
                if stop_counter == 1:
                    print("Resuming after stop...")
                    speed_pwm.ChangeDutyCycle(MIN_DRIVE_PWM)
                else:
                    print("Final stop reached. Exiting.")
                    break
        else:
            stop_detected = False

        # === LANE CENTERING ===
        lane_error = 0
        steer_pwm = 7.5
        p_term = 0
        d_term = 0
        if M["m00"] > 0:
            cx = int(M["m10"] / M["m00"])
            lane_error = cx - (width // 2)
            d_error = lane_error - last_error
            p_term = Kp * lane_error
            d_term = Kd * d_error
            steer_pwm = base_pwm + p_term + d_term
            steer_pwm = max(6.4, min(8.6, steer_pwm))
            steering_pwm.ChangeDutyCycle(steer_pwm)
            last_error = lane_error

        # === SPEED MONITORING ===
        interval_ns = read_speed_ns()
        current_speed = calculate_cm_per_sec(interval_ns)
        speed_history.append(current_speed)
        avg_speed = sum(speed_history) / len(speed_history) if speed_history else 0.0

        # === SPEED CONTROL ===
        speed_error = 0.0
        drive_pwm = MIN_DRIVE_PWM
        if frame_count % speed_control_interval == 0:
            target_speed = 7.0
            speed_error = target_speed - current_speed
            drive_pwm = MIN_DRIVE_PWM + 0.03 * speed_error
            drive_pwm = max(MIN_DRIVE_PWM, min(MAX_DRIVE_PWM, drive_pwm))
            speed_pwm.ChangeDutyCycle(drive_pwm)

        print(f"Lane error: {lane_error:.2f} | Steer PWM: {steer_pwm:.2f} | Speed: {current_speed:.2f} cm/s")
        csv_writer.writerow([frame_count, lane_error, speed_error, current_speed, steer_pwm, drive_pwm, p_term, d_term])

        frame_count += 1

        cv2.imshow("Lane Tracking", frame)
        key = cv2.waitKey(1)
        if key != -1 and key & 0xFF == ord('q'):
            print("User stopped.")
            break

finally:
    print("Cleanup...")
    try:
        speed_pwm.ChangeDutyCycle(7.5)
        steering_pwm.ChangeDutyCycle(7.5)
        time.sleep(1)
        speed_pwm.stop()
        steering_pwm.stop()
        log_file.close()
    except Exception as e:
        print("PWM stop error:", e)
    finally:
        GPIO.cleanup()
        cap.release()
        cv2.destroyAllWindows()

#include <linux/kernel.h>
#include <linux/init.h>
#include <linux/platform_device.h>
#include <linux/of.h>
#include <linux/of_device.h>
#include <linux/gpio/consumer.h>
#include <linux/interrupt.h>
#include <linux/ktime.h>
#include <linux/fs.h>
#include <linux/device.h>

MODULE_LICENSE("GPL");
MODULE_AUTHOR("Student");
MODULE_DESCRIPTION("Optical Encoder Driver using GPIOD for speed measurement");

#define DEVICE_NAME "proj3,encoder-driver" // Device tree compatible string

static struct gpio_desc *encoder_gpio; // Descriptor for encoder GPIO pin
static unsigned int encoder_irq;       // IRQ number assigned to encoder GPIO

static ktime_t last_activation_time;   // Last timestamp when encoder edge occurred
static u64 last_interval_ns = 0;       // Time interval between encoder edges in nanoseconds

// Show function for sysfs file: returns last time interval in nanoseconds
static ssize_t speed_show(struct device *dev,
                          struct device_attribute *attr, char *buf)
{
    return sprintf(buf, "%llu\n", last_interval_ns);
}
static DEVICE_ATTR_RO(speed); // Read-only sysfs attribute named 'speed'

// Interrupt Service Routine for encoder edge detection
static irqreturn_t encoder_isr(int irq, void *dev_id)
{
    ktime_t now = ktime_get(); // Get current time

    // Skip first activation if not yet initialized
    if (ktime_to_ns(last_activation_time) != 0) {
        ktime_t diff = ktime_sub(now, last_activation_time); // Time since last edge
        u64 diff_ns = ktime_to_ns(diff);

        if (diff_ns > 1000000) // Debounce: ignore pulses faster than 1ms
            last_interval_ns = diff_ns; // Store interval for sysfs access
    }

    last_activation_time = now; // Update timestamp for next edge
    return IRQ_HANDLED;
}

// Probe function: runs when device is found
static int encoder_probe(struct platform_device *pdev)
{
    int ret;

    // Request GPIO descriptor from device tree
    encoder_gpio = devm_gpiod_get(&pdev->dev, NULL, GPIOD_IN);
    if (IS_ERR(encoder_gpio)) {
        dev_err(&pdev->dev, "Failed to get encoder GPIO\n");
        return PTR_ERR(encoder_gpio);
    }

    // Convert GPIO to IRQ number
    encoder_irq = gpiod_to_irq(encoder_gpio);
    if (encoder_irq < 0) {
        dev_err(&pdev->dev, "Failed to map GPIO to IRQ\n");
        return encoder_irq;
    }

    // Register ISR for both rising and falling edges
    ret = request_irq(encoder_irq, encoder_isr,
                      IRQF_TRIGGER_RISING | IRQF_TRIGGER_FALLING,
                      "encoder_irq", NULL);
    if (ret) {
        dev_err(&pdev->dev, "Failed to request IRQ\n");
        return ret;
    }

    // Create sysfs entry to expose speed value to user space
    ret = device_create_file(&pdev->dev, &dev_attr_speed);
    if (ret < 0) {
        dev_err(&pdev->dev, "Failed to create sysfs entry\n");
        return ret;
    }

    dev_info(&pdev->dev, "Encoder driver initialized\n");
    return 0;
}

// Remove function: called when device is removed
static void encoder_remove(struct platform_device *pdev)
{
    free_irq(encoder_irq, NULL); // Free the IRQ
    device_remove_file(&pdev->dev, &dev_attr_speed); // Remove sysfs file
    dev_info(&pdev->dev, "Encoder driver removed\n");
}

// Device tree match table
static const struct of_device_id encoder_of_match[] = {
    { .compatible = DEVICE_NAME },
    { }
};
MODULE_DEVICE_TABLE(of, encoder_of_match);

// Register the platform driver
static struct platform_driver encoder_driver = {
    .probe = encoder_probe,
    .remove = encoder_remove,
    .driver = {
        .name = "encoder_driver",
        .of_match_table = encoder_of_match,
    },
};

// Macro to register the platform driver at load time
module_platform_driver(encoder_driver);

import torch
import time
import cv2

# Load YOLOv5 model
model = torch.hub.load(
    repo_or_dir = '/home/pi/laneTracking/yolov5',
    model = 'yolov5s',
    source ='local',
    force_reload =True
)
model.conf = 0.5  # Confidence threshold
model.iou = 0.45  # IOU threshold
model.classes = None  # Detect all classes
model.to('cpu')  # Ensure CPU only

# Open USB webcam
cap = cv2.VideoCapture(0)
cap.set(cv2.CAP_PROP_FRAME_WIDTH, 320)
cap.set(cv2.CAP_PROP_FRAME_HEIGHT, 320)


print("Starting camera... Press 'q' to quit.")

frame_count = 0
start_time = time.time()

while cap.isOpened():
    ret, frame = cap.read()
    if not ret:
        break

    # Run detection
    results = model(frame, size=320)
    annotated_frame = results.render()[0]

    # Show frame
    cv2.imshow("YOLOv5 Webcam", annotated_frame)
    frame_count += 1

    # Break on key
    if cv2.waitKey(1) & 0xFF == ord('q'):
        break

# Compute FPS
end_time = time.time()
fps = frame_count / (end_time - start_time)
print(f"Average FPS: {fps:.2f}")

cap.release()
cv2.destroyAllWindows()

/dts-v1/;
/plugin/;

/ {
    compatible = "brcm,bcm2711"; // Target platform: Raspberry Pi 4 SoC (BCM2711)

    // First fragment configures GPIO16 as an input with no pull resistor
    fragment@0 {
        target = <&gpio>; // Target the main GPIO controller node
        __overlay__ {
            encoder_pins: encoder_pins {
                brcm,pins = <16>;       // Use GPIO pin 16
                brcm,function = <0>;    // Set as input
                brcm,pull = <0>;        // No pull-up or pull-down resistor
            };
        };
    };

    // Second fragment defines a new device node for the encoder driver
    fragment@1 {
        target-path = "/"; // Apply overlay at the root of the device tree
        __overlay__ {
            encoder: encoder@0 {
                compatible = "proj3,encoder-driver"; // Matches driver "DEVICE_NAME"
                gpios = <&gpio 16 0>;                // Use GPIO16, active-low
            };
        };
    };
};
