Just 5 min & 4 steps for voice controlled Magic using Alexa!

Flow of Command:

Voice Command -> Amazon’s Echo -> IFTTT – > Bolt IoT Cloud via API’s -> Bolt WiFi module -> LED

Here is a video of the project in action:

https://drive.google.com/file/d/1PXv-b7Jn4ylH8wlyOGGViPDkkcToShE6/view?usp=sharing

Hardware Setup:

Step 1 : Connect your Bolt WiFi module to the Bolt Cloud.

Step 2 : Connect the Longer leg (+ve) of the LED to the Pin 0 of the Bolt Wifi module and the Shorter leg (-ve) of the LED to the ground pin ( GND ), and connect the components along with the Bolt WiFi module in the power source. We can also use the Male to Male jumper wires to connect the LED and the Bolt Wifi Module with the help of the BreadBoard.

Software, Apps and Online Services

Step 1 : Login to https://cloud.boltiot.com/ and note the ID of your Bolt WiFi Module. And copy the API key.

Step 2 : We have to write the GPIO ( Genereal Purpose Input or Output ) Control Command, Since LED is a digital output device, we have to get a Digital Write command that can be sent to Bolt over the Internet to switch on the LED.

In Bolt Cloud go to Docs Tab -> API Documentation -> GPIO Commands API -> Write Digital Output. The command to turn ON the light is:

https://cloud.boltiot.com/remote/YOUR API KEY/digitalWrite?pin=0&state=HIGH&deviceName=YOUR DEVICE NAME

Similarly same command with State as LOW turns the LED OFF

Make sure to you replace the API Key and device ID which you got in the previous step. Also change the State as High or Low, for On or Off the LED.

Step 3: Go to IFTTT to create a new applet by clicking here

Integrate IFTTT via Amazon Alexa and Webhooks.

Click on ‘If This’

Choose Amazon Alexa -> Say Specific Phrase

Type the phrase you want to trigger the action. Make sure to specify the trigger command in different ways for example I used

a) Turn the living room lights ON

b) Trigger the lights ON

c) Turn OFF the lights in office

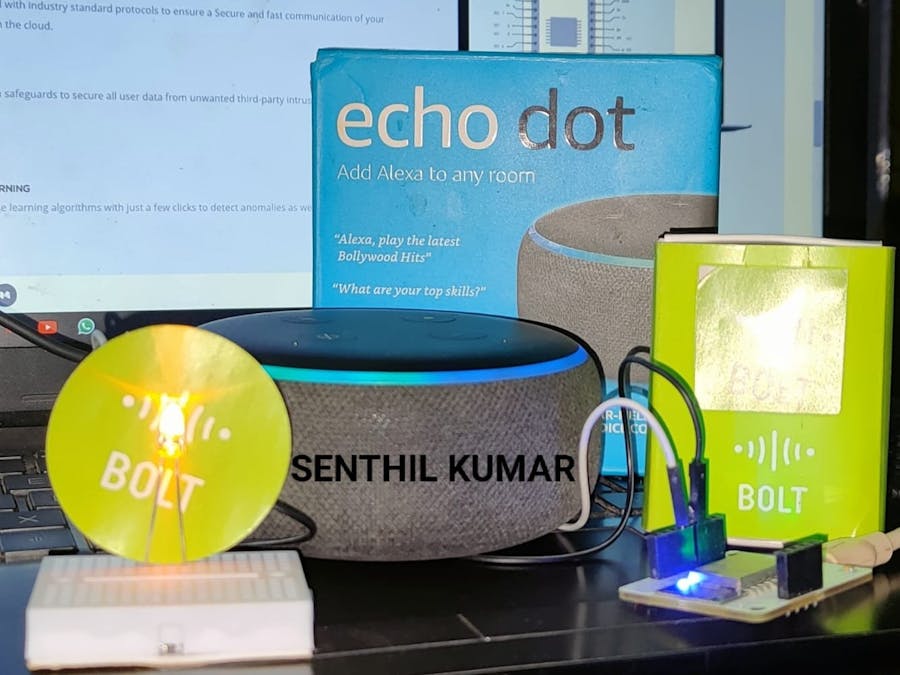

Atlast, The project is ready:

Have a look at this project, and you can control any light or other electrical appliances in your home by your voice commands in simple steps.
