The objective is to get the astronaut to safety while avoiding deadly red lasers and blue gravity wells that can pull into a blackhole!
HOW TO PLAY:- Tilt the M5stack module to move the astronaut (represented by white ball) around avoiding obstacle to reach green box
- To reset the level, press A button
- To pause/resume the game, press B button
- Have fun!
You can find more simple games for M5Stack Core2 here:
gunpowder003/M5Stack-Core2: Source code for python program for M5Stack Core2

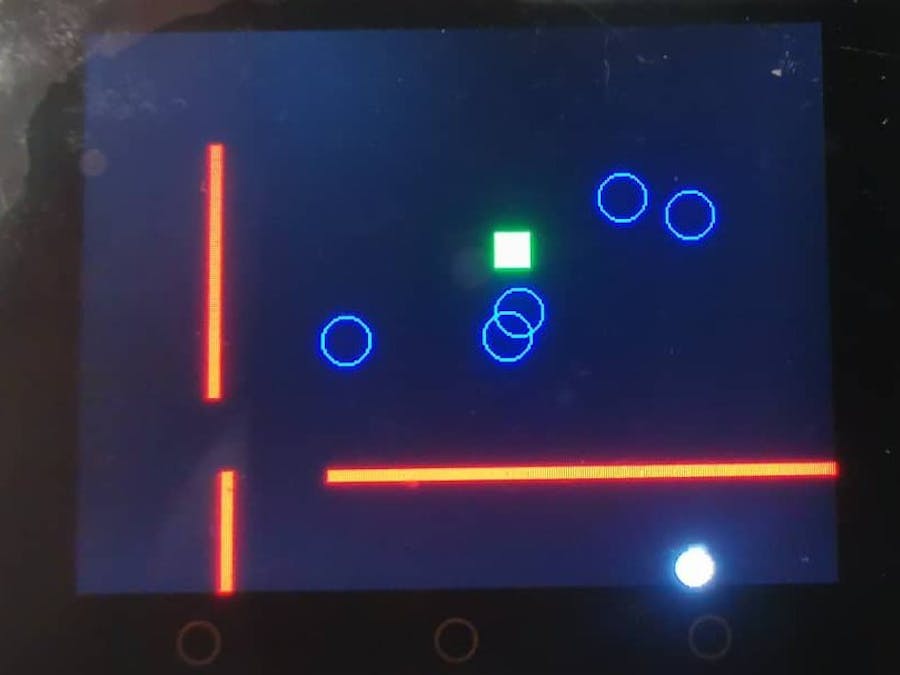

Gameplay Demo:
from m5stack import *
from m5ui import *
from uiflow import *
import imu
import random
import time
# Initialize screen and IMU
setScreenColor(0x000000)
imu0 = imu.IMU()
# Constants
SCREEN_WIDTH = 320
SCREEN_HEIGHT = 240
ASTRONAUT_SIZE = 7
GRAVITY_WELL_RADIUS = 10
GRAVITY_COVERAGE = 2 #multiplication of well radius
GRAVITY_STRENGTH = 2 #must be int. how strong gravity is acting on the astronaut once it is in coverage
LASER_WIDTH = 5
GOAL_SIZE = 15
FRICTION = 0.98 # Slow down astronaut gradually
MAX_SPEED = 5 # Prevent excessive drift
LASER_MAX_QTY = 5 #max qty laser per level
WELL_MAX_QTY = 5 #max qty laser per level
SCALING_FACTOR = 2.7 #adjust how responsive astronaut. too much will cause instability
# Game objects
astronaut_x = random.randint(0,320)
astronaut_y = random.randint(0,240)
velocity_x = 0
velocity_y = 0
prev_astronaut_x = astronaut_x
prev_astronaut_y = astronaut_y
goal_x = random.randint(20, SCREEN_WIDTH - 20)
goal_y = random.randint(20, SCREEN_HEIGHT - 20)
gravity_wells = [(random.randint(40, 280), random.randint(40, 200)) for _ in range(WELL_MAX_QTY)] #gravity well posx, posy
lasers = [(random.randint(50, 270), random.choice([50, 190]), random.randint(50, 150), random.choice(["H", "V"])) for _ in range(LASER_MAX_QTY)] # laser posx, posy, laser_length, horizontal or vertical line
def draw_static_elements():
lcd.clear(0x000000)
# Draw gravity wells
for gx, gy in gravity_wells:
lcd.circle(int(gx), int(gy), GRAVITY_WELL_RADIUS, 0x0000FF)
# Draw lasers
for lx, ly, laser_length, direction in lasers:
if direction == "H": #if line is horizontal
lcd.rect(int(lx), int(ly), laser_length, LASER_WIDTH, 0xFF0000, fillcolor=0xFF0000)
else:
lcd.rect(int(lx), int(ly), LASER_WIDTH, laser_length, 0xFF0000, fillcolor=0xFF0000)
# Draw goal hatch
lcd.rect(int(goal_x), int(goal_y), GOAL_SIZE, GOAL_SIZE, 0x00FF00, fillcolor=0x00FF00)
def erase_previous_astronaut():
lcd.circle(int(prev_astronaut_x), int(prev_astronaut_y), ASTRONAUT_SIZE, 0x000000, fillcolor=0x000000)
# Redraw static elements only if they were overlapped
for gx, gy in gravity_wells:
if ((prev_astronaut_x - gx) ** 2 + (prev_astronaut_y - gy) ** 2) ** 0.5 < GRAVITY_WELL_RADIUS:
lcd.circle(int(gx), int(gy), GRAVITY_WELL_RADIUS, 0x0000FF)
def draw_astronaut():
lcd.circle(int(astronaut_x), int(astronaut_y), ASTRONAUT_SIZE, 0xFFFFFF, fillcolor=0xFFFFFF)
def update_movement():
global astronaut_x, astronaut_y, velocity_x, velocity_y, prev_astronaut_x, prev_astronaut_y
prev_astronaut_x, prev_astronaut_y = astronaut_x, astronaut_y
# Read IMU tilt
tilt_x = -imu0.acceleration[0] # Left-right
tilt_y = imu0.acceleration[1] # Up-down
# Adjust velocity based on tilt
velocity_x += tilt_x * SCALING_FACTOR
velocity_y += tilt_y * SCALING_FACTOR
# Apply friction
velocity_x *= FRICTION
velocity_y *= FRICTION
# Limit speed
velocity_x = max(-MAX_SPEED, min(MAX_SPEED, velocity_x))
velocity_y = max(-MAX_SPEED, min(MAX_SPEED, velocity_y))
# Move astronaut
astronaut_x += int(velocity_x)
astronaut_y += int(velocity_y)
# Keep astronaut within bounds
astronaut_x = max(ASTRONAUT_SIZE, min(SCREEN_WIDTH - ASTRONAUT_SIZE, astronaut_x))
astronaut_y = max(ASTRONAUT_SIZE, min(SCREEN_HEIGHT - ASTRONAUT_SIZE, astronaut_y))
def check_collisions():
global astronaut_x, astronaut_y
# Check if astronaut reached goal
if goal_x < astronaut_x < goal_x + GOAL_SIZE and goal_y < astronaut_y < goal_y + GOAL_SIZE:
lcd.print("YOU WIN!", 120, 100, 0x00FF00)
time.sleep(2)
reset_game()
# Check if astronaut hits a laser
for lx, ly, laser_length, direction in lasers:
if direction == "H" and ly <= astronaut_y <= ly + LASER_WIDTH and lx <= astronaut_x <= lx + laser_length:
lcd.print("GAME OVER!", 120, 100, 0xFF0000)
time.sleep(2)
reset_game()
elif direction == "V" and lx <= astronaut_x <= lx + LASER_WIDTH and ly <= astronaut_y <= ly + laser_length:
lcd.print("GAME OVER!", 120, 100, 0xFF0000)
time.sleep(2)
reset_game()
# Check if astronaut hits a gravity well
for gx, gy in gravity_wells:
if gx-ASTRONAUT_SIZE <= astronaut_x <= gx+ASTRONAUT_SIZE and gy-ASTRONAUT_SIZE <= astronaut_y <= gy+ASTRONAUT_SIZE:
lcd.print("GAME OVER!", 120, 100, 0xFF0000)
time.sleep(2)
reset_game()
def check_gravity_pull():
global astronaut_x, astronaut_y
for gx, gy in gravity_wells:
if gx < astronaut_x < gx + GRAVITY_WELL_RADIUS*GRAVITY_COVERAGE and gy < astronaut_y < gy + GRAVITY_WELL_RADIUS*GRAVITY_COVERAGE:
astronaut_x -= GRAVITY_STRENGTH
astronaut_y -= GRAVITY_STRENGTH
elif gx - GRAVITY_WELL_RADIUS*GRAVITY_COVERAGE < astronaut_x < gx and gy - GRAVITY_WELL_RADIUS*GRAVITY_COVERAGE < astronaut_y < gy:
astronaut_x += GRAVITY_STRENGTH
astronaut_y += GRAVITY_STRENGTH
def reset_game():
global astronaut_x, astronaut_y, velocity_x, velocity_y, goal_x, goal_y, gravity_wells, lasers
astronaut_x = random.randint(0,320)
astronaut_y = random.randint(0,240)
velocity_x = 0
velocity_y = 0
goal_x = random.randint(20, SCREEN_WIDTH - 20)
goal_y = random.randint(20, SCREEN_HEIGHT - 20)
gravity_wells = [(random.randint(40, 280), random.randint(40, 200)) for _ in range(WELL_MAX_QTY)]
lasers = [(random.randint(50, 270), random.choice([50, 190]), random.randint(50, 150), random.choice(["H", "V"])) for _ in range(LASER_MAX_QTY)]
draw_static_elements()
def game_loop():
draw_static_elements()
while True:
erase_previous_astronaut()
update_movement()
check_collisions()
check_gravity_pull()
draw_astronaut()
wait(0.025) # 25ms refresh rate
if btnA.isPressed(): #reset game
reset_game()
if btnB.isPressed():#pause game
pause()
def pause():
wait(0.2)
while btnB.isPressed() == False:
if btnA.isPressed():
reset_game()
break
continue
wait(0.2)
# Start game
game_loop()
