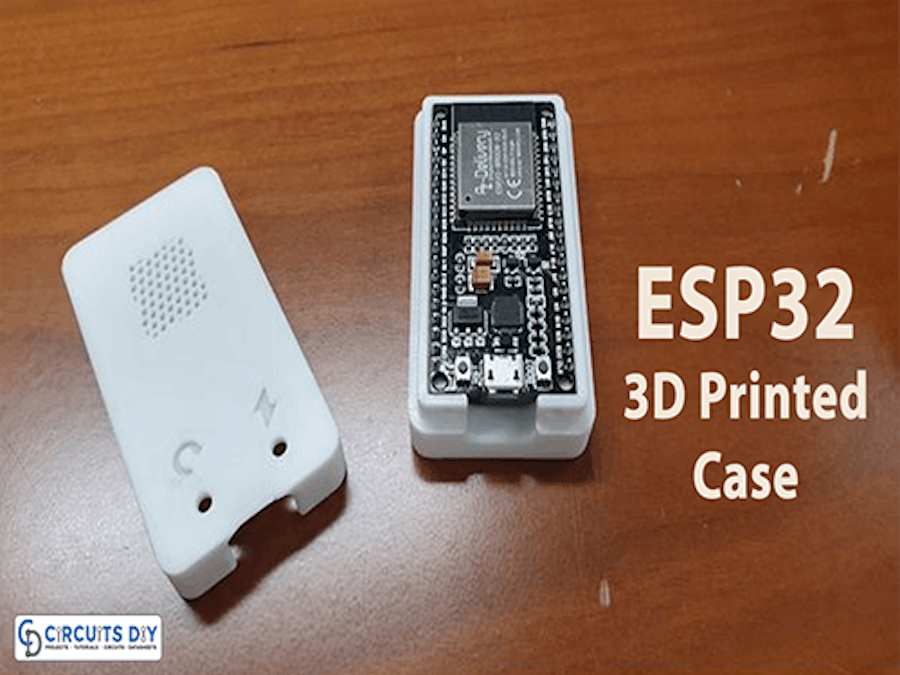

3D Printed Case for ESP32

Introduction

In the world of electronics, the ESP32 microcontroller board has gained significant popularity due to its versatility and capabilities. Whether you’re a hobbyist or a professional, having a reliable and sturdy case to house your ESP32 is essential to protect it from external factors and ensure longevity. With the advent of 3D printing technology, creating a custom-made case tailored to your specific needs has become easier than ever. In this article, we’ll explore the benefits and steps involved in designing a 3D-printed case for an ESP32 board.

Why Opt for a Custom 3D Printed Case?

While off-the-shelf cases are readily available for various electronic components, they often lack the flexibility required for specific projects. Customizing your ESP32 case offers several advantages:

• Perfect Fit: A custom 3D printed case is designed to precisely fit your ESP32 board, ensuring a snug and secure fit. This eliminates any unnecessary movement and protects your device from accidental damage.
• Cable Management: By incorporating space for soldered cables, your custom case ensures that the cables remain organized and secure. This prevents loose connections and simplifies troubleshooting.
• Design Flexibility: With 3D printing, you have the freedom to design a case that meets your aesthetic preferences and functional requirements. You can add custom logos, and labels, or even integrate additional features such as mounting brackets or cooling vents.

Designing a Custom 3D Printed Case for ESP32:

To create your own custom 3D-printed case for an ESP32 board, follow these steps:

Step 1: Gather the Required Tools and Measurements

Before diving into the design process, gather the necessary tools:

• A digital caliper to measure the dimensions of your ESP32 board accurately.
• 3D modeling software like Tinkercad, Fusion 360, or Blender.
• A 3D printer or access to a local 3D printing service.

Measure the length, width, and height of your ESP32 board, including any protruding components like buttons or connectors. These measurements will serve as the foundation for designing your case.

Step 2: Design the Case

Using your chosen 3D modeling software, begin designing the case by creating a basic enclosure with the dimensions of your ESP32 board. Ensure that the dimensions are precise to allow a perfect fit.

Next, incorporate additional space within the case to accommodate the soldered cables. This can be achieved by designing channels or grooves along the sides or top of the case, providing ample room for the cables to exit, and ensuring they don’t interfere with the board.

Consider other factors like the placement of buttons, LED indicators, or access to specific ports on your ESP32 board. Modify the design accordingly to ensure convenient access to these features without compromising the overall functionality or aesthetics of the case.

Step 3: Test and Refine

Once you have completed the initial design, it’s important to test it before proceeding to the printing stage. Some 3D modeling software provides simulation features to evaluate the design’s functionality and fit. Simulations can help identify any potential issues and allow you to refine the design accordingly.

Step 4: Prepare for Printing

Once you are satisfied with the design, prepare the 3D model for printing. Export the file in the appropriate format (such as.STL) compatible with your 3D printer or the local printing service’s requirements.

In conclusion, designing and 3D printing a custom-made case for your ESP32 board offers numerous benefits for your DIY projects. By creating a case that perfectly fits your ESP32, you can ensure the protection and organization of your device while maintaining a professional and personalized look.
