The main motivation was free pcb:
Free PCB Prototyping for Christmas Related Design on Elecrow.com

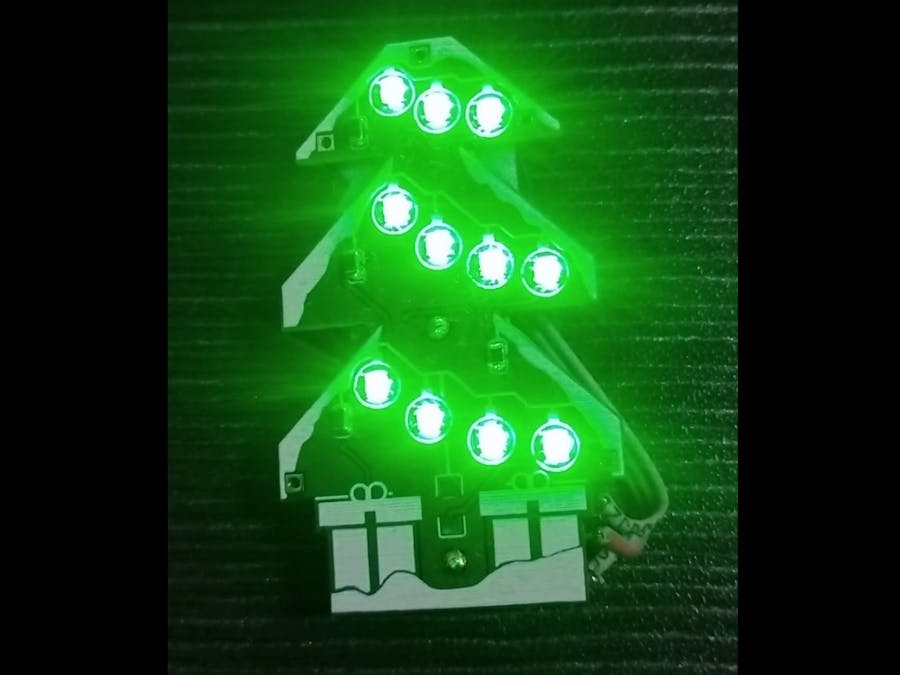

PCB have 2* TTP223 Capacitive Touch Sensor for control and is powered by CR2023 or other 5V. PCBs can be soldered in series or in parallel (2 PCB) and controlled with one ch32V003 or another external controller.
PIC12F1822 connected on LIN1, VDD2,GND2:
