Published July 29, 2022 © GPL3+

Use the NTCReader for your NTC sensor

Read easily the tempearute of your room with this library

BeginnerFull instructions provided157

Things used in this project

Hardware components

Arduino UNO

Resistor 10k ohm

Thermoresistor

Breadboard (generic)

Software apps and online services

Arduino IDE

Story

I've recently bought this book.

It explains all the default libraries of the Arduino IDE environment and explain how to make a new one.

I was reading of the LiquidCrystal library and the example was a thermometer using a thermoresistor.

I found it long and hard but worked well, so I decided to test my new knowledge and make an easy-to-use library.

Part 0: Dissipation factor

Before continue you have to search in the datasheet the Dissipation factor(expressed in mw/dec C) of your thermoresistor, since I have the Elegoo thermoresistor that was an easy task for me(it was 2), but I you don't have any datasheet put the 6 value(It's the more common value).

Part 1: Setup

got to https://github.com/jack07Code/NTCReader and Download the library the open Arduino IDE and got to Sketch -> Include Library -> Add.ZIP library and select the location of the.zip file.

Part 2: Code

I've done an example that read's the temperature from the ntc and prints it on the Serial Monitor(It's also commented and explains every command of the library) you can find it on File -> Examples -> NTCReader-main -> Example, then load it on your Arduino board.

Part 3: Hardware

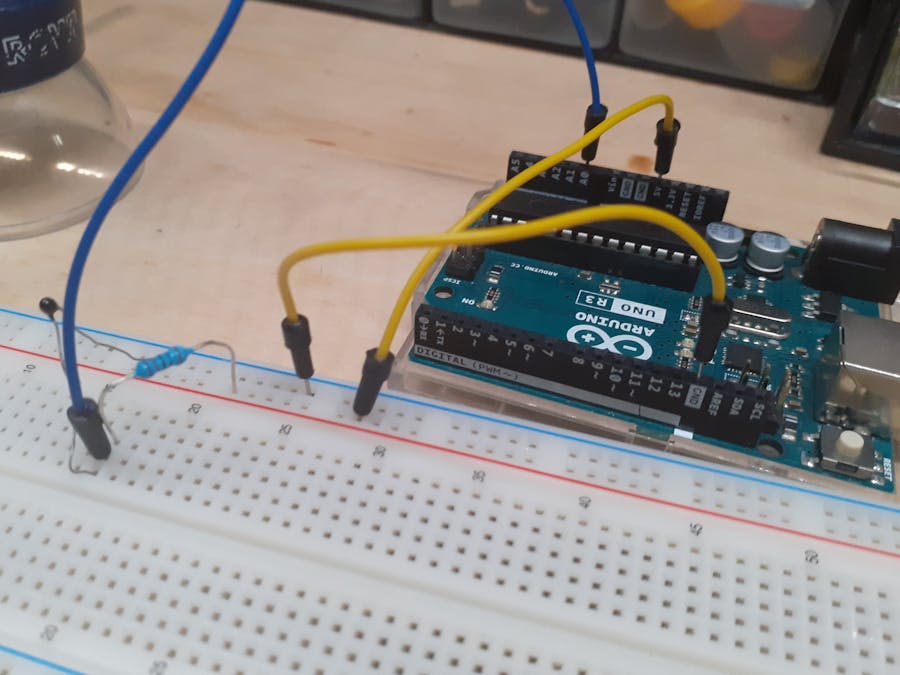

Grab your Arduino board, a breadboard, your thermoresistor and a 10Kohm resistor and connect them in this way.

The end of the thermoresitor is connected to GND

Part 4: Execution

Now open the Serial Monitor with a baud rate of 9600 and watch your ntc taking a measure every second.

Code

Example Code

/*
 * NTCReader,
 *          By Giacomo Martinelli
 * Released on 28 june 2022
*/
#include <NTCReader.h>

NTCReader ntc(A0, 2);//The first value is the Analog pin of the NTC and the second is the mw/dec C.
                     //You can find this value on the datasheet(if you don't have them, i reccomend put 6).
void setup() {
  ntc.setR(10000.0); //You can manipulate Resistor and input volt based on your need(Data Type: double)
  ntc.setV(5.0);//Those values are the default values
  Serial.begin(9600);//Activate the Serial port at 9600 baud rate to print our data
}

void loop() {
  //print current temperature, max and min registered on this session
  Serial.print("Temperature: ");
  Serial.println(ntc.read());
  Serial.print("Max=");
  Serial.print(ntc.getMax());
  Serial.print("  Min=");
  Serial.println(ntc.getMin());
  delay(1000);
}
