NodeMCU: ROOM SECURITY

If some come in your room then it will give you a notification on your cell. You can switch this system on and off with webserver.

BeginnerFull instructions provided1 hour770

Things used in this project

Hardware components

NodeMCU ESP8266 Breakout Board

PIR Motion Sensor (generic)

Jumper wires (generic)

Software apps and online services

Arduino IDE

Hand tools and fabrication machines

Soldering Station, 110 V

Story

I want some that guard my room when I'm not there that's why I made this it has a pit sensor that sens motion and sends a notification on my phone this is the first version in the next version I'm trying to add a camera and sends me image or video.

library:

ESP8266WiFi if want know more go to this link below

ESP8266WiFi if want know more go to this link below

https://arduino-esp8266.readthedocs.io/en/latest/esp8266wifi/readme.html

WEBSERVER(creation):

so we need to write some Html code for our page if you are new to Html or not good at you can also visit this

so we need to write some Html code for our page if you are new to Html or not good at you can also visit this

https://www.w3schools.com/

IFTTT:

so I am using ifttt's webhook service to send me a notification on my phone for this you need to have ifttt app in your cell

so I am using ifttt's webhook service to send me a notification on my phone for this you need to have ifttt app in your cell

firstly need an account in ifttt

firstly need an account in ifttt

Click on create

.click on THIS

.click on THIS

search webhooks and click on it

Click on Receive a web request

give event name as you want and also click on CREATE TRIGGER

Click on THAT

search notification and click on it

click on send a notification from the IFTTT app

write your message and if want you can also add occurred at that means the time of occurrence

after this click on create action

then click on finish

then click on home and go the home page

now click on the webhooks

now click on the documentation

now type event in that box for ex: I write there lock_s my event name

now copy the key and paste on your code and also by clicking on TEST IT you can test it and able to see the notification in your phone

paste the key there.

you will get this type of notification in your cell.

Connection:

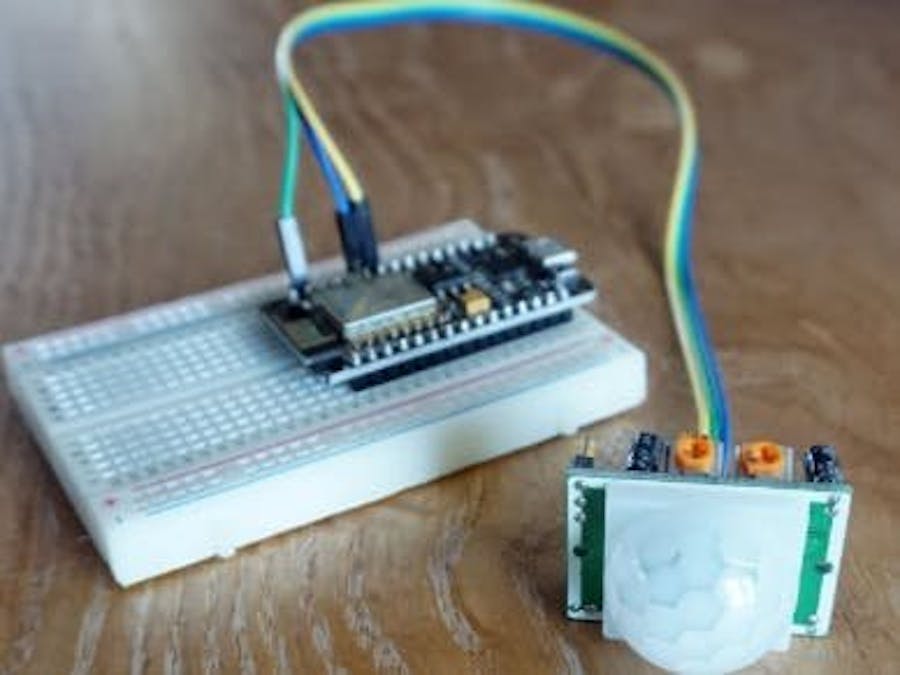

connect pir to D1 or GPIO 5 of NodeMCU
connect the buzzer to D2 or GPIO 4 of NodeMCU

this will help you.

WEBSERVER:

you need to put your board's IP on the browser to set and control the system.

in case you don't know the IP of your board

Serial.print(WiFi.localIP());

you need to paste these lines on the setup of your code and don't forget to begin serial.
so set a pass there to activities the system or deactivate the system.

this is an activation pass you can also put as per your choice.

this is deactivation pass you can change as per your choice.

after giving pass click on the button to execute.

Room security

#include <ESP8266WiFi.h>
const char* host = "maker.ifttt.com";
const char* ssid = "..........";// wifi ssid
const char* password = ".........";// wifi pass
int pir = 5;// D1 of nodemcu
int buz = 4;//D2 of nodemcu
int val;
WiFiServer server(80);

void setup() {
   pinMode(pir,INPUT);
    pinMode(buz,INPUT);
  WiFi.begin(ssid, password);
  server.begin();
}
 int value = 1;
void loop() {
  val = digitalRead(pir);// reading pir
  WiFiClient client = server.available();
  if (!client) {
    return;
  }
  while(!client.available()){
    delay(1);
  }
  String request = client.readStringUntil('\r');
  client.flush();
   int x = 0;//initialy lock is in off pos
  if (request.indexOf("/action_page.php?fname=1234") != -1)  {// set activation pass here after fname=
        x = 1;//i will explain it you later
           if( val == 1){//if value of pir sensor is 1 or high
       if (value == 1){// now the magic starts
       WiFiClient client;
       const int httpPort = 80;
       if (!client.connect(host, httpPort)) {
        return;
       }
String url = ".....................................";  //please put your own key
client.print(String("GET ") + url + " HTTP/1.1\r\n" + "Host: " + host + "\r\n" + "Connection: close\r\n\r\n");
       value = 0;
       digitalWrite(buz,1);
       delay(5000);
       digitalWrite(buz,0);
       delay(500);
       digitalWrite(buz,1);
       delay(5000);
       digitalWrite(buz,0);
       delay(5000);
       }
    }
  }
  else {
    value = 1;
    delay(500);
    }
  if (request.indexOf("/action_page.php?fname=4321") != -1)  {// set deactivation pass after fname=
    setup();//when you type deactivation code it goes to setup
  }
  client.println("HTTP/1.1 200 OK");
  client.println("Content-Type: text/html");
  client.println("");
  client.println("<!DOCTYPE HTML>");
  client.println("<html>");
  client.println("<center>");//to display it on center
  client.println("<h1 style=background-color:DodgerBlue;>ROOM SECURITY:</h1>");// here you can also change the backgroundcolor and heading
  client.println("</center>");
  client.println("<h3 style=color:Blue;>LOCK STATUS:</h3>");// here you can also change text color or heading
  if(x == 1){// x holds the value that lock is on or off
    client.print("Lock is ON");// if lock is on
  }
  else{
    client.print("Lock is OFF");// if lock is off
  }
  client.print("<form action=/action_page.php>");
  client.print("<label for=fname>Commands for lock:</label><br>");
  client.print("<input type=text id=fname name=fname><br><br>");
  client.print("<input type=submit value=lock/unlock>");//here you can also change the value from lock/unlock to submit
  client.print("</form>");
  client.print("<center>");
  client.print("<h1 style=background-color:DodgerBlue;>BY AMAAN JAVED</h1>");// here you can also chenge the heading and color
  client.print("</center>");
  client.println("</html>");
  delay(1);
}
