Published December 5, 2022 © GPL3+

Hand-held measuring tool

A simple measuring tool that displays both metric and imperial measurements. It comes complete with built in battery charger.

AdvancedFull instructions provided12 hours408

Things used in this project

Hardware components

Microchip ATtiny1614 microprocessor

TP4056 Li-lon Battery Charger IC

SOIC-8 Package

onsemi NC7S14 Single Inverter and Schmitt Trigger

SOT23-5 Package

EC12E24204A2 Rotary Encoder

Red/Green Dual LED

0805 Package

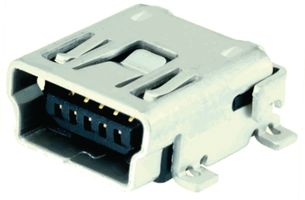

USB Connector, Mini USB Type A

SMD Variant

Tactile Switch, SPST

8mm shaft variant

Battery, 3.7 V

Passive Components

2 x 1K 0805 Resistors, 2 x 10K 0805 resistors, 1 x 1K2 0805 Resistor, 1 x R47 1210 Resistor, 2 x 10uF 1206 capacitors, 2 x 22nF 0805 capacitors

DIYables OLED Display 128x64 0.96 inch, I2C Interface

Software apps and online services

Arduino IDE

Hand tools and fabrication machines

3D Printer (generic)

Soldering iron (generic)

Story

While surfing the Instructables website, I came across the HTX Universal Measuring Wheel by Artur_Rocker. While I had previously built a measuring wheel, it used a fairly big wheel. This means that when measuring inside walls, the closest it can get to the wall is dependent on the radius of that wheel.

Difference in wheel size from by previous version

The new version also incorporates a TP4056 Li-on battery charger which was lacking in my previous version.

Demonstration

The hand-held measuring tool in action

3D printing

The only part that really requires supports is "Wheel V2 - Spacers.stl". Use a 0.15mm to 0.2mm layer height.

Once you have printed the wheel ("Wheel V2 - Wheel.stl"), add three O-rings with an inside diameter of 7/8 inches, a cross section diameter of 1/8 inches and an outside diameter of 1 1/8 inches.

Schematic

Schematic for the Hand-held measuring tool

An ATtiny1614 microprocessor was chosen because of its low power consumption when in sleep mode. It is powered by a 3.7V Li-on battery that is charged via a TP4056 1A Li-on battery charger IC. The rotary encoder has 24 steps and each mechanical contact is de-bounced using a RC network and Schmitt trigger. This eliminates "contact bounce" which would result in incorrect readings.

The design uses two buttons to allow for a longer button top. Having a long button top pivoting on a single physical switch means when the button is pressed on the outer edge, it might fail to actually activate the single physical switch.

Pressing the switch will wake the microprocessor up and activate the unit. It will switch off again after 10 seconds of inactivity. Pressing it while the unit is on will reset the display to zero.

The PCB

To minimize the space required, the board has been designed to use Surface Mount Devices (SMD) where possible.

SMD components are used for most of the components

The Eagle files have been included should you wish to have the board commercially made or you can do as I did and make it yourself. I used the Toner method.

NOTE:

0.96in OLED modules can come with the GND and VCC connections reversed. The PCB is designed for the module that has a pin layout of GND, VCC, SCL, SDA.

PCB is designed for OLED module on the left (note the change in position of GND & VCC)

Assembly - Step 1

Start by adding the SMD components. I find it easier to use solder paste rather than use solder from a reel when soldering SMD components.

Add the links if your board is single-sided.

Add SMD components and links

Assembly - Step 2

The gap between the component side (non-copper side) and the bottom of the case is very small. If you are using a double-sided board, you may need to file down some of the soldered joints if the are sticking out too far.

Add the rotary encoder to the copper side of the board.

Add the two right-angle 6mm x 6mm tactile switches with 8mm shafts to the copper side of the board. If you are using a single sided board like I did, you may find it hard to get your soldering iron tip into the legs of the switch to solder them in place. I squeezed some solder paste on the legs and melted the solder with my soldering iron using the finest tip I had.

Add Rotary encoder and switches - Cut off any excess leads

Add the JST battery connector to the copper side of the board

Assembly - Step 3

3D print "Wheel V2 - Spacers.stl" using supports touching the build plate and a 0.1mm layer height.

Glue the supports in place using super glue. Make sure the back display support does not interfere with the wheel.

Add a 4-pin female long lead pin header for the LCD display and trim off any excess.

Add the OLED screen supports and connector

Assembly - Step 4

Plug in the OLED screen and push the 3D printed button top onto the two switches.

Using a 8 to 10mm drill bit, counter-sink the two mounting holes on the component side of the PCB board before screwing the PCB to the case using 2 x 6mm M3 Flat head screws.

Add OLED screen & Li-on battery and screw onto case

Programming

The ATtiny1614 is part of the new breed of ATtiny microprocessors. Unlike the earlier series such as the ATtiny85, the new breed use the RESET pin to program the CPU. To program it you need a UPDI programmer. I made one using a Arduino Nano. You can find complete build instructions at Create Your Own UPDI Programmer. It also contains the instructions for adding the megaTinyCore boards to your IDE.

The USB socket provides power to charge the battery (5V). The UPDI pin of the ATtiny1614 processor is connected the D+ pin on the USB socket. This allows the programming of the ATtiny1614 using a custom cable. USB Mini plugs are available on eBay or you can cutup an old USB Mini cable.

USB-Mini connector cable for my home-made UPDI programmer

Conclusion

These measuring wheels are designed to be used over distances where rulers and tape measures are no longer practical. Even though it uses a rotary encoder with only 24 steps per revolution, it can still provide good quality results when measuring for example the size of a room.

A special thanks to Artur_Rocker for the concept and inspiration for this project.

Schematics

Code

/**************************************************************************
 Measuring Wheel

 Based on "HTX Universal Measuring Wheel" by Artur_Rocker

 2021-05-03 John Bradnam (jbrad2089@gmail.com)
   Create program for ATtiny1614

 --------------------------------------------------------------------------
 Arduino IDE:
 --------------------------------------------------------------------------
  BOARD: ATtiny1614/1604/814/804/414/404/214/204
  Chip: ATtiny1614
  Clock Speed: 1MHz
  Programmer: jtag2updi (megaTinyCore)

  ATTiny1614 Pins mapped to Ardunio Pins

             +--------+
         VCC + 1   14 + GND
 (SS)  0 PA4 + 2   13 + PA3 10 (SCK)
       1 PA5 + 3   12 + PA2 9  (MISO)
 (DAC) 2 PA6 + 4   11 + PA1 8  (MOSI)
       3 PA7 + 5   10 + PA0 11 (UPDI)
 (RXD) 4 PB3 + 6    9 + PB0 7  (SCL)
 (TXD) 5 PB2 + 7    8 + PB1 6  (SDA)
             +--------+

  PA0 to PA7 can be analog or digital
  PWM on D0, D1, D6, D7, D10

 **************************************************************************/

#include "Tiny8kOLED.h"
#include <Wire.h>

#define BUTTON 10  //PA3
#define ENC_B 1    //PA5
#define ENC_A 0    //PA4

#define SLEEP_TIMEOUT 10000  //Amount of time no switch is pressed before going to sleep
uint32_t sleepTimeout = 0;   //Used to timeout mode switch function to sleep function

bool volatile ignoreNextPress = false;
int8_t volatile rotaryDirection = 0;
bool volatile lastRotA = false;

#define MAX_ROTARY_COUNT 25374  //999 inches
long volatile ruler = 0;              //ruler measurement
bool volatile rulerChanged = false;

//O-Ring ID=7/8in, CS=1/8in, OD=1.125in
//OD = 28.575 -> 14.2875 radius
#define WHEEL_RADIUS 1.42875  //in cm
#define RESOLUTION   24       //Steps per revolution

//--------------------------------------------------------------------
//Program Setup
void setup()
{
  pinMode(BUTTON, INPUT_PULLUP);
  pinMode(ENC_A, INPUT);
  pinMode(ENC_B, INPUT);

  //Attach interrupt handlers for handling rotary encoder
  attachRotaryPinChangeInterrupt();

  //Attach interrupt handler to wake up from sleep mode
  attachInterrupt(digitalPinToInterrupt(BUTTON),switchInterrupt,CHANGE);

  oled.begin();
  rulerChanged = true;  //force display update
  sleepTimeout = millis() + SLEEP_TIMEOUT;
}

//--------------------------------------------------------------------
//Handle pin change interrupt when button is pressed
void switchInterrupt()
{
}

//--------------------------------------------------------
// Attach the pin change interrupts for the rotary encoder
void attachRotaryPinChangeInterrupt()
{
  attachInterrupt(ENC_A, rotaryInterrupt, CHANGE);
}

//--------------------------------------------------------
// Detach the pin change interrupts for the rotary encoder
void detachRotaryPinChangeInterrupt()
{
  detachInterrupt(ENC_A);
}

//---------------------------------------------------------------------
// Interrupt Handler: Rotary encoder has moved
void rotaryInterrupt()
{
  if (!digitalRead(ENC_A) && lastRotA)
  {
    if (digitalRead(ENC_B))
    {
      ruler = min(ruler + 1, MAX_ROTARY_COUNT - 1);
    }
    else
    {
      ruler = max(ruler - 1, 0);
    }
    rulerChanged = true;
  }
  lastRotA = digitalRead(ENC_A);
}

//--------------------------------------------------------------------
//Program Loop
void loop()
{
  if (millis() >= sleepTimeout)
  {
    system_sleep();
  }
  else if (digitalRead(BUTTON) == LOW)
  {
    delay(10);  //Debounce
    if (digitalRead(BUTTON) == LOW)
    {
      //Zero ruler
      ruler = 0;
      displayRuler();
      //Wait for button release
      while (digitalRead(BUTTON) == LOW)
      {
        yield();
      }
    }
    sleepTimeout = millis() + SLEEP_TIMEOUT;
  }
  else if (rulerChanged)
  {
    displayRuler();
    rulerChanged = false;
    sleepTimeout = millis() + SLEEP_TIMEOUT;
  }
  else
  {
    delay(100);
  }
}

//--------------------------------------------------------------------
// display current distance
void displayRuler()
{
  float cm = (2 * PI * WHEEL_RADIUS * ruler) / RESOLUTION;
  long mm10 = floor(cm * 100 + 0.5);

  //oled.clear(); //all black
  oled.setFont(FONT16X32);
  oled.setCursor(4,0);
  displayNumber(mm10,true);
  oled.setCursor(4,4);
  displayNumber(mm10 * 100 / 254,false);
  oled.setFont(FONT8X16);
  oled.setCursor(108,2);
  oled.print("mm");
  oled.setCursor(108,6);
  oled.print("in");
}

//--------------------------------------------------------------------
// display current distance
void displayNumber(uint32_t  number, bool isMM)
{
  char buffer[10];
  if (isMM)
  {
    sprintf(buffer,"%4d\x2e%01d",(int)number / 10, (int)(number % 10));
  }
  else
  {
    sprintf(buffer, "%3d\x2e%02d", (int)(number / 100), (int)(number % 100));
  }
  oled.print(buffer);
}

//--------------------------------------------------------------------
//Shut down OLED and put ATtiny to sleep
//Will wake up when LEFT button is pressed
void system_sleep()
{
  detachRotaryPinChangeInterrupt();
  interrupts();
  oled.ssd1306_sleep();
  delay(100);
  attachRotaryPinChangeInterrupt();
  sleepTimeout = millis() + SLEEP_TIMEOUT;
}

/*
 * SSD1306xLED - Drivers for SSD1306 controlled dot matrix OLED/PLED 128x64 displays
 *
 * @created: 2014-08-12
 * @author: Neven Boyanov
 *
 * Source code available at: https://bitbucket.org/tinusaur/ssd1306xled
 * Modified by M.V. Predoi 2018-09-25
 */

#include <stdint.h>
#include <Arduino.h>
#include <Wire.h>
#include <util/delay.h>

/* Uncomment from the 3 line below this note, the fonts you intend to use:
*  FONT6X8  = 764 bytes
*  FONT8X16 = 1776 bytes
*  FONT16X32= 1334 bytes
*/
 #define FONT6X8		0
 #define FONT8X16	1
 #define FONT16X32	2

// ----------------------------------------------------------------------------

#ifndef SSD1306
	#define SSD1306		0x3C	// Slave address
#endif

// ----------------------------------------------------------------------------

class SSD1306Device: public Print {

    public:
		SSD1306Device(void);
		void begin(void);
		void setFont(uint8_t font);
		void ssd1306_send_command(uint8_t command);
		void ssd1306_send_data_byte(uint8_t byte);
		void ssd1306_send_data_start(void);
		void ssd1306_send_data_stop(void);
		void setCursor(uint8_t x, uint8_t y);
		void fill(uint8_t fill);
		void clear(void);
		void bitmap(uint8_t x0, uint8_t y0, uint8_t x1, uint8_t y1, const uint8_t bitmap[]);
		void ssd1306_send_command_start(void);
		void ssd1306_send_command_stop(void);
		void ssd1306_char_f8x16(uint8_t x, uint8_t y, const char ch[]);
    void ssd1306_sleep();
		virtual size_t write(byte c);
  		using Print::write;


};


extern SSD1306Device oled;

// ----------------------------------------------------------------------------

/*
 * SSD1306xLED - Drivers for SSD1306 controlled dot matrix OLED/PLED 128x64 displays
 *
 * @created: 2014-08-12
 * @author: Neven Boyanov
 * @modifications: John Bradnam 2021-05-03
 *    - modified for ATtiny1614
 *    - added sleep method
 *    - rotated display 180%
 */

// ----------------------------------------------------------------------------

#include <stdlib.h>
#include <avr/io.h>
#include <avr/sleep.h>
#include <avr/pgmspace.h>

#include "Tiny8kOLED.h"

#ifdef FONT6X8			// In case font6x8 is defined: load it
	#include "font6x8.h"
#endif

#ifdef FONT8X16			     // In case font8x16 is defined: load it
	#include "font8x16.h"
#endif

#ifdef FONT16X32			     // In case font16x32 is defined: load it
	#include "font16x32.h"
#endif



// ----------------------------------------------------------------------------

#define ROTATE_SSD1306

const uint8_t ssd1306_init_sequence [] PROGMEM = {	// Initialization Sequence
	0xAE,			// Display OFF (sleep mode)
	0x20, 0b00,		// Set Memory Addressing Mode
					// 00=Horizontal Addressing Mode; 01=Vertical Addressing Mode;
					// 10=Page Addressing Mode (RESET); 11=Invalid
	0xB0,			// Set Page Start Address for Page Addressing Mode, 0-7
#ifdef ROTATE_SSD1306
	0xC8,			// Set COM Output Scan Direction (INC or DEC 0xC0 or 0xC8) <==
#else
  0xC0,     // Set COM Output Scan Direction (INC or DEC 0xC0 or 0xC8) <==
#endif
	0x00,			// ---set low column address
	0x10,			// ---set high column address
	0x40,			// --set start line address
	0x81, 0x3F,		// Set contrast control register
#ifdef ROTATE_SSD1306
	0xA1,			// Set Segment Re-map. (A0=address mapped; A1=address 127 mapped) <==
#else
  0xA0,     // Set Segment Re-map. (A0=address mapped; A1=address 127 mapped) <==
#endif
	0xA6,			// Set display mode. A6=Normal; A7=Inverse
	0xA8, 0x3F,		// Set multiplex ratio(1 to 64)
	0xA4,			// Output RAM to Display
					// 0xA4=Output follows RAM content; 0xA5,Output ignores RAM content
	0xD3, 0x00,		// Set display offset. 00 = no offset
	0xD5,			// --set display clock divide ratio/oscillator frequency
	0xF0,			// --set divide ratio
	0xD9, 0x22,		// Set pre-charge period
	0xDA, 0x12,		// Set com pins hardware configuration
	0xDB,			// --set vcomh
	0x20,			// 0x20,0.77xVcc
	0x8D, 0x14,		// Set DC-DC enable
	0xAF			// Display ON in normal mode

};

uint8_t oledFont, ci, oledX, oledY;

SSD1306Device::SSD1306Device(void){}

void SSD1306Device::begin(void)
{
	Wire.begin();

	for (uint8_t i = 0; i < sizeof (ssd1306_init_sequence); i++) {
		ssd1306_send_command(pgm_read_byte(&ssd1306_init_sequence[i]));
	}
	clear();
}


void SSD1306Device::setFont(uint8_t font)
{
	oledFont = font;
}

void SSD1306Device::ssd1306_send_command_start(void) {
	Wire.beginTransmission(SSD1306);
	Wire.write(0x00);	// write command
}

void SSD1306Device::ssd1306_send_command_stop(void) {
	Wire.endTransmission();
}

void SSD1306Device::ssd1306_send_data_byte(uint8_t byte)
{
/*
	//if(Wire.writeAvailable()){
		ssd1306_send_data_stop();
		ssd1306_send_data_start();
	//}
*/
	Wire.write(byte);

}

void SSD1306Device::ssd1306_send_command(uint8_t command)
{
	ssd1306_send_command_start();
	Wire.write(command);
	ssd1306_send_command_stop();
}

void SSD1306Device::ssd1306_send_data_start(void)
{
	Wire.beginTransmission(SSD1306);
	Wire.write(0x40);	//write data
}

void SSD1306Device::ssd1306_send_data_stop(void)
{
	Wire.endTransmission();
}

void SSD1306Device::setCursor(uint8_t x, uint8_t y)
{
	ssd1306_send_command_start();
	Wire.write(0xb0 + y);
	Wire.write(((x & 0xf0) >> 4) | 0x10); // | 0x10
	Wire.write((x & 0x0f) | 0x01); // | 0x01
	ssd1306_send_command_stop();
	oledX = x;
	oledY = y;
}

void SSD1306Device::clear(void)
{
	fill(0x00);
}

void SSD1306Device::fill(uint8_t fill)
{
	uint8_t m,n,o;
	for (m = 0; m < 8; m++)
	{
		ssd1306_send_command(0xb0 + m);	// page0 - page1
		ssd1306_send_command(0x00);		// low column start address
		ssd1306_send_command(0x10);		// high column start address
		ssd1306_send_data_start();
		for (n = 0, o = 0; n < 128; n++)
		{
			ssd1306_send_data_byte(fill);
      o++;
      if (o == BUFFER_LENGTH - 1)
      {
        ssd1306_send_data_stop();
        ssd1306_send_data_start();
        o = 0;
      }
		}
		ssd1306_send_data_stop();
	}
	setCursor(0, 0);
}

size_t SSD1306Device::write(byte c) {
// This function is modified to work also with 16x32 fonts for digits
//  Useful to display only numerical results in Largest Size!
//=================================================================
#ifdef FONT16X32
if (oledFont==2) {

  // If "font16x32.h" contains only 10 symbols (0..9) rotated 90deg. right, then:
  ci = c - 44;    // Only symbols ,-./0...9:  are available in 13kB file [0=char(16)]
  if (oledX > 112){ // long numbers are cut to max 8 digits
    return 1;
  }

  for (uint8_t j = 3; j > 1 ; j--) {    // Send from top to bottom 2*16 bytes on rows
    ssd1306_send_data_start();
    for (uint8_t i = 0; i < 16; i++) {  // Send 16 bytes as rows, at the same y position
      Wire.write(pgm_read_byte(&ssd1306xled_font16x32[ci * 64 + 4*i +j]));
    }
    ssd1306_send_data_stop();
    setCursor(oledX, oledY + 4-j);    // Prepare position of next row of 16 bytes under the first one
  }

  setCursor(oledX, oledY-1);        // Return a row higher
  for (uint8_t j = 3; j > 1 ; j--) {    // Send from the lower half 2*16 bytes on rows
    ssd1306_send_data_start();
    for (uint8_t i = 0; i < 16; i++) {  // Send from top to bottom 2*16 bytes
      Wire.write(pgm_read_byte(&ssd1306xled_font16x32[ci * 64 + 4*i +j -2]));
    }
    ssd1306_send_data_stop();
    setCursor(oledX, oledY+1);        // Relative move lower by 1 byte for last 16 bytes
  }
  setCursor(oledX+16, oledY-4);       // Move cursor for next digit
}
#endif
//==================================================================
#ifdef FONT8X16
if(oledFont==1) {
	if (c == '\n') {
		oledY++;
  		if (oledY > 6) {
			oledY = 6;
  		}
  		setCursor(0, oledY);
			return 1;
      }

	ci = c - 32;

	if (oledX > 120) {
		oledY+=2;
		if (oledY > 6) {
			oledY = 6;
		}
			setCursor(0, oledY);
	}
	ssd1306_send_data_start();
	for (uint8_t i = 0; i < 8; i++) {
		Wire.write(pgm_read_byte(&ssd1306xled_font8x16[ci * 16 + i]));
	}
	ssd1306_send_data_stop();
	setCursor(oledX, oledY + 1);
	ssd1306_send_data_start();
	for (uint8_t i = 0; i < 8; i++) {
		Wire.write(pgm_read_byte(&ssd1306xled_font8x16[ci * 16 + i + 8]));
	}
	ssd1306_send_data_stop();
	setCursor(oledX + 8, oledY - 1);
 }
#endif
//==================================================================
#ifdef FONT6X8
 if(oledFont== 0) {
	if (c == '\n') {
		if (oledFont == FONT6X8) {
			oledY++;
			if (oledY > 7) {
				oledY = 7;
			}
			setCursor(0, oledY);
			return 1;
		}
	}
	ci = c - 32;
	if (oledX > 122) {
		oledY++;
		if (oledY > 7) {
			oledY = 7;
		}
		setCursor(0, oledY);
	}

	ssd1306_send_data_start();
	for (uint8_t i= 0; i < 6; i++) {
		ssd1306_send_data_byte(pgm_read_byte(&ssd1306xled_font6x8[ci * 6 + i]));
	}
	ssd1306_send_data_stop();
	oledX+=6; // we don't need to call setCursor for every character.
 }
#endif
//==================================================================
return 1;
}


void SSD1306Device::bitmap(uint8_t x0, uint8_t y0, uint8_t x1, uint8_t y1, const uint8_t bitmap[])
{
	uint16_t j = 0;
	uint8_t y, x;
	// if (y1 % 8 == 0) y = y1 / 8; 	// else y = y1 / 8 + 1;		// tBUG :: this does nothing as y is initialized below
	//	THIS PARAM rule on y makes any adjustment here WRONG   //usage oled.bitmap(START X IN PIXELS, START Y IN ROWS OF 8 PIXELS, END X IN PIXELS, END Y IN ROWS OF 8 PIXELS, IMAGE ARRAY);
 	for (y = y0; y < y1; y++)
	{
		setCursor(x0,y);
		ssd1306_send_data_start();
		for (x = x0; x < x1; x++)
		{
			ssd1306_send_data_byte(pgm_read_byte(&bitmap[j++]));
		}
		ssd1306_send_data_stop();
	}
	setCursor(0, 0);
}

//--------------------- Extra -------------------------------

//Shut down OLED and put ATtiny to sleep
//Will wake up when LEFT button is pressed
void SSD1306Device::ssd1306_sleep()
{
  clear();
  ssd1306_send_command(0xAE);
  //cbi(ADCSRA,ADEN);                   // switch Analog to Digitalconverter OFF
  set_sleep_mode(SLEEP_MODE_PWR_DOWN);  // sleep mode is set here
  sleep_enable();
  sleep_mode();                         // System actually sleeps here
  sleep_disable();                      // System continues execution here when watchdog timed out
  //sbi(ADCSRA,ADEN);                   // switch Analog to Digitalconverter ON
  ssd1306_send_command(0xAF);
}

SSD1306Device oled;

// ----------------------------------------------------------------------------

/*
 * SSD1306xLED - Drivers for SSD1306 controlled dot matrix OLED/PLED 128x64 displays
 *
 * @created: 2014-08-12
 * @author: Neven Boyanov
 *
 * Source code available at: https://bitbucket.org/tinusaur/ssd1306xled
 *
 */

// ----------------------------------------------------------------------------

#include <avr/pgmspace.h>

// ----------------------------------------------------------------------------

/* Standard ASCII 6x8 font */
const uint8_t ssd1306xled_font6x8 [] PROGMEM = {
  0x00, 0x00, 0x00, 0x00, 0x00, 0x00, // sp
  0x00, 0x00, 0x00, 0x2f, 0x00, 0x00, // !
  0x00, 0x00, 0x07, 0x00, 0x07, 0x00, // "
  0x00, 0x14, 0x7f, 0x14, 0x7f, 0x14, // #
  0x00, 0x24, 0x2a, 0x7f, 0x2a, 0x12, // $
  0x00, 0x62, 0x64, 0x08, 0x13, 0x23, // %
  0x00, 0x36, 0x49, 0x55, 0x22, 0x50, // &
  0x00, 0x00, 0x05, 0x03, 0x00, 0x00, // '
  0x00, 0x00, 0x1c, 0x22, 0x41, 0x00, // (
  0x00, 0x00, 0x41, 0x22, 0x1c, 0x00, // )
  0x00, 0x14, 0x08, 0x3E, 0x08, 0x14, // *
  0x00, 0x08, 0x08, 0x3E, 0x08, 0x08, // +
  0x00, 0x00, 0x00, 0xA0, 0x60, 0x00, // ,
  0x00, 0x08, 0x08, 0x08, 0x08, 0x08, // -
  0x00, 0x00, 0x60, 0x60, 0x00, 0x00, // .
  0x00, 0x20, 0x10, 0x08, 0x04, 0x02, // /
  0x00, 0x3E, 0x51, 0x49, 0x45, 0x3E, // 0
  0x00, 0x00, 0x42, 0x7F, 0x40, 0x00, // 1
  0x00, 0x42, 0x61, 0x51, 0x49, 0x46, // 2
  0x00, 0x21, 0x41, 0x45, 0x4B, 0x31, // 3
  0x00, 0x18, 0x14, 0x12, 0x7F, 0x10, // 4
  0x00, 0x27, 0x45, 0x45, 0x45, 0x39, // 5
  0x00, 0x3C, 0x4A, 0x49, 0x49, 0x30, // 6
  0x00, 0x01, 0x71, 0x09, 0x05, 0x03, // 7
  0x00, 0x36, 0x49, 0x49, 0x49, 0x36, // 8
  0x00, 0x06, 0x49, 0x49, 0x29, 0x1E, // 9
  0x00, 0x00, 0x36, 0x36, 0x00, 0x00, // :
  0x00, 0x00, 0x56, 0x36, 0x00, 0x00, // ;
  0x00, 0x08, 0x14, 0x22, 0x41, 0x00, // <
  0x00, 0x14, 0x14, 0x14, 0x14, 0x14, // =
  0x00, 0x00, 0x41, 0x22, 0x14, 0x08, // >
  0x00, 0x02, 0x01, 0x51, 0x09, 0x06, // ?
  0x00, 0x32, 0x49, 0x59, 0x51, 0x3E, // @
  0x00, 0x7C, 0x12, 0x11, 0x12, 0x7C, // A
  0x00, 0x7F, 0x49, 0x49, 0x49, 0x36, // B
  0x00, 0x3E, 0x41, 0x41, 0x41, 0x22, // C
  0x00, 0x7F, 0x41, 0x41, 0x22, 0x1C, // D
  0x00, 0x7F, 0x49, 0x49, 0x49, 0x41, // E
  0x00, 0x7F, 0x09, 0x09, 0x09, 0x01, // F
  0x00, 0x3E, 0x41, 0x49, 0x49, 0x7A, // G
  0x00, 0x7F, 0x08, 0x08, 0x08, 0x7F, // H
  0x00, 0x00, 0x41, 0x7F, 0x41, 0x00, // I
  0x00, 0x20, 0x40, 0x41, 0x3F, 0x01, // J
  0x00, 0x7F, 0x08, 0x14, 0x22, 0x41, // K
  0x00, 0x7F, 0x40, 0x40, 0x40, 0x40, // L
  0x00, 0x7F, 0x02, 0x0C, 0x02, 0x7F, // M
  0x00, 0x7F, 0x04, 0x08, 0x10, 0x7F, // N
  0x00, 0x3E, 0x41, 0x41, 0x41, 0x3E, // O
  0x00, 0x7F, 0x09, 0x09, 0x09, 0x06, // P
  0x00, 0x3E, 0x41, 0x51, 0x21, 0x5E, // Q
  0x00, 0x7F, 0x09, 0x19, 0x29, 0x46, // R
  0x00, 0x46, 0x49, 0x49, 0x49, 0x31, // S
  0x00, 0x01, 0x01, 0x7F, 0x01, 0x01, // T
  0x00, 0x3F, 0x40, 0x40, 0x40, 0x3F, // U
  0x00, 0x1F, 0x20, 0x40, 0x20, 0x1F, // V
  0x00, 0x3F, 0x40, 0x38, 0x40, 0x3F, // W
  0x00, 0x63, 0x14, 0x08, 0x14, 0x63, // X
  0x00, 0x07, 0x08, 0x70, 0x08, 0x07, // Y
  0x00, 0x61, 0x51, 0x49, 0x45, 0x43, // Z
  0x00, 0x00, 0x7F, 0x41, 0x41, 0x00, // [
  0x00, 0x55, 0x2A, 0x55, 0x2A, 0x55, // 55
  0x00, 0x00, 0x41, 0x41, 0x7F, 0x00, // ]
  0x00, 0x04, 0x02, 0x01, 0x02, 0x04, // ^
  0x00, 0x40, 0x40, 0x40, 0x40, 0x40, // _
  0x00, 0x00, 0x01, 0x02, 0x04, 0x00, // '
  0x00, 0x20, 0x54, 0x54, 0x54, 0x78, // a
  0x00, 0x7F, 0x48, 0x44, 0x44, 0x38, // b
  0x00, 0x38, 0x44, 0x44, 0x44, 0x20, // c
  0x00, 0x38, 0x44, 0x44, 0x48, 0x7F, // d
  0x00, 0x38, 0x54, 0x54, 0x54, 0x18, // e
  0x00, 0x08, 0x7E, 0x09, 0x01, 0x02, // f
  0x00, 0x18, 0xA4, 0xA4, 0xA4, 0x7C, // g
  0x00, 0x7F, 0x08, 0x04, 0x04, 0x78, // h
  0x00, 0x00, 0x44, 0x7D, 0x40, 0x00, // i
  0x00, 0x40, 0x80, 0x84, 0x7D, 0x00, // j
  0x00, 0x7F, 0x10, 0x28, 0x44, 0x00, // k
  0x00, 0x00, 0x41, 0x7F, 0x40, 0x00, // l
  0x00, 0x7C, 0x04, 0x18, 0x04, 0x78, // m
  0x00, 0x7C, 0x08, 0x04, 0x04, 0x78, // n
  0x00, 0x38, 0x44, 0x44, 0x44, 0x38, // o
  0x00, 0xFC, 0x24, 0x24, 0x24, 0x18, // p
  0x00, 0x18, 0x24, 0x24, 0x18, 0xFC, // q
  0x00, 0x7C, 0x08, 0x04, 0x04, 0x08, // r
  0x00, 0x48, 0x54, 0x54, 0x54, 0x20, // s
  0x00, 0x04, 0x3F, 0x44, 0x40, 0x20, // t
  0x00, 0x3C, 0x40, 0x40, 0x20, 0x7C, // u
  0x00, 0x1C, 0x20, 0x40, 0x20, 0x1C, // v
  0x00, 0x3C, 0x40, 0x30, 0x40, 0x3C, // w
  0x00, 0x44, 0x28, 0x10, 0x28, 0x44, // x
  0x00, 0x1C, 0xA0, 0xA0, 0xA0, 0x7C, // y
  0x00, 0x44, 0x64, 0x54, 0x4C, 0x44, // z
  0x14, 0x14, 0x14, 0x14, 0x14, 0x14, // horiz lines
};

// ----------------------------------------------------------------------------

/*
 * SSD1306xLED - Drivers for SSD1306 controlled dot matrix OLED/PLED 128x64 displays
 *
 * @created: 2014-08-12
 * @author: Neven Boyanov
 *
 * Source code available at: https://bitbucket.org/tinusaur/ssd1306xled
 *
 */

// ----------------------------------------------------------------------------

#include <avr/pgmspace.h>

// ----------------------------------------------------------------------------

/* Standard ASCII 8x16 font */
const uint8_t ssd1306xled_font8x16 [] PROGMEM = {
  0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00, // 0
  0x00,0x00,0x00,0xF8,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x33,0x30,0x00,0x00,0x00, // ! 1
  0x00,0x10,0x0C,0x06,0x10,0x0C,0x06,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00, // " 2
  0x40,0xC0,0x78,0x40,0xC0,0x78,0x40,0x00,0x04,0x3F,0x04,0x04,0x3F,0x04,0x04,0x00, // # 3
  0x00,0x70,0x88,0xFC,0x08,0x30,0x00,0x00,0x00,0x18,0x20,0xFF,0x21,0x1E,0x00,0x00, // $ 4
  0xF0,0x08,0xF0,0x00,0xE0,0x18,0x00,0x00,0x00,0x21,0x1C,0x03,0x1E,0x21,0x1E,0x00, // % 5
  0x00,0xF0,0x08,0x88,0x70,0x00,0x00,0x00,0x1E,0x21,0x23,0x24,0x19,0x27,0x21,0x10, // & 6
  0x10,0x16,0x0E,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00, // ' 7
  0x00,0x00,0x00,0xE0,0x18,0x04,0x02,0x00,0x00,0x00,0x00,0x07,0x18,0x20,0x40,0x00, // ( 8
  0x00,0x02,0x04,0x18,0xE0,0x00,0x00,0x00,0x00,0x40,0x20,0x18,0x07,0x00,0x00,0x00, // ) 9
  0x40,0x40,0x80,0xF0,0x80,0x40,0x40,0x00,0x02,0x02,0x01,0x0F,0x01,0x02,0x02,0x00, // * 10
  0x00,0x00,0x00,0xF0,0x00,0x00,0x00,0x00,0x01,0x01,0x01,0x1F,0x01,0x01,0x01,0x00, // + 11
  0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0xB0,0x70,0x00,0x00,0x00,0x00,0x00, // , 12
  0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x01,0x01,0x01,0x01,0x01,0x01, // - 13
  0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x30,0x30,0x00,0x00,0x00,0x00,0x00, // . 14
  0x00,0x00,0x00,0x00,0x80,0x60,0x18,0x04,0x00,0x60,0x18,0x06,0x01,0x00,0x00,0x00, // / 15
  0x00,0xE0,0x10,0x08,0x08,0x10,0xE0,0x00,0x00,0x0F,0x10,0x20,0x20,0x10,0x0F,0x00, // 0 16
  0x00,0x10,0x10,0xF8,0x00,0x00,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00, // 1 17
  0x00,0x70,0x08,0x08,0x08,0x88,0x70,0x00,0x00,0x30,0x28,0x24,0x22,0x21,0x30,0x00, // 2 18
  0x00,0x30,0x08,0x88,0x88,0x48,0x30,0x00,0x00,0x18,0x20,0x20,0x20,0x11,0x0E,0x00, // 3 19
  0x00,0x00,0xC0,0x20,0x10,0xF8,0x00,0x00,0x00,0x07,0x04,0x24,0x24,0x3F,0x24,0x00, // 4 20
  0x00,0xF8,0x08,0x88,0x88,0x08,0x08,0x00,0x00,0x19,0x21,0x20,0x20,0x11,0x0E,0x00, // 5 21
  0x00,0xE0,0x10,0x88,0x88,0x18,0x00,0x00,0x00,0x0F,0x11,0x20,0x20,0x11,0x0E,0x00, // 6 22
  0x00,0x38,0x08,0x08,0xC8,0x38,0x08,0x00,0x00,0x00,0x00,0x3F,0x00,0x00,0x00,0x00, // 7 23
  0x00,0x70,0x88,0x08,0x08,0x88,0x70,0x00,0x00,0x1C,0x22,0x21,0x21,0x22,0x1C,0x00, // 8 24
  0x00,0xE0,0x10,0x08,0x08,0x10,0xE0,0x00,0x00,0x00,0x31,0x22,0x22,0x11,0x0F,0x00, // 9 25
  0x00,0x00,0x00,0xC0,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x30,0x30,0x00,0x00,0x00, // : 26
  0x00,0x00,0x00,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x60,0x00,0x00,0x00,0x00, // ; 27
  0x00,0x00,0x80,0x40,0x20,0x10,0x08,0x00,0x00,0x01,0x02,0x04,0x08,0x10,0x20,0x00, // < 28
  0x40,0x40,0x40,0x40,0x40,0x40,0x40,0x00,0x04,0x04,0x04,0x04,0x04,0x04,0x04,0x00, // = 29
  0x00,0x08,0x10,0x20,0x40,0x80,0x00,0x00,0x00,0x20,0x10,0x08,0x04,0x02,0x01,0x00, // > 30
  0x00,0x70,0x48,0x08,0x08,0x08,0xF0,0x00,0x00,0x00,0x00,0x30,0x36,0x01,0x00,0x00, // ? 31
  0xC0,0x30,0xC8,0x28,0xE8,0x10,0xE0,0x00,0x07,0x18,0x27,0x24,0x23,0x14,0x0B,0x00, // @ 32
  0x00,0x00,0xC0,0x38,0xE0,0x00,0x00,0x00,0x20,0x3C,0x23,0x02,0x02,0x27,0x38,0x20, // A 33
  0x08,0xF8,0x88,0x88,0x88,0x70,0x00,0x00,0x20,0x3F,0x20,0x20,0x20,0x11,0x0E,0x00, // B 34
  0xC0,0x30,0x08,0x08,0x08,0x08,0x38,0x00,0x07,0x18,0x20,0x20,0x20,0x10,0x08,0x00, // C 35
  0x08,0xF8,0x08,0x08,0x08,0x10,0xE0,0x00,0x20,0x3F,0x20,0x20,0x20,0x10,0x0F,0x00, // D 36
  0x08,0xF8,0x88,0x88,0xE8,0x08,0x10,0x00,0x20,0x3F,0x20,0x20,0x23,0x20,0x18,0x00, // E 37
  0x08,0xF8,0x88,0x88,0xE8,0x08,0x10,0x00,0x20,0x3F,0x20,0x00,0x03,0x00,0x00,0x00, // F 38
  0xC0,0x30,0x08,0x08,0x08,0x38,0x00,0x00,0x07,0x18,0x20,0x20,0x22,0x1E,0x02,0x00, // G 39
  0x08,0xF8,0x08,0x00,0x00,0x08,0xF8,0x08,0x20,0x3F,0x21,0x01,0x01,0x21,0x3F,0x20, // H 40
  0x00,0x08,0x08,0xF8,0x08,0x08,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00, // I 41
  0x00,0x00,0x08,0x08,0xF8,0x08,0x08,0x00,0xC0,0x80,0x80,0x80,0x7F,0x00,0x00,0x00, // J 42
  0x08,0xF8,0x88,0xC0,0x28,0x18,0x08,0x00,0x20,0x3F,0x20,0x01,0x26,0x38,0x20,0x00, // K 43
  0x08,0xF8,0x08,0x00,0x00,0x00,0x00,0x00,0x20,0x3F,0x20,0x20,0x20,0x20,0x30,0x00, // L 44
  0x08,0xF8,0xF8,0x00,0xF8,0xF8,0x08,0x00,0x20,0x3F,0x00,0x3F,0x00,0x3F,0x20,0x00, // M 45
  0x08,0xF8,0x30,0xC0,0x00,0x08,0xF8,0x08,0x20,0x3F,0x20,0x00,0x07,0x18,0x3F,0x00, // N 46
  0xE0,0x10,0x08,0x08,0x08,0x10,0xE0,0x00,0x0F,0x10,0x20,0x20,0x20,0x10,0x0F,0x00, // O 47
  0x08,0xF8,0x08,0x08,0x08,0x08,0xF0,0x00,0x20,0x3F,0x21,0x01,0x01,0x01,0x00,0x00, // P 48
  0xE0,0x10,0x08,0x08,0x08,0x10,0xE0,0x00,0x0F,0x18,0x24,0x24,0x38,0x50,0x4F,0x00, // Q 49
  0x08,0xF8,0x88,0x88,0x88,0x88,0x70,0x00,0x20,0x3F,0x20,0x00,0x03,0x0C,0x30,0x20, // R 50
  0x00,0x70,0x88,0x08,0x08,0x08,0x38,0x00,0x00,0x38,0x20,0x21,0x21,0x22,0x1C,0x00, // S 51
  0x18,0x08,0x08,0xF8,0x08,0x08,0x18,0x00,0x00,0x00,0x20,0x3F,0x20,0x00,0x00,0x00, // T 52
  0x08,0xF8,0x08,0x00,0x00,0x08,0xF8,0x08,0x00,0x1F,0x20,0x20,0x20,0x20,0x1F,0x00, // U 53
  0x08,0x78,0x88,0x00,0x00,0xC8,0x38,0x08,0x00,0x00,0x07,0x38,0x0E,0x01,0x00,0x00, // V 54
  0xF8,0x08,0x00,0xF8,0x00,0x08,0xF8,0x00,0x03,0x3C,0x07,0x00,0x07,0x3C,0x03,0x00, // W 55
  0x08,0x18,0x68,0x80,0x80,0x68,0x18,0x08,0x20,0x30,0x2C,0x03,0x03,0x2C,0x30,0x20, // X 56
  0x08,0x38,0xC8,0x00,0xC8,0x38,0x08,0x00,0x00,0x00,0x20,0x3F,0x20,0x00,0x00,0x00, // Y 57
  0x10,0x08,0x08,0x08,0xC8,0x38,0x08,0x00,0x20,0x38,0x26,0x21,0x20,0x20,0x18,0x00, // Z 58
  0x00,0x00,0x00,0xFE,0x02,0x02,0x02,0x00,0x00,0x00,0x00,0x7F,0x40,0x40,0x40,0x00, // [ 59
  0x00,0x0C,0x30,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x06,0x38,0xC0,0x00, // \ 60
  0x00,0x02,0x02,0x02,0xFE,0x00,0x00,0x00,0x00,0x40,0x40,0x40,0x7F,0x00,0x00,0x00, // ] 61
  0x00,0x00,0x04,0x02,0x02,0x02,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00, // ^ 62
  0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80, // _ 63
  0x00,0x02,0x02,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00, // ` 64
  0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,0x00,0x19,0x24,0x22,0x22,0x22,0x3F,0x20, // a 65
  0x08,0xF8,0x00,0x80,0x80,0x00,0x00,0x00,0x00,0x3F,0x11,0x20,0x20,0x11,0x0E,0x00, // b 66
  0x00,0x00,0x00,0x80,0x80,0x80,0x00,0x00,0x00,0x0E,0x11,0x20,0x20,0x20,0x11,0x00, // c 67
  0x00,0x00,0x00,0x80,0x80,0x88,0xF8,0x00,0x00,0x0E,0x11,0x20,0x20,0x10,0x3F,0x20, // d 68
  0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,0x00,0x1F,0x22,0x22,0x22,0x22,0x13,0x00, // e 69
  0x00,0x80,0x80,0xF0,0x88,0x88,0x88,0x18,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00, // f 70
  0x00,0x00,0x80,0x80,0x80,0x80,0x80,0x00,0x00,0x6B,0x94,0x94,0x94,0x93,0x60,0x00, // g 71
  0x08,0xF8,0x00,0x80,0x80,0x80,0x00,0x00,0x20,0x3F,0x21,0x00,0x00,0x20,0x3F,0x20, // h 72
  0x00,0x80,0x98,0x98,0x00,0x00,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00, // i 73
  0x00,0x00,0x00,0x80,0x98,0x98,0x00,0x00,0x00,0xC0,0x80,0x80,0x80,0x7F,0x00,0x00, // j 74
  0x08,0xF8,0x00,0x00,0x80,0x80,0x80,0x00,0x20,0x3F,0x24,0x02,0x2D,0x30,0x20,0x00, // k 75
  0x00,0x08,0x08,0xF8,0x00,0x00,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00, // l 76
  0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x00,0x20,0x3F,0x20,0x00,0x3F,0x20,0x00,0x3F, // m 77
  0x80,0x80,0x00,0x80,0x80,0x80,0x00,0x00,0x20,0x3F,0x21,0x00,0x00,0x20,0x3F,0x20, // n 78
  0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,0x00,0x1F,0x20,0x20,0x20,0x20,0x1F,0x00, // o 79
  0x80,0x80,0x00,0x80,0x80,0x00,0x00,0x00,0x80,0xFF,0xA1,0x20,0x20,0x11,0x0E,0x00, // p 80
  0x00,0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,0x0E,0x11,0x20,0x20,0xA0,0xFF,0x80, // q 81
  0x80,0x80,0x80,0x00,0x80,0x80,0x80,0x00,0x20,0x20,0x3F,0x21,0x20,0x00,0x01,0x00, // r 82
  0x00,0x00,0x80,0x80,0x80,0x80,0x80,0x00,0x00,0x33,0x24,0x24,0x24,0x24,0x19,0x00, // s 83
  0x00,0x80,0x80,0xE0,0x80,0x80,0x00,0x00,0x00,0x00,0x00,0x1F,0x20,0x20,0x00,0x00, // t 84
  0x80,0x80,0x00,0x00,0x00,0x80,0x80,0x00,0x00,0x1F,0x20,0x20,0x20,0x10,0x3F,0x20, // u 85
  0x80,0x80,0x80,0x00,0x00,0x80,0x80,0x80,0x00,0x01,0x0E,0x30,0x08,0x06,0x01,0x00, // v 86
  0x80,0x80,0x00,0x80,0x00,0x80,0x80,0x80,0x0F,0x30,0x0C,0x03,0x0C,0x30,0x0F,0x00, // w 87
  0x00,0x80,0x80,0x00,0x80,0x80,0x80,0x00,0x00,0x20,0x31,0x2E,0x0E,0x31,0x20,0x00, // x 88
  0x80,0x80,0x80,0x00,0x00,0x80,0x80,0x80,0x80,0x81,0x8E,0x70,0x18,0x06,0x01,0x00, // y 89
  0x00,0x80,0x80,0x80,0x80,0x80,0x80,0x00,0x00,0x21,0x30,0x2C,0x22,0x21,0x30,0x00, // z 90
  0x00,0x00,0x00,0x00,0x80,0x7C,0x02,0x02,0x00,0x00,0x00,0x00,0x00,0x3F,0x40,0x40, // { 91
  0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x00, // | 92
  0x00,0x02,0x02,0x7C,0x80,0x00,0x00,0x00,0x00,0x40,0x40,0x3F,0x00,0x00,0x00,0x00, // } 93
  0x00,0x06,0x01,0x01,0x02,0x02,0x04,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00, // ~ 94
};

// ----------------------------------------------------------------------------

/*
 * SSD1306xLED - Drivers for SSD1306 controlled dot matrix OLED/PLED 128x64 displays
 *
 * @created: 2014-08-12
 * @author: Neven Boyanov
 *
 * Source code available at: https://bitbucket.org/tinusaur/ssd1306xled
 *  modified for 16x32 fonts: 2017-01-12 @author: M. V. Predoi
 */

// ----------------------------------------------------------------------------

#include <avr/pgmspace.h>

// ----------------------------------------------------------------------------

/* Standard ASCII 16x32 font */
const uint8_t ssd1306xled_font16x32 [] PROGMEM = {
	// @0 ',' (16 pixels wide)
	0x00, 0x00, 0x00, 0x00, //
	0x00, 0x00, 0x00, 0x00, //
	0x00, 0x00, 0x00, 0x00, //
	0x00, 0x00, 0x00, 0x00, //
	0x00, 0x00, 0x00, 0x00, //
	0x40, 0x00, 0x00, 0x00, //  #
	0xE3, 0x80, 0x00, 0x00, // ###   ###
	0x7F, 0x80, 0x00, 0x00, //  ########
	0x3F, 0x80, 0x00, 0x00, //   #######
	0x00, 0x00, 0x00, 0x00, //
	0x00, 0x00, 0x00, 0x00, //
	0x00, 0x00, 0x00, 0x00, //
	0x00, 0x00, 0x00, 0x00, //
	0x00, 0x00, 0x00, 0x00, //
	0x00, 0x00, 0x00, 0x00, //
	0x00, 0x00, 0x00, 0x00, //

	// @32 '-' (16 pixels wide)
	0x00, 0x00, 0x00,0x00,  //
	0x00, 0x00, 0x00, 0x00, //
	0x00, 0x00, 0x00, 0x00, //
	0x00, 0x00, 0xE0, 0x00, //                 ###
	0x00, 0x00, 0xE0, 0x00, //                 ###
	0x00, 0x00, 0xE0, 0x00, //                 ###
	0x00, 0x00, 0xE0, 0x00, //                 ###
	0x00, 0x00, 0xE0, 0x00, //                 ###
	0x00, 0x00, 0xE0, 0x00, //                 ###
	0x00, 0x00, 0xE0, 0x00, //                 ###
	0x00, 0x00, 0xE0, 0x00, //                 ###
	0x00, 0x00, 0xE0, 0x00, //                 ###
	0x00, 0x00, 0x00, 0x00, //
	0x00, 0x00, 0x00, 0x00, //
	0x00, 0x00, 0x00, 0x00, //
	0x00, 0x00, 0x00, 0x00, //

	// @48 '.' (16 pixels wide)
	0x00, 0x00, 0x00, 0x00, //
	0x00, 0x00, 0x00, 0x00, //
	0x00, 0x00, 0x00, 0x00, //
	0x00, 0x00, 0x00, 0x00, //
	0x00, 0x00, 0x00, 0x00, //
	0x00, 0x00, 0x00, 0x00, //
	0xE0, 0x00, 0x00, 0x00, // ###
	0xE0, 0x00, 0x00, 0x00, // ###
	0xE0, 0x00, 0x00, 0x00, // ###
	0x00, 0x00, 0x00, 0x00, //
	0x00, 0x00, 0x00, 0x00, //
	0x00, 0x00, 0x00, 0x00, //
	0x00, 0x00, 0x00, 0x00, //
	0x00, 0x00, 0x00, 0x00, //
	0x00, 0x00, 0x00, 0x00, //
	0x00, 0x00, 0x00, 0x00, //

	// @64 '/' (16 pixels wide)
	0x00, 0x00, 0x00, 0x00, //
	0x00, 0x00, 0x00, 0x00, //
	0x80, 0x00, 0x00, 0x00, // #
	0xF8, 0x00, 0x00, 0x00, // #####
	0xFF, 0x80, 0x00, 0x00, // #########
	0x7F, 0xF8, 0x00, 0x00, //  ############
	0x07, 0xFF, 0x80, 0x00, //      ############
	0x00, 0x7F, 0xF8, 0x00, //          ############
	0x00, 0x07, 0xFF, 0x80, //              ############
	0x00, 0x00, 0x7F, 0xF8, //                  ############
	0x00, 0x00, 0x07, 0xF8, //                      ########
	0x00, 0x00, 0x00, 0x78, //                          ####
	0x00, 0x00, 0x00, 0x00, //
	0x00, 0x00, 0x00, 0x00, //
	0x00, 0x00, 0x00, 0x00, //
	0x00, 0x00, 0x00, 0x00, //

	// @128 '0' (16 pixels wide)
	0x00, 0xFF, 0xF8, 0x00, //         #############
	0x0F, 0xFF, 0xFF, 0x00, //     ####################
	0x1F, 0xFF, 0xFF, 0xC0, //    #######################
	0x3F, 0x00, 0x07, 0xE0, //   ######             ######
	0x78, 0x00, 0x00, 0xF0, //  ####                   ####
	0xF0, 0x00, 0x00, 0x78, // ####                     ####
	0xE0, 0x00, 0x00, 0x38, // ###                       ###
	0xE0, 0x00, 0x00, 0x38, // ###                       ###
	0xE0, 0x00, 0x00, 0x38, // ###                       ###
	0xF0, 0x00, 0x00, 0x78, // ####                     ####
	0x78, 0x00, 0x00, 0xF0, //  ####                   ####
	0x3F, 0x00, 0x07, 0xE0, //   ######             ######
	0x1F, 0xFF, 0xFF, 0xC0, //    #######################
	0x07, 0xFF, 0xFF, 0x00, //      ###################
	0x00, 0xFF, 0xF8, 0x00, //         #############
	0x00, 0x00, 0x00, 0x00, //

	// @192 '1' (16 pixels wide)
	0x00, 0x00, 0x00, 0x00, //
	0x00, 0x00, 0x00, 0x00, //
	0x00, 0x00, 0x38, 0x00, //                   ###
	0x00, 0x00, 0x1C, 0x00, //                    ###
	0x00, 0x00, 0x0E, 0x00, //                     ###
	0x00, 0x00, 0x0F, 0x00, //                     ####
	0x00, 0x00, 0x07, 0x80, //                      ####
	0x00, 0x00, 0x03, 0xC0, //                       ####
	0xFF, 0xFF, 0xFF, 0xF0, // ############################
	0xFF, 0xFF, 0xFF, 0xF8, // #############################
	0xFF, 0xFF, 0xFF, 0xF8, // #############################
	0x00, 0x00, 0x00, 0x00, //
	0x00, 0x00, 0x00, 0x00, //
	0x00, 0x00, 0x00, 0x00, //
	0x00, 0x00, 0x00, 0x00, //
	0x00, 0x00, 0x00, 0x00, //

	// @256 '2' (16 pixels wide)
	0xE0, 0x00, 0x0E, 0x00, // ###                 ###
	0xF8, 0x00, 0x0F, 0xC0, // #####               ######
	0xFE, 0x00, 0x0F, 0xE0, // #######             #######
	0xFF, 0x00, 0x01, 0xF0, // ########               #####
	0xEF, 0x80, 0x00, 0x70, // ### #####                ###
	0xE7, 0xC0, 0x00, 0x78, // ###  #####               ####
	0xE1, 0xE0, 0x00, 0x38, // ###    ####               ###
	0xE0, 0xF0, 0x00, 0x38, // ###     ####              ###
	0xE0, 0x78, 0x00, 0x38, // ###      ####             ###
	0xE0, 0x3E, 0x00, 0x38, // ###       #####           ###
	0xE0, 0x1F, 0x00, 0x78, // ###        #####         ####
	0xE0, 0x0F, 0xC1, 0xF0, // ###         ######     #####
	0xE0, 0x03, 0xFF, 0xE0, // ###           #############
	0xE0, 0x01, 0xFF, 0xC0, // ###            ###########
	0xE0, 0x00, 0x3F, 0x00, // ###               ######
	0x00, 0x00, 0x00, 0x00, //

	// @320 '3' (16 pixels wide)
	0x07, 0x00, 0x03, 0x00, //      ###              ##
	0x1F, 0x00, 0x03, 0xC0, //    #####              ####
	0x3F, 0x00, 0x03, 0xE0, //   ######              #####
	0x7C, 0x00, 0x00, 0xF0, //  #####                  ####
	0x70, 0x00, 0x00, 0x78, //  ###                     ####
	0xE0, 0x00, 0x00, 0x38, // ###                       ###
	0xE0, 0x03, 0x80, 0x38, // ###           ###         ###
	0xE0, 0x03, 0x80, 0x38, // ###           ###         ###
	0xE0, 0x03, 0x80, 0x38, // ###           ###         ###
	0xF0, 0x03, 0xC0, 0x78, // ####          ####       ####
	0x70, 0x07, 0xE0, 0xF0, //  ###         ######     ####
	0x7C, 0x1F, 0xFF, 0xE0, //  #####     ################
	0x3F, 0xFE, 0x7F, 0xC0, //   #############  #########
	0x1F, 0xFC, 0x1F, 0x80, //    ###########     ######
	0x03, 0xF0, 0x00, 0x00, //       ######
	0x00, 0x00, 0x00, 0x00, //

	// @384 '4' (16 pixels wide)
	0x01, 0xE0, 0x00, 0x00, //        ####
	0x01, 0xF8, 0x00, 0x00, //        ######
	0x01, 0xFE, 0x00, 0x00, //        ########
	0x01, 0xDF, 0x80, 0x00, //        ### ######
	0x01, 0xC7, 0xE0, 0x00, //        ###   ######
	0x01, 0xC1, 0xF0, 0x00, //        ###     #####
	0x01, 0xC0, 0x7C, 0x00, //        ###       #####
	0x01, 0xC0, 0x3F, 0x00, //        ###        ######
	0x01, 0xC0, 0x0F, 0xC0, //        ###          ######
	0x01, 0xC0, 0x03, 0xF0, //        ###            ######
	0xFF, 0xFF, 0xFF, 0xF8, // #############################
	0xFF, 0xFF, 0xFF, 0xF8, // #############################
	0xFF, 0xFF, 0xFF, 0xF8, // #############################
	0x01, 0xC0, 0x00, 0x00, //        ###
	0x01, 0xC0, 0x00, 0x00, //        ###
	0x01, 0xC0, 0x00, 0x00, //        ###

	// @448 '5' (16 pixels wide)
	0x07, 0x03, 0xC0, 0x00, //      ###      ####
	0x1F, 0x03, 0xFF, 0x80, //    #####      ###########
	0x3F, 0x03, 0xFF, 0xF8, //   ######      ###############
	0x7C, 0x01, 0xFF, 0xF8, //  #####         ##############
	0x70, 0x00, 0xE0, 0x78, //  ###            ###      ####
	0xE0, 0x00, 0x70, 0x38, // ###              ###      ###
	0xE0, 0x00, 0x70, 0x38, // ###              ###      ###
	0xE0, 0x00, 0x70, 0x38, // ###              ###      ###
	0xE0, 0x00, 0x70, 0x38, // ###              ###      ###
	0xF0, 0x00, 0xF0, 0x38, // ####            ####      ###
	0x78, 0x01, 0xE0, 0x38, //  ####          ####       ###
	0x7E, 0x03, 0xE0, 0x38, //  ######       #####       ###
	0x1F, 0xFF, 0xC0, 0x38, //    ###############        ###
	0x0F, 0xFF, 0x80, 0x38, //     #############         ###
	0x01, 0xFC, 0x00, 0x00, //        #######
	0x00, 0x00, 0x00, 0x00, //

	// @512 '6' (16 pixels wide)
	0x00, 0xFF, 0xF0, 0x00, //         ############
	0x0F, 0xFF, 0xFF, 0x00, //     ####################
	0x1F, 0xFF, 0xFF, 0xC0, //    #######################
	0x3E, 0x07, 0x83, 0xE0, //   #####      ####     #####
	0x78, 0x01, 0xC0, 0xF0, //  ####          ###      ####
	0xF0, 0x01, 0xC0, 0x70, // ####           ###       ###
	0xE0, 0x00, 0xE0, 0x38, // ###             ###       ###
	0xE0, 0x00, 0xE0, 0x38, // ###             ###       ###
	0xE0, 0x00, 0xE0, 0x38, // ###             ###       ###
	0xF0, 0x01, 0xE0, 0x38, // ####           ####       ###
	0x78, 0x01, 0xC0, 0x78, //  ####          ###       ####
	0x7C, 0x07, 0xC0, 0xF0, //  #####       #####      ####
	0x3F, 0xFF, 0x83, 0xE0, //   ###############     #####
	0x0F, 0xFF, 0x03, 0xC0, //     ############      ####
	0x03, 0xFC, 0x03, 0x00, //       ########        ##
	0x00, 0x00, 0x00, 0x00, //

	// @576 '7' (16 pixels wide)
	0x00, 0x00, 0x00, 0x38, //                           ###
	0x00, 0x00, 0x00, 0x38, //                           ###
	0x00, 0x00, 0x00, 0x38, //                           ###
	0xF8, 0x00, 0x00, 0x38, // #####                     ###
	0xFF, 0xC0, 0x00, 0x38, // ##########                ###
	0xFF, 0xF8, 0x00, 0x38, // #############             ###
	0x07, 0xFF, 0x00, 0x38, //      ###########          ###
	0x00, 0x3F, 0xC0, 0x38, //           ########        ###
	0x00, 0x07, 0xF0, 0x38, //              #######      ###
	0x00, 0x00, 0xFC, 0x38, //                 ######    ###
	0x00, 0x00, 0x3F, 0x38, //                   ######  ###
	0x00, 0x00, 0x0F, 0xB8, //                     ##### ###
	0x00, 0x00, 0x03, 0xF8, //                       #######
	0x00, 0x00, 0x00, 0xF8, //                         #####
	0x00, 0x00, 0x00, 0x38, //                           ###
	0x00, 0x00, 0x00, 0x00, //

	// @640 '8' (16 pixels wide)
	0x07, 0xF0, 0x00, 0x00, //      #######
	0x1F, 0xFC, 0x1F, 0x80, //    ###########     ######
	0x3F, 0xFE, 0x7F, 0xE0, //   #############  ##########
	0x7C, 0x1E, 0xFF, 0xF0, //  #####     #### ############
	0x70, 0x07, 0xE0, 0xF0, //  ###         ######     ####
	0xF0, 0x03, 0xC0, 0x78, // ####          ####       ####
	0xE0, 0x03, 0x80, 0x38, // ###           ###         ###
	0xE0, 0x03, 0x80, 0x38, // ###           ###         ###
	0xE0, 0x03, 0x80, 0x38, // ###           ###         ###
	0xE0, 0x07, 0xC0, 0x78, // ###          #####       ####
	0x70, 0x07, 0xE0, 0xF0, //  ###         ######     ####
	0x7C, 0x1E, 0xFF, 0xF0, //  #####     #### ############
	0x3F, 0xFC, 0x7F, 0xC0, //   ############   #########
	0x1F, 0xF8, 0x1F, 0x80, //    ##########      ######
	0x07, 0xF0, 0x00, 0x00, //      #######
	0x00, 0x00, 0x00, 0x00, //

	// @704 '9' (16 pixels wide)
	0x06, 0x00, 0xFE, 0x00, //      ##         #######
	0x1E, 0x07, 0xFF, 0xC0, //    ####      #############
	0x7E, 0x0F, 0xFF, 0xE0, //  ######     ###############
	0x78, 0x1F, 0x03, 0xF0, //  ####      #####      ######
	0xF0, 0x1C, 0x00, 0xF0, // ####       ###          ####
	0xE0, 0x3C, 0x00, 0x78, // ###       ####           ####
	0xE0, 0x38, 0x00, 0x38, // ###       ###             ###
	0xE0, 0x38, 0x00, 0x38, // ###       ###             ###
	0xE0, 0x38, 0x00, 0x38, // ###       ###             ###
	0x70, 0x1C, 0x00, 0x78, //  ###       ###           ####
	0x78, 0x1C, 0x00, 0xF0, //  ####      ###          ####
	0x3E, 0x0F, 0x01, 0xE0, //   #####     ####       ####
	0x1F, 0xFF, 0xFF, 0xC0, //    #######################
	0x07, 0xFF, 0xFF, 0x80, //      ####################
	0x00, 0x7F, 0xF8, 0x00, //          ############
	0x00, 0x00, 0x00, 0x00, //

	// @768 ':' (16 pixels wide)
	0x00, 0x00, 0x00, //
	0x00, 0x00, 0x00, 0x00, //
	0x00, 0x00, 0x00, 0x00, //
	0x00, 0x00, 0x00, 0x00, //
	0x00, 0x00, 0x00, 0x00, //
	0x00, 0x00, 0x00, 0x00, //
	0x00, 0xE0, 0x00, 0x38, // ###               ###
	0x00, 0xE0, 0x00, 0x38, // ###               ###
	0x00, 0xE0, 0x00, 0x38, // ###               ###
	0x00, 0x00, 0x00, 0x00, //
	0x00, 0x00, 0x00, 0x00, //
	0x00, 0x00, 0x00, 0x00, //
	0x00, 0x00, 0x00, 0x00, //
	0x00, 0x00, 0x00, 0x00, //
	0x00, 0x00, 0x00, 0x00, //
	0x00, 0x00, 0x00, 0x00, //
};

Credits

John Bradnam

145 projects • 179 followers

Thanks to Artur_Rocker.

Hand-held measuring tool

Things used in this project

Hardware components

Software apps and online services

Hand tools and fabrication machines

Story

Demonstration

3D printing

Schematic

The PCB

Assembly - Step 1

Assembly - Step 2

Assembly - Step 3

Assembly - Step 4

Programming

Conclusion

Custom parts and enclosures

STL Files

Schematics

Schematic

PCB

Eagle files

Code

MeasuringWheel_V2.ino

Tiny8kOLED.h

Tiny8kOLED.cpp

font6x8.h

font8x16.h

font16x32.h

Credits

John Bradnam

Comments

Embed the widget on your own site

Hand-held measuring tool

Hand-held measuring tool

Things used in this project

Hardware components

Software apps and online services

Hand tools and fabrication machines

Story

Demonstration

3D printing

Schematic

The PCB

Assembly - Step 1

Assembly - Step 2

Assembly - Step 3

Assembly - Step 4

Programming

Conclusion

Custom parts and enclosures

STL Files

Schematics

Schematic

PCB

Eagle files

Code

MeasuringWheel_V2.ino

Tiny8kOLED.h

Tiny8kOLED.cpp

font6x8.h

font8x16.h

font16x32.h

Credits

John Bradnam

Comments

Related channels and tags
