Led RGB, with Arduino

In simple words it is like correctly connecting an RGB Led with Arduino. I hope you like it ;)

BeginnerFull instructions provided232
Led RGB, with Arduino

Things used in this project

Hardware components

Arduino UNO
Arduino UNO
×1

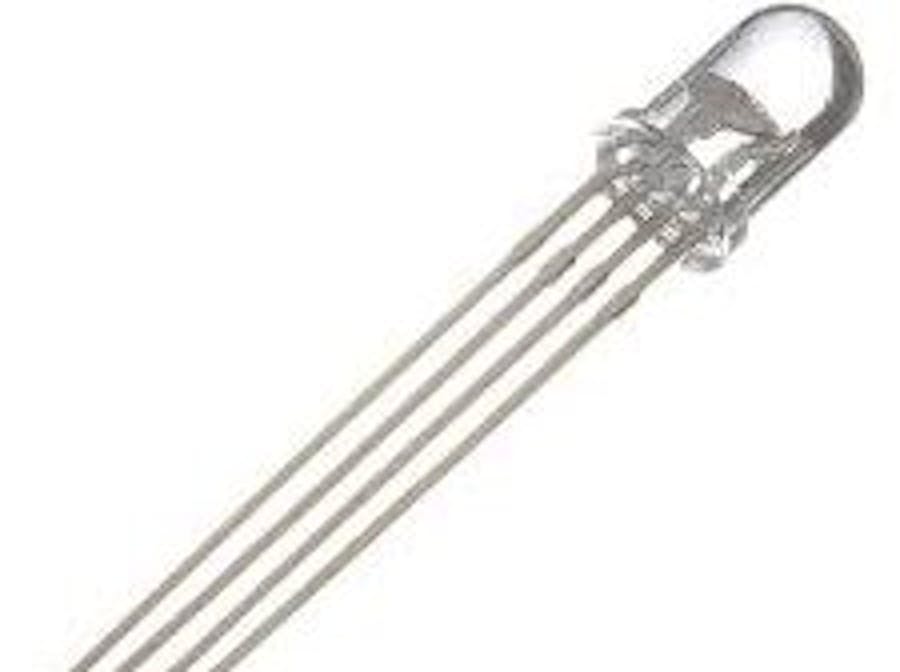

RGB Diffused Common Cathode
RGB Diffused Common Cathode
×1
Jumper wires (generic)
Jumper wires (generic)
×5
USB-A to B Cable
USB-A to B Cable
×1
Resistor 330 ohm
Resistor 330 ohm
×3
Solderless Breadboard Full Size
Solderless Breadboard Full Size
×1

Software apps and online services

Arduino IDE
Arduino IDE

Story

Read more

Schematics

Circuit diagrams

Code

Code For Led RGB

C/C++
// Define Pins
#define BLUE 3
#define GREEN 5
#define RED 6

void setup()
{
pinMode(RED, OUTPUT);
pinMode(GREEN, OUTPUT);
pinMode(BLUE, OUTPUT);
digitalWrite(RED, HIGH);
digitalWrite(GREEN, LOW);
digitalWrite(BLUE, LOW);
}

// define variables
int redValue;
int greenValue;
int blueValue;

// main loop
void loop()
{
#define delayTime 10 // fading time between colors

redValue = 255; // choose a value between 1 and 255 to change the color.
greenValue = 0;
blueValue = 0;

// this is unnecessary as we've either turned on RED in SETUP
// or in the previous loop ... regardless, this turns RED off
// analogWrite(RED, 0);
// delay(1000);

for(int i = 0; i < 255; i += 1) // fades out red bring green full when i=255
{
redValue -= 1;
greenValue += 1;
// The following was reversed, counting in the wrong directions
// analogWrite(RED, 255 - redValue);
// analogWrite(GREEN, 255 - greenValue);
analogWrite(RED, redValue);
analogWrite(GREEN, greenValue);
delay(delayTime);
}

redValue = 0;
greenValue = 255;
blueValue = 0;

for(int i = 0; i < 255; i += 1) // fades out green bring blue full when i=255
{
greenValue -= 1;
blueValue += 1;
// The following was reversed, counting in the wrong directions
// analogWrite(GREEN, 255 - greenValue);
// analogWrite(BLUE, 255 - blueValue);
analogWrite(GREEN, greenValue);
analogWrite(BLUE, blueValue);
delay(delayTime);
}

redValue = 0;
greenValue = 0;
blueValue = 255;

for(int i = 0; i < 255; i += 1) // fades out blue bring red full when i=255
{
// The following code has been rearranged to match the other two similar sections
blueValue -= 1;
redValue += 1;
// The following was reversed, counting in the wrong directions
// analogWrite(BLUE, 255 - blueValue);
// analogWrite(RED, 255 - redValue);
analogWrite(BLUE, blueValue);
analogWrite(RED, redValue);
delay(delayTime);
}
}
