Ionizing Radiation Detector

This tutorial is for building an ionizing radiation detector with Arduino!

BeginnerFull instructions provided1.5 hours2,179
Ionizing Radiation Detector

Things used in this project

Hardware components

DFRobot Beetle CM-32U4
×1
DFRobot MicroSD Card Breakout
×1
DFRobot MicroSD Card
×1
DFRobot GPS Module
×1
DFRobot Vibration Motor Module
×1
DFRobot I2C 16x2 LCD
×1
DFRobot Geiger Counter Module
×1
DFRobot DC-DC Converter
Only needed if you power this device from a 12v source.
×1
Rechargeable Battery, 3.7 V
Rechargeable Battery, 3.7 V
×1
Plastic Enclosure, Project Box
Plastic Enclosure, Project Box
×1

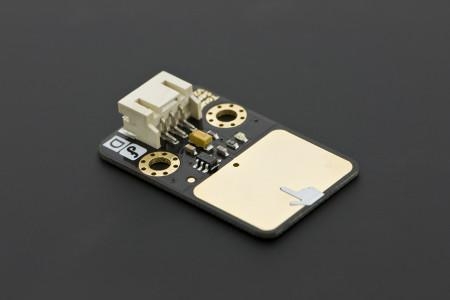

Gravity: Digital Capacitive Touch Sensor For Arduino
DFRobot Gravity: Digital Capacitive Touch Sensor For Arduino
×1

Hand tools and fabrication machines

Multitool, Screwdriver
Multitool, Screwdriver

Story

Read more

Schematics

Schematic

Code

geiger.ino

C/C++
#include <DFRobot_RGBLCD1602.h>
#include <TinyGPS++.h>
#include <SoftwareSerial.h>
#include <SD.h>

#define geiger_pin 0
#define button A1
#define vibration 11
#define SDss A0

static const int RXPin = 9, TXPin = 1;//D1/D9
static const uint32_t GPSBaud = 9600;

const byte motor1Char[8] = {
  0b00110,
  0b00110,
  0b00100,
  0b01110,
  0b01110,
  0b01110,
  0b01110,
  0b01110
};

const byte motor2Char[8] = {
  0b01100,
  0b01100,
  0b00100,
  0b01110,
  0b01110,
  0b01110,
  0b01110,
  0b01110
};

const byte fullChar[8] = {
  0b11111,
  0b11111,
  0b11111,
  0b11111,
  0b11111,
  0b11111,
  0b11111,
  0b11111
};

boolean vib = true;
boolean seconds = true;

int i = 0;
const int n = 0;
volatile long buf[n];
float timebetweenpulses = 0;
int pos = 0;

long lastmillis = 0;
long currentmillis = 0;
int looptimerlength = 30000;//30 sec

float lastReading = 0;
float lastUSVH = 0;
float CPM = 0;
float USVH = 0;

int mode = 1;

int timer1 = 0;
int count = 0;
int count2 = 0;

#define arrSize(X) sizeof(X) / sizeof(X[0])

float milli[] =            { 2000,     1000,       900,      800,        700,        600,      500,       400,          300,           100,       50     };
float values[] =           {   0,        1,         2,        5,          10,         40,      100,       250,          400,          1000,      10000   };
const char* equivalent[] = {"Normal", "Normal", "Airport", "Dental", "Norm(1day)", "Flight", "X-Ray", "NPP(1year)", "Mammogram",  "Gov Limit", "CT Scan" };

File myFile;

DFRobot_RGBLCD1602 lcd(/*lcdCols*/16,/*lcdRows*/2);
TinyGPSPlus gps;
SoftwareSerial ss(RXPin, TXPin);

void setup() {
  pinMode(geiger_pin, INPUT);
  pinMode(vibration, OUTPUT);
  pinMode(SDss, OUTPUT);
  pinMode(button, INPUT);
  digitalWrite(vibration, LOW);

  ss.begin(GPSBaud);

  lcd.init();
  lcd.customSymbol(1,motor1Char);
  lcd.customSymbol(2,motor2Char);
  lcd.customSymbol(4,fullChar);

  lcd.setCursor(4,0);
  lcd.print(F("Geiger"));
  lcd.setCursor(3,1);
  lcd.print(F("Counter"));
  lcd.setRGB(0,255,0);
  delay(3000);
  for (int p=0;p<2;p++){
    for (int p=255;p>0;p--) {
      lcd.setRGB(0, p, 0);
      delay(3);
    }
    for (int p=0;p<255;p++) {
      lcd.setRGB(0, p, 0);
      delay(3);
    }
  }
  for (int i=0;i<15;i++){
    lcd.scrollDisplayRight();
    delay(100);
  }


  if (!SD.begin(SDss)) {
    lcd.clear();
    lcd.setRGB(255, 0, 0);
    lcd.setCursor(1,0);
    lcd.print(F("SD Init Failed"));
    delay(5000);
    lcd.clear();
  }

  myFile = SD.open("google.txt", FILE_WRITE);
  if (myFile){
    myFile.println(F("ID,Name,Date,Time,Latitude,Longitude,CPM,uSvh"));
    myFile.close();
  }
  else {
    Serial.println("Failed to open google file");
  }
  myFile = SD.open("googler.txt", FILE_WRITE);
  if (myFile){
    myFile.println(F("ID,Name,Date,Time,Latitude,Longitude,TimeBPulses"));
    myFile.close();
  }
  else {
    Serial.println("Failed to open googler file");
  }

  attachInterrupt(digitalPinToInterrupt(geiger_pin), isrcount, FALLING);

}

void loop() {
  while (ss.available() > 0){
    gps.encode(ss.read());
  }

  if (gps.location.isUpdated()){
    Serial.print("Latitude: ");
    Serial.println(gps.location.lat(),6);
    Serial.print("Longitude: ");
    Serial.println(gps.location.lng(),6);
  }

  currentmillis = millis();
  if ((currentmillis - lastmillis) >= looptimerlength){
    CPM = pos*(60000/looptimerlength);
    USVH = (pos*(60000/looptimerlength))/153.80;
    Serial.print("CPM: ");
    Serial.println(CPM);
    Serial.print("uSv/h: ");
    Serial.println(USVH);
    lastUSVH = USVH;
    pos=0;
    lastmillis = millis();
    if (mode == 3){
      lcdDisplayData(3);
      if (vib){
        if (USVH > 2){
          digitalWrite(vibration, HIGH);
          delay(300);
          digitalWrite(vibration, LOW);
        }
      }
    }
    saveToFile(1);
  }

  if (lastReading != timebetweenpulses){
    if (mode == 1){
      lcdDisplayData(1);
      lastReading = timebetweenpulses;
    }
    else if (mode == 2){
      lcdDisplayData(2);
      lastReading = timebetweenpulses;
    }
  }

  if (digitalRead(button) == HIGH){
    int taps = 0;
    redo:

    taps++;
    if (taps >= 6){
      taps = 1;
    }
    Serial.print("Taps: ");
    Serial.println(taps);

    while (digitalRead(button) == HIGH);

    do {
      timer1++;
      delay(1);
      if (timer1 > 2000){
        timer1 = 0;
        goto exi;
      }
    } while (digitalRead(button) == LOW);

    if (digitalRead(button) == HIGH){
      timer1 = 0;
      goto redo;
    }
    exi:
    Serial.print("Completed Taps: ");
    Serial.println(taps);

    lcd.clear();

    if (taps == 1){
      lcd.setRGB(0, 255, 0);
      lcd.setCursor(0,0);
      lcd.print(F("Standard Mode"));
      delay(3000);
      mode = 1;
    }
    else if (taps == 2){
      lcd.setRGB(0, 255, 255);
      lcd.setCursor(3,0);
      lcd.print(F("Bar Mode"));
      delay(3000);
      mode = 2;
    }
    else if (taps == 3){
      lcd.setRGB(0, 0, 255);
      lcd.setCursor(0,0);
      lcd.print(F("Equivalents Mode"));
      delay(3000);
      lcd.clear();
      lcd.setRGB(0, 255, 0);
      lcd.setCursor(0,0);
      lcd.print(F("Acquiring Data"));
      mode = 3;
    }
    else if (taps == 4){
      vib = !vib;
      lcd.setRGB(255, 0, 255);
      lcd.setCursor(3,0);
      lcd.print(F("Vibration"));
      lcd.setCursor(4,1);
      lcd.print(vib > 0 ? "On" : "Off");
      for (int i=0;i<10;i++){
        lcd.setCursor(14,1);
        lcd.write(1);
        delay(300);
        lcd.setCursor(14,1);
        lcd.write(2);
        delay(300);
      }
      mode = 1;
    }
    else if (taps == 5){
      seconds = !seconds;
      lcd.setRGB(255, 0, 255);
      lcd.setCursor(3,0);
      lcd.print(F("Seconds"));
      lcd.setCursor(4,1);
      lcd.print(seconds > 0 ? "On" : "Off");
      delay(3000);
      lcd.clear();
      mode = 1;
    }
  }
}

void isrcount() {
  i++;
  if (i>= 3){
    i=1;
  }

  buf[i] = millis();

  if (buf[1] <= buf[2]){
    timebetweenpulses = buf[2] - buf[1];
    Serial.print("Time between pulses: ");
    Serial.println(timebetweenpulses/1000);
    buf[1] = 1;
  }
  else if (buf[1] >= buf[2]){
    timebetweenpulses = buf[1] - buf[2];
    Serial.print("Time between pulses: ");
    Serial.println(timebetweenpulses/1000);
    buf[2] = 1;
  }
  pos++;

  if (timebetweenpulses < 500){
    saveToFile(2);
  }

  if (mode == 1 || mode == 2){
    Serial.println("Mode check");
    if (vib){
      Serial.println("Vib true");
      if (timebetweenpulses < 1000){
        Serial.println("Vibration motor on");
        digitalWrite(vibration, HIGH);
        delay(300);
        digitalWrite(vibration, LOW);
      }
    }
  }
}

int nearestEqual(int x, bool sorted = true) {
  int idx = 0; // by default near first element
  int distance = abs(values[idx] - x);
  for (int i = 1; i < arrSize(values); i++) {
    int d = abs(values[i] - x);
    if (d < distance) {
      idx = i;
      distance = d;
    }
    else if (sorted) return idx;
  }
  return idx;
}
int nearestEqualMS(int x, bool sorted = true) {
  int idx = 0; // by default near first element
  int distance = abs(milli[idx] - x);
  for (int i = 1; i < arrSize(milli); i++) {
    int d = abs(milli[i] - x);
    if (d < distance) {
      idx = i;
      distance = d;
    }
    else if (sorted) return idx;
  }
  return idx;
}

void lcdDisplayData(int mo){
  lcd.clear();
  if (mo == 1){
    lcd.setCursor(0,0);
    lcd.print(F("Time in Pulses:"));
    lcd.setCursor(4,1);
    if (seconds){
      lcd.print(timebetweenpulses/1000);//seconds
    }
    else {
      lcd.print(timebetweenpulses);//milliseconds
    }
  }
  else if (mo == 2){
    lcd.setCursor(0,0);
    lcd.print(F("Time:"));
    lcd.setCursor(6,0);
    if (seconds){
      lcd.print(timebetweenpulses/1000);//seconds
    }
    else {
      lcd.print(timebetweenpulses);//milliseconds
    }
    lcd.setCursor(0,1);
    lcdBar(timebetweenpulses);
  }
  else if (mo == 3){
    lcd.setCursor(0,0);
    lcd.print(F("uSv/h:"));
    lcd.setCursor(7,0);
    lcd.print(USVH);
    lcd.setCursor(0,1);
    if (USVH == 0.00){
      lcd.print("Normal");
    }
    else {
      lcd.print(equivalent[nearestEqual(USVH)]);
      delay(500);
    }
  }
  lcdbacklight();
}

void lcdBar(int re){
  int inp = map(nearestEqualMS(re),0,9,0,14);
  for (int i=0;i<(inp+1);i++){
    lcd.setCursor(i+1,1);
    lcd.write(4);
  }
}

void lcdbacklight(){
  int theNearestEqual;
  if (mode == 1 || mode == 2){
    theNearestEqual = nearestEqualMS(timebetweenpulses);
  }
  else {
    theNearestEqual = nearestEqual(CPM);
  }
  switch (theNearestEqual) {
  case 0 :
    lcd.setRGB(0,255,0);
    break;
  case 1 :
    lcd.setRGB(0,255,0);
    break;
  case 2 :
    lcd.setRGB(0,255,0);
    break;
  case 3 :
    lcd.setRGB(150,255,0);
    break;
  case 4 :
    lcd.setRGB(255,255,0);
    break;
  case 5 :
    lcd.setRGB(255,180,0);
    break;
  case 6 :
    lcd.setRGB(255,100,0);
    break;
  case 7 :
    lcd.setRGB(255,0,0);
    break;
  case 8 :
    lcd.setRGB(255,0,150);
    break;
  case 9 :
    lcd.setRGB(175,0,255);
    break;
  default :
    break;
  }
}

void saveToFile(int typ){
  if (typ != 0){
    count++;
    Serial.print("Count: ");
    Serial.println(count);
    if (typ == 1){
      myFile = SD.open("google.txt", FILE_WRITE);
    }
    else if (typ == 2){
      myFile = SD.open("googler.txt", FILE_WRITE);
    }

    if (myFile){
      myFile.print(count);
      myFile.print(",Geiger");
      myFile.print(count);
      myFile.print(",");
      myFile.print(gps.date.month());
      myFile.print(F("/"));
      myFile.print(gps.date.day());
      myFile.print(F("/"));
      myFile.print(gps.date.year());
      myFile.print(",");
      myFile.print(gps.time.hour());
      myFile.print(F(":"));
      myFile.print(gps.time.minute());
      myFile.print(F(":"));
      myFile.print(gps.time.second());
      myFile.print(",");
      myFile.print(gps.location.lat(),8);
      myFile.print(",");
      myFile.print(gps.location.lng(),8);
      myFile.print(",");
      if (typ == 1){
        myFile.print(CPM,2);
        myFile.print(",");
        myFile.println(USVH,2);
      }
      else if (typ == 2){
        myFile.println(timebetweenpulses,3);
      }
      myFile.close();
    }
    else {
      Serial.println("Failed to write");
    }
  }
}
