Make your Own Web Application with Hailo and Using Flask

Introduction

This tutorial guides you through building a Flask-based web application powered by Hailo. You'll learn how to install the required dependencies, set up the development environment, and launch the server step by step.

Step 1: Update the System

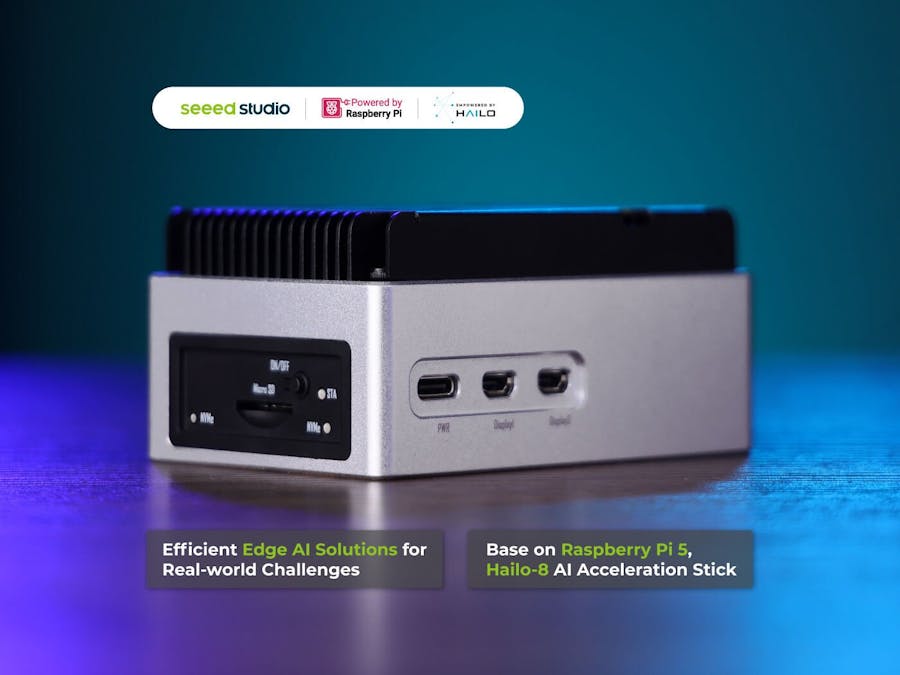

Open a terminal on your reComputer AI Box and run the following commands to update your system:

sudo apt update
sudo apt full-upgrade

Step 2: Set PCIe to Gen3

Follow the tutorial to set PCIe to Gen3 as required for the Hailo device.

Step 3: Install Dependencies for NPU

 sudo apt install hailo-all

Step 4: Set Up the Project Environment

● Create a New Directory:

mkdir Hailo-Web-App
cd Hailo-Web-App

● Create and Activate a Virtual Environment:

python -m venv --system-site-packages env
source env/bin/activate

● Clone the Repository:

git clone https://github.com/KasunThushara/Hailo-Web.git
cd Hailo-Web

● Install Python Dependencies:

pip install -r requirements.txt

● Grant Execution Permission to the Download Script

chmod +x download_resources.sh

● Run the Resource Download Script:

./download_resources.sh

Step 5: Start the Server

● Navigate Back to the Project Directory on New Terminal

cd Hailo-Web-App

● Activate the Virtual Environment (if not already activated):

source env/bin/activate

● Navigate to the Hailo-Web Directory:

cd Hailo-Web

● Start the Server:

python3 server.py

Step 6: Access the Web UI

Once the server is running, open a web browser and visit:

http://<pi-ip-address>:5000

Replace <pi-ip-address> with the actual IP address of your reComputer AI Box.

What You Will Do on the Web UI:

• Choose the vision task (e.g., object detection, pose estimation).
• Upload the relevant files for the selected task.
• View the results directly on the web interface.

This setup provides a user-friendly interface for interacting with the Hailo device for various vision tasks.
