nRF5340 Module

It has a small size of 14mm times 20mm, and is hand solderable! The 1.27 mm pitch pads on the sides makes it for easily reworkable and hand solderable, perfect for DIY projects. This layout is only using a 2 layer design, however routing out the inner rows require an 4 layer HDI board. I am still working on the 4 layer version, but since this project is self funded, the 2 layer is way more affordable :)

Im ordering some of theese during the summer, so stay posted for updates!

Dimmensions:

Doom running on the nRF5340:

https://www.youtube.com/watch?v=FN1pXUirx0Q

The module:

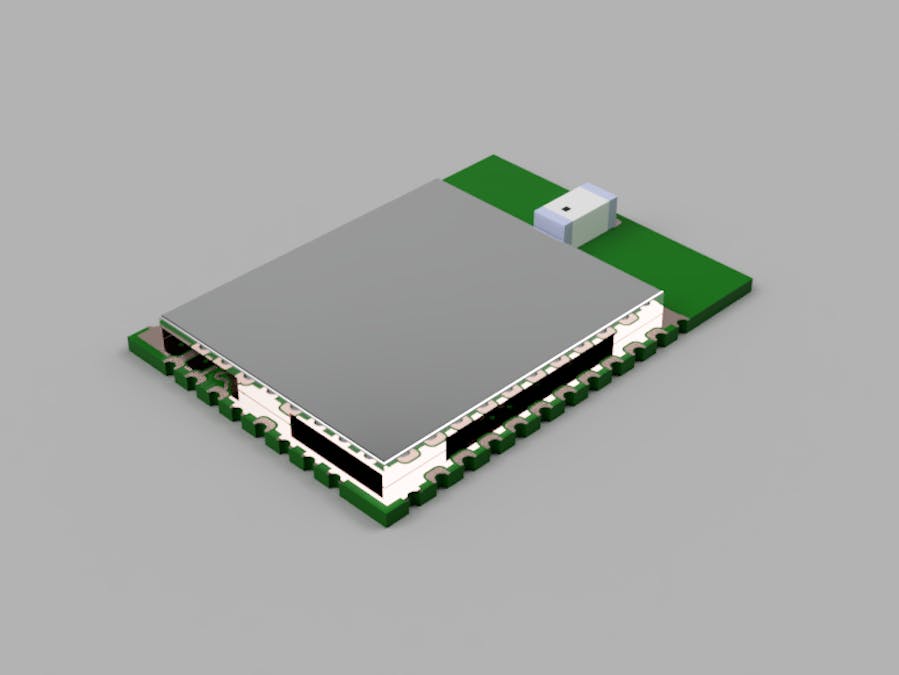

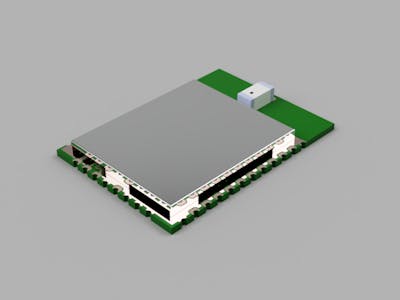

Some renderings of the module for fun:

I will probobly make a few of theese in the summer, would you like an feather form factor Cortex M33? Check out my other projects
