Speed testing the MPU9150's functions using a LinkIt ONE

Background

Setup

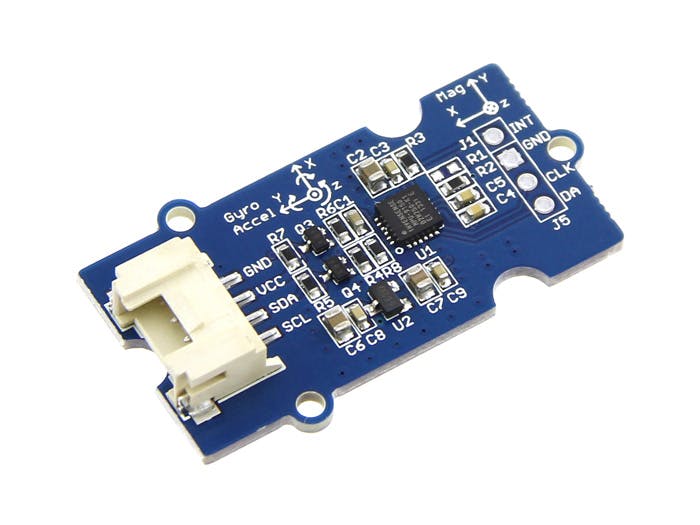

I grabbed my trusty LinkIt ONE and my 9Dof sensor (MPU9150, connecting over I2C), and looked at the example library. I wanted to get data from each of the sensors as fast as possible, and I will do post-capture processing for heading and orientation. I set my sights on these three programs:

• getAccel_Data
• getGyro_Data
• getCompass_Data

I then made blocks of C to run in a loop:

Serial.print(millis() % 1000);
Serial.print(",Acc1,");
getAccel_Data();
Serial.print(Axyz[0]);
Serial.print(",");
Serial.print(Axyz[1]);
Serial.print(",");
Serial.print(Axyz[2]);
Serial.print(",");
Serial.println(millis() % 1000);

This is my code for checking a single Accelerometer data gathering. I figured all I had to do is try running the same block, with additional runs of “getAccel_Data;” and notations of “”Acc_” so I can to comparisons afterwards. I then take the time difference between the start and end and map it to the sensor read type, and the sensor read count. After that, I subtract the time of the single run to the double and triple run to find how much longer it took for the one or two additional runs.

Accelerometer Tests

For each function, I ran three different sets of blocks. Here is the one I ran for "getAccel":

Serial.print(millis() % 1000);
Serial.print(",Acc1,");
getAccel_Data();
Serial.print(Axyz[0]);
Serial.print(",");
Serial.print(Axyz[1]);
Serial.print(",");
Serial.print(Axyz[2]);
Serial.print(",");
Serial.println(millis() % 1000);
Serial.print(millis() % 1000);
Serial.print(",Acc2,");
getAccel_Data();
getAccel_Data();
Serial.print(Axyz[0]);
Serial.print(",");
Serial.print(Axyz[1]);
Serial.print(",");
Serial.print(Axyz[2]);
Serial.print(",");
Serial.println(millis() % 1000);
Serial.print(millis() % 1000);
Serial.print(",Acc3,");
getAccel_Data();
getAccel_Data();
getAccel_Data();
Serial.print(Axyz[0]);
Serial.print(",");
Serial.print(Axyz[1]);
Serial.print(",");
Serial.print(Axyz[2]);
Serial.print(",");
Serial.println(millis() % 1000);

Let’s have a look at the results (do note, time is in milliseconds, 1/1000th of a second):

First thing I see here is that 23.3 + 45.7 does not equal 68.1. This is good, this is what I expect, and am glad to see. My formula for calculating the actual average runtime of getAccel_Data is as follows:

( (Acc2 – Acc1) + (Acc3 – Acc1) ) / 3

This is set up to give a double weight to the difference between Acc3 and Acc1, since there was an additional run compared to Acc2 to Acc1.

Testing All Sensors

I created a few sets of functions besides the stock ones to test out.

• getAccelGyro_Data: Combined getAccel_Data and getGyro_data, eliminating duplicate runs of accelgyro.getMotion9
• getDof_Data: Combines getAccelGyro_Data and getCompass_Data
• getRawDof_Data: getDof_Data without the calculations, just raw values

Ultimately, I let my computer run, and I got 4600 records for each set of sensors. Here’s my results:

From this, I calculated the following:

Conclusion

1. The library should not have “getAccel_data” and “getGyro_data”, rather just combine the two together for optimal performance.
2. Also, when we look at the ‘getDof” vs. “getRawDof”, by saving the larger values instead of reducing their size before saving, it actually costs time. About 0.0674 milliseconds per cycle.
3. You save 22.4596 milliseconds per cycle by combining gathering the sensor data into one procedure.
4. You save 0.0681 milliseconds by running “getDof_data” instead of “getAccelGyro_data” and then “getCompass”.
