Water leakage might destroy our properties at home and workplace, and potentially cause monetary loss and health risks. It's essential to be alert when there is a leakage to make sure actions are taken to minimize risks and avoid damages.

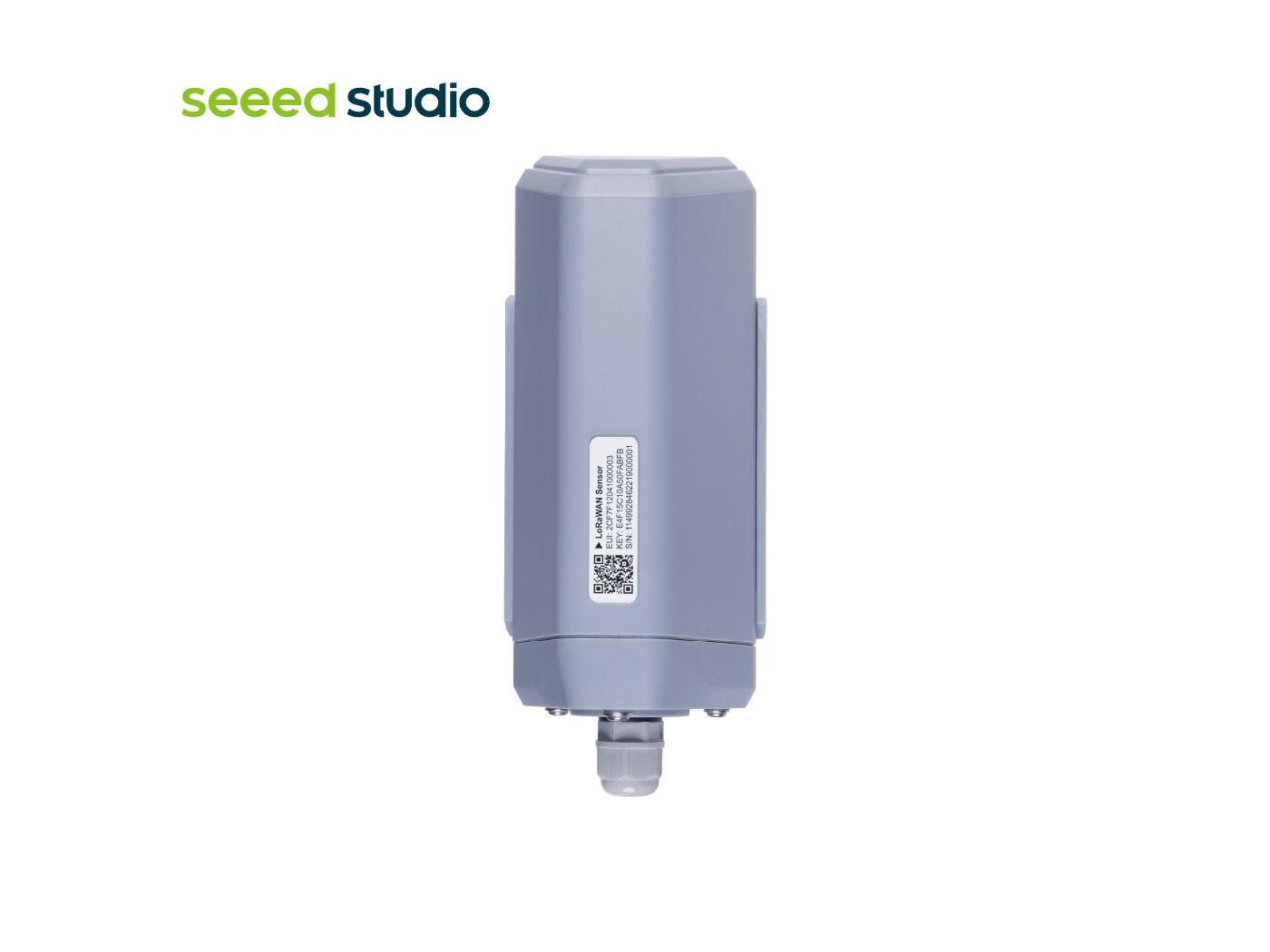

1. Prepare Data Logger, sensor probe, gateway, and tools2. Connect water leak sensor to Data LoggerRefer Wire sequence of theWater Leak sensor to connect:
1). Pass the sensor cable through the bottom cover and connect it to the base of the Data Logger according to the wire sequence requirements;
2). Connect the upper cover, rubber ring, and screw cap in sequence
3). Tighten the screws and screw caps to check the waterproofing. If the wire diameter is too thin, add waterproof tape for winding.
1). Open and log in to the SenseCAP App.
2). Select "S2100 Data Logger" and Click “Setup” on the config page.
3). Press the button and hold for 3 seconds, the green LED will flash at 1s frequency. Then click “Scan” to start scanning the data logger's Bluetooth.
4). Configure the lorawan and sensor parameters(includes RS485 Modbus-RTU command) like this. Click the 'Send' to save changes.
5). Scan the QR code of the device and bind it to your account via the APP. Then you will see the collected data on the Dashboard(http://sensecap.seeed.cc/portal/#/login) like this:
6). Get Dashboard API at ‘Access API keys’, If you have questions with this step, you can refer to this:https://sensecap-docs.seeed.cc/data_openstream_quickstart.html
