Temperature and Distance reading with active LED

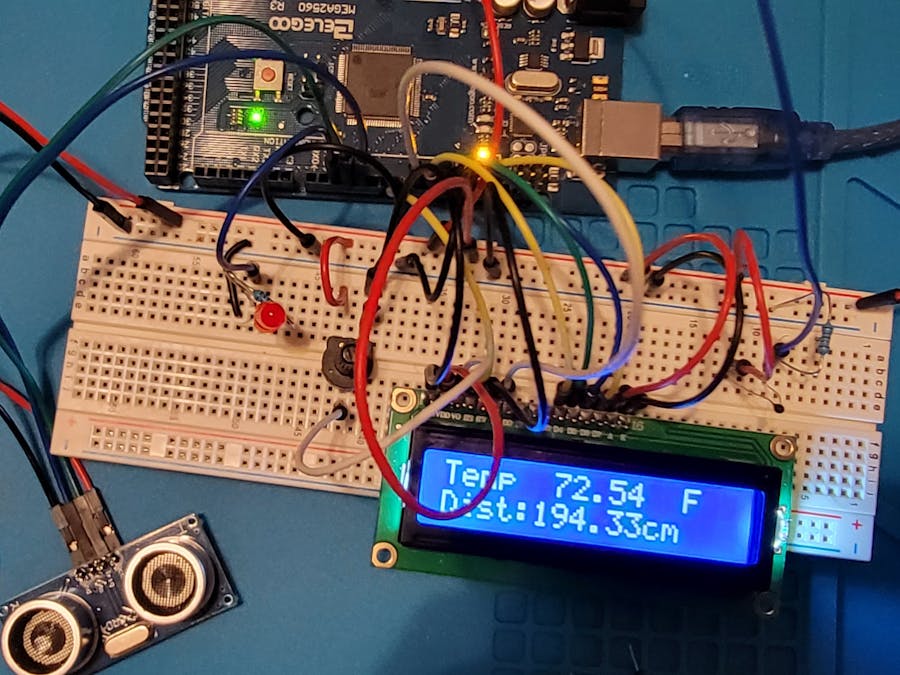

This project monitors the Temperature, and distance. The LED is an indictor that the robot stop at a distance 10cm or less.

IntermediateShowcase (no instructions)188
Temperature and Distance reading with active LED

Things used in this project

Hardware components

Arduino Mega 2560
Arduino Mega 2560
×1
Ultrasonic Sensor - HC-SR04 (Generic)
Ultrasonic Sensor - HC-SR04 (Generic)
×1
Thermistor
×1
Resistor 10k ohm
Resistor 10k ohm
×1
Single Turn Potentiometer- 100k ohms
Single Turn Potentiometer- 100k ohms
×1
Resistor 220 ohm
Resistor 220 ohm
×1
LCD 16x2 + extras - White on Blue
×1
5 mm LED: Red
5 mm LED: Red
×1
Jumper wires (generic)
Jumper wires (generic)
×1

Story

Read more

Schematics

circuit diagrams

Schematics

Code

Temperature and Distance Monitoring

Arduino
/*
 Temperature and Distance Monitoring
  Measures the distance and temperature every 30 secs, and turn on the red LED when the distance is  less than 10 cm.
  You will need to download the NewPing and Liquid Crystal libary from libary manager.
 */
// Unltra Sonice test
#include <NewPing.h> //Libary used for the ultra sonic
#include <LiquidCrystal.h> //Libary used for the LCD screen
//Define Constants
#define echoPin 4 // attach pin D4 Arduino to pin Echo of HC-SR04
#define trigPin 3 // attach pin D3 Arduino to pin Trigger of HC-SR04
#define Max_DISTANCE 400 // Set the max distance for the Ultra sonic
#define ledPin 2 // LED pin D2
NewPing sonar(trigPin,echoPin, Max_DISTANCE);

//Define Variables, Variables will change as the program is ran:
float duration, distance;
int iterations = 10;
int tempPin = 0;
int ledState = LOW;             // ledState used to set the LED at the start of the program
//                BS  E  D4 D5  D6 D7
LiquidCrystal lcd(7, 8, 9, 10, 11, 12); // Pins for the LCD screen. These can be changed

void setup()
{
  //Set Pins and serial port printout
  Serial.begin(9600);    //  Serial Communication is starting with 9600 of baudrate speed
  Serial.println("Ultrasonic Sensor HC-SR04 Test"); // print some text in Serial Monitor
  Serial.println("with Arduino UNO R3");
  // Set the row and columns for the LCD screen
   lcd.begin(16, 1);  // Set column for distance display
   lcd.begin(16, 2);   // Set column for Temp display

  // set the digital pin as output:
  pinMode(ledPin, OUTPUT);
}

// Main Program Loop this will run until program is halted
void loop()
{
  //Begin Ultra Sonic Code and print to LCD screen
duration = sonar.ping_median(iterations);
distance = (duration / 2) * 0.0343;

// Displays the Output
  lcd.setCursor(0, 1); // set the column on the LCD
  lcd.print ("Dist:      cm"); // Displays the distance on the LCD

  /* Checks that the distance is greater than or equal to 400 cm,
  or if the distance is less than or equal to 5 cm
  */
    if (distance>= 400 || distance<= 5) {
  lcd.setCursor(0, 1);
  lcd.print("Out of range");  // Displays the out of range on the LCD
  }
  else {
  lcd.setCursor(5, 1); // set the column on the LCD
  lcd.print (distance); // Displays the distance on the LCD
  }
// Serial monitor display this is mainly for debugging
  Serial.print(" Duration: ");  // Displays the distance on the Serial Monitor
  Serial.print(duration);  // Displays the distance on the Serial Monitor
  Serial.print(" Dist: ");  // Displays the distance on the Serial Monitor
  Serial.print(distance); // Displays the distance on the Serial Monitor
  Serial.println(" cm"); // Displays the distance on the Serial Monitor

  // TEMP monitoring code
  int tempReading = analogRead(tempPin);
  // Temp conversion formula
  double tempK = log(10000.0 * ((1024.0 / tempReading - 1)));
  tempK = 1 / (0.001129148 + (0.000234125 + (0.0000000876741 * tempK * tempK )) * tempK );       //  Temp Kelvin
  float tempC = tempK - 273.15;            // Convert Kelvin to Celcius
  float tempF = (tempC * 9.0) / 5.0 + 32.0; // Convert Celcius to Fahrenheit
  /*  replaced
    float tempVolts = tempReading * 5.0 / 1024.0;
    float tempC = (tempVolts - 0.5) * 10.0;
    float tempF = tempC * 9.0 / 5.0 + 32.0;
  */
  // Display Temperature in C or F
  lcd.setCursor(0, 0);
  //lcd.print("Temp         C  ");
  // Display Temperature in F
  lcd.print("Temp         F  ");
  lcd.setCursor(6, 0);
  // Display Temperature in C
  //lcd.print(tempC);
  // Display Temperature in F
  lcd.print(tempF); // prints temperature to LCD screen
   delay(30000);

  //  the LED is off turn if the distance is greater than 10cm
  if (distance<= 10) { // Checks the distance
    ledState = HIGH; //Set LED to on if less than 10 cm
  } else {
    ledState = LOW; //Set LED to off
  }

  // set the LED with the ledState of the variable:
  digitalWrite(ledPin, ledState);
}
