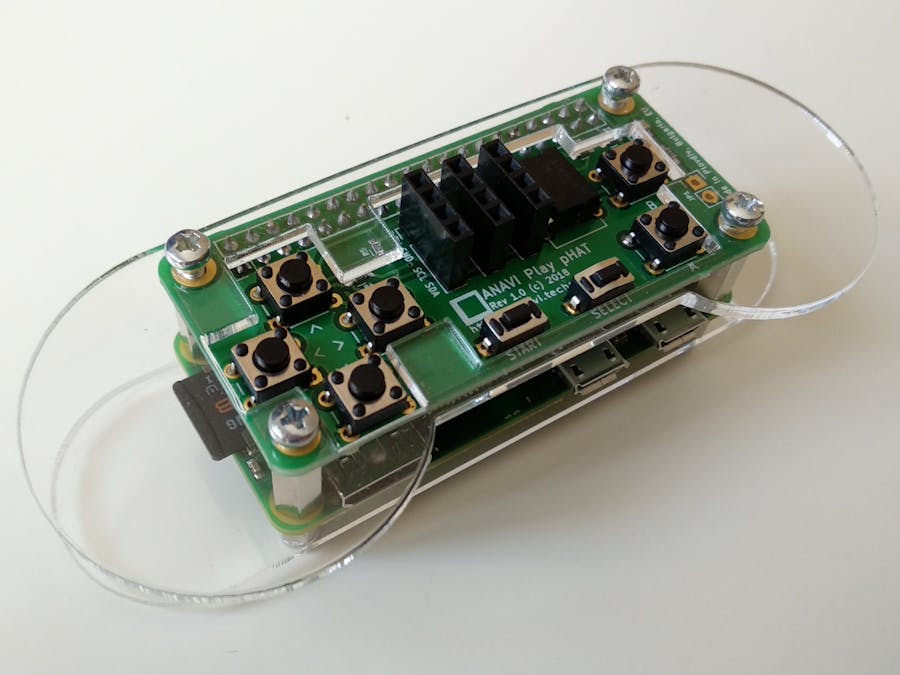

ANAVI Play pHAT

ANAVI Play pHAT is a super simple, low cost, open source hardware add-on board for Raspberry Pi with buttons for retro gaming and slots for up to three I2C sensor modules.

Inspired by the classic game controllers of the early 80s, ANAVI Play pHAT fits perfectly on top of any Raspberry Pi with a 40-pin header, including the Raspberry Pi 3 B+ and Zero. It runs on Raspbian out of the box, and with our Python script you can use it for playing retro games on RetroPie and EmulationStation. Furthermore, free and open source software examples are provided for reading data from sensors for temperature, humidity, barometric pressure, and light.

ANAVI Play pHAT was created by and for free and open source software. It has been certified by the open source hardware association under UID BG000007. All units will be manufactured in Plovdiv, Bulgaria, EU. Both soldering kits and fully assembled units are available.

Features & Specifications

• Gamepad with eight buttons for playing retro games

• Slots for up to three plug-and-play I2C sensors

• EEPROM with device tree binary overlay

• Works out of the box with Raspbian, fully compatible with RetroPie

• Excellent software support, documentation, and open source examples

Compatibility

ANAVI Play pHAT works with Raspberry Pi 3 B+ and B, Raspberry Pi 2, Raspberry Pi A+, Raspberry Pi B+, Raspberry Pi 0, and Raspberry Pi 0 W.

ANAVI Play pHAT officially supports the following I2C modules:

• HTU21D sensor for temperature and humidity

• BMP180 sensor for temperature and barometric pressure

• BH1750 sensor for light

• APDS-9960 sensor for RGB color and gesture detection

ANAVI Play pHAT is available at Crowd Supply.
