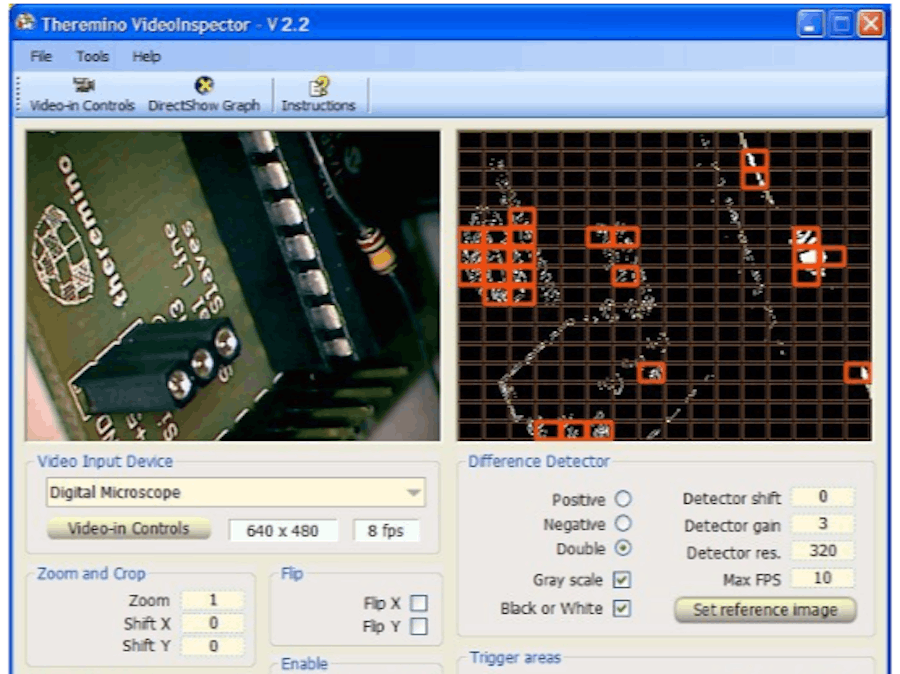

The Video Inspector is designed to locate missing components on printed circuit boards, During testing of the modules of the system Theremino.
The functions of this application are:
- Video Signal Readout.
- Signal Conditioning.
- Extracting Differences from a Comparison Image.
- Writing Difference Values to “Slot”(1) of the Theremino System.
(1) Video Inspector is a modular component system Theremino then interacts with other components in the system through the slots.
Visual inspection of PCB
Functional electrical control does not highlight any errors, for example, the lack of protection diode on the power supply, so a Visual inspection is always required. Unfortunately human traders after a few hundred modules begin to function well and tend to “complain”. This program does not replace the operator but provides alarm indication and allows you to work much faster, without tiring.
For best results it is recommended to use high resolution cameras, strong lighting and very well spread and to arrange a precise positioning mechanism of the PCB.
Similar applications
Not only the control PCBs but many automation applications can use usefully to this application. Image reading and recognition are implemented carefully and optimized. Applications requiring additional functions might lean on this basis and add only the missing parts.
Download VideoInspector Theremino – Version 2.42.4 Theremino_VideoInspector_V
