Project #30 - UNIHIKER - SC7A20 - Mk10

BeginnerFull instructions provided1 hour53

Things used in this project

Hardware components

DFRobot UNIHIKER K10

DFRobot Lithium Ion Battery - 1000mAh

SparkFun Switch

DFRobot USB 3.1 Cable A to C

Software apps and online services

Arduino IDE

Story

Project #30 - UNIHIKER - SC7A20 - Mk10

https://www.donluc.com/?p=4401

https://youtu.be/MUUzxxmlTOo

https://www.facebook.com/share/p/1QNb7aJFbH/

https://learn.dfrobot.com/makelog-314967.html

#DonLucElectronics #DonLuc #SC7A20H #UNIHIKER #Display #IoT #Project #DFRobot #Fritzing #Programming #Electronics #Microcontrollers #Consultant

Triaxial Acceleration Sensor(SC7A20H)

The SC7A20 is an acceleration sensor IC, which features abundant functions, low power dissipation, small size, and precision measurement. It communicates with MCU through I²C/SPI interface, the acceleration measurement data can be accessed in interrupt mode or inquiry mode. INT1 and INT2 provide many auto-detected interrupt signals which are suitable to many motion detection fields, interrupt source include 6D/4D direction detection interrupt signal, free fall detection interrupt signal, sleep and wake up detection interrupt signal, and single/double click detection interrupt signal. A high-precision calibration module is available within the IC to accurately compensate the senor’s offset error and gain error. It has dynamically user selectable full scales of ±2G / ±4G / ±8G / ±16G and it is capable of measuring accelerations with output data rates from 1Hz to 400Hz.

DL2504Mk05

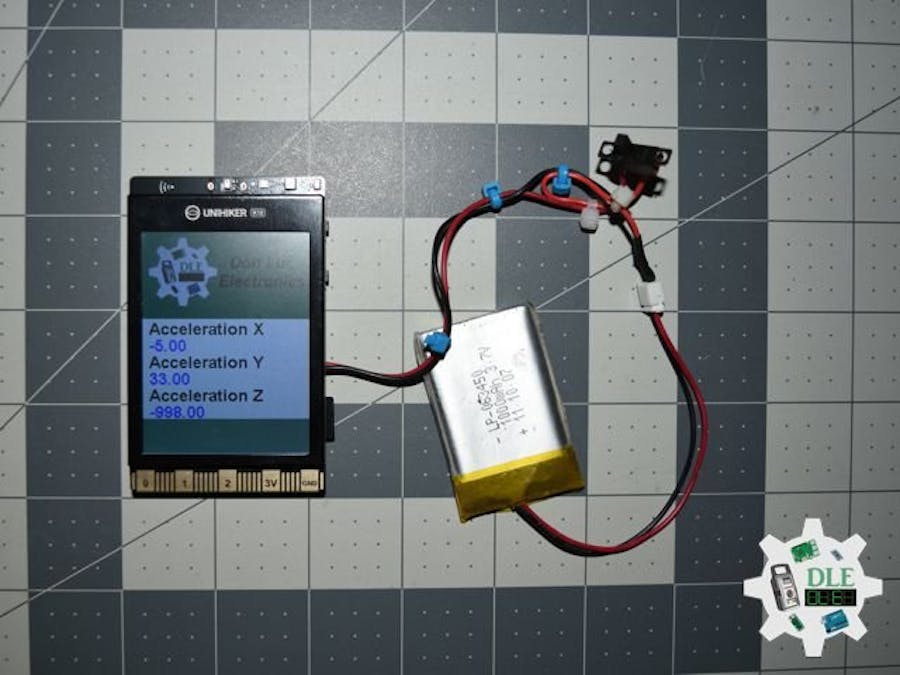

1 x UNIHIKER K10

1 x Lithium Ion Battery - 1000mAh

1 x Switch

1 x USB 3.1 Cable A to C

DL2504Mk05p

DL2504Mk05p.mp
