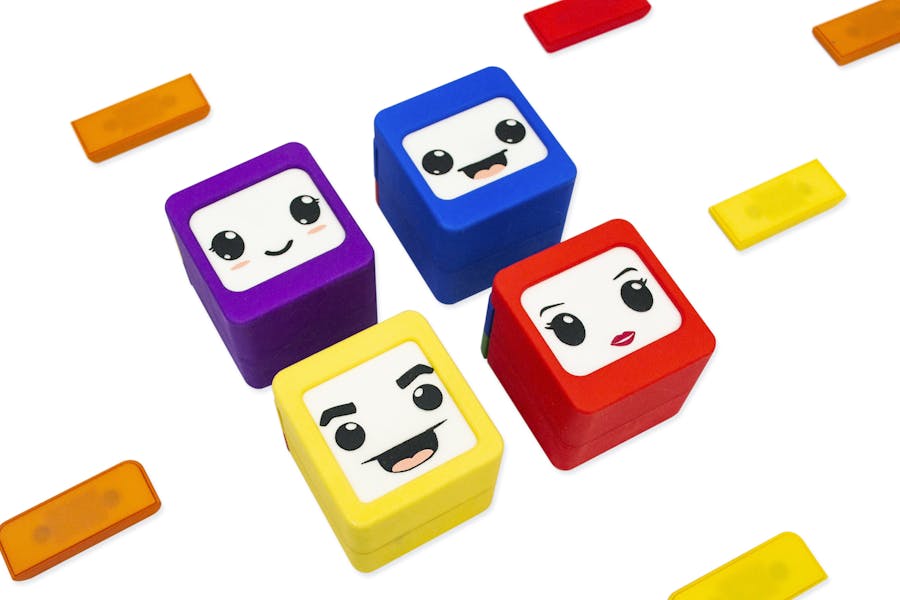

The Ifs - Coding: it´s child’s play!

#include <Adafruit_NeoPixel.h>
#include <Wire.h>
#include "pitches.h"
#include "NRF24L01.h"

//neopixels
#define  PIN 2
#define  NUMBER_OF_LEDS  2

//RF
#define TX_ADR_WIDTH    5   // 5 unsigned chars TX(RX) address width
#define TX_PLOAD_WIDTH  1  // 32 unsigned chars TX payload

//////Slots//////
//ifs
#define getTap 1
#define darkness 2
#define faceDown 3
#define EmmaCalls 4

//thens
#define turnLight 1
#define playSound 2
#define callLiam 3

int ifSlot;
int thenSlot;
int luz=0;
int golpe;
int tap_detection;

////sound////

// notes in the melody:
int melody[] = {
  NOTE_C4, NOTE_G3, NOTE_G3, NOTE_A3, NOTE_G3, 0, NOTE_B3, NOTE_C4
};
// note durations: 4 = quarter note, 8 = eighth note, etc.:
int noteDurations[] = {
  4, 8, 8, 4, 4, 4, 4, 4
};

////acelermetro////

byte Version[3];
int8_t x_data;
int8_t y_data;
int8_t z_data;
byte range=0x00;
float divi=16;
float x,y,z;

/////RF///////

unsigned char TX_ADDRESS[TX_ADR_WIDTH]  =
{
  0x34,0x43,0x10,0x10,0x01
}; // Define a static TX address

unsigned char rx_buf[TX_PLOAD_WIDTH];
unsigned char tx_buf[TX_PLOAD_WIDTH];


Adafruit_NeoPixel strip = Adafruit_NeoPixel(NUMBER_OF_LEDS, PIN, NEO_GRB + NEO_KHZ800);


void setup() {
  Serial.begin(9600);

//neopixels
  strip.begin();
  strip.show(); // Initialize all pixels to 'off'

  SPI_DIR = ( CE + SCK + CSN + MOSI);
  SPI_DIR &=~ ( IRQ + MISO);
  //  attachInterrupt(1, _ISR, LOW); // interrupt enable
  init_io();                        // Initialize IO port
  unsigned char status=SPI_Read(STATUS);


//acelermetro
  Wire.begin();
  Wire.beginTransmission(0x0A); // address of the accelerometer
  // range settings
  Wire.write(0x22); //register address
  Wire.write(range); //can be set at"0x00""0x01""0x02""0x03", refer to Datashhet on wiki
  // low pass filter
  Wire.write(0x20); //register address
  Wire.write(0x05); //can be set at"0x05""0x04"......"0x01""0x00", refer to Datashhet on wiki
  Wire.endTransmission();

}

void loop() {

 //Acelermetro
  switch(range)  //change the data dealing method based on the range u've set
  {
  case 0x00:divi=16;  break;
  case 0x01:divi=8;  break;
  case 0x02:divi=4;  break;
  case 0x03:divi=2;  break;
  default: Serial.println("range setting is Wrong,range:from 0to 3.Please check!");while(1);
  }
  AccelerometerInit();

 checkIfs();
 checkThens();

 /////getTap y TurnLight estn encajadas//////
 if ((ifSlot ==1) && (thenSlot==1))
 {

  taps();

  if ((golpe==1)&&(luz==0)){
     colorWipe(strip.Color(255, 0, 0), 50);
  Serial.println("getTap & turnONLight");
  luz=1;

  }
   else {
     if ((golpe==1)&&(luz==1))
     {
     colorWipe(strip.Color(0, 0, 0), 50);
     Serial.println("getTap & turnOFFLight");
     luz=0;
     }
   }}

 else

  /////getTap y PlaySound estn encajadas//////
   {if ((ifSlot==1) && (thenSlot==2))

          {
            taps();
            if (golpe==1)
             {
                music();
                Serial.println("music");
             }
          }

  else

   /////Darkness y TurnLight estn encajadas////////
    {if ((ifSlot==2) && (thenSlot==1))
    {
    if (analogRead(A3)>920)
      {
     colorWipe(strip.Color(0, 255, 0), 50);
     }
    else{ if ((analogRead(A3)>780)&&(analogRead(A3)<920)){
      colorWipe(strip.Color(0, 0, 255), 50); }
     else colorWipe(strip.Color(0, 0, 0), 50);
     }
    }

  else

  /////Darkness y PlaySound estn encajadas////////
    {if ((ifSlot==2) && (thenSlot==2))
     {
        if (analogRead(A3)>900)
          {
            music();
            Serial.println("music");
          }
     }

    else

   /////FaceDown y PlaySound estn encajadas////////
    {if ((ifSlot==3) && (thenSlot==2))
      {
        AccelerometerInit();
        if (z_data<0)
         {
            music();
            Serial.println("music");
         }
      }

    else

   /////FaceDown y TurnLight estn encajadas////////
    {if ((ifSlot==3) && (thenSlot==1)){
     AccelerometerInit();
        if (z_data<0)
      {
           colorWipe(strip.Color(255, 0, 255), 50);
      }
      else {colorWipe(strip.Color(0, 0, 0), 50);
    }}

        else

   /////EmmaCalls y TurnLight estn encajadas////////
    {if ((ifSlot==4) && (thenSlot==1)){
       Serial.println("Emma Calls y Turn Light");
      recibo();

     if (rx_buf[0]==1){   colorWipe(strip.Color(255, 255, 0), 50);rx_buf[0]=0;
           Serial.print(rx_buf[0],HEX);
          }
       else {colorWipe(strip.Color(0, 0, 0), 50); Serial.print(rx_buf[0],HEX);
       }
    }

            else

   /////EmmaCalls y Music estn encajadas////////
    {if ((ifSlot==4) && (thenSlot==2)){
       Serial.println("Emma Calls y Turn Light");

       recibo();
     if (rx_buf[0]==1){   music();rx_buf[0]=0;
           Serial.print(rx_buf[0],HEX);
          }
       else {noTone(3); Serial.print(rx_buf[0],HEX);
       }
    }


       else

   /////FaceDown y CallLiam estn encajadas////////
    {if ((ifSlot==3) && (thenSlot==3))
      {
        Serial.println("Face Down y Call Liam");
        AccelerometerInit();
        if (z_data<0)
         {
      envio();
         }
         }
    else

   /////GetTap y CallLiam estn encajadas////////
    {if ((ifSlot==1) && (thenSlot==3))
      {
        Serial.println("Face Down y Call Liam");

            taps();
            if (golpe==1){
              envio();
         }}

          else

   /////Darkness y CallLiam estn encajadas////////
    {if ((ifSlot==2) && (thenSlot==3))
      {
        Serial.println("Face Down y Call Liam");

           if (analogRead(A3)>900)
          {
              envio();
         }}
    ///Sino hay dos piezas encajadas
    else{colorWipe(strip.Color(0, 0, 0), 50);   noTone(3);}

 ////////////////////////////////


}}}}}}}}}}}




////////////////////  FUNCIONES   ////////////////////

//////////////Checks-comprueba si hay if then y cual es su valor//////////////

void checkIfs(){

 int sensorValue = analogRead(A2);
 if ((sensorValue>322)&&(sensorValue<328)){
  ifSlot = getTap;
  }
  else {if ((sensorValue>87)&&(sensorValue<94)){
  ifSlot = darkness;

  }  else {if ((sensorValue>40)&&(sensorValue<47)){
  ifSlot = faceDown;

  }
   else {if ((sensorValue>130)&&(sensorValue<136)){
  ifSlot = EmmaCalls;

  }
  else ifSlot = 0;
 }}}}

void checkThens(){
 int sensorValue2 = analogRead(A1);
  if ((sensorValue2>510)&&(sensorValue2<517)){
  thenSlot = turnLight;
  }
  else {if ((sensorValue2>179)&&(sensorValue2<185)){
  thenSlot = playSound;

  }
  else {if ((sensorValue2>20)&&(sensorValue2<25)){
  thenSlot = callLiam;

  }
  else thenSlot = 0;
  }}}


//Taps-comprueba si ha habido un golpe
int taps(){
  if (z_data>20) {
  Serial.println(z_data);
  delay(100);
  AccelerometerInit();
  Serial.print("ahora");
  Serial.println(z_data);

  if (z_data<20){
    return golpe=1;
  }
  else return golpe=0;
  }
  else return golpe=0;
}


//////////////Neopixels//////////////////

void colorWipe(uint32_t c, uint8_t wait) {
  for(uint16_t i=0; i<strip.numPixels(); i++) {
      strip.setPixelColor(i, c);
      strip.show();
      delay(wait);
  }
}

///////////Acelermetro//////////////////

int AccelerometerInit()
{
  Wire.beginTransmission(0x0A); // address of the accelerometer
  // reset the accelerometer
  Wire.write(0x04); // Y data
  Wire.endTransmission();
  Wire.requestFrom(0x0A,1);    // request 6 bytes from slave device #2
  while(Wire.available())    // slave may send less than requested
  {
    Version[0] = Wire.read(); // receive a byte as characte
  }
  x_data=(int8_t)Version[0]>>2;

  Wire.beginTransmission(0x0A); // address of the accelerometer
  // reset the accelerometer
  Wire.write(0x06); // Y data
  Wire.endTransmission();
  Wire.requestFrom(0x0A,1);    // request 6 bytes from slave device #2
  while(Wire.available())    // slave may send less than requested
  {
    Version[1] = Wire.read(); // receive a byte as characte
  }
  y_data=(int8_t)Version[1]>>2;

  Wire.beginTransmission(0x0A); // address of the accelerometer
  // reset the accelerometer
  Wire.write(0x08); // Y data
  Wire.endTransmission();
  Wire.requestFrom(0x0A,1);    // request 6 bytes from slave device #2
   while(Wire.available())    // slave may send less than requested
  {
    Version[2] = Wire.read(); // receive a byte as characte
  }
   z_data=(int8_t)Version[2]>>2;
   return z_data;
}

/////////////////PlaySound///////////////////

void music(){
    // iterate over the notes of the melody:
  for (int thisNote = 0; thisNote < 8; thisNote++) {

    // to calculate the note duration, take one second
    // divided by the note type.
    //e.g. quarter note = 1000 / 4, eighth note = 1000/8, etc.
    int noteDuration = 1000 / noteDurations[thisNote];
    tone(3, melody[thisNote], noteDuration);

    // to distinguish the notes, set a minimum time between them.
    // the note's duration + 30% seems to work well:
    int pauseBetweenNotes = noteDuration * 1.30;
    delay(pauseBetweenNotes);
    // stop the tone playing:
    noTone(3);
  }
}


//////////////RF//////////////////////

//**************************************************
// Function: init_io();
// Description:
// flash led one time,chip enable(ready to TX or RX Mode),
// Spi disable,Spi clock line init high
//**************************************************
void init_io(void)
{
  SPI_PORT&=~CE;      // chip enable
  SPI_PORT|=CSN;      // Spi disable
  SPI_PORT&=~SCK;     // Spi clock line init high
}

/**************************************************
 * Function: SPI_RW();
 *
 * Description:
 * Writes one unsigned char to nRF24L01, and return the unsigned char read
 * from nRF24L01 during write, according to SPI protocol
 **************************************************/
unsigned char SPI_RW(unsigned char Byte)
{
  unsigned char i;
  for(i=0;i<8;i++)                      // output 8-bit
  {
    if(Byte&0x80)
    {
      SPI_PORT |=MOSI;    // output 'unsigned char', MSB to MOSI
    }
    else
    {
      SPI_PORT &=~MOSI;
    }
    SPI_PORT|=SCK;                      // Set SCK high..
    Byte <<= 1;                         // shift next bit into MSB..
    if(SPI_IN & MISO)
    {
      Byte |= 1;                // capture current MISO bit
    }
    SPI_PORT&=~SCK;                     // ..then set SCK low again
  }
  return(Byte);                     // return read unsigned char
}
/**************************************************/

/**************************************************
 * Function: SPI_RW_Reg();
 *
 * Description:
 * Writes value 'value' to register 'reg'
/**************************************************/
unsigned char SPI_RW_Reg(unsigned char reg, unsigned char value)
{
  unsigned char status;

  SPI_PORT&=~CSN;                   // CSN low, init SPI transaction
  status = SPI_RW(reg);             // select register
  SPI_RW(value);                    // ..and write value to it..
  SPI_PORT|=CSN;                    // CSN high again

  return(status);                   // return nRF24L01 status unsigned char
}
/**************************************************/

/**************************************************
 * Function: SPI_Read();
 *
 * Description:
 * Read one unsigned char from nRF24L01 register, 'reg'
/**************************************************/
unsigned char SPI_Read(unsigned char reg)
{
  unsigned char reg_val;

  SPI_PORT&=~CSN;                // CSN low, initialize SPI communication...
  SPI_RW(reg);                   // Select register to read from..
  reg_val = SPI_RW(0);           // ..then read register value
  SPI_PORT|=CSN;                 // CSN high, terminate SPI communication

  return(reg_val);               // return register value
}
/**************************************************/

/**************************************************
 * Function: SPI_Read_Buf();
 *
 * Description:
 * Reads 'unsigned chars' #of unsigned chars from register 'reg'
 * Typically used to read RX payload, Rx/Tx address
/**************************************************/
unsigned char SPI_Read_Buf(unsigned char reg, unsigned char *pBuf, unsigned char bytes)
{
  unsigned char status,i;

  SPI_PORT&=~CSN;                   // Set CSN low, init SPI tranaction
  status = SPI_RW(reg);             // Select register to write to and read status unsigned char

  for(i=0;i<bytes;i++)
  {
    pBuf[i] = SPI_RW(0);    // Perform SPI_RW to read unsigned char from nRF24L01
  }

  SPI_PORT|=CSN;                   // Set CSN high again

  return(status);                  // return nRF24L01 status unsigned char
}
/**************************************************/

/**************************************************
 * Function: SPI_Write_Buf();
 *
 * Description:
 * Writes contents of buffer '*pBuf' to nRF24L01
 * Typically used to write TX payload, Rx/Tx address
/**************************************************/
unsigned char SPI_Write_Buf(unsigned char reg, unsigned char *pBuf, unsigned char bytes)
{
  unsigned char status,i;

  SPI_PORT&=~CSN;                   // Set CSN low, init SPI tranaction
  status = SPI_RW(reg);             // Select register to write to and read status unsigned char
  for(i=0;i<bytes; i++)             // then write all unsigned char in buffer(*pBuf)
  {
    SPI_RW(*pBuf++);
  }
  SPI_PORT|=CSN;                   // Set CSN high again
  return(status);                  // return nRF24L01 status unsigned char
}
/**************************************************/

/**************************************************
 * Function: RX_Mode();
 *
 * Description:
 * This function initializes one nRF24L01 device to
 * RX Mode, set RX address, writes RX payload width,
 * select RF channel, datarate & LNA HCURR.
 * After init, CE is toggled high, which means that
 * this device is now ready to receive a datapacket.
/**************************************************/
void RX_Mode(void)
{
  SPI_PORT&=~CE;
  SPI_Write_Buf(WRITE_REG + RX_ADDR_P0, TX_ADDRESS, TX_ADR_WIDTH); // Use the same address on the RX device as the TX device
  SPI_RW_Reg(WRITE_REG + EN_AA, 0x01);      // Enable Auto.Ack:Pipe0
  SPI_RW_Reg(WRITE_REG + EN_RXADDR, 0x01);  // Enable Pipe0
  SPI_RW_Reg(WRITE_REG + RF_CH, 40);        // Select RF channel 40
  SPI_RW_Reg(WRITE_REG + RX_PW_P0, TX_PLOAD_WIDTH); // Select same RX payload width as TX Payload width
  SPI_RW_Reg(WRITE_REG + RF_SETUP, 0x07);   // TX_PWR:0dBm, Datarate:2Mbps, LNA:HCURR
  SPI_RW_Reg(WRITE_REG + CONFIG, 0x0f);     // Set PWR_UP bit, enable CRC(2 unsigned chars) & Prim:RX. RX_DR enabled..
  SPI_PORT|=CE;                             // Set CE pin high to enable RX device
  //  This device is now ready to receive one packet of 16 unsigned chars payload from a TX device sending to address
  //  '3443101001', with auto acknowledgment, retransmit count of 10, RF channel 40 and datarate = 2Mbps.
}
/**************************************************/


/**************************************************
 * Function: TX_Mode();
 *
 * Description:
 * This function initializes one nRF24L01 device to
 * TX mode, set TX address, set RX address for auto.ack,
 * fill TX payload, select RF channel, datarate & TX pwr.
 * PWR_UP is set, CRC(2 unsigned chars) is enabled, & PRIM:TX.
 *
 * ToDo: One high pulse(>10us) on CE will now send this
 * packet and expext an acknowledgment from the RX device.
 **************************************************/
void TX_Mode(void)
{
  SPI_PORT&=~CE;

  SPI_Write_Buf(WRITE_REG + TX_ADDR, TX_ADDRESS, TX_ADR_WIDTH);    // Writes TX_Address to nRF24L01
  SPI_Write_Buf(WRITE_REG + RX_ADDR_P0, TX_ADDRESS, TX_ADR_WIDTH); // RX_Addr0 same as TX_Adr for Auto.Ack

  SPI_RW_Reg(WRITE_REG + EN_AA, 0x01);      // Enable Auto.Ack:Pipe0
  SPI_RW_Reg(WRITE_REG + EN_RXADDR, 0x01);  // Enable Pipe0
  SPI_RW_Reg(WRITE_REG + SETUP_RETR, 0x1a); // 500us + 86us, 10 retrans...
  SPI_RW_Reg(WRITE_REG + RF_CH, 40);        // Select RF channel 40
  SPI_RW_Reg(WRITE_REG + RF_SETUP, 0x07);   // TX_PWR:0dBm, Datarate:2Mbps, LNA:HCURR
  SPI_RW_Reg(WRITE_REG + CONFIG, 0x0e);     // Set PWR_UP bit, enable CRC(2 unsigned chars) & Prim:TX. MAX_RT & TX_DS enabled..
  SPI_Write_Buf(WR_TX_PLOAD,tx_buf,TX_PLOAD_WIDTH);

  SPI_PORT|=CE;

}

/**************************************************/

void envio()
     {
            TX_Mode();                        // set TX mode
             int k = 0;

    for(int i=0; i<1; i++)
        tx_buf[i] = 1;
    unsigned char status = SPI_Read(STATUS);                   // read register STATUS's value
    if(status&TX_DS)                                           // if receive data ready (TX_DS) interrupt
    {
      SPI_RW_Reg(FLUSH_TX,0);
      SPI_Write_Buf(WR_TX_PLOAD,tx_buf,TX_PLOAD_WIDTH);       // write playload to TX_FIFO
    }
    if(status&MAX_RT)                                         // if receive data ready (MAX_RT) interrupt, this is retransmit than  SETUP_RETR
    {
      SPI_RW_Reg(FLUSH_TX,0);
      SPI_Write_Buf(WR_TX_PLOAD,tx_buf,TX_PLOAD_WIDTH);      // disable standy-mode
    }
    SPI_RW_Reg(WRITE_REG+STATUS,status);                     // clear RX_DR or TX_DS or MAX_RT interrupt flag
    //delay(1000);
  }

  void recibo()
  {
         RX_Mode();                        // set RX mode


    unsigned char status = SPI_Read(STATUS);                         // read register STATUS's value
    if(status&RX_DR)                                                 // if receive data ready (TX_DS) interrupt
    {
      SPI_Read_Buf(RD_RX_PLOAD, rx_buf, TX_PLOAD_WIDTH);             // read playload to rx_buf
      SPI_RW_Reg(FLUSH_RX,0);                                        // clear RX_FIFO
      for(int i=0; i<1; i++)
      {
          Serial.print(" ");
          Serial.print(rx_buf[i],HEX);                              // print rx_buf

      }

    }
    SPI_RW_Reg(WRITE_REG+STATUS,status);                             // clear RX_DR or TX_DS or MAX_RT interrupt flag
    //delay(1000);
    }
