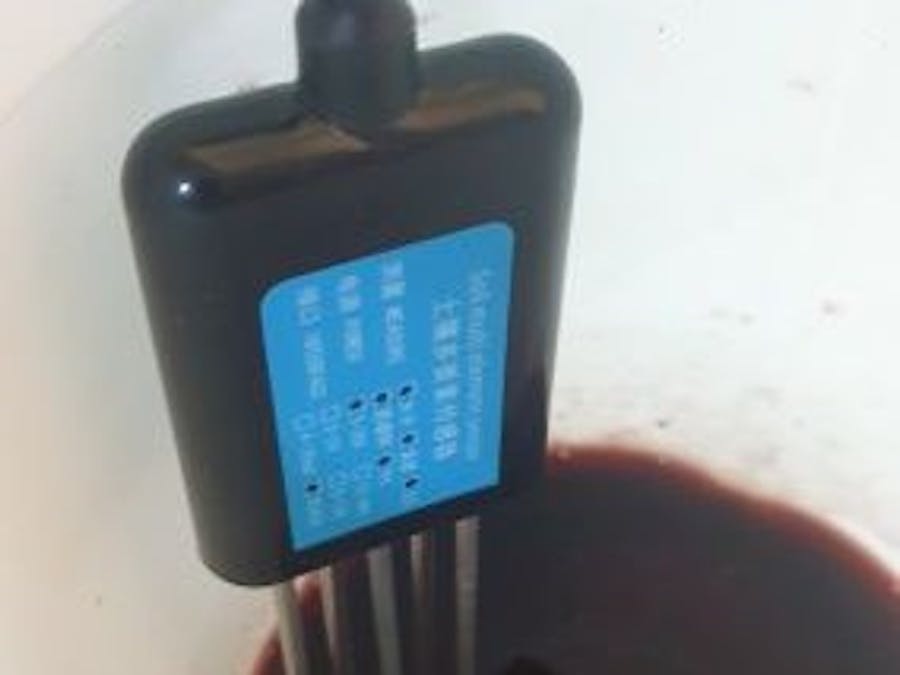

7 in 1 Sensor with LoRaWAN RS485 Modbus

# By Somsak Lima and Itti  Srisumalai
import machine
import ssd1306
from ssd1306 import SSD1306_I2C
import ure
import binascii
import time, ubinascii
from machine import UART, Pin, SoftI2C, ADC
from struct import unpack
from cayennelpp import CayenneLPP
from time import sleep
from micropython import const
from struct import *
import utime as time
import _thread # for multi-threading

from uModBusSerial import uModBusSerial
modbus= uModBusSerial (1, baudrate=4800, pins=(32, 33))

pinScl      = 22
pinSda      = 18
addrOled    = 60  #0x3c
hSize       = 64
wSize       = 128
oledIsConnected = False

stop = False
LED_GPIO = const(2)
led = machine.Pin( LED_GPIO, mode=machine.Pin.OUT )
led = Pin(2, Pin.OUT)
relay1 = Pin(12, Pin.OUT)

i2c = SoftI2C(scl=Pin(22), sda=Pin(21), freq=10000)
# Scan i2c bus and check if  OLED display are connected
print('Scan i2c bus...')
devices = i2c.scan()
if len(devices) == 0:
  print("No i2c device !")
else:
  print('i2c devices found:',len(devices))
  for device in devices:
    if device == addrOled:
      oledIsConnected = True
    print(device)

uart = UART(2, 115200, timeout=300)
rstr=""
def sendATcommand(ATcommand):
    print("Command: {0}\r\n".format(ATcommand))
    print(ATcommand)
    uart.write("{0}\r\n".format(ATcommand))
    rstr=uart.read().decode('utf-8')
    print(rstr)
    return (rstr)

def check_downlink(led):
    global stop
    rstr=""
    while not stop:
        rstr=sendATcommand ('AT+NMGR')
        print("--Downlink Message--: {0}\r\n".format(rstr))
        time.sleep(5)
        if "NNMI" in rstr:
        #if "NMGR" in rstr:
            if "040064ff" in rstr:   # BABk/w==
                print("Command1 Detected: On LED  =============>")
                relay1.value(1)
                time.sleep(5)

            elif "040000ff" in rstr:  # BAAA/w==
                print("Command1 Detected: Off LED  =============>")
                relay1.value(0)
                time.sleep(5)
            else:
                print("No Known Command Detect")

sendATcommand ('AT')
sendATcommand ('AT+INFO')
sendATcommand ('AT+APPEUI')
sendATcommand ('AT+DEVEUI')
sendATcommand ('AT+APPKEY')
sendATcommand ('AT+NCONFIG')
sendATcommand ('AT+CHSET')

###LOOP OTAA
sendATcommand('AT+NRB')
time.sleep(20.0)
rstr = sendATcommand("AT+CGATT")
tryno=1
while rstr != "+CGATT:1":
    rstr = sendATcommand("AT+CGATT")
    print("Respond String")
    print(rstr)
    if rstr.startswith("+CGATT:1"):
        print("*******OTAA OK*******")
        break
    print("Retry OTAA Continue")
    a=1234560
    b=str(tryno)
    print(b[-1:])
    if b[-1:]=="0":
       print("YES")
       sendATcommand('AT+NRB')
    else:
       print("NO")
    tryno=tryno+1

    time.sleep(20.0)
print("Join Success")
###END LOOP OTAA

time.sleep(5.0)

_thread.start_new_thread(check_downlink, (led,))

cnt = 1

slave_addr=0x01
starting_address=0x00
register_quantity=9
signed=True

while True:
    print( "\r\n\r\nPacket No #{}".format( cnt ) )

    register_value = modbus.read_holding_registers(slave_addr, starting_address, register_quantity, signed)

    print('Holding register value: ' + ' '.join('{:d}'.format(x) for x in register_value))
    print('')
    print('')
    print ('Temp           :',register_value[1]/10,' C')
    print ('Moisture       :',register_value[0]/10,' %')
    print ('Conductivity   :',register_value[2],' us/cm')
    print ('PH             :',register_value[3]/10,' PH')
    print ('Nitrogen (N)   :',register_value[4],' mg/kg,mg/L')
    print ('Phosphorus (P) :',register_value[5],' mg/kg,mg/L')
    print ('Potassium (K)  :',register_value[6],' mg/kg,mg/L')
    print ('Salinity       :',register_value[7],' ppt')
    print ('TDS            :',register_value[8],' mg/L')
    if oledIsConnected:
      oled=ssd1306.SSD1306_I2C(128,64,i2c)
      oled.fill(0)

      oled.text("PH "+str(register_value[3]/10), 0, 0)
      oled.text("N "+str(register_value[4]), 0, 10)
      oled.text("P "+str(register_value[5]), 0, 20)
      oled.text("K "+str(register_value[6]), 0, 30)
      oled.text("Temp "+str(register_value[1]/10), 50, 0)
      oled.text("Mois "+str(register_value[0]/10), 50, 10)
      oled.text("Cond "+str(register_value[2]), 50, 20)
      oled.show()

    c = CayenneLPP()
    c.addTemperature(2, register_value[1]/10)
    c.addRelativeHumidity(3, register_value[0]/10)
    c.addLuminosity(4, register_value[4])
    c.addLuminosity(5, register_value[5])
    c.addLuminosity(6, register_value[6])
    c.addAnalogInput(7, register_value[2])
    c.addAnalogInput(8, register_value[3]/10)
    c.addAnalogInput(9, register_value[7])
    c.addAnalogInput(10, register_value[8])

    b = (ubinascii.hexlify(c.getBuffer()))
    print('************    Sending Data Status   **************')
    led.value(1)
    ATresp=sendATcommand("AT+NMGS={0},{1}".format(int(len(b)/2),(b.decode('utf-8'))))
    print('********Finish Sending & Receiving Data Status******')
    led.value(0)
    cnt = cnt + 1
    time.sleep(20.0)
