Using Mediapipe to control Gripper

IntermediateFull instructions provided2,295

Things used in this project

Hardware components

Arduino UNO

Robot Gripper

Jumper wires (generic)

Servo MG995

Story

MediaPipe Hands is a high-fidelity hand and finger tracking solution. It employs machine learning (ML) to infer 21 3D landmarks of a hand from just a single frame. Whereas current state-of-the-art approaches rely primarily on powerful desktop environments for inference, our method achieves real-time performance on a mobile phone, and even scales to multiple hands. We hope that providing this hand perception functionality to the wider research and development community will result in an emergence of creative use cases, stimulating new applications and new research avenues.

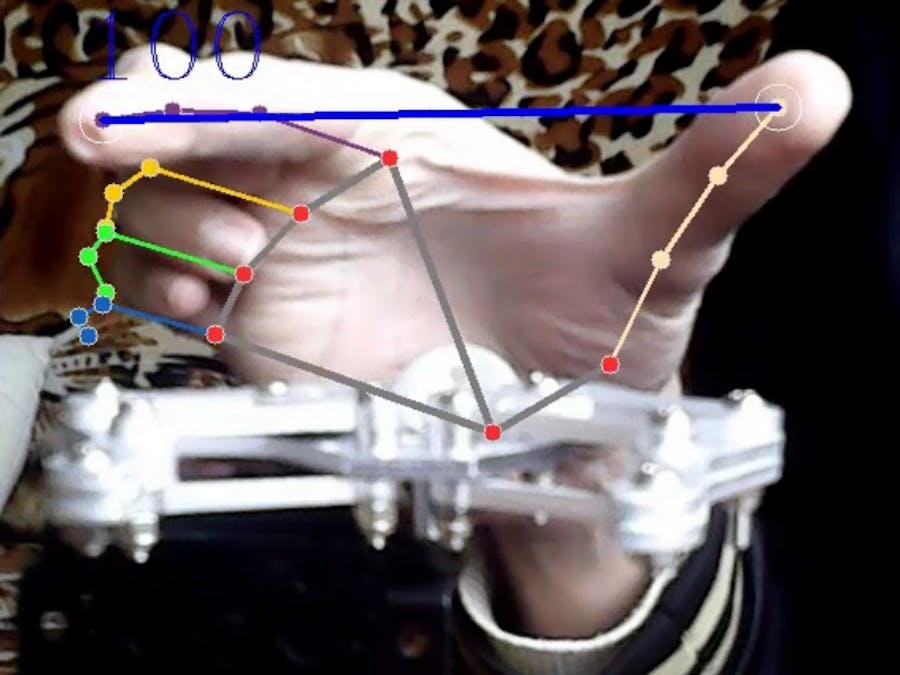

The idea is to transfer the distance change between the thumb and index into servo position and control the servo using an arduino and Firmata library

The Firmata library implements the Firmata protocol for communicating with software on the host computer.

Note:The servo should be placed at 90 degrees before attaching the gripper

Code

import cv2
import serial
import mediapipe as mp
import math
import numpy as np
import time
import pyfirmata

#--------------

board = pyfirmata.Arduino('COM3')
servo = board.get_pin('d:9:s')


mp_drawing = mp.solutions.drawing_utils
mp_drawing_styles = mp.solutions.drawing_styles
mp_hands = mp.solutions.hands



# Webcam Setup
wCam, hCam = 640, 480
cam = cv2.VideoCapture(0)
cam.set(3,wCam)
cam.set(4,hCam)


with mp_hands.Hands(
    model_complexity=0,
    min_detection_confidence=0.5,
    min_tracking_confidence=0.5) as hands:

  while cam.isOpened():
    success, image = cam.read()

    image = cv2.cvtColor(image, cv2.COLOR_BGR2RGB)
    results = hands.process(image)
    image = cv2.cvtColor(image, cv2.COLOR_RGB2BGR)
    if results.multi_hand_landmarks:
      for hand_landmarks in results.multi_hand_landmarks:
        mp_drawing.draw_landmarks(
            image,
            hand_landmarks,
            mp_hands.HAND_CONNECTIONS,
            mp_drawing_styles.get_default_hand_landmarks_style(),
            mp_drawing_styles.get_default_hand_connections_style()
            )

    # multi_hand_landmarks method for Finding postion of Hand landmarks
    lmList = []
    if results.multi_hand_landmarks:
      myHand = results.multi_hand_landmarks[0]
      for id, lm in enumerate(myHand.landmark):
        h, w, c = image.shape
        cx, cy = int(lm.x * w), int(lm.y * h)
        lmList.append([id, cx, cy])

    # Assigning variables for Thumb and Index finger position
    if len(lmList) != 0:
      x1, y1 = lmList[4][1], lmList[4][2]
      x2, y2 = lmList[8][1], lmList[8][2]

      # Marking Thumb and Index finger
      cv2.circle(image, (x1,y1),15,(255,255,255))
      cv2.circle(image, (x2,y2),15,(255,255,255))
      cv2.line(image,(x1,y1),(x2,y2),(255,0,0),3)
      length = math.hypot(x2-x1,y2-y1)
      if length < 50:
        cv2.line(image,(x1,y1),(x2,y2),(0,0,0),3)


      Pos = np.interp(length, [50, 220], [0, 100])
      Posgripper= (round(Pos))
      #print(Posgripper)
      converted_Posgripper = str(Posgripper)
      cv2.putText(image, str(Posgripper), (50, 60), cv2.FONT_HERSHEY_COMPLEX, 2, (255, 0, 0))
      #cv2.line(image, 320, 320, (0,0,0), 2)
      Servopos=(100-Posgripper)
      print (Servopos)
      servo.write(Servopos)


    cv2.imshow('handDetector', image)
    if cv2.waitKey(1) & 0xFF == ord('q'):
      break
cam.release()

#include <Servo.h>
#include <Firmata.h>

Servo servos[MAX_SERVOS];
byte servoPinMap[TOTAL_PINS];
byte servoCount = 0;

void analogWriteCallback(byte pin, int value)
{
  if (IS_PIN_DIGITAL(pin)) {
    servos[servoPinMap[pin]].write(value);
  }
}

void systemResetCallback()
{
  servoCount = 0;
}

void setup()
{
  byte pin;

  Firmata.setFirmwareVersion(FIRMATA_FIRMWARE_MAJOR_VERSION, FIRMATA_FIRMWARE_MINOR_VERSION);
  Firmata.attach(ANALOG_MESSAGE, analogWriteCallback);
  Firmata.attach(SYSTEM_RESET, systemResetCallback);

  Firmata.begin(57600);
  systemResetCallback();

  // attach servos from first digital pin up to max number of
  // servos supported for the board
  for (pin = 0; pin < TOTAL_PINS; pin++) {
    if (IS_PIN_DIGITAL(pin)) {
      if (servoCount < MAX_SERVOS) {
        servoPinMap[pin] = servoCount;
        servos[servoPinMap[pin]].attach(PIN_TO_DIGITAL(pin));
        servoCount++;
      }
    }
  }
}

void loop()
{
  while (Firmata.available())
    Firmata.processInput();
}
