Balloon Cart with Proportional Deceleration

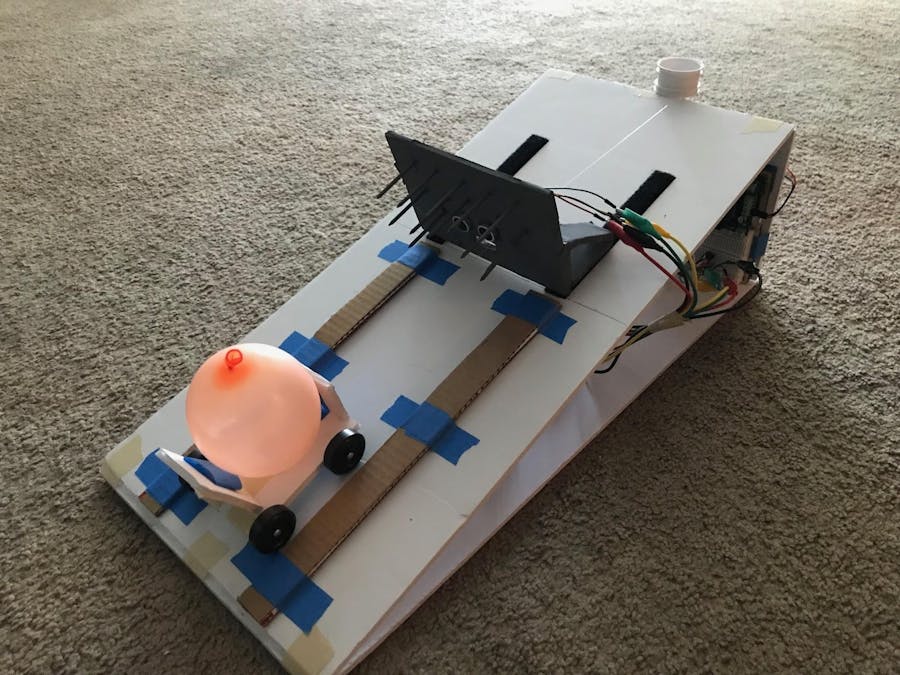

A cart with a balloon is pulled toward a wall of spikes and must come to a stop within 2 centimeters without the balloon popping.

BeginnerShowcase (no instructions)1,852
Balloon Cart with Proportional Deceleration

Things used in this project

Story

Read more

Code

Code to control motor shield proportionally with an ultrasonic range finder

Arduino
Apologies for this code not being as simple consolidated as I could've made it but printing to the serial monitor helps with debugging the system when tuning.
#include <AFMotor.h>    //Adds Motor shield library

#define trigPin 7
#define echoPin 6

float v;
int duration;
long distance;
long distance1;
long distance2;

AF_DCMotor motor(1);

void setup() {
  Serial.begin(9600);
  pinMode(trigPin, OUTPUT);
  pinMode(echoPin, INPUT);

  motor.setSpeed(200);
  motor.run(RELEASE);
}

void loop() {
  do{
  distance = (duration/2) /29.1;
  digitalWrite(trigPin, HIGH);
  delayMicroseconds(1000);
  digitalWrite(trigPin, LOW);
  duration = pulseIn(echoPin, HIGH);
  distance = (duration/2) /29.1;
  Serial.print("distance ");
  Serial.print(distance);
  Serial.println("cm");
  }while(distance <= 4 || distance > 40);

 do{
  digitalWrite(trigPin, HIGH);
  delayMicroseconds(1000);
  digitalWrite(trigPin, LOW);
  duration = pulseIn(echoPin, HIGH);
  distance1 = (duration/2) /29.1;
  Serial.print("distance1 loop ");
  Serial.print(distance1);
  Serial.println("cm");
  delay(100);
  v = ((float)distance1/(distance+1))*255;
  Serial.print("speed ");
  Serial.println(v);
  motor.run(FORWARD);
  motor.setSpeed(v);
  Serial.println("Forward");
 }while(distance1 > 5);

motor.run(RELEASE);
motor.setSpeed(0);
delay(3000);

do{
  digitalWrite(trigPin, HIGH);
  delayMicroseconds(1000);
  digitalWrite(trigPin, LOW);
  duration = pulseIn(echoPin, HIGH);
  distance2 = (duration/2) /29.1;
  Serial.print("distance2 loop 2 ");
  Serial.print(distance2);
  Serial.println("cm");
  Serial.println("Backward");
  motor.run(BACKWARD);
  motor.setSpeed(150);
}while(distance2 <= 19);
motor.run(RELEASE);
delay(3000);
}
