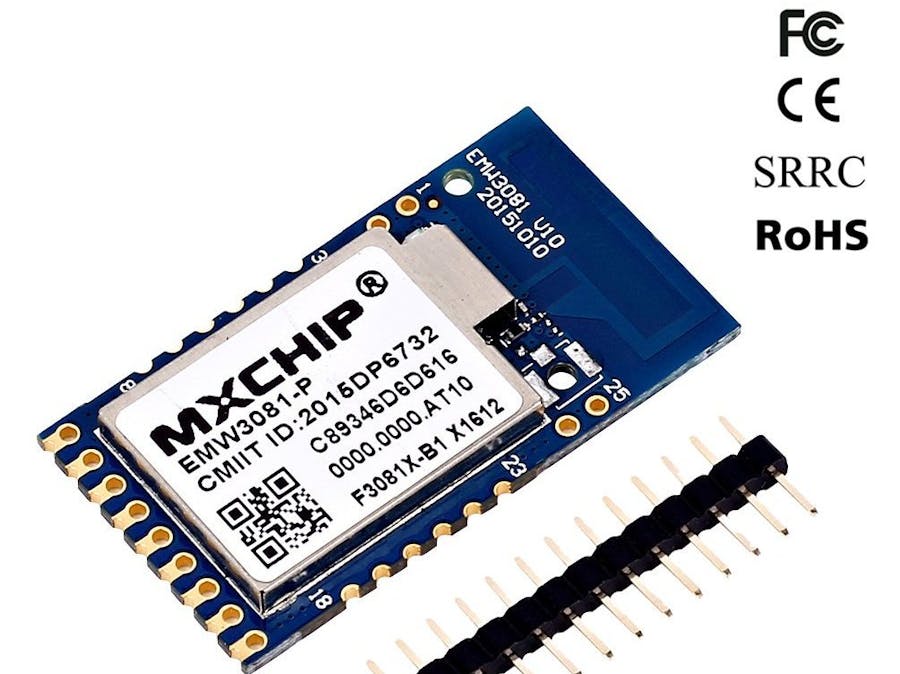

IoT EMW3081 RealTek WiFi to Serial Port Module

EMW3081 RealTek WiFi to Serial Port Module features with below functions:

• Support 802.11b/g/n standard, integrated with ARM-Cortex M3 and WLAN MAC/BB/RF

• ARM M3 Cortex Kernel

• High transmission rate: Max. 150Mbps when use the 40MHz broadband

• Widely used in smart lighting, intelligent transportation, smart home, instrument and apparatus, intelligent safeguard systems, industrial automation services and so on.

Detailed Parameters:

• Model: EMW3081

• Main Control Chip: RealTek

• Carrier Frequency: 2.4GHz

• Transmit Power: 13-17.6dBm

• Communication Distance: 100m

• Standby Power Consumption: 19mA

• Micro Controller: ARM Cortex-M3 kernel

• Operating Current: no data transmission <7mA

11nRX data receiving mode: 61mA

11nRX data transmitting mode: 260mA

• Operating Mode:

AT Mode: can be connected to 8 devices

STA Mode: server port supports 4 connects

AP+STA Mode: AT allows to connect to 8 devices

• USRT: baud rate 2400-921600bps; transparent/ protocol transmission supports

• Transmission Rate: 20MHz: Max. 72.2Mbps; 40MHz: Max. 150Mbps

• Wireless standards: IEEE802.11AC

• Interface Type: SMT/DIP

Pins

How to use it?
