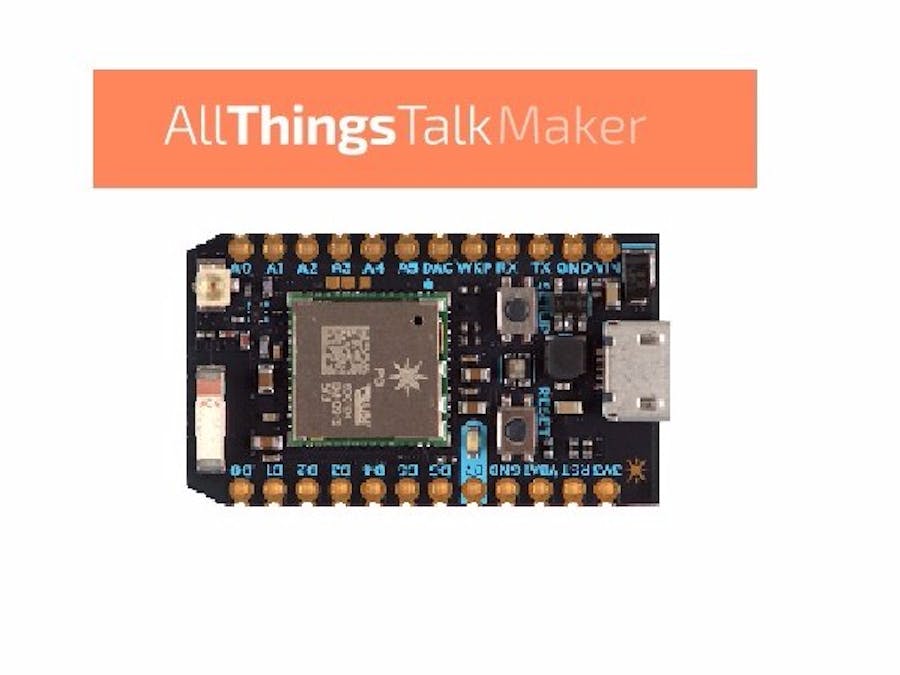

Webhooking Particle Photon to AllThingsTalk

Step by step

Maker AllThingsTalk (maker.allthingstalk.com)

• Create device

• Create asset (type integer) for the device

• Get device ID and device token (required for webhook creation).

Particle Web IDE (build.particle.io)

• Create app for publishing event

/* APP is also attached below */

int i=0;
void setup()
{
//nothing here for demo
}
void loop()
{
   char payload[255];
   snprintf(payload, sizeof(payload),"{\"v\": %d}",i);
   Particle.publish("nista", payload,60,PRIVATE); // event name = "nista",
   delay(15000);
   i++
}

• Create integration for AllThingsTalk (Webhook)

Fill the form with data :

You should update with your data :

Event Name : <put the same as in the app code>
Full URL : https://api.allthingstalk.io/device/<DEVICE ID>/state
Request Type : PUT
Request Format : JSON

JSON :
{
  "counter": {
    "value": "{{v}}"
  }
}

Headers : Add Authorization with value "Bearer <DeviceToken>"
Enforce SSL!
