A Smart Lamp That Uses Sleep Cycles To Improve Sleep Quality

This lamp uses sleep cycles to wake you up at the optimal time based on when you sleep and your target wake up time for better sleep quality

IntermediateFull instructions provided6 hours692
A Smart Lamp That Uses Sleep Cycles To Improve Sleep Quality

Things used in this project

Hardware components

Seeed Studio XIAO ESP32S3 Sense
Seeed Studio XIAO ESP32S3 Sense
×1
Grove - WS2813 RGB LED Strip Waterproof - 60 LED/m - 1m
Seeed Studio Grove - WS2813 RGB LED Strip Waterproof - 60 LED/m - 1m
×1

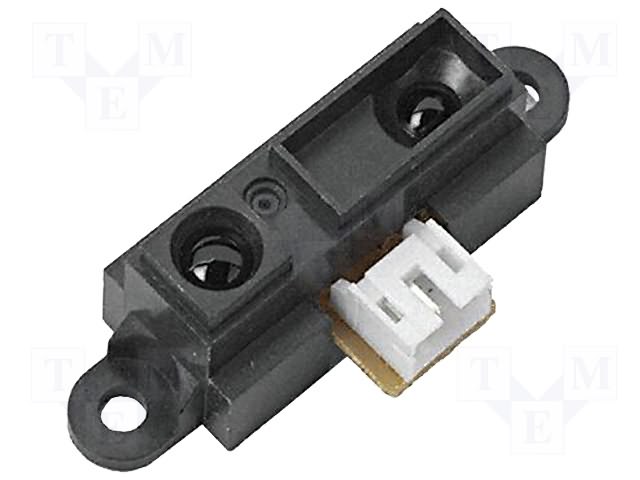

Proximity Sensor
Proximity Sensor
×1

Software apps and online services

Arduino IDE
Arduino IDE

Hand tools and fabrication machines

Soldering iron (generic)
Soldering iron (generic)

Story

Read more

Custom parts and enclosures

Frame A

Sketchfab still processing.

Frame B

Sketchfab still processing.

Base

Sketchfab still processing.

Schematics

Connections

Code

Test warm white

Arduino
This is to test the LEDs
#include <FastLED.h>

#define LED_PIN     5      // Pin where the LED strip is connected
#define NUM_LEDS    10     // Number of LEDs in the strip
#define LED_TYPE    WS2813 // Type of the LED strip
#define COLOR_ORDER GRB    // Color order for WS2812
CRGB leds[NUM_LEDS];

void setup() {
  // Initialize FastLED
  FastLED.addLeds<LED_TYPE, LED_PIN, COLOR_ORDER>(leds, NUM_LEDS);
  FastLED.setBrightness(100); // Adjust brightness (0-255)

  // Set a soft warm white color (RGB)
  CRGB warmWhite = CRGB(255, 215, 175); // A warm white color (warm tone)

  // Set all LEDs to the warm white color
  for (int i = 0; i < NUM_LEDS; i++) {
    leds[i] = warmWhite;
  }

  FastLED.show(); // Update LEDs
}

void loop() {
  // No need to loop for static color, just keep it steady
}

Main code

Arduino
#include <WiFi.h>
#include <NTPClient.h>
#include <WiFiUdp.h>
#include <FastLED.h>

// WiFi credentials
const char* ssid = "WIFI_SSID";
const char* password = "PASSWORD";

// Timezone offset in seconds (e.g., for IST it's +5:30, so offset is 19800 seconds)
const long utcOffsetInSeconds = 19800;

WiFiUDP ntpUDP;
NTPClient timeClient(ntpUDP, "pool.ntp.org", utcOffsetInSeconds);

// Proximity Sensor Pin
const int proximityPin = D4; // Pin connected to the proximity sensor (Adjust as needed)
bool detectionActive = false;
bool wakeTimeCalculated = false; // Flag to prevent recalculating
unsigned long detectionStartTime = 0;

#define LED_PIN    D1    // Pin connected to the WS2812 data line
#define NUM_LEDS   8    // Number of WS2812 LEDs in your strip

// Variables to store wake-up time
int calculatedWakeHour = -1;
int calculatedWakeMinute = -1;

// Define the array of leds
CRGB leds[NUM_LEDS];

// Sunrise duration in milliseconds
const unsigned long sunriseDuration = 300000; // 5 minutes in milliseconds
const unsigned long offDelay = 600000;     // 10 minutes in milliseconds

// Define the sunrise color gradient (CRGB values)
const CRGB sunriseColors[] = {
  CRGB(20, 0, 0),     // Dark Red
  CRGB(50, 10, 0),    // Orange-Red
  CRGB(100, 30, 0),   // Orange
  CRGB(150, 70, 10),  // Yellow-Orange
  CRGB(200, 120, 30), // Light Yellow-Orange
  CRGB(255, 180, 80), // Bright Yellow
  CRGB(255, 220, 150),// Very Light Yellow
  CRGB(255, 255, 200) // Almost White
};
const int numColorSteps = sizeof(sunriseColors) / sizeof(sunriseColors[0]);

unsigned long startTime;
bool sunriseComplete = false; // Flag to track if the sunrise is finished
unsigned long sunriseEndTime = 0; // Store the time when the sunrise completed
bool ledOn = true;        // Flag to track if LEDs are on

void calculateWakeTime(int currentHour, int currentMinute, int cycles, int& wakeHour, int& wakeMinute) {
  int fallAsleepTime = 15; // Time to fall asleep in minutes
  int cycleDuration = 90; // Length of one sleep cycle in minutes
  int totalMinutesToAdd = fallAsleepTime + (cycles * cycleDuration);
  int currentTimeInMinutes = (currentHour * 60) + currentMinute;
  int wakeTimeInMinutes = currentTimeInMinutes + totalMinutesToAdd;

  // Handle next day overflow
  if (wakeTimeInMinutes >= 1440) {
    wakeTimeInMinutes -= 1440;
  }

  // Convert back to hours and minutes
  wakeHour = wakeTimeInMinutes / 60;
  wakeMinute = wakeTimeInMinutes % 60;
}

void runSunriseAnimation() {
  unsigned long elapsedTime = millis() - startTime;

  if (elapsedTime <= sunriseDuration) {
    // Calculate the progress (0.0 to 1.0)
    float progress = (float)elapsedTime / sunriseDuration;

    // Calculate the brightness (0 to 255)
    uint8_t brightness = static_cast<uint8_t>(255 * progress);
    FastLED.setBrightness(brightness);

    // Calculate the color based on the progress
    float colorProgress = progress * (numColorSteps - 1);
    int colorIndex = static_cast<int>(colorProgress);
    float colorFraction = colorProgress - colorIndex;

    CRGB color1 = sunriseColors[colorIndex];
    CRGB color2 = sunriseColors[min(colorIndex + 1, numColorSteps - 1)];

    CRGB currentColor = blend(color1, color2, colorFraction * 255); // Blend using FastLED's blend function

    // Set all LEDs to the calculated color
    fill_solid(leds, NUM_LEDS, currentColor);
  } else if (!sunriseComplete) {
    // Sunrise is complete, keep the LEDs at the final color and brightness
    FastLED.setBrightness(255);
    fill_solid(leds, NUM_LEDS, sunriseColors[numColorSteps - 1]);
    sunriseComplete = true; // Set the flag so this block doesn't run repeatedly
    sunriseEndTime = millis(); // Record the time of sunrise completion
  }

  FastLED.show();
}

void turnOnLeds() {
  leds[0] = CRGB::Black;
  for (int i = 1; i < NUM_LEDS; ++i) {
    leds[i] = CRGB(255, 147, 41);
  }
  FastLED.show();
}

void turnOffLeds() {
  FastLED.clear();
  FastLED.show();
}

void setup() {
  Serial.begin(115200);

  // Initialize LEDs
  FastLED.addLeds<WS2812, LED_PIN, GRB>(leds, NUM_LEDS);
  FastLED.clear(); // Initialize all pixels to 'off'
  FastLED.show();

  // Connect to WiFi
  WiFi.begin(ssid, password);
  while (WiFi.status() != WL_CONNECTED) {
    delay(1000);
    Serial.println("Connecting to WiFi...");
  }
  Serial.println("Connected to WiFi");

  // Initialize NTP client
  timeClient.begin();

  // Initialize proximity sensor
  pinMode(proximityPin, INPUT);

  startTime = millis();
  FastLED.setBrightness(100);
}

void loop() {
  static unsigned long lastNTPCheck = 0;
  const unsigned long ntpCheckInterval = 2 * 60 * 1000; // Check NTP every 2 minutes

  if (ledOn){
    turnOnLeds();
  }
  else{
    turnOffLeds();
  }

  // Proximity sensor check
  int proximityState = digitalRead(proximityPin);
  if (proximityState == HIGH) {
    if (!detectionActive) {
      detectionActive = true;
      detectionStartTime = millis();
      FastLED.setBrightness(40);
    } else if (millis() - detectionStartTime >= 30000 && !wakeTimeCalculated) { // 30 seconds and not yet calculated
      wakeTimeCalculated = true;
      ledOn = false;

      // Fetch time and calculate wake-up time
      timeClient.update();
      int currentHour = timeClient.getHours();
      int currentMinute = timeClient.getMinutes();

      // Variables to store calculated wake-up times
      int wakeHour3, wakeMinute3;
      int wakeHour4, wakeMinute4;
      int wakeHour5, wakeMinute5;

      // Calculate wake-up times for 3, 4, and 5 cycles
      calculateWakeTime(currentHour, currentMinute, 3, wakeHour3, wakeMinute3);
      calculateWakeTime(currentHour, currentMinute, 4, wakeHour4, wakeMinute4);
      calculateWakeTime(currentHour, currentMinute, 5, wakeHour5, wakeMinute5);

      // Choose the closest wake-up time (you might want to implement a more sophisticated logic here)
      // For now, we'll just use the 3-cycle wake-up time.
      calculatedWakeHour = wakeHour3;
      calculatedWakeMinute = wakeMinute3;

      Serial.print("Wake-up time set to: ");
      Serial.print(calculatedWakeHour);
      Serial.print(":");
      if (calculatedWakeMinute < 10) Serial.print("0");
      Serial.println(calculatedWakeMinute);
    }
  } else {
    detectionActive = false;
    wakeTimeCalculated = false; // Reset flag when detection stops
    FastLED.setBrightness(100);
  }

  // Check time every 2 minutes
  if (millis() - lastNTPCheck >= ntpCheckInterval) {
    lastNTPCheck = millis();
    timeClient.update();
    int currentHour = timeClient.getHours();
    int currentMinute = timeClient.getMinutes();

    // Check if it's time to wake up or has already passed
    if (calculatedWakeHour != -1 && calculatedWakeMinute != -1) {
      if ((currentHour > calculatedWakeHour) ||
          (currentHour == calculatedWakeHour && currentMinute >= calculatedWakeMinute)) {
        Serial.println("Time to wake up!");
        while (!sunriseComplete) {
          runSunriseAnimation();
          delay(200);
        }
        while (!ledOn) { // Let the lamp stay white for 10 minutes
          if (millis() - sunriseEndTime >= offDelay) {
            ledOn = true;
            FastLED.setBrightness(100);
          }
          delay(1000);
        }
        calculatedWakeHour = -1; // Reset to prevent repeated triggers
        calculatedWakeMinute = -1;
      }
    }
  }

  delay(50);
}
