Panic Alarm

In an emergency, the user can press a button to trigger the loud and/or silent panic alarm which sends an emergency SMS text to a contact.

AdvancedFull instructions provided751

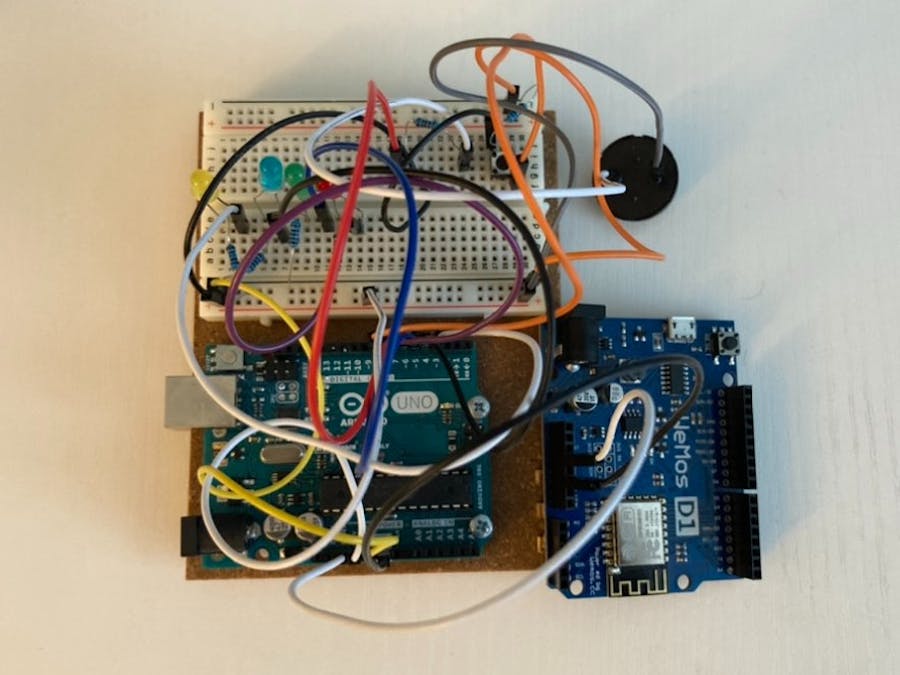

Panic Alarm

Things used in this project

Hardware components

Wemos D1 Mini
Espressif Wemos D1 Mini
×1
Arduino UNO
Arduino UNO
×1
Male/Male Jumper Wires
×1
LED (generic)
LED (generic)
×4
Tactile Switch, Top Actuated
Tactile Switch, Top Actuated
×1
Buzzer, Piezo
Buzzer, Piezo
×1
Resistor 1k ohm
Resistor 1k ohm
×6

Software apps and online services

SMS Messaging API
Twilio SMS Messaging API

Story

Read more

Schematics

Circuit Schematic

Code

textAlert.ino

Arduino
#include <ESP8266WiFi.h>
#include <WiFiClientSecure.h>
#include <ESP8266WebServer.h>
#include "twilio.hpp"

// Use software serial for debugging?
#define USE_SOFTWARE_SERIAL 0

// Print debug messages over serial?
#define USE_SERIAL 1

// Your network SSID and password
const char* ssid = "XXXXXX";
const char* password = "XXXXXXX";

// Find the api.twilio.com SHA1 fingerprint, this one was valid as
// of July 2020. This will change, please see
// https://www.twilio.com/docs/sms/tutorials/how-to-send-sms-messages-esp8266-cpp
// to see how to update the fingerprint.
const char fingerprint[] = "72 1C 17 31 85 E2 7E 0D F9 D4 C2 5B A0 0E BD B7 E2 06 26 ED";

// Twilio account specific details, from https://twilio.com/console
// Please see the article:
// https://www.twilio.com/docs/guides/receive-and-reply-sms-and-mms-messages-esp8266-c-and-ngrok

// If this device is deployed in the field you should only deploy a revocable
// key. This code is only suitable for prototyping or if you retain physical
// control of the installation.
const char* account_sid = "";
const char* auth_token = "";

// Details for the SMS we'll send with Twilio.  Should be a number you own
// (check the console, link above).
String to_number    = "+1XXXXXXXXXX";
String from_number = "+1XXXXXXXXXX";
String message_body    = "Emergency! The panic alarm was pressed!";

// The 'authorized number' to text the ESP8266 for our example
String master_number    = "+1XXXXXXXXXX";

// Optional - a url to an image.  See 'MediaUrl' here:
// https://www.twilio.com/docs/api/rest/sending-messages
String media_url = "";

// Global twilio objects
Twilio *twilio;
ESP8266WebServer twilio_server(8000);

//  Optional software serial debugging
#if USE_SOFTWARE_SERIAL == 1
#include <SoftwareSerial.h>
// You'll need to set pin numbers to match your setup if you
// do use Software Serial
extern SoftwareSerial swSer(14, 4, false, 256);
#else
#define swSer Serial
#endif

/*
 * Callback function when we hit the /message route with a webhook.
 * Use the global 'twilio_server' object to respond.
 */

 void handle_message() {
        #if USE_SERIAL == 1
        swSer.println("Incoming connection!  Printing body:");
        #endif
        bool authorized = false;
        char command = '\0';

        // Parse Twilio's request to the ESP
        for (int i = 0; i < twilio_server.args(); ++i) {
                #if USE_SERIAL == 1
                swSer.print(twilio_server.argName(i));
                swSer.print(": ");
                swSer.println(twilio_server.arg(i));
                #endif

                if (twilio_server.argName(i) == "From" and
                    twilio_server.arg(i) == master_number) {
                    authorized = true;
                } else if (twilio_server.argName(i) == "Body") {
                        if (twilio_server.arg(i) == "?" or
                            twilio_server.arg(i) == "0" or
                            twilio_server.arg(i) == "1") {
                                command = twilio_server.arg(i)[0];
                        }
                }
        } // end for loop parsing Twilio's request

        // Logic to handle the incoming SMS
        // (Some board are active low so the light will have inverse logic)
        String response = "<?xml version=\"1.0\" encoding=\"UTF-8\"?>";
        if (command != '\0') {
                if (authorized) {
                        switch (command) {
                        case '0':
                                digitalWrite(LED_BUILTIN, LOW);
                                response += "<Response><Message>"
                                "Turning light off!"
                                "</Message></Response>";
                                break;
                        case '1':
                                digitalWrite(LED_BUILTIN, HIGH);
                                response += "<Response><Message>"
                                "Turning light on!"
                                "</Message></Response>";
                                break;
                        case '?':
                        default:
                                response += "<Response><Message>"
                                "0 - Light off, 1 - Light On, "
                                "? - Help\n"
                                "The light is currently: ";
                                response += digitalRead(LED_BUILTIN);
                                response += "</Message></Response>";
                                break;
                        }
                } else {
                        response += "<Response><Message>"
                        "Unauthorized!"
                        "</Message></Response>";
                }

        } else {
                response += "<Response><Message>"
                "Look: a SMS response from an ESP8266!"
                "</Message></Response>";
        }

        twilio_server.send(200, "application/xml", response);
}

/*
 * Setup function for ESP8266 Twilio Example.
 *
 * Here we connect to a friendly wireless network, set the time, instantiate
 * our twilio object, optionally set up software serial, then send a SMS
 * or MMS message.
 *
 *
 */
void setup() {
        WiFi.begin(ssid, password);
        twilio = new Twilio(account_sid, auth_token, fingerprint);

        #if USE_SERIAL == 1
        swSer.begin(115200);
        while (WiFi.status() != WL_CONNECTED) {
                delay(1000);
                swSer.print(".");
        }
        swSer.println("");
        swSer.println("Connected to WiFi, IP address: ");
        swSer.println(WiFi.localIP());
        #else
        while (WiFi.status() != WL_CONNECTED) delay(1000);
        #endif

        // Response will be filled with connection info and Twilio API responses
        // from this initial SMS send.
        String response;
        bool success = twilio->send_message(
                to_number,
                from_number,
                message_body,
                response,
                media_url
        );

        // Set up a route to /message which will be the webhook url
        twilio_server.on("/message", handle_message);
        twilio_server.begin();

        // Use LED_BUILTIN to find the LED pin and set the GPIO to output
        pinMode(LED_BUILTIN, OUTPUT);

        #if USE_SERIAL == 1
        swSer.println(response);
        #endif
}


/*
 *  In our main loop, we listen for connections from Twilio in handleClient().
 */
void loop() {

        twilio_server.handleClient();
}

panicButton.ino

Arduino
Upload this code to the Arduino Uno.
#include "LowPower.h"

// set the corresponding snooze/off button pin number
const int buttonPin = 8;

// set the four corresponding LED pin numbers
const int ledPin1 = 4;
const int ledPin2 = 3;
const int ledPin3 = 5;
const int ledPin4 = 6;
const int alarmPin = 7;

// initialize the snooze/off button state
int buttonState = 0;

void setup() {
  // initialize the LED pins as outputs:
  Serial.begin(9600);
  pinMode(ledPin1, OUTPUT);
  pinMode(ledPin2, OUTPUT);
  pinMode(ledPin3, OUTPUT);
  pinMode(ledPin4, OUTPUT);

  // initialize the snooze button pin as an input:
  pinMode(buttonPin, INPUT);

}

void loop() {
  // after time is up, reads the state of the snooze button:
  buttonState = digitalRead(buttonPin);

  // checks to see if the snooze/off button is pressed:
  if (buttonState == LOW) {
    // alarm rings
    // LEDs flash
    tone(alarmPin, 3000);
    digitalWrite(ledPin1, HIGH);
    digitalWrite(ledPin2, HIGH);
    digitalWrite(ledPin3, HIGH);
    digitalWrite(ledPin4, HIGH);
    delay (500);
    noTone(alarmPin);
    digitalWrite(ledPin1, LOW);
    digitalWrite(ledPin2, LOW);
    digitalWrite(ledPin3, LOW);
    digitalWrite(ledPin4, LOW);
    delay(500);
  }

  // if the snooze button is pressed
  else {
    // alarm stops
    // turns LEDs off
    noTone(alarmPin);
    digitalWrite(ledPin1, LOW);
    digitalWrite(ledPin2, LOW);
    digitalWrite(ledPin3, LOW);
    digitalWrite(ledPin4, LOW);
    delay (1000);
    // shuts down until reset pin is pressed
    LowPower.powerDown(SLEEP_FOREVER, ADC_OFF, BOD_OFF);
  }
}

Establishing ESP8266 to Twilio Connection

Download this folder developed by Twilio Developer Education from GitHub. Replace the code in twilio_esp8266_arduino_example.ino with the code in textAlert.ino. Upload this file to the ESP8266 WeMos D1 Mini.
