Embedded image PRE-prosessing for 3D scanning

Embedded image pre-processing in C for laser strip detector with STM32F407 microcontrollers for 3D scanning

IntermediateFull instructions provided4 days260

Embedded image PRE-prosessing for 3D scanning

Things used in this project

Hardware components

ST STM32L4, STM32F7 stm32f407

Raspberry Pi Camera Module

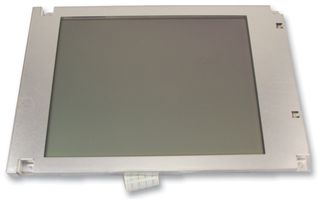

Graphic LCD, 320 x 240

Laser Diode, 655 nm

Adafruit Flora RGB Neopixel LEDs- Pack of 4

Resistor 10k ohm

Resistor 1k ohm

Capacitor 100 nF

8 MHz Crystal

Battery, 1.5 V

Software apps and online services

Arm keil µVision

Hand tools and fabrication machines

Soldering iron (generic)

Safety Rest, For Weller WMRT Microdesoldering Tweezers

Tweezers, SMD Soldering/Desoldering

Story

when we want to perform a tridiment reconstruction by 3D scanning, usually one of the best obtions is through the laser triangulation technique

laser triangulation technique

as we all know this technique consists of projecting a laser strip on the surface of an object and capturing an image of that projection at a known angle, and later with image processing convert that strip into an alignment that represents a cross-sectional cut of the three-dimensional surface of the object in the point cloud

because in this project we will focus on capturing the image of the laser strip projected on the object through the ov2640 camera to acquire its image data through the DCMI (digital camera machin interface) and DMA (direct memori access) perform a preprocessing of images with the microcontroller stm32F407VGT and transmit it to the LCD by the FSMC (flexible static memory controller)

embedded image preprocessing system

being the main objective of this system to capture the images, and preprocess them with embedded to detect the projected laser strip, and transmit ONLY the data of those detected laser stripes to the PC to generate the cloud of points (the xy coordinates of the points of the laser stripe in each captured image plane equivalent to its cross-section of the 3D model), instead of giving the PC ALL the information of each image so that it is only in charge of gathering the data of exclusively the stripes and generating the cloud of 3D points of the object

photo of the embedded image preprocessing system running

emphasizes that all this with the intention that the computer instead of each image to be processed, will only receive the XY coordinates of the points of the laser strip of each cross section, so that the PC only starts to assemble the cloud of points in 3D section by section (as if putting together the slices of a bread, each slice being the equivalent of the pre-processing of each image)

how this works

Step 1:

initialization of the microcontroller and its peripherals

firmware initialization

Step 2:

LCD initialization

LCD_Init();

LCD and FSMC initialization function

as you can see in the LCD initialization function is the FSMC initialization function

which is responsible for initializing and correctly activating the FSMC (flexible static memory controller) for a more efficient and powerful handling of the LCD

initializing the FSMC

Step 3:

camera initialization

OV2640_HW_Init();

with the functions of this library, we initialize as we want the camera, and we put it to work in continuous mode to extract the images con el DCMI

DCMI initialization

which is a very powerful peripheral made specifically to communicate with a camera and get its images

DMA initialization

thanks to the DMA the information of the images captured by the camera passes directly from the camera through the DMA to its destination address without loading work to the core of the microcontrollerbeing the easiest way to obtain the points of the laser strip through exclusive selection of the red color (in the memory buffer assigned by the DMA to place the data of each captured image) to immediately threshold these values and only if they pass of a certain value transmit the XY strings of each point to the PC for the assembly of the point cloud

3D recostruction with embedded image pre-processing

point cloud armed on the PC with GLUT by putting together all the red dot coordinates of each image selected by the microcontroller with embedded image pre-processing

Schematics

Code

/**
  ******************************************************************************
  * @file    DCMI/DCMI_CameraExample/dcmi_ov2640.c
  * @author  MCD Application Team
  * @version V1.5.0
  * @date    06-March-2015
  * @brief   This file includes the driver for OV2640 Camera module mounted on
  *          STM324xG-EVAL and STM32437I-EVAL evaluation boards.
  ******************************************************************************
  * @attention
  *
  * <h2><center>&copy; COPYRIGHT 2015 STMicroelectronics</center></h2>
  *
  * Licensed under MCD-ST Liberty SW License Agreement V2, (the "License");
  * You may not use this file except in compliance with the License.
  * You may obtain a copy of the License at:
  *
  *        http://www.st.com/software_license_agreement_liberty_v2
  *
  * Unless required by applicable law or agreed to in writing, software
  * distributed under the License is distributed on an "AS IS" BASIS,
  * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
  * See the License for the specific language governing permissions and
  * limitations under the License.
  *
  ******************************************************************************
  */

/* Includes ------------------------------------------------------------------*/
#include "stm32f4xx_gpio.h"
#include "dcmi_ov2640.h"

/** @addtogroup STM32F4xx_StdPeriph_Examples
  * @{
  */

/** @addtogroup DCMI_CameraExample
  * @{
  */

/* Private typedef -----------------------------------------------------------*/
/* Private define ------------------------------------------------------------*/
#define  TIMEOUT  2

/* Private macro -------------------------------------------------------------*/
/* Private variables ---------------------------------------------------------*/
/* QQVGA 160x120 */
const char OV2640_QQVGA[][2]=
{
  0xff, 0x00,
  0x2c, 0xff,
  0x2e, 0xdf,
  0xff, 0x01,
  0x3c, 0x32,
  0x11, 0x00,
  0x09, 0x02,
  0x03, 0xcf,
  0x04, 0x08,
  0x13, 0xe5,
  0x14, 0x48,
  0x2c, 0x0c,
  0x33, 0x78,
  0x3a, 0x33,
  0x3b, 0xfb,
  0x3e, 0x00,
  0x43, 0x11,
  0x16, 0x10,
  0x39, 0x02,
  0x35, 0x88,
  0x22, 0x0a,
  0x37, 0x40,
  0x23, 0x00,
  0x34, 0xa0,
  0x36, 0x1a,
  0x06, 0x02,
  0x07, 0xc0,
  0x0d, 0xb7,
  0x0e, 0x01,
  0x4c, 0x00,
  0x4a, 0x81,
  0x21, 0x99,
  0x24, 0x3a,
  0x25, 0x32,
  0x26, 0x82,
  0x5c, 0x00,
  0x63, 0x00,
  0x5d, 0x55,
  0x5e, 0x7d,
  0x5f, 0x7d,
  0x60, 0x55,
  0x61, 0x70,
  0x62, 0x80,
  0x7c, 0x05,
  0x20, 0x80,
  0x28, 0x30,
  0x6c, 0x00,
  0x6d, 0x80,
  0x6e, 0x00,
  0x70, 0x02,
  0x71, 0x96,
  0x73, 0xe1,
  0x3d, 0x34,
  0x5a, 0x57,
  0x4f, 0xbb,
  0x50, 0x9c,
  0x0f, 0x43,
  0xff, 0x00,
  0xe5, 0x7f,
  0xf9, 0xc0,
  0x41, 0x24,
  0xe0, 0x14,
  0x76, 0xff,
  0x33, 0xa0,
  0x42, 0x20,
  0x43, 0x18,
  0x4c, 0x00,
  0x87, 0xd0,
  0x88, 0x3f,
  0xd7, 0x03,
  0xd9, 0x10,
  0xd3, 0x82,
  0xc8, 0x08,
  0xc9, 0x80,
  0x7c, 0x00,
  0x7d, 0x02,
  0x7c, 0x03,
  0x7d, 0x48,
  0x7d, 0x48,
  0x7c, 0x08,
  0x7d, 0x20,
  0x7d, 0x10,
  0x7d, 0x0e,
  0x90, 0x00,
  0x91, 0x0e,
  0x91, 0x1a,
  0x91, 0x31,
  0x91, 0x5a,
  0x91, 0x69,
  0x91, 0x75,
  0x91, 0x7e,
  0x91, 0x88,
  0x91, 0x8f,
  0x91, 0x96,
  0x91, 0xa3,
  0x91, 0xaf,
  0x91, 0xc4,
  0x91, 0xd7,
  0x91, 0xe8,
  0x91, 0x20,
  0x92, 0x00,
  0x93, 0x06,
  0x93, 0xe3,
  0x93, 0x05,
  0x93, 0x05,
  0x93, 0x00,
  0x93, 0x00,
  0x93, 0x00,
  0x93, 0x00,
  0x93, 0x00,
  0x93, 0x00,
  0x93, 0x00,
  0x93, 0x00,
  0x93, 0x00,
  0x96, 0x00,
  0x97, 0x08,
  0x97, 0x19,
  0x97, 0x02,
  0x97, 0x0c,
  0x97, 0x24,
  0x97, 0x30,
  0x97, 0x28,
  0x97, 0x26,
  0x97, 0x02,
  0x97, 0x98,
  0x97, 0x80,
  0x97, 0x00,
  0x97, 0x00,
  0xc3, 0xed,
  0xa4, 0x00,
  0xa8, 0x00,
  0xbf, 0x00,
  0xba, 0xf0,
  0xbc, 0x64,
  0xbb, 0x02,
  0xb6, 0x3d,
  0xb8, 0x57,
  0xb7, 0x38,
  0xb9, 0x4e,
  0xb3, 0xe8,
  0xb4, 0xe1,
  0xb5, 0x66,
  0xb0, 0x67,
  0xb1, 0x5e,
  0xb2, 0x04,
  0xc7, 0x00,
  0xc6, 0x51,
  0xc5, 0x11,
  0xc4, 0x9c,
  0xcf, 0x02,
  0xa6, 0x00,
  0xa7, 0xe0,
  0xa7, 0x10,
  0xa7, 0x1e,
  0xa7, 0x21,
  0xa7, 0x00,
  0xa7, 0x28,
  0xa7, 0xd0,
  0xa7, 0x10,
  0xa7, 0x16,
  0xa7, 0x21,
  0xa7, 0x00,
  0xa7, 0x28,
  0xa7, 0xd0,
  0xa7, 0x10,
  0xa7, 0x17,
  0xa7, 0x21,
  0xa7, 0x00,
  0xa7, 0x28,
  0xc0, 0xc8,
  0xc1, 0x96,
  0x86, 0x1d,
  0x50, 0x00,
  0x51, 0x90,
  0x52, 0x18,
  0x53, 0x00,
  0x54, 0x00,
  0x55, 0x88,
  0x57, 0x00,
  0x5a, 0x90,
  0x5b, 0x18,
  0x5c, 0x05,
  0xc3, 0xef,
  0x7f, 0x00,
  0xda, 0x00,
  0xe5, 0x1f,
  0xe1, 0x67,
  0xe0, 0x00,
  0xdd, 0xff,
  0x05, 0x00,
  0xff, 0x01,
  0xff, 0x01,
  0x12, 0x00,
  0x17, 0x11,
  0x18, 0x75,
  0x19, 0x01,
  0x1a, 0x97,
  0x32, 0x36,
  0x4f, 0xbb,
  0x6d, 0x80,
  0x3d, 0x34,
  0x39, 0x02,
  0x35, 0x88,
  0x22, 0x0a,
  0x37, 0x40,
  0x23, 0x00,
  0x34, 0xa0,
  0x36, 0x1a,
  0x06, 0x02,
  0x07, 0xc0,
  0x0d, 0xb7,
  0x0e, 0x01,
  0x4c, 0x00,
  0xff, 0x00,
  0xe0, 0x04,
  0x8c, 0x00,
  0x87, 0xd0,
  0xe0, 0x00,
  0xff, 0x00,
  0xe0, 0x14,
  0xe1, 0x77,
  0xe5, 0x1f,
  0xd7, 0x03,
  0xda, 0x10,
  0xe0, 0x00,
  0xff, 0x00,
  0xe0, 0x04,
  0xc0, 0xc8,
  0xc1, 0x96,
  0x86, 0x1d,
  0x50, 0x00,
  0x51, 0x90,
  0x52, 0x2c,
  0x53, 0x00,
  0x54, 0x00,
  0x55, 0x88,
  0x57, 0x00,
  0x5a, 0x90,
  0x5b, 0x2c,
  0x5c, 0x05,
  0xe0, 0x00,
  0xd3, 0x04,
  0xff, 0x00,
  0xc3, 0xef,
  0xa6, 0x00,
  0xa7, 0xdd,
  0xa7, 0x78,
  0xa7, 0x7e,
  0xa7, 0x24,
  0xa7, 0x00,
  0xa7, 0x25,
  0xa6, 0x06,
  0xa7, 0x20,
  0xa7, 0x58,
  0xa7, 0x73,
  0xa7, 0x34,
  0xa7, 0x00,
  0xa7, 0x25,
  0xa6, 0x0c,
  0xa7, 0x28,
  0xa7, 0x58,
  0xa7, 0x6d,
  0xa7, 0x34,
  0xa7, 0x00,
  0xa7, 0x25,
  0xff, 0x00,
  0xe0, 0x04,
  0xe1, 0x67,
  0xe5, 0x1f,
  0xd7, 0x01,
  0xda, 0x08,
  0xda, 0x09,
  0xe0, 0x00,
  0x98, 0x00,
  0x99, 0x00,
  0xff, 0x01,
  0x04, 0x28,
  0xff, 0x01,
  0x12, 0x40,
  0x17, 0x11,
  0x18, 0x43,
  0x19, 0x00,
  0x1a, 0x4b,
  0x32, 0x09,
  0x4f, 0xca,
  0x50, 0xa8,
  0x5a, 0x23,
  0x6d, 0x00,
  0x39, 0x12,
  0x35, 0xda,
  0x22, 0x1a,
  0x37, 0xc3,
  0x23, 0x00,
  0x34, 0xc0,
  0x36, 0x1a,
  0x06, 0x88,
  0x07, 0xc0,
  0x0d, 0x87,
  0x0e, 0x41,
  0x4c, 0x00,
  0xff, 0x00,
  0xe0, 0x04,
  0xc0, 0x64,
  0xc1, 0x4b,
  0x86, 0x35,
  0x50, 0x92,
  0x51, 0xc8,
  0x52, 0x96,
  0x53, 0x00,
  0x54, 0x00,
  0x55, 0x00,
  0x57, 0x00,
  0x5a, 0x28,
  0x5b, 0x1e,
  0x5c, 0x00,
  0xe0, 0x00,
  0xff, 0x01,
  0x11, 0x00,
  0x3d, 0x38,
  0x2d, 0x00,
  0x50, 0x65,
  0xff, 0x00,
  0xd3, 0x04,
  0x7c, 0x00,
  0x7d, 0x04,
  0x7c, 0x09,
  0x7d, 0x28,
  0x7d, 0x00,
};

/* QVGA 320x240 */
const unsigned char OV2640_QVGA[][2]=
{
  0xff, 0x00,
  0x2c, 0xff,
  0x2e, 0xdf,
  0xff, 0x01,
  0x3c, 0x32,
  0x11, 0x00,
  0x09, 0x02,
  0x04, 0x28,
  0x13, 0xe5,
  0x14, 0x48,
  0x2c, 0x0c,
  0x33, 0x78,
  0x3a, 0x33,
  0x3b, 0xfB,
  0x3e, 0x00,
  0x43, 0x11,
  0x16, 0x10,
  0x4a, 0x81,
  0x21, 0x99,
  0x24, 0x40,
  0x25, 0x38,
  0x26, 0x82,
  0x5c, 0x00,
  0x63, 0x00,
  0x46, 0x3f,
  0x0c, 0x3c,
  0x61, 0x70,
  0x62, 0x80,
  0x7c, 0x05,
  0x20, 0x80,
  0x28, 0x30,
  0x6c, 0x00,
  0x6d, 0x80,
  0x6e, 0x00,
  0x70, 0x02,
  0x71, 0x94,
  0x73, 0xc1,
  0x3d, 0x34,
  0x5a, 0x57,
  0x12, 0x00,
  0x11, 0x00,
  0x17, 0x11,
  0x18, 0x75,
  0x19, 0x01,
  0x1a, 0x97,
  0x32, 0x36,
  0x03, 0x0f,
  0x37, 0x40,
  0x4f, 0xbb,
  0x50, 0x9c,
  0x5a, 0x57,
  0x6d, 0x80,
  0x6d, 0x38,
  0x39, 0x02,
  0x35, 0x88,
  0x22, 0x0a,
  0x37, 0x40,
  0x23, 0x00,
  0x34, 0xa0,
  0x36, 0x1a,
  0x06, 0x02,
  0x07, 0xc0,
  0x0d, 0xb7,
  0x0e, 0x01,
  0x4c, 0x00,
  0xff, 0x00,
  0xe5, 0x7f,
  0xf9, 0xc0,
  0x41, 0x24,
  0xe0, 0x14,
  0x76, 0xff,
  0x33, 0xa0,
  0x42, 0x20,
  0x43, 0x18,
  0x4c, 0x00,
  0x87, 0xd0,
  0x88, 0x3f,
  0xd7, 0x03,
  0xd9, 0x10,
  0xd3, 0x82,
  0xc8, 0x08,
  0xc9, 0x80,
  0x7d, 0x00,
  0x7c, 0x03,
  0x7d, 0x48,
  0x7c, 0x08,
  0x7d, 0x20,
  0x7d, 0x10,
  0x7d, 0x0e,
  0x90, 0x00,
  0x91, 0x0e,
  0x91, 0x1a,
  0x91, 0x31,
  0x91, 0x5a,
  0x91, 0x69,
  0x91, 0x75,
  0x91, 0x7e,
  0x91, 0x88,
  0x91, 0x8f,
  0x91, 0x96,
  0x91, 0xa3,
  0x91, 0xaf,
  0x91, 0xc4,
  0x91, 0xd7,
  0x91, 0xe8,
  0x91, 0x20,
  0x92, 0x00,
  0x93, 0x06,
  0x93, 0xe3,
  0x93, 0x02,
  0x93, 0x02,
  0x93, 0x00,
  0x93, 0x04,
  0x93, 0x00,
  0x93, 0x03,
  0x93, 0x00,
  0x93, 0x00,
  0x93, 0x00,
  0x93, 0x00,
  0x93, 0x00,
  0x93, 0x00,
  0x93, 0x00,
  0x96, 0x00,
  0x97, 0x08,
  0x97, 0x19,
  0x97, 0x02,
  0x97, 0x0c,
  0x97, 0x24,
  0x97, 0x30,
  0x97, 0x28,
  0x97, 0x26,
  0x97, 0x02,
  0x97, 0x98,
  0x97, 0x80,
  0x97, 0x00,
  0x97, 0x00,
  0xc3, 0xef,
  0xff, 0x00,
  0xba, 0xdc,
  0xbb, 0x08,
  0xb6, 0x24,
  0xb8, 0x33,
  0xb7, 0x20,
  0xb9, 0x30,
  0xb3, 0xb4,
  0xb4, 0xca,
  0xb5, 0x43,
  0xb0, 0x5c,
  0xb1, 0x4f,
  0xb2, 0x06,
  0xc7, 0x00,
  0xc6, 0x51,
  0xc5, 0x11,
  0xc4, 0x9c,
  0xbf, 0x00,
  0xbc, 0x64,
  0xa6, 0x00,
  0xa7, 0x1e,
  0xa7, 0x6b,
  0xa7, 0x47,
  0xa7, 0x33,
  0xa7, 0x00,
  0xa7, 0x23,
  0xa7, 0x2e,
  0xa7, 0x85,
  0xa7, 0x42,
  0xa7, 0x33,
  0xa7, 0x00,
  0xa7, 0x23,
  0xa7, 0x1b,
  0xa7, 0x74,
  0xa7, 0x42,
  0xa7, 0x33,
  0xa7, 0x00,
  0xa7, 0x23,
  0xc0, 0xc8,
  0xc1, 0x96,
  0x8c, 0x00,
  0x86, 0x3d,
  0x50, 0x92,
  0x51, 0x90,
  0x52, 0x2c,
  0x53, 0x00,
  0x54, 0x00,
  0x55, 0x88,
  0x5a, 0x50,
  0x5b, 0x3c,
  0x5c, 0x00,
  0xd3, 0x04,
  0x7f, 0x00,
  0xda, 0x00,
  0xe5, 0x1f,
  0xe1, 0x67,
  0xe0, 0x00,
  0xdd, 0x7f,
  0x05, 0x00,
  0xff, 0x00,
  0xe0, 0x04,
  0xc0, 0xc8,
  0xc1, 0x96,
  0x86, 0x3d,
  0x50, 0x92,
  0x51, 0x90,
  0x52, 0x2c,
  0x53, 0x00,
  0x54, 0x00,
  0x55, 0x88,
  0x57, 0x00,
  0x5a, 0x50,
  0x5b, 0x3c,
  0x5c, 0x00,
  0xd3, 0x04,
  0xe0, 0x00,
  0xFF, 0x00,
  0x05, 0x00,
  0xDA, 0x08,
  0xda, 0x09,
  0x98, 0x00,
  0x99, 0x00,
  0x00, 0x00,
};

const unsigned char OV2640_JPEG_INIT[][2]=
{
  0xff, 0x00,
  0x2c, 0xff,
  0x2e, 0xdf,
  0xff, 0x01,
  0x3c, 0x32,
  0x11, 0x30,
  0x09, 0x02,
  0x04, 0x28,
  0x13, 0xe5,
  0x14, 0x48,
  0x2c, 0x0c,
  0x33, 0x78,
  0x3a, 0x33,
  0x3b, 0xfB,
  0x3e, 0x00,
  0x43, 0x11,
  0x16, 0x10,
  0x39, 0x92,
  0x35, 0xda,
  0x22, 0x1a,
  0x37, 0xc3,
  0x23, 0x00,
  0x34, 0xc0,
  0x36, 0x1a,
  0x06, 0x88,
  0x07, 0xc0,
  0x0d, 0x87,
  0x0e, 0x41,
  0x4c, 0x00,
  0x48, 0x00,
  0x5B, 0x00,
  0x42, 0x03,
  0x4a, 0x81,
  0x21, 0x99,
  0x24, 0x40,
  0x25, 0x38,
  0x26, 0x82,
  0x5c, 0x00,
  0x63, 0x00,
  0x61, 0x70,
  0x62, 0x80,
  0x7c, 0x05,
  0x20, 0x80,
  0x28, 0x30,
  0x6c, 0x00,
  0x6d, 0x80,
  0x6e, 0x00,
  0x70, 0x02,
  0x71, 0x94,
  0x73, 0xc1,
  0x12, 0x40,
  0x17, 0x11,
  0x18, 0x43,
  0x19, 0x00,
  0x1a, 0x4b,
  0x32, 0x09,
  0x37, 0xc0,
  0x4f, 0x60,
  0x50, 0xa8,
  0x6d, 0x00,
  0x3d, 0x38,
  0x46, 0x3f,
  0x4f, 0x60,
  0x0c, 0x3c,
  0xff, 0x00,
  0xe5, 0x7f,
  0xf9, 0xc0,
  0x41, 0x24,
  0xe0, 0x14,
  0x76, 0xff,
  0x33, 0xa0,
  0x42, 0x20,
  0x43, 0x18,
  0x4c, 0x00,
  0x87, 0xd5,
  0x88, 0x3f,
  0xd7, 0x03,
  0xd9, 0x10,
  0xd3, 0x82,
  0xc8, 0x08,
  0xc9, 0x80,
  0x7c, 0x00,
  0x7d, 0x00,
  0x7c, 0x03,
  0x7d, 0x48,
  0x7d, 0x48,
  0x7c, 0x08,
  0x7d, 0x20,
  0x7d, 0x10,
  0x7d, 0x0e,
  0x90, 0x00,
  0x91, 0x0e,
  0x91, 0x1a,
  0x91, 0x31,
  0x91, 0x5a,
  0x91, 0x69,
  0x91, 0x75,
  0x91, 0x7e,
  0x91, 0x88,
  0x91, 0x8f,
  0x91, 0x96,
  0x91, 0xa3,
  0x91, 0xaf,
  0x91, 0xc4,
  0x91, 0xd7,
  0x91, 0xe8,
  0x91, 0x20,
  0x92, 0x00,
  0x93, 0x06,
  0x93, 0xe3,
  0x93, 0x05,
  0x93, 0x05,
  0x93, 0x00,
  0x93, 0x04,
  0x93, 0x00,
  0x93, 0x00,
  0x93, 0x00,
  0x93, 0x00,
  0x93, 0x00,
  0x93, 0x00,
  0x93, 0x00,
  0x96, 0x00,
  0x97, 0x08,
  0x97, 0x19,
  0x97, 0x02,
  0x97, 0x0c,
  0x97, 0x24,
  0x97, 0x30,
  0x97, 0x28,
  0x97, 0x26,
  0x97, 0x02,
  0x97, 0x98,
  0x97, 0x80,
  0x97, 0x00,
  0x97, 0x00,
  0xc3, 0xed,
  0xa4, 0x00,
  0xa8, 0x00,
  0xc5, 0x11,
  0xc6, 0x51,
  0xbf, 0x80,
  0xc7, 0x10,
  0xb6, 0x66,
  0xb8, 0xA5,
  0xb7, 0x64,
  0xb9, 0x7C,
  0xb3, 0xaf,
  0xb4, 0x97,
  0xb5, 0xFF,
  0xb0, 0xC5,
  0xb1, 0x94,
  0xb2, 0x0f,
  0xc4, 0x5c,
  0xc0, 0x64,
  0xc1, 0x4B,
  0x8c, 0x00,
  0x86, 0x3D,
  0x50, 0x00,
  0x51, 0xC8,
  0x52, 0x96,
  0x53, 0x00,
  0x54, 0x00,
  0x55, 0x00,
  0x5a, 0xC8,
  0x5b, 0x96,
  0x5c, 0x00,
  0xd3, 0x7f,
  0xc3, 0xed,
  0x7f, 0x00,
  0xda, 0x00,
  0xe5, 0x1f,
  0xe1, 0x67,
  0xe0, 0x00,
  0xdd, 0x7f,
  0x05, 0x00,

  0x12, 0x40,
  0xd3, 0x7f,
  0xc0, 0x16,
  0xC1, 0x12,
  0x8c, 0x00,
  0x86, 0x3d,
  0x50, 0x00,
  0x51, 0x2C,
  0x52, 0x24,
  0x53, 0x00,
  0x54, 0x00,
  0x55, 0x00,
  0x5A, 0x2c,
  0x5b, 0x24,
  0x5c, 0x00,
};

const unsigned char OV2640_YUV422[][2]=
{
  0xFF, 0x00,
  0x05, 0x00,
  0xDA, 0x10,
  0xD7, 0x03,
  0xDF, 0x00,
  0x33, 0x80,
  0x3C, 0x40,
  0xe1, 0x77,
  0x00, 0x00,
};

const unsigned char OV2640_JPEG[][2]=
{
  0xe0, 0x14,
  0xe1, 0x77,
  0xe5, 0x1f,
  0xd7, 0x03,
  0xda, 0x10,
  0xe0, 0x00,
  0xFF, 0x01,
  0x04, 0x08,
};

/* JPG 160x120 */
const unsigned char OV2640_160x120_JPEG[][2]=
{
  0xff, 0x01,
  0x12, 0x40,
  0x17, 0x11,
  0x18, 0x43,
  0x19, 0x00,
  0x1a, 0x4b,
  0x32, 0x09,
  0x4f, 0xca,
  0x50, 0xa8,
  0x5a, 0x23,
  0x6d, 0x00,
  0x39, 0x12,
  0x35, 0xda,
  0x22, 0x1a,
  0x37, 0xc3,
  0x23, 0x00,
  0x34, 0xc0,
  0x36, 0x1a,
  0x06, 0x88,
  0x07, 0xc0,
  0x0d, 0x87,
  0x0e, 0x41,
  0x4c, 0x00,
  0xff, 0x00,
  0xe0, 0x04,
  0xc0, 0x64,
  0xc1, 0x4b,
  0x86, 0x35,
  0x50, 0x92,
  0x51, 0xc8,
  0x52, 0x96,
  0x53, 0x00,
  0x54, 0x00,
  0x55, 0x00,
  0x57, 0x00,
  0x5a, 0x28,
  0x5b, 0x1e,
  0x5c, 0x00,
  0xe0, 0x00,
};

/* JPG, 0x176x144 */
const unsigned char OV2640_176x144_JPEG[][2]=
{
  0xff, 0x01,
  0x12, 0x40,
  0x17, 0x11,
  0x18, 0x43,
  0x19, 0x00,
  0x1a, 0x4b,
  0x32, 0x09,
  0x4f, 0xca,
  0x50, 0xa8,
  0x5a, 0x23,
  0x6d, 0x00,
  0x39, 0x12,
  0x35, 0xda,
  0x22, 0x1a,
  0x37, 0xc3,
  0x23, 0x00,
  0x34, 0xc0,
  0x36, 0x1a,
  0x06, 0x88,
  0x07, 0xc0,
  0x0d, 0x87,
  0x0e, 0x41,
  0x4c, 0x00,
  0xff, 0x00,
  0xe0, 0x04,
  0xc0, 0x64,
  0xc1, 0x4b,
  0x86, 0x35,
  0x50, 0x92,
  0x51, 0xc8,
  0x52, 0x96,
  0x53, 0x00,
  0x54, 0x00,
  0x55, 0x00,
  0x57, 0x00,
  0x5a, 0x2c,
  0x5b, 0x24,
  0x5c, 0x00,
  0xe0, 0x00,
};

/* JPG 320x240 */
const unsigned char OV2640_320x240_JPEG[][2]=
{
  0xff, 0x01,
  0x12, 0x40,
  0x17, 0x11,
  0x18, 0x43,
  0x19, 0x00,
  0x1a, 0x4b,
  0x32, 0x09,
  0x4f, 0xca,
  0x50, 0xa8,
  0x5a, 0x23,
  0x6d, 0x00,
  0x39, 0x12,
  0x35, 0xda,
  0x22, 0x1a,
  0x37, 0xc3,
  0x23, 0x00,
  0x34, 0xc0,
  0x36, 0x1a,
  0x06, 0x88,
  0x07, 0xc0,
  0x0d, 0x87,
  0x0e, 0x41,
  0x4c, 0x00,
  0xff, 0x00,
  0xe0, 0x04,
  0xc0, 0x64,
  0xc1, 0x4b,
  0x86, 0x35,
  0x50, 0x89,
  0x51, 0xc8,
  0x52, 0x96,
  0x53, 0x00,
  0x54, 0x00,
  0x55, 0x00,
  0x57, 0x00,
  0x5a, 0x50,
  0x5b, 0x3c,
  0x5c, 0x00,
  0xe0, 0x00,
};

/* JPG 352x288 */
const unsigned char OV2640_352x288_JPEG[][2]=
{
  0xff, 0x01,
  0x12, 0x40,
  0x17, 0x11,
  0x18, 0x43,
  0x19, 0x00,
  0x1a, 0x4b,
  0x32, 0x09,
  0x4f, 0xca,
  0x50, 0xa8,
  0x5a, 0x23,
  0x6d, 0x00,
  0x39, 0x12,
  0x35, 0xda,
  0x22, 0x1a,
  0x37, 0xc3,
  0x23, 0x00,
  0x34, 0xc0,
  0x36, 0x1a,
  0x06, 0x88,
  0x07, 0xc0,
  0x0d, 0x87,
  0x0e, 0x41,
  0x4c, 0x00,
  0xff, 0x00,
  0xe0, 0x04,
  0xc0, 0x64,
  0xc1, 0x4b,
  0x86, 0x35,
  0x50, 0x89,
  0x51, 0xc8,
  0x52, 0x96,
  0x53, 0x00,
  0x54, 0x00,
  0x55, 0x00,
  0x57, 0x00,
  0x5a, 0x58,
  0x5b, 0x48,
  0x5c, 0x00,
  0xe0, 0x00,
};

...

This file has been truncated, please download it to see its full contents.

Credits

marco polo sauza aguirre

11 projects • 20 followers

Embedded image PRE-prosessing for 3D scanning

Things used in this project

Hardware components

Software apps and online services

Hand tools and fabrication machines

Story

how this works

Custom parts and enclosures

cad PCB

Schematics

STM to LCD(FSMC) conextions

diagram squematick

Code

main.c

cam.c

Credits

marco polo sauza aguirre

Comments

Embed the widget on your own site

Embedded image PRE-prosessing for 3D scanning

Embedded image PRE-prosessing for 3D scanning

Things used in this project

Hardware components

Software apps and online services

Hand tools and fabrication machines

Story

how this works

Custom parts and enclosures

cad PCB

Schematics

STM to LCD(FSMC) conextions

diagram squematick

Code

main.c

cam.c

Credits

marco polo sauza aguirre

Comments

Related channels and tags
