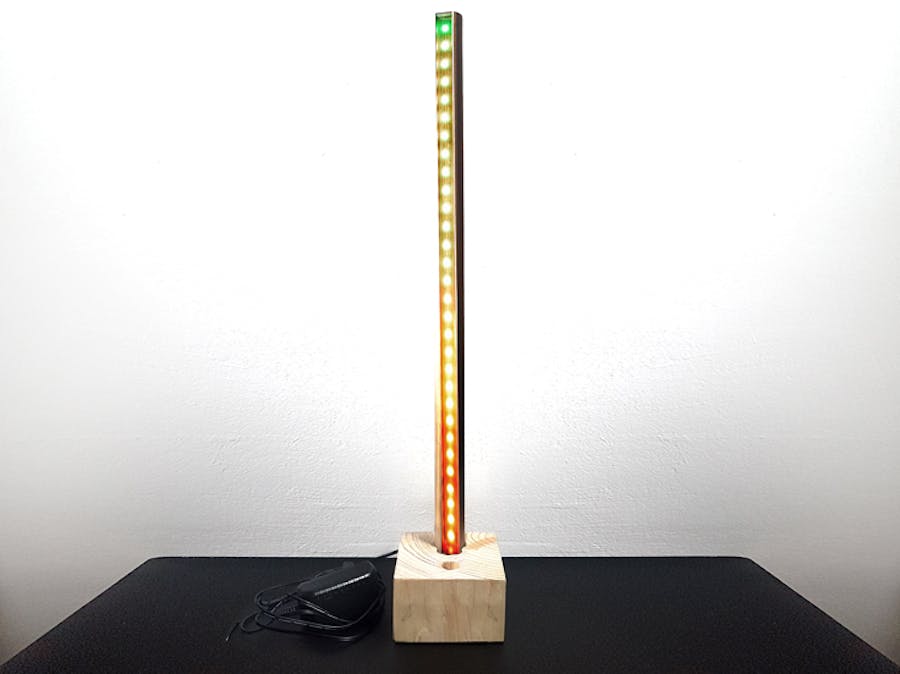

Light-OH

//Light-OH Arduino code
//The used microphone substracts values to the noise when sound increases, so the more sound it gets, the smaller the noise

#include <Adafruit_NeoPixel.h> //Neopixel library loading

#define BUTTON_PIN 9 // Button pin
#define MIC_PIN A0 // Microphone pin
#define LED_PIN 3 // NeoPixel LED strip pin
#define N_PIXELS 30 // Number of pixels in LED strip

Adafruit_NeoPixel strip = Adafruit_NeoPixel(N_PIXELS, LED_PIN, NEO_GRB + NEO_KHZ800); //Neopixel strip declaration

int NSAMPLES = 30; //Number of samples the microphone takes
int samples = 0; //Samples initialization and starting value
int noise = 0; //Noise initialization and starting value
int RED = 0; //Red color initialization and starting value
int GREEN = 0; //Green color initialization and starting value
int BLUE = 0; //Blue color initialization and starting value

int buttonState = 0;


// the setup routine runs once when you press reset:
void setup() {
  Serial.begin(9600); // Initialize serial communication at 9600 bits per second
  strip.begin(); // Initialize LED strip
  strip.show(); // Initialize all pixels to 'off'

  samples = NSAMPLES; //Declare value of "samples"
  pinMode(BUTTON_PIN, INPUT);

}

// the loop routine runs over and over again forever:
void loop() {
  buttonState = digitalRead(BUTTON_PIN);
  while (MODE<2){
    if (buttonState == LOW) {
      // turn LED on:
      MODE = MODE + 1;
    }
  } else {
    MODE = 0;
  }

  //Process to get the "noise" value according to the taken samples:
  if (samples > 0) {
    noise = noise + abs(analogRead(A0) + 22);
    samples = samples - 1;
  } else {
    noise = noise / NSAMPLES;
    samples = NSAMPLES;

    Serial.println(noise); //Noise value visualization in order to calibrate the microphone

    updatePixels(noise, RED, GREEN, BLUE); //Call to updatePixels function
    delay(20); //Delay of 20 miliseconds between pixels illumination

  }

//Color declaration depending on the noise value. This is useful to change pixels colors in an easy way:
  if (noise < 570) {
    RED = 0;
    GREEN = 50;
    BLUE = 0;
  }
  if (noise < 550) {
    RED = 50;
    GREEN = 50;
    BLUE = 0;
  }
  if (noise < 540) {
    RED = 50;
    GREEN = 0;
    BLUE = 0;
  }
}

//Pixel control function. It makes pixels illuminate depending on the noise value (yes, it's a bit long):
void updatePixels(int noise, int RED, int GREEN, int BLUE) {
  if (noise < 566) {
    strip.setPixelColor(0, RED, GREEN, BLUE); // Meaning: (number of pixel to illuminate, red color value, green color value, blue color value)
  } else {
    strip.setPixelColor(0, 0, 0, 0); // And finally this sets all pixels to off if there's no noise in the room
  }
  if (noise < 565.5) {
    strip.setPixelColor(1, RED, GREEN, BLUE);
    strip.setPixelColor(2, RED, GREEN, BLUE);

  } else {
    strip.setPixelColor(1, 0, 0, 0);
    strip.setPixelColor(2, 0, 0, 0);
  }
  if (noise < 565) {
    strip.setPixelColor(3, RED, GREEN, BLUE);
    strip.setPixelColor(4, RED, GREEN, BLUE);

  } else {
    strip.setPixelColor(3, 0, 0, 0);
    strip.setPixelColor(4, 0, 0, 0);

  }
  if (noise < 564.5) {
    strip.setPixelColor(5, RED, GREEN, BLUE);
    strip.setPixelColor(6, RED, GREEN, BLUE);

  } else {
    strip.setPixelColor(5, 0, 0, 0);
    strip.setPixelColor(6, 0, 0, 0);

  }
  if (noise < 564) {
    strip.setPixelColor(7, RED, GREEN, BLUE);
    strip.setPixelColor(8, RED, GREEN, BLUE);

  } else {
    strip.setPixelColor(7, 0, 0, 0);
    strip.setPixelColor(8, 0, 0, 0);

  }
  if (noise < 563.5) {
    strip.setPixelColor(9, RED, GREEN, BLUE);
    strip.setPixelColor(10, RED, GREEN, BLUE);

  } else {
    strip.setPixelColor(9, 0, 0, 0);
    strip.setPixelColor(10, 0, 0, 0);

  }
  if (noise < 563) {
    strip.setPixelColor(11, RED, GREEN, BLUE);
    strip.setPixelColor(12, RED, GREEN, BLUE);

  } else {
    strip.setPixelColor(11, 0, 0, 0);
    strip.setPixelColor(12, 0, 0, 0);

  }
  if (noise < 562.5) {
    strip.setPixelColor(13, RED, GREEN, BLUE);
    strip.setPixelColor(14, RED, GREEN, BLUE);

  } else {
    strip.setPixelColor(13, 0, 0, 0);
    strip.setPixelColor(14, 0, 0, 0);

  }
  if (noise < 562) {
    strip.setPixelColor(15, RED, GREEN, BLUE);
    strip.setPixelColor(16, RED, GREEN, BLUE);

  } else {
    strip.setPixelColor(15, 0, 0, 0);
    strip.setPixelColor(16, 0, 0, 0);

  }
  if (noise < 561.5) {
    strip.setPixelColor(17, RED, GREEN, BLUE);
    strip.setPixelColor(18, RED, GREEN, BLUE);

  } else {
    strip.setPixelColor(17, 0, 0, 0);
    strip.setPixelColor(18, 0, 0, 0);

  }
  if (noise < 561) {
    strip.setPixelColor(19, RED, GREEN, BLUE);
    strip.setPixelColor(20, RED, GREEN, BLUE);

  } else {
    strip.setPixelColor(19, 0, 0, 0);
    strip.setPixelColor(20, 0, 0, 0);

  }
  if (noise < 560.5) {
    strip.setPixelColor(20, RED, GREEN, BLUE);
  } else {
    strip.setPixelColor(20, 0, 0, 0);
  }
  if (noise < 560) {
    strip.setPixelColor(11, RED, GREEN, BLUE);
  } else {
    strip.setPixelColor(11, 0, 0, 0);
  }
  if (noise < 553) {
    strip.setPixelColor(12, RED, GREEN, BLUE);
  } else {
    strip.setPixelColor(12, 0, 0, 0);
  }
  if (noise < 552) {
    strip.setPixelColor(13, RED, GREEN, BLUE);
  } else {
    strip.setPixelColor(13, 0, 0, 0);
  }
  if (noise < 551) {
    strip.setPixelColor(14, RED, GREEN, BLUE);
  } else {
    strip.setPixelColor(14, 0, 0, 0);
  }
  if (noise < 550) {
    strip.setPixelColor(15, RED, GREEN, BLUE);
  } else {
    strip.setPixelColor(15, 0, 0, 0);
  }
  if (noise < 549) {
    strip.setPixelColor(16, RED, GREEN, BLUE);
  } else {
    strip.setPixelColor(16, 0, 0, 0);
  }
  if (noise < 548) {
    strip.setPixelColor(17, RED, GREEN, BLUE);
  } else {
    strip.setPixelColor(17, 0, 0, 0);
  }
  if (noise < 547) {
    strip.setPixelColor(18, RED, GREEN, BLUE);
  } else {
    strip.setPixelColor(18, 0, 0, 0);
  }
  if (noise < 546) {
    strip.setPixelColor(19, RED, GREEN, BLUE);
  } else {
    strip.setPixelColor(19, 0, 0, 0);
  }
  if (noise < 545) {
    strip.setPixelColor(20, RED, GREEN, BLUE);
  } else {
    strip.setPixelColor(20, 0, 0, 0);
  }
  if (noise < 544) {
    strip.setPixelColor(21, RED, GREEN, BLUE);
  } else {
    strip.setPixelColor(21, 0, 0, 0);
  }
  if (noise < 543) {
    strip.setPixelColor(22, RED, GREEN, BLUE);
  } else {
    strip.setPixelColor(22, 0, 0, 0);
  }
  if (noise < 542) {
    strip.setPixelColor(23, RED, GREEN, BLUE);
  } else {
    strip.setPixelColor(23, 0, 0, 0);
  }
  if (noise < 541) {
    strip.setPixelColor(24, RED, GREEN, BLUE);
  } else {
    strip.setPixelColor(24, 0, 0, 0);
  } if (noise < 540) {
    strip.setPixelColor(25, RED, GREEN, BLUE);
  } else {
    strip.setPixelColor(25, 0, 0, 0);
  }
  if (noise < 539) {
    strip.setPixelColor(26, RED, GREEN, BLUE);
  } else {
    strip.setPixelColor(26, 0, 0, 0);
  }
  if (noise < 538) {
    strip.setPixelColor(27, RED, GREEN, BLUE);
  } else {
    strip.setPixelColor(27, 0, 0, 0);
  }
  if (noise < 537) {
    strip.setPixelColor(28, RED, GREEN, BLUE);
  } else {
    strip.setPixelColor(28, 0, 0, 0);
  }
  if (noise < 536) {
    strip.setPixelColor(29, RED, GREEN, BLUE);
  } else {
    strip.setPixelColor(29, 0, 0, 0);
  }
  strip.show();


}
