Ghosty Table

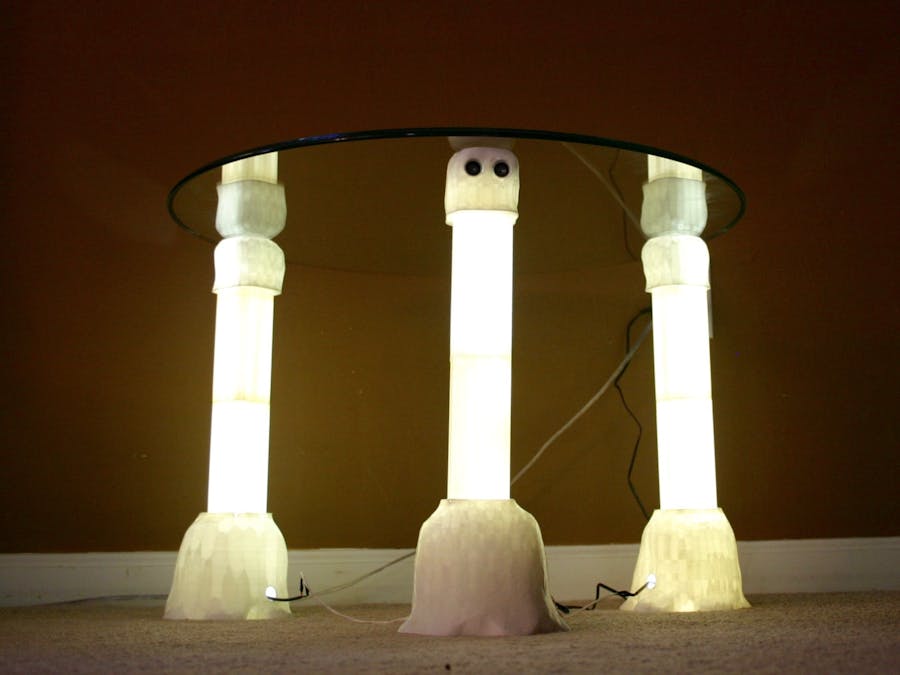

When someone passes by, this 3d printed ghost table lights up and squeals!

IntermediateFull instructions providedOver 2 days1,909

Things used in this project

Hardware components

Arduino UNO

Relay (generic)

https://www.amazon.com/gp/product/B00VRUAHLE/ref=oh_aui_detailpage_o02_s00?ie=UTF8&psc=1

ultrasonic transducer

LED (generic)

https://www.amazon.com/16-4ft-Flexible-Lights-Lumens-Non-waterproof/dp/B00HSF64JG/ref=pd_sim_60_5?_encoding=UTF8&pd_rd_i=B00HSF64JG&pd_rd_r=QKF1CVRX8DBDS9EEZ2M1&pd_rd_w=OtAle&pd_rd_wg=dlVfy&psc=1&refRID=QKF1CVRX8DBDS9EEZ2M1

Story

The Project

This printed table base (for a 24 inch glass table top) uses a ghost for a Halloween theme. My wife, Annelle, created the ghost in clay and I scanned it with the Makerbot 3d scanner, then modified the scan using Tinkercad.

This takes 1.2 kilograms of filament and requires around 50 hours of print time.

My inspiration came from art pieces by www.Mousarris.com. If you want their beautiful and well designed table (Rocket Coffee Table), it will cost around five thousand Euros--which puts a roll of filament and a few hours of print time in perspective.

The 3d print files for Ghosty Table can be found here.

Directions

Print three of each piece and stack them like this:

If you don't want to fool with electronics, it will look like this:

Assemble the electronics according to the schematic and it will look like this:

Two of the ghost heads do not have ping transducers and their eyes shine in the dark.

Enjoy your Ghosty Table.

Code

Arduino Sketch

const int pingPin=7;//ping input-output
long duration;

int light=9;//voltage to led
int sound=5;//sound pin

int val=0;



void setup () {
  pinMode(light, OUTPUT);
  pinMode(sound,OUTPUT);


  digitalWrite(light,HIGH);
  digitalWrite(sound,HIGH);
  delay(1000);
  digitalWrite(sound,LOW);
  delay(5000);
  digitalWrite(light,LOW);
  delay(2000);



}

void loop () {

delay(200);



  pinMode (pingPin,OUTPUT);//start of ultrasonic test
  digitalWrite (pingPin,LOW);
  delayMicroseconds (2);
  digitalWrite (pingPin,HIGH);
  delayMicroseconds(5);
  digitalWrite (pingPin,LOW);
  pinMode (pingPin,INPUT);//listen for pulse back
  duration=pulseIn (pingPin,HIGH);



  if (duration<8000) {


delay(50);
pinMode (pingPin,OUTPUT);//start of ultrasonic test
  digitalWrite (pingPin,LOW);
  delayMicroseconds (2);
  digitalWrite (pingPin,HIGH);
  delayMicroseconds(5);
  digitalWrite (pingPin,LOW);
  pinMode (pingPin,INPUT);//listen for pulse back
  duration=pulseIn (pingPin,HIGH);

  if (duration<8000) {



      digitalWrite (light,HIGH);//turn on lights
      digitalWrite(sound,HIGH);//turn on sound
      delay(200);
      digitalWrite (sound,LOW);//turn sound off
      delay(20000);//stay on 20 seconds
      digitalWrite (light,LOW);




    }

  }

}
