NESPemu

A portable NES Emulator (runs on EPS32) in an NES Controller. Up to 14 ROMs and 2.5h playtime, all for less than $25.

IntermediateFull instructions provided4 hours3,122

NESPemu

Things used in this project

Hardware components

ESP32 Wemos Mini

This is a AFFILIATE-LINK (leads to Ebay), I'll get a little amount of money, if you buy over one of these - NO extra costs for you!

×

1

2.4 ili9341 Display

This is a AFFILIATE-LINK (leads to Ebay), I'll get a little amount of money, if you buy over one of these - NO extra costs for you!

×

1

NES Controller

This is a AFFILIATE-LINK (leads to Ebay), I'll get a little amount of money, if you buy over one of these - NO extra costs for you!

×

1

240mAh Lithium Battery

This is a AFFILIATE-LINK (leads to Ebay), I'll get a little amount of money, if you buy over one of these - NO extra costs for you!

×

1

Battery Charger Board (with overcharge protection)

This is a AFFILIATE-LINK (leads to Ebay), I'll get a little amount of money, if you buy over one of these - NO extra costs for you!

×

1

Boost up Converter Board (to 5V)

This is a AFFILIATE-LINK (leads to Ebay), I'll get a little amount of money, if you buy over one of these - NO extra costs for you!

×

1

Hand tools and fabrication machines

Wire Cutter

Soldering iron (generic)

Soldering iron (generic)

high speed rotary tool (something like a Dremel)

Scissor, Knife, Screwdriver etc (nothing special)

Story

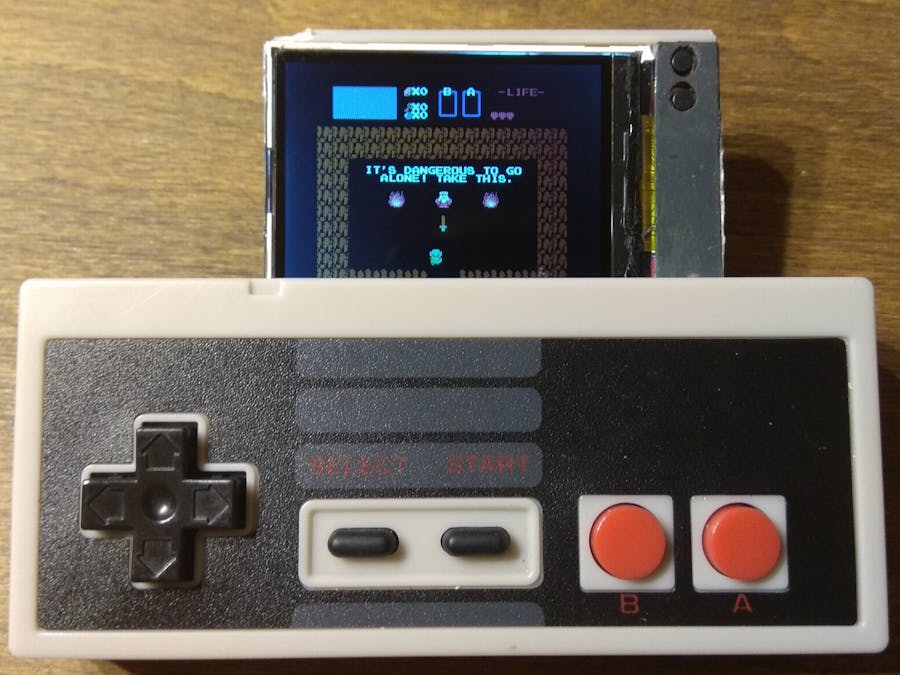

NESPemu is based on an ESP32 and a 2.4" ILI9341 display. If modified, the NES EMU code from Espressif. I've added multi-ROM support and a little menu with sound, full screen, and brightness settings. Full screen can cause graphical glitches and it has very bad sound. But it's fine for me... maybe I'll try to add a save and load function in the near future. But all of this is coded very dirty... :-D

The code is compiled with the ESP-IDF for ESP32 (by Espressif).

If you want to build one on your own, but don't want compile the source code, you can download the following ZIP files, it contains all needed files + a little "how to flash" manual. You can also download the circuit schematic:

https://drive.google.com/open?id=1vhh_dH3Y5HFa4yqkVhevmMNTjaeFxtNw

You'll also need a driver:

https://www.silabs.com/products/development-tools/software/usb-to-uart-bridge-vcp-drivers

And a flash tool:

https://www.espressif.com/sites/default/files/tools/flash_download_tools_v3.6.4_0.rar

In action

Build one on your own

Schematics

Code

Credits

Mitti

2 projects • 2 followers

Thanks to Espressif.
