Meet the new generation of IoT Module
High-performance ARM Cortex M4 32 Bits RISC core operating at 48 MHz. Different low-power operation states
Power up any IoT Applications
MAMWLExx is a new low power radio module (LoRaWAN Compliant) with a high-performance processing unit 32 Bits ARM M4 for the most complex task and high demand applications.
The module comes with size of 128K Flash and 64K RAM which can be used for important computing calculations and to embed the biggest software applications.
Create a device for any kind of applications, from smart metering to automation control systems, MAMWLExx is the perfect core for your product.
The ModuleThe Sub-Ghz Radio is a low power radio with a high quality matching filter for operate in the band of 868 Mhz and 915 Mhz. The Sub-Ghz Radio is equipped with two high performance power amplifier to transmit up to +22dBm and the power can be programmed with a step of 1 dB within 32 steps. A high quality TCXO 32 Mhz guarantee great stability during transmission.
Small Size Big ResourcesThe size of MAMWLExx is about of 16, 5 mm X 15, 5 mm LGA and comes with a 66 pin out to bring all the functionality and rich peripherals of the STM32WLEx.
The pin-out is designed to use different peripherals at the same time using different protocols like I2C, SPI, LPUART, USART. The module has 12 multiplexed pins for a 12 bit (up to 16 bits) SAR ADC with DMA controllers, 12 bits DAC, 2 ultra-low-power comparator, multiple timers, and independent watchdog.

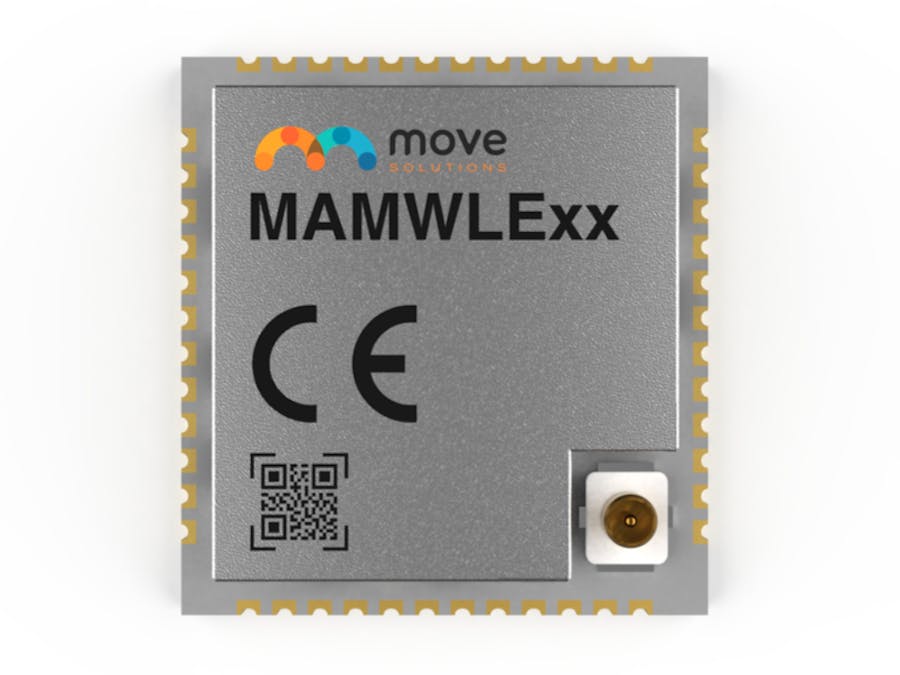

The MAMWLExx module is designed to be easily integrated into any PCB offering two assembly variants. One with a U.Fl coaxial connector on the top of the package that can be directly plugged into the antenna through a pigtail, saving space on the mainboard. The other variants, that outputs the RF signal on a 50 Ohm pin, fits you if you wish to create your own antenna design.
Start Creating Your IoT Product!
