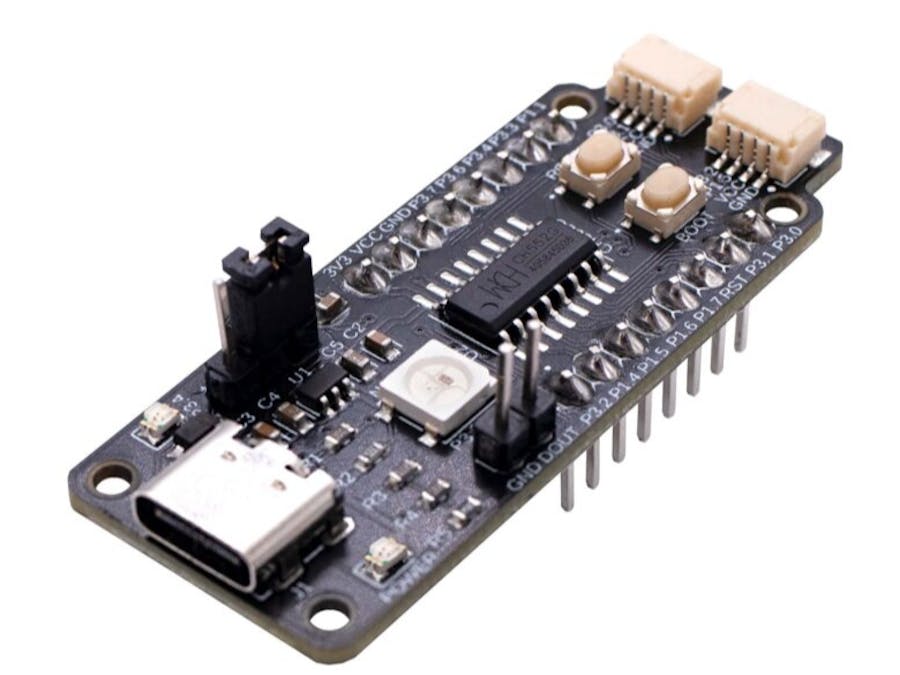

This tutorial offers a simple method for upgrading firmware onto the Cocket Nova CH552G using WCHISPStudio. This approach guarantees that your board is operational promptly, regardless of whether you are utilizing.bin or .hex files.
Step 1: Open WCHISPStudio and install the necessary drivers.1. To guarantee that your PC and device communicate effectively, install the CH372 USB driver.
2. Launch WCHISPStudio: Open the program on your computer.
3. Connect Your Device: Put your CH552G into Boot Mode by holding the boot button while connecting it to your PC via USB.
WCHISPStudio will automatically detect your device and configure the appropriate settings for the CH552G chip. You don’t need to select the chip manually.
1. Navigate to the Download File section in WCHISPStudio.
2. Click the Object File icon and locate your firmware file.
Supported formats: .binor.hex (generated using the SDCC compiler).
3. Select the file and ensure the Download File checkbox is enabled.
1. Confirm the device is in Boot Mode.
2. Click the Download button to start flashing the firmware.
3. A progress bar will indicate the status. Wait for the process to complete.
For a more streamlined process, WCHISPStudio's Automatic Downloadoption simplifies everything:
The program automatically detects the connected device, loads the firmware, and handles the flashing process without requiring manual input.
With these steps, your Cocket Nova CH552G is successfully flashed and ready for development.
Share your projects and innovations with the community!
