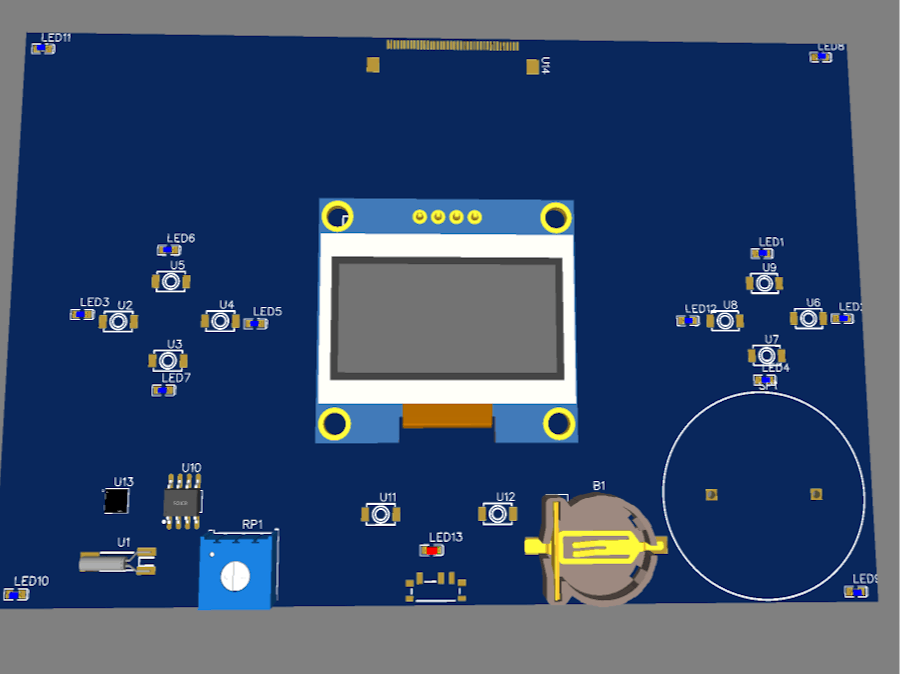

Mini PCB console

This PCB board will be a mini, lightweight handheld retro console capable of playing clasic games. The console will use very low power as it will use a low power screen and processors meaning that it will be able to use normal AAA batteries for it to even more lightweight.The estimated requirements for board are:Board type: Single pieces

• Different designs in panel: 1
• Size (single): 100 x 75 mm
• Quantity (single): 5 pcs
• Layers: 4 Layers
• Material: FR-4 -FR4-TG: S1000H TG150
• Thickness: 1.6 mm
• Min track/spacing: 6/6 mil
• Min hole size: 0.3 mm
• Solder mask: Blue (For aesthetic reasons)
• Silkscreen: White
• Edge connector: No
• Surface finish: HASL with lead
• Via process: Tenting vias
• Finished copper: 1 oz Cu
• Inner copper: 1 oz
• Remove product No.: No

How will games be loaded:

To load the games the console will use cartriges in which the games are saved. The cartriges are connected through the upper part of the handheld, that way to load games was inspired by early consoles like the Game Boy or Nintendo 64.

What games will it run:

The console will primarily run retro games, such as mario, zelda or space invaders. The cartriges will have a small memory that will be programable from the computer so that games can be easily written into the cartrige from the computer.
