The Sound sensor module is a simple microphone. Based on the amplifier LM358 and the electretmicrophone, it can be used to detect the sound strength of the environment.
Steps

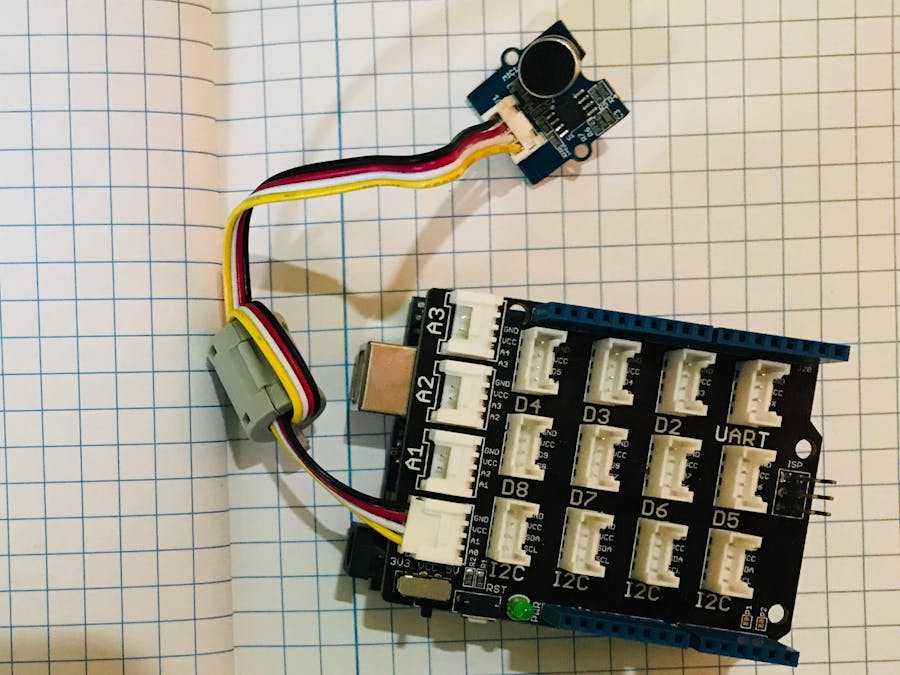

- connect one side of the grove cable into the soundsensor
- connect the other side of the grove cable into A0 of the grove shield
- run the code given below
- open serial monitor (ctrl + shift + m) to view the output
Code
The Serial Monitor prints LOUD, LOUD when sound is detected Otherwise it Prints Quiet
int soundDetectedPin = A0; // Use Pin 10 as our Input
int soundDetectedVal = HIGH; // This is where we record our Sound Measurement
boolean bAlarm = false;
unsigned long lastSoundDetectTime; // Record the time that we measured a sound
int soundAlarmTime = 500; // Number of milli seconds to keep the sound alarm high
void setup ()
{
Serial.begin(9600);
pinMode (soundDetectedPin, INPUT) ; // input from the Sound Detection Module
}
void loop ()
{
soundDetectedVal = analogRead (soundDetectedPin) ; // read the sound alarm time
//Serial.println(soundDetectedVal);
if (soundDetectedVal > 400) // If we hear a sound //change this value for increasing/decreasing sensitivity
{
lastSoundDetectTime = millis(); // record the time of the sound alarm
// The following is so you don't scroll on the output screen
if (!bAlarm){
Serial.println("LOUD, LOUD");
bAlarm = true;
}
}
else
{
if( (millis()-lastSoundDetectTime) > soundAlarmTime && bAlarm){
Serial.println("quiet");
bAlarm = false;
}
}
}
