#define BLYNK_PRINT Serial
#define BLYNK_DEFAULT_PORT 80
#define DHTPIN A2
#define DHTTYPE DHT11
// Your ESP8266 baud rate:
#define ESP8266_BAUD 9600
//#include <ESP8266_Lib.h>
//#include <SerialESP8266wifi.h>
#include "BlynkSimpleShieldEsp8266.h"
#include "DHT.h"
#include <LiquidCrystal.h>
#include "MQ7.h"
#include <SoftwareSerial.h>
//#include <SimpleTimer.h>
//-----------(Variables)-----------------//
float gas_value;
float gaspercent;
const int rs = 10, en = 6, d4 = 5, d5 = 4, d6 = 3, d7 = 2;
const int buzzer = 8;
const int siren = A3;
//---------------------------------------//
//----------------------------------------//

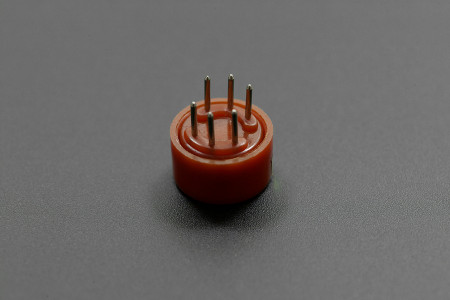

MQ7 mq7(A1,5.0);
DHT dht(DHTPIN, DHTTYPE);
LiquidCrystal lcd(rs, en, d4, d5, d6, d7);
SoftwareSerial EspSerial(11, 12); // RX, TX
ESP8266 wifi(&EspSerial);
BlynkTimer timer;
//SimpleTimer timer;
//---------------------------------------//
//-----------------(Characters)----------------------------//
byte termometru[8] = //icon for termometer
{
B00100,
B01010,
B01010,
B01110,
B01110,
B11111,
B11111,
B01110
};
byte picatura[8] = //icon for water droplet
{
B00100,
B00100,
B01010,
B01010,
B10001,
B10001,
B10001,
B01110,
};
byte blynk[] = {
B11110,
B11011,
B11011,
B11111,
B11111,
B11011,
B11011,
B11110
};
byte noblynk[] = {
B01110,
B11011,
B11011,
B00100,
B00100,
B01010,
B11011,
B01110
};
byte wificon[] = {
B00100,
B01010,
B10101,
B01010,
B10101,
B01010,
B00000,
B00100
};
//--------------------------------------------------------//
//-----------------(Blynk configuration variables)----------------------------//
char auth[] = "your Blynk token"; //Authentication code sent to your e-mail.
// Your WiFi credentials.
// Set password to "" for open networks.
char ssid[] = "your ssid"; // your network SSID (name)
char pass[] = "your ssid password"; // your network password (change it)
char server[] = "blynk-cloud.com";
int port = 80;
//---------------------------------------------------------------------------//
//-----------------(Functions)----------------------------//
void sendSensor()
{
byte h = dht.readHumidity(); //Read the humidity
byte t = dht.readTemperature(); // or dht.readTemperature(true) for Fahrenheit
// You can send any value at any time.
// Please don't send more that 10 values per second.
Blynk.virtualWrite(V5, h);
Blynk.virtualWrite(V6, t);
// Blynk.virtualWrite(V7, gas_value);
// Blynk.virtualWrite(V8, co_value);
}
void sendSensor2()
{
byte co_value = analogRead(A1);

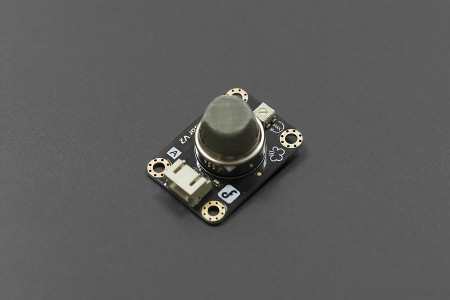

byte gas_value = analogRead(A0);
Blynk.virtualWrite(V7, gas_value);
Blynk.virtualWrite(V8, co_value);
}
void notification() {
//byte t = dht.readTemperature();
byte co_value = analogRead(A1);
byte gas_value = analogRead(A0);
if (gas_value >150 || co_value >220){
Blynk.notify("Gas!");
}
}
//--------------------------------------------------------//
void setup()
{
lcd.createChar(1,termometru);
lcd.createChar(2,picatura);
lcd.createChar(3,blynk);
lcd.createChar(4,noblynk);
lcd.createChar(5,wificon);
pinMode(siren, OUTPUT);
digitalWrite(siren, LOW);
pinMode(buzzer, OUTPUT);
pinMode(A0,INPUT);
Serial.begin(9600);
lcd.begin(16, 2);
lcd.clear();
lcd.setCursor(2, 0);
lcd.print("Air Quality");
lcd.setCursor(5, 1);
lcd.print("System");
Serial.println(F("DHTxx test!"));
dht.begin();
tone(buzzer, 1000); // Send 3KHz sound signal...
delay(1000); // ...for 1 sec
noTone(buzzer); // Stop sound...
delay(3000); //Wait before accessing Sensor
lcd.clear();
lcd.setCursor(2, 0);
lcd.print("Calibrating");
delay(13000);
lcd.clear();
lcd.setCursor(3, 0);
lcd.print("Connecting");
lcd.setCursor(3, 1);
lcd.print("to Blynk!");
//blynk
EspSerial.begin(ESP8266_BAUD);
delay(10);
//
//Blynk.begin(auth, wifi, ssid, pass);
//wifi.setStationIp("192.168.1.100","192.168.1.1","255.255.255.0");
Blynk.config(wifi, auth, server, port);
if (Blynk.connectWiFi(ssid, pass)) {
lcd.setCursor(15,0);
lcd.write(5);
Blynk.connect();
}
timer.setInterval(10000L, sendSensor);
timer.setInterval(3000L, sendSensor2);
timer.setInterval(12500L, notification);
lcd.clear();
}
void loop()
{
timer.run();
gas_value =analogRead(A0);
delay (300);
gaspercent = (gas_value/1023)*100;
Serial.print(gaspercent);
Serial.println(" %");
Serial.println(mq7.getPPM());
int h = dht.readHumidity();
int t = dht.readTemperature();
Serial.print(F("Humidity: "));
Serial.print(h);
Serial.print(F("% Temperature: "));
Serial.print(t);
Serial.println(F("°C "));
if (Blynk.connected()){
lcd.setCursor(15, 0);
lcd.write(3);
Blynk.run();
}else{
lcd.setCursor(15, 0);
lcd.write(4);
Blynk.connect();
}
//Serial.println(Blynk.connected());
lcd.clear();
if (Blynk.connected()){
lcd.setCursor(15, 0);
lcd.write(3);
lcd.setCursor(14, 0);
lcd.write(5);
}else{
lcd.setCursor(15, 0);
lcd.write(4);
}
//Temperature LCD
lcd.setCursor(0, 0);
//lcd.print("Tem:");
lcd.write(1);
lcd.setCursor(1, 0);
lcd.print(t);
lcd.setCursor(3, 0);
lcd.print((char)223);
lcd.setCursor(4, 0);
lcd.print("C");
//CO level
lcd.setCursor(6, 0);
lcd.print("CO:");
lcd.setCursor(9, 0);
lcd.print(mq7.getPPM());
//Humiduty LCD
lcd.setCursor(0, 1);
//lcd.print("Hum:");
lcd.write(2);
lcd.setCursor(1, 1);
lcd.print(h);
lcd.setCursor(3, 1);
lcd.print(" %");
//NG level
lcd.setCursor(6, 1);
lcd.print("NG:");
lcd.setCursor(9, 1);
lcd.print(gas_value);
if (gas_value > 130 || mq7.getPPM() > 15){
digitalWrite(siren, HIGH);
lcd.clear();
lcd.setCursor (3, 0);
lcd.print("Alarm High");
lcd.setCursor (6, 1);
lcd.print("Gas!");
tone(buzzer, 1000); // Send 1KHz sound signal...
delay(500); // ...for 1 sec
noTone(buzzer); // Stop sound...
}else{
digitalWrite(siren, LOW);
}
delay (2500);
}
