BLE Bicycle Speed Sensor

Stuck at home in lockdown and needed a way to connect my old bicycle and old indoor trainer to my fitness watch / phone via bluetooth.

AdvancedWork in progress6 hours6,830

Things used in this project

Hardware components

Particle Argon

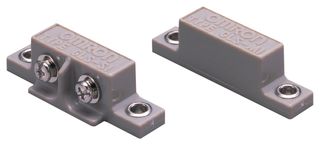

Magnetic Proximity Sensor, SPST-NO

Li-Ion Battery 1000mAh

SparkFun Pushbutton switch 12mm

Software apps and online services

Particle Build Web IDE

Story

Whilst on lockdown outdoor exercise (on the road and outside of your house) was not allowed. So focus turned to internal options. Through a bit of mix and matching some parts from the storeroom I managed to get an old 1980's bike connected up to an indoor trainer.

The only issue with both of these parts was that there were totally unconnected (didn't offer any speed / distance measurement options). Normally sensors are around $40 but I thought that something I might have in my electronics store might do the job for me....

Not my picture, however I would be trying to create the rear wheel BLE sensor.

The new-ish Particle boards, including the Argon have BLE incorporated into them, and so I got thinking. If the Argon can also pretend it is a BLE sensor then perhaps it could emulate a Cycling Speed and Cadence Sensor (official name in the GATT service list). All it would take would be some code, correct uuIDs and a reed switch to count the passing magnet... easy enough?

The Particle Argon; a master of WiFi and BLE!

Initially I must admit some trepidation with regards to getting stuck into BLE. I've only ever used an Argon for BLE Central mode work before, and that was relatively straightforward (scan, find the MAC address / name of the device you want and then receive information; see previous project of mine on Thunderboard Sense connections).

Using an Argon in a BLE Peripheral (see below for basic structure) might be a minefield of programming (think advertising, characteristics, services, packaged data streams and correct units), however the defined standards, and various BLE device manufacturers (Nordic, etc.) have some great documentation on how this all works.

After 3 days of coding and testing (initially with a push button instead of the reed switch and magnet) I managed to finally go for a ride last night. The sensor connected to my watch (Suunto 9) and popped up as a BLE Bike POD sensor. The ride measurements matched exactly to an old-school speed sensor on the bike (calculations worked!) and I was able to track distance and speed throughout the 1 hour exercise routine.

I do still have a few things to polish in the code, namely;

- getting the cadence part to also work (I have a single speed bike and so the rear wheel revolutions will determine the front crank revolutions)

- perhaps implementing some lower power options where the device turns off after some time of inactivity.

- getting the advertised name to emulate a well known brand (although I thought this was required by the BLE Central device it turns out it is not, it only checks for the Charateristic UUid).

- putting it all in a neater package!

Thanks do go out to a few people's Github repositories, for some code guidance.

Further resources worth understanding:

GATT Characteristics (Generic Attribute Profile) - these are globally defined and standardised for use in implementing a variety of BLE sensors, etc.

GATT Services - "collections of characteristics and relationships to other services that encapsulate the behavior of part of a device." - also useful to understand how the services fit into the profile which is advertised.

Specific CSC profiling / packet structure and flags - an XML page with details on the specific measurements, units and flags. This is getting closer to actually working out what data do we need to send to the BLE Central device.

Code

BLE CSC Sensor

#include "Particle.h"

SerialLogHandler logHandler(LOG_LEVEL_INFO);

const unsigned long UPDATE_INTERVAL_MS = 2000;
unsigned long lastUpdate = 0;
unsigned long lastwheelUpdate = 0;
unsigned long previouswheelUpdate = 0;
int led2 = D7;                                      //onboard LED connected to D7
volatile int swCount;
uint16_t wheel_rev_period;
uint16_t crank_rev_period;
const int debouncePeriod = 150;                      //interrupt debounce period, per magnet passby

//float measurements_update();
void measurements_update(void);

//global definitions
#define 	SPEED_AND_CADENCE_MEAS_INTERVAL         1000
#define 	WHEEL_CIRCUMFERENCE_MM                  2105
#define 	KPH_TO_MM_PER_SEC                       278
#define 	MIN_SPEED_KPH                           1
#define 	MAX_SPEED_KPH                           50
#define 	SPEED_KPH_INCREMENT                     1
#define 	DEGREES_PER_REVOLUTION                  360
#define 	RPM_TO_DEGREES_PER_SEC                  6
#define 	MIN_CRANK_RPM                           20
#define 	MAX_CRANK_RPM                           100
#define 	CRANK_RPM_INCREMENT                     3

/* Cycling Speed and Cadence configuration */
#define     GATT_CSC_UUID                           0x1816
#define     GATT_CSC_MEASUREMENT_UUID               0x2A5B
#define     GATT_CSC_FEATURE_UUID                   0x2A5C
#define     GATT_SENSOR_LOCATION_UUID               0x2A5D
#define     GATT_SC_CONTROL_POINT_UUID              0x2A55
/* Device Information configuration */
#define     GATT_DEVICE_INFO_UUID                   0x180A
#define     GATT_MANUFACTURER_NAME_UUID             0x2A29
#define     GATT_MODEL_NUMBER_UUID                  0x2A24

/*CSC Measurement flags*/
#define     CSC_MEASUREMENT_WHEEL_REV_PRESENT       0x01
#define     CSC_MEASUREMENT_CRANK_REV_PRESENT       0x02

/* CSC feature flags */
#define     CSC_FEATURE_WHEEL_REV_DATA              0x01
#define     CSC_FEATURE_CRANK_REV_DATA              0x02
#define     CSC_FEATURE_MULTIPLE_SENSOR_LOC         0x04

/* Sensor location enum */
#define     SENSOR_LOCATION_OTHER                   0
#define     SENSOR_LOCATION_TOP_OF_SHOE             1
#define     SENSOR_LOCATION_IN_SHOE                 2
#define     SENSOR_LOCATION_HIP                     3
#define     SENSOR_LOCATION_FRONT_WHEEL             4
#define     SENSOR_LOCATION_LEFT_CRANK              5
#define     SENSOR_LOCATION_RIGHT_CRANK             6
#define     SENSOR_LOCATION_LEFT_PEDAL              7
#define     SENSOR_LOCATION_RIGHT_PEDAL             8
#define     SENSOR_LOCATION_FROT_HUB                9
#define     SENSOR_LOCATION_REAR_DROPOUT            10
#define     SENSOR_LOCATION_CHAINSTAY               11
#define     SENSOR_LOCATION_REAR_WHEEL              12
#define     SENSOR_LOCATION_REAR_HUB                13
#define     SENSOR_LOCATION_CHEST                   14
#define     SENSOR_LOCATION_SPIDER                  15
#define     SENSOR_LOCATION_CHAIN_RING              16

/* SC Control Point op codes */
#define     SC_CP_OP_SET_CUMULATIVE_VALUE           1
#define     SC_CP_OP_START_SENSOR_CALIBRATION       2
#define     SC_CP_OP_UPDATE_SENSOR_LOCATION         3
#define     SC_CP_OP_REQ_SUPPORTED_SENSOR_LOCATIONS 4
#define     SC_CP_OP_RESPONSE                       16

/*SC Control Point response values */
#define     SC_CP_RESPONSE_SUCCESS                  1
#define     SC_CP_RESPONSE_OP_NOT_SUPPORTED         2
#define     SC_CP_RESPONSE_INVALID_PARAM            3
#define     SC_CP_RESPONSE_OP_FAILED                4

/* CSC simulation configuration */
#define     CSC_FEATURES                            (CSC_FEATURE_WHEEL_REV_DATA | \
                                                    CSC_FEATURE_CRANK_REV_DATA |\
                                                    CSC_FEATURE_MULTIPLE_SENSOR_LOC)

//static uint16_t csc_sim_speed_kph = MIN_SPEED_KPH;      /* Variable holds simulted speed (kilometers per hour) */
//static uint8_t csc_sim_crank_rpm = MIN_CRANK_RPM;       /* Variable holds simulated cadence (RPM) */

BleUuid CyclingSpeedAndCadenceService(GATT_CSC_UUID);   //"Cycling Speed and Cadence"	org.bluetooth.service.cycling_speed_and_cadence	0x1816	GSS

BleCharacteristic cscc("CSC Measurement", BleCharacteristicProperty::NOTIFY, BleUuid(GATT_CSC_MEASUREMENT_UUID), CyclingSpeedAndCadenceService);
BleCharacteristic Sensor_Location("Location", BleCharacteristicProperty::READ, BleUuid(GATT_SENSOR_LOCATION_UUID), CyclingSpeedAndCadenceService);
BleCharacteristic SC_ControlPoint("SC Control Point", BleCharacteristicProperty::INDICATE, BleUuid(GATT_SC_CONTROL_POINT_UUID), CyclingSpeedAndCadenceService);
BleCharacteristic CSC_Feature("CSC Feature", BleCharacteristicProperty::INDICATE, BleUuid(GATT_CSC_FEATURE_UUID), CyclingSpeedAndCadenceService);

// The battery level service allows the battery level to be monitored
BleUuid batteryLevelService(BLE_SIG_UUID_BATTERY_SVC);

BleCharacteristic batteryLevelCharacteristic("Battery Service", BleCharacteristicProperty::NOTIFY, BleUuid(0x180F), batteryLevelService);
//BleCharacteristic batteryLevelCharacteristic("Battery Service", BleCharacteristicProperty::NOTIFY, BleUuid(0x2A19), batteryLevelService);

uint8_t lastBattery = 100;

//Cycling Variables
uint32_t cum_wheel_rev = 0;
uint16_t last_wheel_event = 0;
uint16_t cum_cranks = 0;
uint16_t last_crank_event = 0;
uint16_t csc_sim_speed_kph = 0;
uint16_t csc_sim_crank_rpm = 0;

void setup() {

    Serial.begin();
    Log.warn("Bluetooth Emulation");
    (void)logHandler; // Does nothing, just to eliminate the unused variable warning

    BLE.selectAntenna(BleAntennaType::EXTERNAL);
    BLE.on();

    BLE.addCharacteristic(cscc);
    BLE.addCharacteristic(batteryLevelCharacteristic);
    //batteryLevelCharacteristic.setValue(&lastBattery, 1);

    uint8_t buf[BLE_MAX_ADV_DATA_LEN];
    size_t offset = 0;

    buf[offset++] = 0x01;
    buf[offset++] = 0xFC;

    BleAdvertisingData advData;
    advData.appendCustomData(buf,offset);
    //advData.appendServiceUUID(batteryLevelService);
    advData.appendLocalName("WAHOO BLUESC");
    advData.appendServiceUUID(CyclingSpeedAndCadenceService);

    // Continuously advertise when not connected
    BLE.advertise(&advData);

    //set up pin modes for LED and input, interrupt for input
    pinMode(D11, INPUT_PULLDOWN);
    pinMode(led2, OUTPUT);
    attachInterrupt(D11, switchIsr, RISING);
}

void loop() {

    if (millis() - lastUpdate >= UPDATE_INTERVAL_MS) {
        lastUpdate = millis();

        if (BLE.connected()) {

            //blecsc_simulate_speed_and_cadence();
            //swCount++;
            measurements_update();

            uint8_t data_buf[11];
            uint8_t data_offset = 1;

            //The Cycle Measurement Characteristic data is defined here:
            //https://www.bluetooth.com/wp-content/uploads/Sitecore-Media-Library/Gatt/Xml/Characteristics/org.bluetooth.characteristic.csc_measurement.xml
            //Frist byte is flags. Wheel Revolution Data Present (0 = false, 1 = true) = 1, Crank Revolution Data Present (0 = false, 1 = true), so the flags are 0x03 (binary 11 converted to HEX).
            //buf[0]=0x03;

            data_buf[0] |= CSC_FEATURE_WHEEL_REV_DATA;
            data_offset += 6;

            // Setting values for cycling measures (from the Characteristic File)
            //Cumulative Wheel Revolutions (unitless)
            //Last Wheel Event Time (Unit has a resolution of 1/1024s)
            //Cumulative Crank Revolutions (unitless)
            //Last Crank Event Time (Unit has a resolution of 1/1024s)

            memcpy(&data_buf[1], &cum_wheel_rev, 4);
            memcpy(&data_buf[5], &last_wheel_event, 5);
            memcpy(&data_buf[7], &cum_cranks, 6);
            memcpy(&data_buf[9], &last_crank_event, 7);

            cscc.setValue(data_buf, sizeof(data_buf));

            // The battery starts at 100% and drops to 10% then will jump back up again
            batteryLevelCharacteristic.setValue(&lastBattery, 1);
            if (--lastBattery < 90) {
                lastBattery = 100;
            }
        }
        else {
            Log.info("Not yet connected");
            cum_wheel_rev = 0;                  //keep the cumulative wheel revolutions at 0 whilst not connected
            cum_cranks = 0;                      //keep the cumulative crank revolutions at 0 whilst not connected
            cum_wheel_rev = 0;
            last_wheel_event = 0;
        }
    }
}

void measurements_update() {

    Log.warn("Measurement Update Loop");

    if(swCount) {

        //unsigned long currentTime = millis();

        swCount = 0;

        Serial.printlnf("Wheel_Rev_Period : %d", wheel_rev_period);
        Serial.printlnf("LastwheelUpdte : %d", lastwheelUpdate);
        Serial.printlnf("Cum_Wheel_Rev : %d", cum_wheel_rev);
        Serial.printlnf("Speed (km/h) : %u", csc_sim_speed_kph);
        Serial.printlnf("Crank RPM : %u", csc_sim_crank_rpm);
        Serial.printlnf("Cum. Cranks : %u", cum_cranks);
        Serial.printlnf("Crank Period : %u", crank_rev_period);
    }
    Log.warn("Finished Measurement Update Loop");
}

void switchIsr()
{
    static volatile int lastInterruptMillis = 0;

    if(millis()-lastInterruptMillis>debouncePeriod) {

    swCount++;
    lastInterruptMillis = millis();

    wheel_rev_period = millis() - lastwheelUpdate;
    lastwheelUpdate = millis();
    cum_wheel_rev++;
    last_wheel_event += wheel_rev_period;
    csc_sim_speed_kph = (3.6*WHEEL_CIRCUMFERENCE_MM)/wheel_rev_period;
    csc_sim_crank_rpm = 0.32*60*1000/wheel_rev_period;
    //csc_sim_crank_rpm = (60/(wheel_rev_period/1000))*(16/50);                  //rear cog = 16 teeth, front cog = 50 teeth (fixed speed; no other gears)
    cum_cranks = cum_wheel_rev*0.32;
    //crank_rev_period = 360/csc_sim_crank_rpm;
    crank_rev_period = ((50/16)*1024*wheel_rev_period);
    last_crank_event += crank_rev_period;

    //csc_sim_speed_kph = ((60*WHEEL_CIRCUMFERENCE_MM*60)/(1000000*wheel_rev_period));

    //csc_sim_speed_kph = ((36*64*WHEEL_CIRCUMFERENCE_MM)/(625*wheel_rev_period));
    //wheel_rev_period = (1024*60*60*WHEEL_CIRCUMFERENCE_MM) / (1000000*csc_sim_speed_kph);
    //wheel_rev_period = wheel_rev_period*1024;

    }
}

static void blecsc_simulate_speed_and_cadence()
{
    uint16_t wheel_rev_period;
    uint16_t crank_rev_period;

    /* Update simulated crank and wheel rotation speed */
    csc_sim_speed_kph++;
    if (csc_sim_speed_kph >= MAX_SPEED_KPH) {
         csc_sim_speed_kph = MIN_SPEED_KPH;
    }

    csc_sim_crank_rpm++;
    if (csc_sim_crank_rpm >= MAX_CRANK_RPM) {
         csc_sim_crank_rpm = MIN_CRANK_RPM;
    }

    /* Calculate simulated measurement values */
    if (csc_sim_speed_kph > 0){
        wheel_rev_period = (36*64*WHEEL_CIRCUMFERENCE_MM) /
                           (625*csc_sim_speed_kph);
        cum_wheel_rev++;
        last_wheel_event += wheel_rev_period;
    }

    if (csc_sim_crank_rpm > 0){
        crank_rev_period = (60*1024) / csc_sim_crank_rpm;
        cum_cranks++;
        last_crank_event += crank_rev_period;
    }
}

    //if(digitalRead(D11) == HIGH) {
    //    wheel_rev_period = millis()-lastwheelUpdate;
    //}


    //digitalWrite(led2, LOW);

    //wheel_rev_period = (36*64*WHEEL_CIRCUMFERENCE_MM) /
    //                       (625*csc_sim_speed_kph);

    //Update wheel measurements from magnet and update crank / wheel / speed values.
    //---------------------------------------------------------------------------------------------
    /* Update simulated CSC measurements.
     * Each call increments wheel and crank revolution counters by one and
     * computes last event time in order to match simulated candence and speed.
     * Last event time is expressedd in 1/1024th of second units.
     *
     *                 60 * 1024
     * crank_dt =    --------------
     *                cadence[RPM]
     *
     *
     *                circumference[mm] * 1024 * 60 * 60
     * wheel_dt =    -------------------------------------
     *                         10^6 * speed [kph]
     */
     //---------------------------------------------------------------------------------------------
