Published July 16, 2020 © GPL3+

Bedside lamp lámpara de noche

If you are afraid of the dark this is the solution you are looking for Si tienes miedo a la oscuridad, esta es la solución que buscas

BeginnerFull instructions provided363

Things used in this project

Hardware components

RGB Diffused Common Cathode

Resistor 221 ohm

SparkFun Pushbutton switch 12mm

Resistor 10k ohm

Breadboard (generic)

Almost everything works

Arduino UNO

Software apps and online services

Arduino IDE

Arduino Web Editor

Story

This light:

1. Reduce energy

2. It is cheap

3. Fun

4. It is very easy to use

I have come up with something quite rare but very common in small children that is fear of the dark, my little sister has it a little and it occurred to me because of that. It works like this: just press the button and lights will start to appear from light and bright to darkest. There is a code for boys in blue and for girls in pink and purple. In case you want to use another color, write me in the comments to try help them.

Esta luz:

1. Reduce energia

2. Es barato

3. Divertido

4. Es muy fácil de usar

Se me a ocurrido con algo bastante raro pero muy común en niños pequeños que es el miedo a la oscuridad, mi hermanita lo tiene un poco y se me a ocurrido por eso. Funciona así: simplemente aprietas el botón y empezaran a aparecer luces desde lo claro y luminoso hasta lo mas oscuro hay codigo para niños en color azul y para niñas en rosado y morado, En caso de que queráis usar otro color escríbanme en los comentarios para intentar ayudarles.

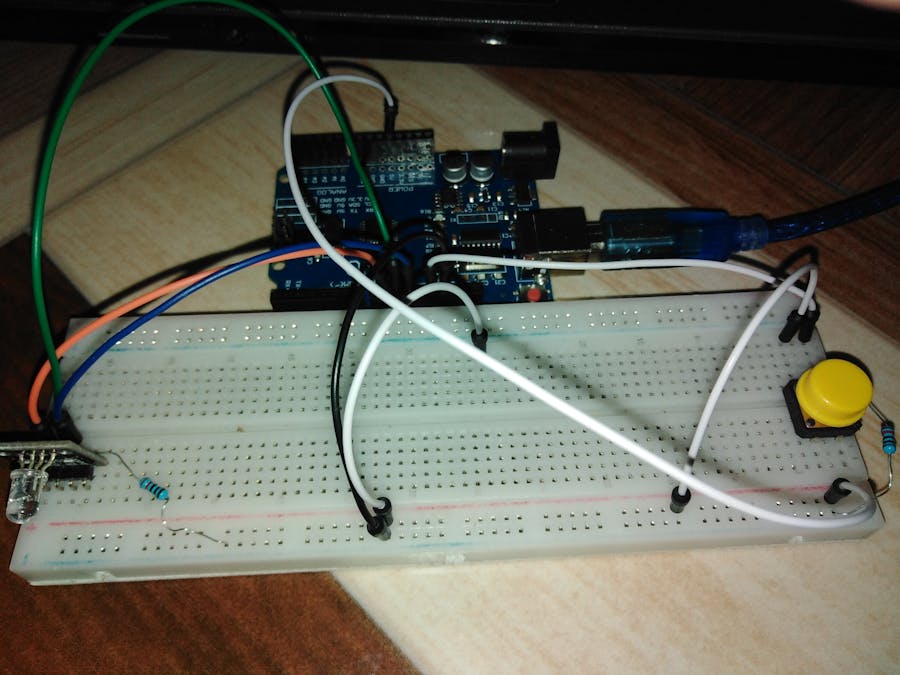

how to arm

1. Mount the rgb

Connects red to pin 9, 10 to green and 11 to blue

2. assemble the button

A 5v, gnd and pin 13

cómo armar

1. Monte el rgb

Se conecta rojo a pin 9, 10 a verde y 11 al azul

2. monte el boton

A 5v, gnd y pin 13

Code

int btn = 13;
void setup()
   {
pinMode(btn,INPUT);
   }
void Color(int r, int g, int b)
    {
        analogWrite(9 , r) ;   // Red    - Rojo
        analogWrite(10, g) ;   // Green - Verde
        analogWrite(11, b) ;   // Blue - Azul
}
void loop(){
if (digitalRead(btn)==HIGH){
Color(128,255,255);
delay(300000);
Color(0,255,255);
delay(300000);
Color(0,64,128);
delay(300000);
Color(0,0,255);
delay(300000);
Color(0,0,128);
delay(300000);
Color(0,0,64);
delay(300000);
}
else{
}
}

int btn = 13;
void setup()
   {
pinMode(btn,INPUT);
   }
void Color(int r, int g, int b)
    {
        analogWrite(9 , r) ;   // Red    - Rojo
        analogWrite(10, g) ;   // Green - Verde
        analogWrite(11, b) ;   // Blue - Azul
}
void loop(){
if (digitalRead(btn)==HIGH){
Color(255,128,255);
delay(300750);
Color(255,128,192);
delay(300750);
Color(255,0,255);
delay(300750);
Color(255,0,192);
delay(300750);
Color(128,0,64);
delay(300750);
Color(128,0,128);
delay(300750);
Color(64,0,64);
delay(300750);
Color(64,0,128);
delay(300750);
}
else{
}
}

Credits

newproyecto

3 projects • 4 followers

Hello everyone, my name is Antonio and I love programming and doing projects with Arduino and I hope these projects will help you.
