Laser project

A laser is useful for many things: to play with the cat, security systems and so on, but do we know how to build one? This time I will teach you how to build a simple and very easy to make laser.

Assembled

The assembly consists of two parts, the first is the installation of the laser that we will connect it to 5v (one cable to a row and the other in the same) and gnd we connect it in the same way and signal to pin 13

and the second part is to install the buttons to row 5v, to row gnd with a resistance of 10 kΩ and to signal the left to pin 12 and the right to pin 11.

The code

We will now move to the programming phase in which we will start with the variables that I show below:

int offbtn = 11;
//the off button
int onbtn = 12;
//the on button
int laser = 13;
//the laser pin

in the void setup we define inputs and outputs

void setup() {
 // inputs
 pinMode(offbtn, INPUT);
 pinMode(onbtn, INPUT);
// and outputs
 pinMode(laser, OUTPUT);
}

and in the void loop we write what we want to do

void loop() {
 // The first part is for you to turn on and the second for you to turn off.
 if (digitalRead(onbtn)==HIGH){
   digitalWrite(laser, HIGH);
   }
   if (digitalRead(offbtn)==HIGH){
      digitalWrite(laser, LOW);
    }
}

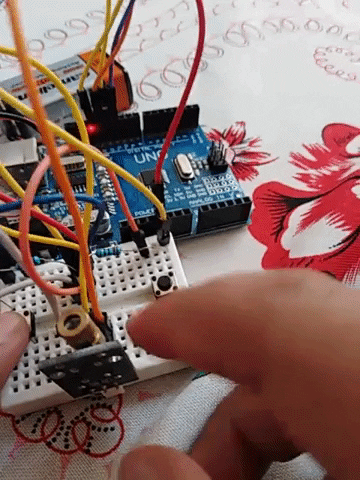

so it works:

https://media.giphy.com/media/mNNJfIT5oePcuazCh8/giphy.gif

see you on another project.
