CircuitPython Snake Game in Neopixel Matrix

This is another one of the games developed for the workshop at Sesc São Paulo. This is the game Snake, well known on Nokia cell phones, or Nibbles, on computers with Microsoft Qbasic from the 90s.

All games are my adaptations of pre-existing codes, with some help from Chat GPT, to automate the new code structuring (which has often given me more headaches than solutions...).

At the end of this series, I will share the entire system, with the menu, six modularized games.

For now, let's go with the raw and functional code...

"""

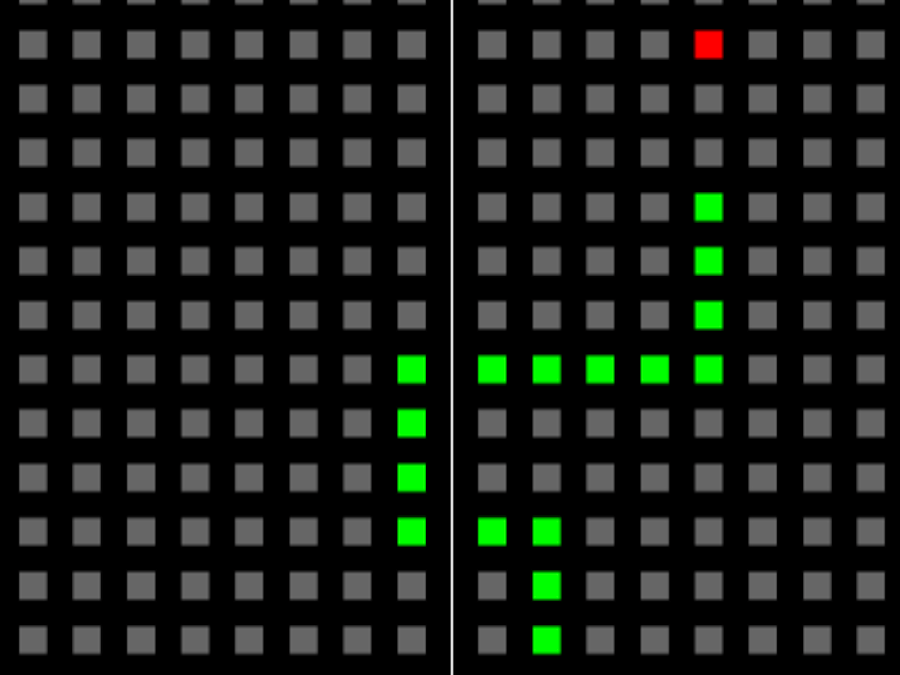

Snake Game
    For the "Recriating Arcade Games in Circuitpython, Neopixel and Seeed Xiao RP2040"
    SESC Workshop - São Paulo - Brazil - May 2024
"""
import board, time, random

# Treat Joystick
from analogio import AnalogIn
from digitalio import DigitalInOut, Direction, Pull
from simpleio import map_range

import neopixel_spi as neopixel
from rainbowio import colorwheel

# This is the original version of library when using 16x16 Panels
from adafruit_pixel_framebuf import PixelFramebuffer, VERTICAL

# Prepare Joystick in Analog Pins
joystick_x = AnalogIn(board.A0)
joystick_y = AnalogIn(board.A1)

# Prepare Trigger Switch
trigger = DigitalInOut(board.D2)
trigger.direction = Direction.INPUT
trigger.pull = Pull.UP

spi = board.SPI()

# Setting up the Neopixel Pannel - 16 x 16 Version
pixel_width = 32  # Two Pannels
pixel_height = 16
num_pixels = pixel_width * pixel_height

pixels = neopixel.NeoPixel_SPI(
    spi,
    num_pixels, # dont forget to multiply for num_tiles
    brightness=0.2,
    auto_write=False,
)

# When 16x16 Using original Adafruit_Pixel_Framebuf Library
screen = PixelFramebuffer(
    pixels,
    pixel_width,
    pixel_height,
    rotation = 2,
    # reverse_x=True, # This two configs need to be adjusted better
    orientation=VERTICAL, # Some of the games render correctly without this...
)

def get_direction():
    # This function is a little bit different than usual joystick function
    x = int(map_range(joystick_x.value, 0, 65535, -1.5, 1.5))
    y = int(map_range(joystick_y.value, 0, 65535,  -1.5, 1.5))
    if abs(x) > abs(y):
        return (0, x)  # Horizontal Move
    else:
        return (y, 0)  # Vertical Move

def get_joystick():
    # Returns -1 0 or 1 depending on joystick position
    x_coord = int (map_range (joystick_x.value, 200, 65535, - 2 , 2))
    y_coord = int (map_range (joystick_y.value, 200, 65535, - 2 , 2))
    return x_coord, y_coord

def get_pixel_color(x, y):
    # Check if coordinates are within valid limits
    if (0 <= x < screen.width) and (0 <= y < screen.height):
        # Get pixel color
        rgbint = screen.pixel(x, y)
        return (rgbint >> 16 & 0xFF, rgbint >> 8 & 0xFF, rgbint & 0xFF)

    # Return black (0, 0, 0) if out of bounds
    return (0, 0, 0)

def check_wall(x, y, wall_color):
    # Check Screen Limits First
    if x < 0 or x >= screen._width or y < 0 or y >= screen._height * screen._tile_num:
        return False
    # Then check color
    color = get_pixel_color(x, y)
    return color != wall_color

def check_color(x, y, colorcheck):
    colorcheck_rgb = ((colorcheck >> 16) & 0xFF, (colorcheck >> 8) & 0xFF, colorcheck & 0xFF)
    color = get_pixel_color(x, y)
    return color == colorcheck_rgb

# Get body and head position
snake_body = [
    [pixel_height // 2, pixel_width // 2],
    [pixel_height // 2, pixel_width // 2 - 1],
    [pixel_height // 2, pixel_width // 2 - 2]
]

# Get food position
food = [random.randint(0, pixel_height - 1), random.randint(0, pixel_width - 1)]

direction = (0, 1)  # Move to right

def generate_food():
    global food
    while True:
        food = [random.randint(0, pixel_height - 1), random.randint(0, pixel_width - 1)]

        # Check if food is in snake body. Because is random, and can occur...
        if food not in snake_body:
            break

while True:
    new_direction = get_direction()
    if new_direction != (0, 0) and (new_direction[0] != -direction[0] or new_direction[1] != -direction[1]):
        direction = new_direction

    # Calculate snake head position x, y coordinates
    new_head = [snake_body[0][0] + direction[0], snake_body[0][1] + direction[1]]

    # Check game over condition. Snake beyond screen or snake head in snake body
    if (
        new_head[0] < 0 or new_head[0] >= pixel_height  or
        new_head[1] < 0 or new_head[1] >= pixel_width or
        new_head in snake_body
    ):
        # Count lives remaining, show lives message
        snake_body = [
            [pixel_height // 2, pixel_width // 2],
            [pixel_height // 2, pixel_width // 2 - 1],
            [pixel_height // 2, pixel_width // 2 - 2]
        ]
    else:
        # Increase and show score points
        snake_body.insert(0, new_head)

        # Snake eats food?
        if snake_body[0] == food:
            generate_food()
        else:
            snake_body.pop()

        # Clear screen and draw
        screen.fill(0)

        # Draw snake head and body
        for segment in snake_body:
            screen.pixel(segment[1], segment[0], 0x00FF00)  # Snake

        # Draw Food
        screen.pixel(food[1], food[0], 0xFF0000)

        # Show everything
        screen.display()
        time.sleep(0.1)

One of the challenges of completing this project is precisely integrating all the games into modules that share the same configurations. The disadvantage of having made them from ready-made codes and with the help of GPT Chat is that each of them works well in isolation. But Pixel_Framebuf screen launches are different for each game.

They all 'work', but there is no consistency between them. And this is being resolved little by little.Some of the functions are maintained in the code, although they are not used. I'm always adding them all and adjusting them as the project progresses.

As soon as the console is fully functional, I promise a video with all the games and better images...
