COVID19 Realtime Monitoring using NodeMCU

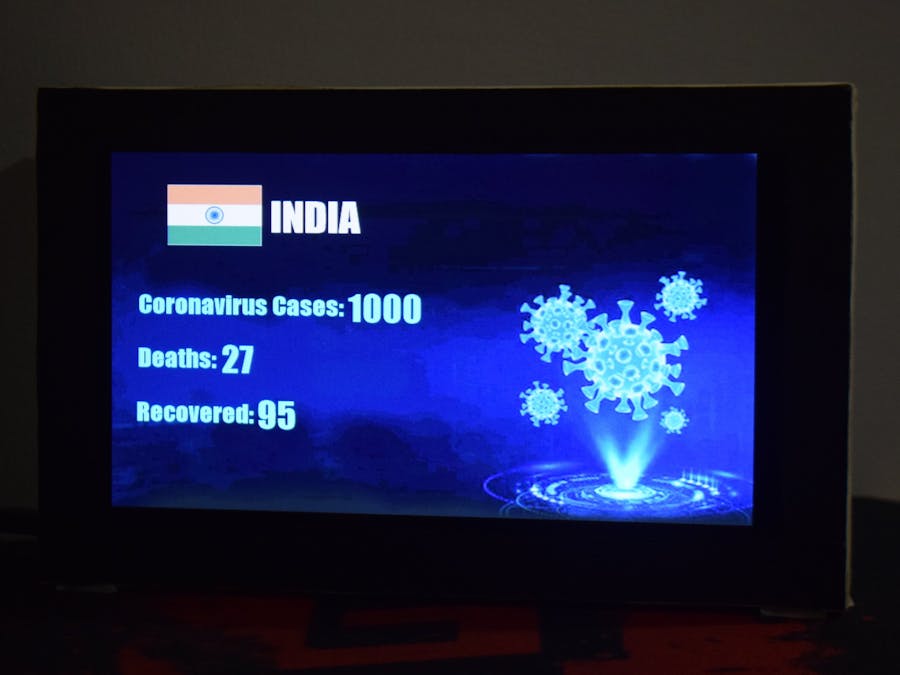

This is a small project shows the current data of the coronavirus outbreak of India in realtime on a Nextion TFT Display

IntermediateWork in progress4 hours1,582
COVID19 Realtime Monitoring using NodeMCU

Things used in this project

Story

Read more

Schematics

Nextion esp8266 Connection Diagram.jpg

The Nextion display TX pin should be connected to the ESP8266 RX pin.
The Nextion display RX pin should be connected to the ESP8266 TX pin.

Code

COVID19-Realtime-Monitoring-using-NodeMCU.ino

Arduino
#include <ESP8266WiFi.h>
#include <Wire.h>
#include <ESP8266HTTPClient.h>

const char* ssid = "Enter your ssid"; // put your router name
const char* password = "Enter your password";// put your password
const char* host = "api.thingspeak.com";
int effect_value;
int Rec_value;
int death_value;

void setup() {
  Serial.begin(9600);
  delay(100);
  Serial.println();
  Serial.println();
  Serial.print("Connecting to ");
  Serial.println(ssid);

  WiFi.begin(ssid,password);

  while (WiFi.status() != WL_CONNECTED) {
    delay(500);
   Serial.print(".");
  }

  Serial.println("");
  Serial.println("WiFi connected");
  Serial.println("IP address: ");
  Serial.println(WiFi.localIP());
}

void loop() {


HTTPClient http;
http.begin("api.thingspeak.com", 80, "/apps/thinghttp/send_request?api_key=0KBJX49TND86W7E2"); //add your api
int httpCode = http.GET();
if(httpCode > 0) {
if(httpCode == HTTP_CODE_OK) {
String yourvalue = http.getString();
String TEffect_value = yourvalue.substring(0, yourvalue.length());
effect_value = TEffect_value.toInt();
String TRec_value = yourvalue.substring(sizeof(effect_value)+2, yourvalue.length());
Rec_value = TRec_value.toInt();
String TDeath_value = yourvalue.substring(sizeof(effect_value), yourvalue.length() - TRec_value.length());
death_value = TDeath_value.toInt();
//Serial.println(yourvalue);
//Serial.print("Coronavirus Cases:");
//Serial.print(effect_value);
//Serial.println();
//Serial.print("Deaths:");
//Serial.print(death_value);
//Serial.println();
//Serial.print("Recovered:");
//Serial.print(Rec_value);
//Serial.println();


}
} else {
Serial.printf("[HTTP] GET... failed, error: %s", http.errorToString(httpCode).c_str());
}
http.end();
delay(1000);
 sendCasesToNextion();
 sendDeathsToNextion();
 sendRecoveredToNextion();
}
void sendCasesToNextion()
{
  String command = "cor.txt=\""+String(effect_value)+"\"";
  Serial.print(command);
  endNextionCommand();
}

void sendDeathsToNextion()
{
  String command = "dea.txt=\""+String(death_value)+"\"";
  Serial.print(command);
  endNextionCommand();
}
void sendRecoveredToNextion()
{
  String command = "rec.txt=\""+String(Rec_value)+"\"";
  Serial.print(command);
  endNextionCommand();
}
void endNextionCommand()
{
  Serial.write(0xff);
  Serial.write(0xff);
  Serial.write(0xff);
}
