Camera Stream From Device to PC

I use a proxy web application hosted inside Azure to transfer image data from my robot camera to the remote control app.

BeginnerProtip3 hours6,242

Things used in this project

Hardware components

Raspberry Pi 2 Model B

Microsoft Lifecam 3000 USB Camera

You should try a different compatible camera if possible, this one turned out to have a very low capture rate.

Old School PC :-)

Software apps and online services

Microsoft Azure

Microsoft Windows 10 IoT Core

Microsoft Visual Studio 2015

Story

Background

I created a exploration vehicle (https://goo.gl/T6YwAz), that is in its first throw sending camera data packed into events of the IoT Hub. It's a very expensive solution and i need a different. WebSockets seem to be the way to go. I can host a web application inside Azure and keep it that way perfectly scalable! After all - to keep the IoT spirit alive - we assume someday everyone in the world to use our device.

Remote control application with camera display

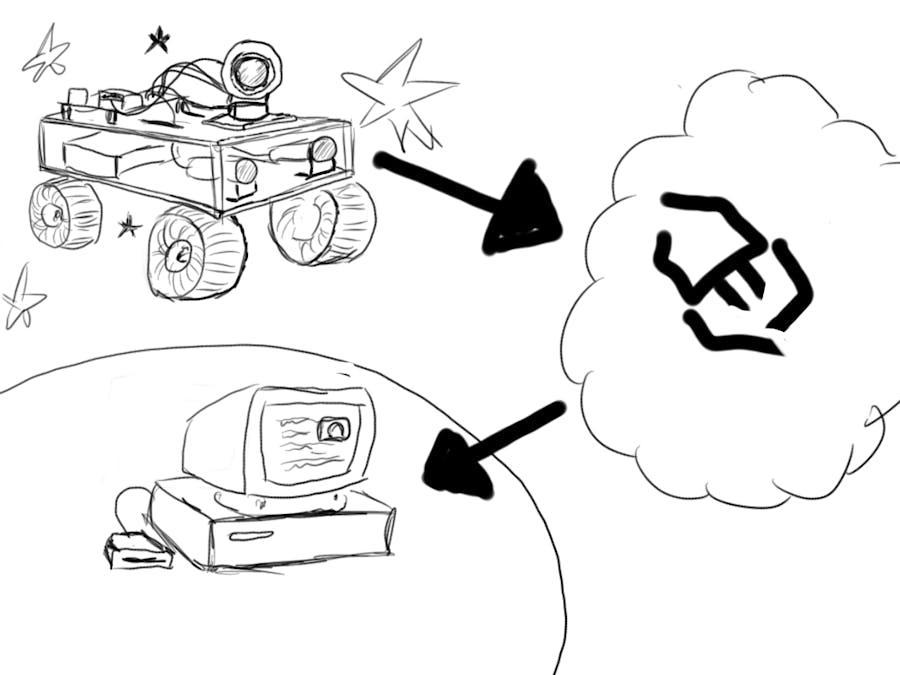

How it works

Device

The Device connects to a WebSocket enabled server with its DeviceId and sends captured data as a binary message.

...
await mStreamWebSocket.ConnectAsync(new Uri($"{Globals.WEBSOCKET_ENDPOINT}?device={MainPage.GetUniqueDeviceId()}"));
...
var capturedPhoto = await mLowLagCapture.CaptureAsync();
using (var rac = capturedPhoto.Frame.CloneStream())
{
   var dr = new DataReader(rac.GetInputStreamAt(0));
   var bytes = new byte[rac.Size];
   await dr.LoadAsync((uint)rac.Size);
   dr.ReadBytes(bytes);
   await socket.OutputStream.WriteAsync(bytes.AsBuffer());
}
...

WebServer

Azure requires to first enable Web Sockets in server configuration.

The web server accepts web socket requests, and on the receiver end keeps them in a public collection. Device and PC send a device query parameter, which is the DeviceId.

if (http.WebSockets.IsWebSocketRequest && http.Request.Query.ContainsKey("device"))
{
   var deviceid = http.Request.Query["device"].ToString();
   var webSocket = await http.WebSockets.AcceptWebSocketAsync();
   if (webSocket.State == WebSocketState.Open)
   {
       var existigsocketconnection = ImageReceiverWebSocketMiddleware.Connections.Where(x => x.DeviceId.Equals(deviceid)).FirstOrDefault();
       if (existigsocketconnection != null)
       {
           ImageReceiverWebSocketMiddleware.Connections.Remove(existigsocketconnection);
       }
       Connections.Add(new SocketConnections { DeviceId = deviceid, SocketConnection = webSocket });
       while (webSocket.State == WebSocketState.Open)
       {
           var buffer = new ArraySegment<Byte>(new Byte[4096]);
           var received = await webSocket.ReceiveAsync(buffer, CancellationToken.None);
           switch (received.MessageType)
           {
               case WebSocketMessageType.Close:
                   var socket = Connections.Where(x => x.SocketConnection == webSocket).First();
                   Connections.Remove(socket);
                   await webSocket.CloseAsync(WebSocketCloseStatus.NormalClosure, "Closed in server by the client", CancellationToken.None);
                   continue;
           }
       }
   }
}
else
{
   await mNext.Invoke(http);
}

The endpoint for sender is similar, with the difference of instead having to send the data to the receiver endpoints.

List<byte> data = new List<byte>(buffer.Take(received.Count));
while (received.EndOfMessage == false)
{
   received = await webSocket.ReceiveAsync(buffer, CancellationToken.None);
   data.AddRange(buffer.Take(received.Count));
}
var socketconnectionList = ImageReceiverWebSocketMiddleware.Connections.Where(x => x.DeviceId.Equals(deviceid, StringComparison.Ordinal)).ToArray();
foreach (var socketconnection in socketconnectionList)
{
   var destsocket = socketconnection.SocketConnection;
   if (destsocket.State == System.Net.WebSockets.WebSocketState.Open)
   {
       var type = WebSocketMessageType.Binary;
       try
       {
           await destsocket.SendAsync(new ArraySegment<byte>(data.ToArray()), type, true, CancellationToken.None);
       }
       catch (Exception ex)
       {
           AppInsights.Client.TrackException(ex);
       }
   }
   else
   {
       AppInsights.Client.TrackTrace("Removing closed connection");
       ImageReceiverWebSocketMiddleware.Connections.Remove(socketconnection);
   }
}

Device and PC have each an own route mapping, configured inside the Startup.Configure method.

app.UseWebSockets();
app.Map("/ws/receiver", (sub) =>
{
   sub.UseMiddleware<ImageReceiverWebSocketMiddleware>();
});
app.Map("/ws/sender", (sub) =>
{
   sub.UseMiddleware<ImageSenderWebSocketMiddleware>();
});

The PC-Client, in my case, a WPF application, connects to server and waits for new data.

string wsUri = $"ws://yourserver.azurewebsites.net/ws/?device={Globals.DEVICE_ID}";
var socket = new ClientWebSocket();
await socket.ConnectAsync(new Uri(wsUri), ct);

Then reads all message parts and finally converts in a WPF compatible object.

var buffer = new ArraySegment<Byte>(new Byte[40960]);
WebSocketReceiveResult rcvResult = await socket.ReceiveAsync(buffer, ct);
string b64 = String.Empty;
if (rcvResult.MessageType == WebSocketMessageType.Binary)
{
   List<byte> data = new List<byte>(buffer.Take(rcvResult.Count));
   while (rcvResult.EndOfMessage == false)
   {
       rcvResult = await socket.ReceiveAsync(buffer, CancellationToken.None);
       data.AddRange(buffer.Take(rcvResult.Count));
   }
   MemoryStream ms = new MemoryStream(data.ToArray());
   var image = Image.FromStream(ms);
   var oldBitmap = new Bitmap(image);
   var bitmapSource = System.Windows.Interop.Imaging.CreateBitmapSourceFromHBitmap(
               oldBitmap.GetHbitmap(System.Drawing.Color.Transparent),
               IntPtr.Zero,
               new Int32Rect(0, 0, oldBitmap.Width, oldBitmap.Height),
               null);
   var del = BitmapAquired;
   if (del != null)
   {
       del(this, bitmapSource);
   }
   var picturespath = Environment.GetFolderPath(Environment.SpecialFolder.MyPictures);
   image.Save(Path.Combine(picturespath, "lastimagefromrover.jpg"));
   addToLog(string.Format("Image message received"));
}

And finally:

Oops, stupid surveillance cameras taking pictures in wrong moments. ;-)

Retrospective

I decided to capture single frames in first version and see what I can learn out of it. Looking back, it seems to be the best choice. Next time I would capture a stream and convert them into single images to hopefully get a better frame rate. Yet, the biggest bottleneck is still the upstream connection to server. Getting something like 20FPS seems right now rather unrealistic.

using System;
using System.Collections.Generic;
using System.Net.Http;
using System.Runtime.InteropServices.WindowsRuntime;
using System.Threading;
using System.Threading.Tasks;
using Windows.Media.Capture;
using Windows.Media.MediaProperties;
using Windows.Networking.Sockets;
using Windows.Storage.Streams;

namespace SimpleController.Domain
{
    public class WebSocketCamera
    {
        public class PutRequest
        {
            public string Image { get; set; }
        }

        private CancellationTokenSource mCancelaationToken;
        private LowLagPhotoCapture mLowLagCapture;
        private MediaCapture mMediaCapture;
        private DateTime mStartTime;
        private TimeSpan mAutoStopAfter = new TimeSpan(0, 5, 0);
        private StreamWebSocket mStreamWebSocket;

        private async Task init()
        {
            try
            {
                mMediaCapture = new MediaCapture();
                await mMediaCapture.InitializeAsync();
                mLowLagCapture = await mMediaCapture.PrepareLowLagPhotoCaptureAsync(ImageEncodingProperties.CreateJpeg());
                mStreamWebSocket = new StreamWebSocket();
                mStreamWebSocket.Closed += MStreamWebSocket_Closed;
            }
            catch (Exception ex)
            {
                AppInsights.Client.TrackException(ex);
            }
        }

        private void MStreamWebSocket_Closed(IWebSocket sender, WebSocketClosedEventArgs args)
        {
            closeSocket(sender);
        }

        public async Task StartCapture()
        {
            mCancelaationToken?.Cancel();
            if (mStreamWebSocket != null)
            {
                closeSocket(mStreamWebSocket);
            }

            await init();
            mCancelaationToken = new CancellationTokenSource();
            mStartTime = DateTime.UtcNow;

            try
            {
                await mStreamWebSocket.ConnectAsync(new Uri($"{Globals.WEBSOCKET_ENDPOINT}?device={MainPage.GetUniqueDeviceId()}"));

                var task = Task.Run(async () =>
                {
                    var socket = mStreamWebSocket;
                    while (!mCancelaationToken.IsCancellationRequested)
                    {
                        try
                        {
                            var capturedPhoto = await mLowLagCapture.CaptureAsync();
                            using (var rac = capturedPhoto.Frame.CloneStream())
                            {
                                var dr = new DataReader(rac.GetInputStreamAt(0));
                                var bytes = new byte[rac.Size];
                                await dr.LoadAsync((uint)rac.Size);
                                dr.ReadBytes(bytes);

                                await socket.OutputStream.WriteAsync(bytes.AsBuffer());
                            }
                        }
                        catch (Exception ex)
                        {
                            AppInsights.Client.TrackException(ex);
                        }

                        if ((DateTime.UtcNow - mStartTime) > mAutoStopAfter)
                        {
                            AppInsights.Client.TrackEvent("CameraAutoTurnOff");
                            mCancelaationToken.Cancel();
                        }
                    }
                }, mCancelaationToken.Token);
            }
            catch (Exception ex)
            {
                mStreamWebSocket.Dispose();
                mStreamWebSocket = null;
                AppInsights.Client.TrackException(ex);
            }

        }

        private void closeSocket(IWebSocket webSocket)
        {
            try
            {
                webSocket.Close(1000, "Closed due to user request.");
            }
            catch (Exception ex)
            {
                AppInsights.Client.TrackException(ex);
            }
        }

        private static async Task sendData(byte[] bytes)
        {
            try
            {
                HttpClient http = new HttpClient();
                var response = await http.PutAsJsonAsync<PutRequest>(new Uri("http://sgnexus.azurewebsites.net/api/imagedata/" + "f56bccc1-4075-d40f-7d0d-34c16a1411e0"), new PutRequest
                {
                    Image = Convert.ToBase64String(bytes)
                });

                var code = response.StatusCode;
                AppInsights.Client.TrackEvent("CameraDataSent", new Dictionary<string, string> { { "responsecode", code.ToString() } });
            }
            catch (Exception ex)
            {
                AppInsights.Client.TrackException(ex);
            }
        }

        public async Task StopCapture()
        {
            mCancelaationToken.Cancel();
            mCancelaationToken = null;
            mStreamWebSocket = null;
        }
    }
}

using Microsoft.AspNetCore.Http;
using System;
using System.Collections.Generic;
using System.Linq;
using System.Net.WebSockets;
using System.Threading;
using System.Threading.Tasks;

namespace SGNexus
{
    public class ImageSenderWebSocketMiddleware
    {
        readonly RequestDelegate mNext;

        public ImageSenderWebSocketMiddleware(RequestDelegate next)
        {
            mNext = next;
        }

        public async Task Invoke(HttpContext http)
        {
            if (http.WebSockets.IsWebSocketRequest && http.Request.Query.ContainsKey("device"))
            {
                var deviceid = http.Request.Query["device"].ToString();
                var webSocket = await http.WebSockets.AcceptWebSocketAsync();
                if (webSocket.State == WebSocketState.Open)
                {
                    while (webSocket.State == WebSocketState.Open)
                    {
                        var buffer = new ArraySegment<Byte>(new Byte[4096]);
                        var received = await webSocket.ReceiveAsync(buffer, CancellationToken.None);

                        switch (received.MessageType)
                        {
                            case WebSocketMessageType.Close:
                                await webSocket.CloseAsync(WebSocketCloseStatus.NormalClosure, "Closed in server by the client", CancellationToken.None);
                                continue;
                            case WebSocketMessageType.Binary:
                                List<byte> data = new List<byte>(buffer.Take(received.Count));
                                while (received.EndOfMessage == false)
                                {
                                    received = await webSocket.ReceiveAsync(buffer, CancellationToken.None);
                                    data.AddRange(buffer.Take(received.Count));
                                }

                                var socketconnectionList = ImageReceiverWebSocketMiddleware.Connections.Where(x => x.DeviceId.Equals(deviceid, StringComparison.Ordinal)).ToArray();

                                foreach (var socketconnection in socketconnectionList)
                                {
                                    var destsocket = socketconnection.SocketConnection;
                                    if (destsocket.State == System.Net.WebSockets.WebSocketState.Open)
                                    {
                                        var type = WebSocketMessageType.Binary;

                                        try
                                        {
                                            await destsocket.SendAsync(new ArraySegment<byte>(data.ToArray()), type, true, CancellationToken.None);
                                        }
                                        catch (Exception ex)
                                        {
                                            AppInsights.Client.TrackException(ex);
                                        }
                                    }
                                    else
                                    {
                                        AppInsights.Client.TrackTrace("Removing closed connection");
                                        ImageReceiverWebSocketMiddleware.Connections.Remove(socketconnection);
                                    }
                                }

                                break;
                        }
                    }
                }
            }
            else
            {
                await mNext.Invoke(http);
            }
        }

        public class SocketConnections
        {
            public string DeviceId { get; set; }
            public WebSocket SocketConnection { get; set; }
        }
    }
}

using Microsoft.AspNetCore.Http;
using System;
using System.Collections.Generic;
using System.Linq;
using System.Net.WebSockets;
using System.Threading;
using System.Threading.Tasks;

namespace SGNexus
{
    public class ImageReceiverWebSocketMiddleware
    {
        public static List<SocketConnections> Connections { get; set; }

        readonly RequestDelegate mNext;

        static ImageReceiverWebSocketMiddleware()
        {
            Connections = new List<SocketConnections>();
        }

        public ImageReceiverWebSocketMiddleware(RequestDelegate next)
        {
            mNext = next;
        }

        public async Task Invoke(HttpContext http)
        {
            if (http.WebSockets.IsWebSocketRequest && http.Request.Query.ContainsKey("device"))
            {
                var deviceid = http.Request.Query["device"].ToString();
                var webSocket = await http.WebSockets.AcceptWebSocketAsync();
                if (webSocket.State == WebSocketState.Open)
                {
                    var existigsocketconnection = ImageReceiverWebSocketMiddleware.Connections.Where(x => x.DeviceId.Equals(deviceid)).FirstOrDefault();
                    if (existigsocketconnection != null)
                    {
                        ImageReceiverWebSocketMiddleware.Connections.Remove(existigsocketconnection);
                    }
                    Connections.Add(new SocketConnections { DeviceId = deviceid, SocketConnection = webSocket });
                    while (webSocket.State == WebSocketState.Open)
                    {
                        var buffer = new ArraySegment<Byte>(new Byte[4096]);
                        var received = await webSocket.ReceiveAsync(buffer, CancellationToken.None);

                        switch (received.MessageType)
                        {
                            case WebSocketMessageType.Close:
                                var socket = Connections.Where(x => x.SocketConnection == webSocket).First();
                                Connections.Remove(socket);
                                await webSocket.CloseAsync(WebSocketCloseStatus.NormalClosure, "Closed in server by the client", CancellationToken.None);
                                continue;
                        }
                    }
                }
            }
            else
            {
                await mNext.Invoke(http);
            }
        }

        public class SocketConnections
        {
            public string DeviceId { get; set; }
            public WebSocket SocketConnection { get; set; }
        }
    }
}

using GalaSoft.MvvmLight;
using Microsoft.ServiceBus.Messaging;
using RemoteControl.Wpf.Model;
using System;
using System.Collections.Generic;
using System.Collections.ObjectModel;
using System.Drawing;
using System.IO;
using System.Linq;
using System.Net.WebSockets;
using System.Text;
using System.Threading;
using System.Threading.Tasks;
using System.Windows;
using System.Windows.Media.Imaging;

namespace RemoteControl.Wpf.ViewModel
{
    public class EventsReaderViewModel : ViewModelBase
    {
        public delegate void BitmapAquiredEventHandler(object sender, BitmapSource e);
        public event BitmapAquiredEventHandler BitmapAquired;

        static string iotHubD2cEndpoint = "messages/events";
        static EventHubClient eventHubClient;

        public EventsReaderViewModel()
        {
            DeviceId = Globals.DEVICE_ID;

            Log = new ObservableCollection<DataItem>();

            Console.WriteLine("Receive messages.\n");
            eventHubClient = EventHubClient.CreateFromConnectionString(Globals.CONNECTIONSTRING_OWNER, iotHubD2cEndpoint);

            var d2cPartitions = eventHubClient.GetRuntimeInformation().PartitionIds;

            CancellationTokenSource cts = new CancellationTokenSource();

            System.Console.CancelKeyPress += (s, e) =>
            {
                e.Cancel = true;
                cts.Cancel();
                Console.WriteLine("Exiting...");
            };

            var tasks = new List<Task>();
            foreach (string partition in d2cPartitions)
            {
                tasks.Add(receiveMessagesFromDeviceAsync(partition, cts.Token));
            }
            tasks.Add(receiveWebSocketMessagesFromDeviceAsync(cts.Token));
        }

        private string mDeviceId;

        public string DeviceId
        {
            get { return mDeviceId; }
            set { Set(ref mDeviceId, value); }
        }

        private ObservableCollection<DataItem> mLog;

        public ObservableCollection<DataItem> Log
        {
            get { return mLog; }
            set { Set(ref mLog, value); }
        }

        private async Task receiveMessagesFromDeviceAsync(string partition, CancellationToken ct)
        {
            try
            {
                eventHubClient.GetDefaultConsumerGroup().Abort();
                await eventHubClient.GetDefaultConsumerGroup().CloseAsync();
                var eventHubReceiver = eventHubClient.GetDefaultConsumerGroup().CreateReceiver(partition, DateTime.UtcNow);
                while (true)
                {
                    try
                    {
                        if (ct.IsCancellationRequested) break;
                        EventData eventData = await eventHubReceiver.ReceiveAsync();
                        if (eventData == null) continue;

                        string data = Encoding.UTF8.GetString(eventData.GetBytes());
                        if (eventData.Properties.ContainsKey("path"))
                        {
                            var path = eventData.Properties["path"];
                            if (String.Equals(path.ToString(), "imagefeed", StringComparison.InvariantCultureIgnoreCase))
                            {
                                var dataBytes = eventData.GetBytes();
                                MemoryStream ms = new MemoryStream(dataBytes, 0, dataBytes.Length);
                                var image = Image.FromStream(ms);
                                var oldBitmap = new Bitmap(image);
                                var bitmapSource = System.Windows.Interop.Imaging.CreateBitmapSourceFromHBitmap(
                                          oldBitmap.GetHbitmap(System.Drawing.Color.Transparent),
                                          IntPtr.Zero,
                                          new Int32Rect(0, 0, oldBitmap.Width, oldBitmap.Height),
                                          null);

                                var del = BitmapAquired;
                                if (del != null)
                                {
                                    del(this, bitmapSource);
                                }
                                var picturespath = Environment.GetFolderPath(Environment.SpecialFolder.MyPictures);
                                image.Save(Path.Combine(picturespath, "lastimagefromrover.jpp"));
                                addToLog(string.Format("Image message received"));
                            }
                        }
                        else
                        {
                            addToLog(string.Format("Message received. Partition: {0} Data: '{1}'", partition, data));
                        }
                    }
                    catch (Exception ex)
                    {
                        addToLog(ex.Message.ToString());
                    }

                }
            }
            catch (Exception ex)
            {
                addToLog(ex.Message.ToString());
            }
        }

        private async Task receiveWebSocketMessagesFromDeviceAsync(CancellationToken ct)
        {
            try
            {
                string wsUri = $"{Globals.WEBSOCKET_ENDPOINT}?device={Globals.DEVICE_ID}";
                var socket = new ClientWebSocket();
                await socket.ConnectAsync(new Uri(wsUri), ct);

                while (socket.State == WebSocketState.Open)
                {
                    try
                    {
                        if (ct.IsCancellationRequested) break;

                        var buffer = new ArraySegment<Byte>(new Byte[40960]);
                        WebSocketReceiveResult rcvResult = await socket.ReceiveAsync(buffer, ct);
                        string b64 = String.Empty;
                        if (rcvResult.MessageType == WebSocketMessageType.Binary)
                        {
                            List<byte> data = new List<byte>(buffer.Take(rcvResult.Count));
                            while (rcvResult.EndOfMessage == false)
                            {
                                rcvResult = await socket.ReceiveAsync(buffer, CancellationToken.None);
                                data.AddRange(buffer.Take(rcvResult.Count));
                            }

                            MemoryStream ms = new MemoryStream(data.ToArray());

                            var image = Image.FromStream(ms);
                            var oldBitmap = new Bitmap(image);
                            var bitmapSource = System.Windows.Interop.Imaging.CreateBitmapSourceFromHBitmap(
                                        oldBitmap.GetHbitmap(System.Drawing.Color.Transparent),
                                        IntPtr.Zero,
                                        new Int32Rect(0, 0, oldBitmap.Width, oldBitmap.Height),
                                        null);

                            var del = BitmapAquired;
                            if (del != null)
                            {
                                del(this, bitmapSource);
                            }
                            var picturespath = Environment.GetFolderPath(Environment.SpecialFolder.MyPictures);
                            image.Save(Path.Combine(picturespath, "lastimagefromrover.jpg"));
                            addToLog(string.Format("Image message received"));
                        }
                    }
                    catch (Exception ex)
                    {
                        addToLog(ex.Message.ToString());
                    }
                }
            }
            catch (Exception ex)
            {
                addToLog(ex.Message.ToString());
            }
        }

        private void addToLog(string message)
        {
            if (Log == null)
            {
                Log = new ObservableCollection<DataItem>();
            }
            Log.Insert(0, new DataItem(message));
            if (Log.Count > 100)
            {
                Log.RemoveAt(100);
            }
        }
    }
}

Credits

Patricia

5 projects • 18 followers

A c# developer. As child i used to play with electronics and this source of fun is living up again in me, as we enter the age of IoT.

Contact

Comments

Please log in or sign up to comment.

Camera Stream From Device to PC

Things used in this project

Hardware components

Software apps and online services

Story

Background

How it works

Retrospective

Code

WebSocketCamera.cs

ImageSenderWebSocketMiddleware.cs

ImageReceiverWebSocketMiddleware.cs

EventsReaderViewModel.cs

Full source code for Pi Device / WebApp / Remote Control

Credits

Patricia

Comments

Embed the widget on your own site

Camera Stream From Device to PC

Camera Stream From Device to PC

Things used in this project

Hardware components

Software apps and online services

Story

Background

How it works

Retrospective

Code

WebSocketCamera.cs

ImageSenderWebSocketMiddleware.cs

ImageReceiverWebSocketMiddleware.cs

EventsReaderViewModel.cs

Full source code for Pi Device / WebApp / Remote Control

Credits

Patricia

Comments

Related channels and tags
