How to Make Biometric Voting Machine using Arduino?

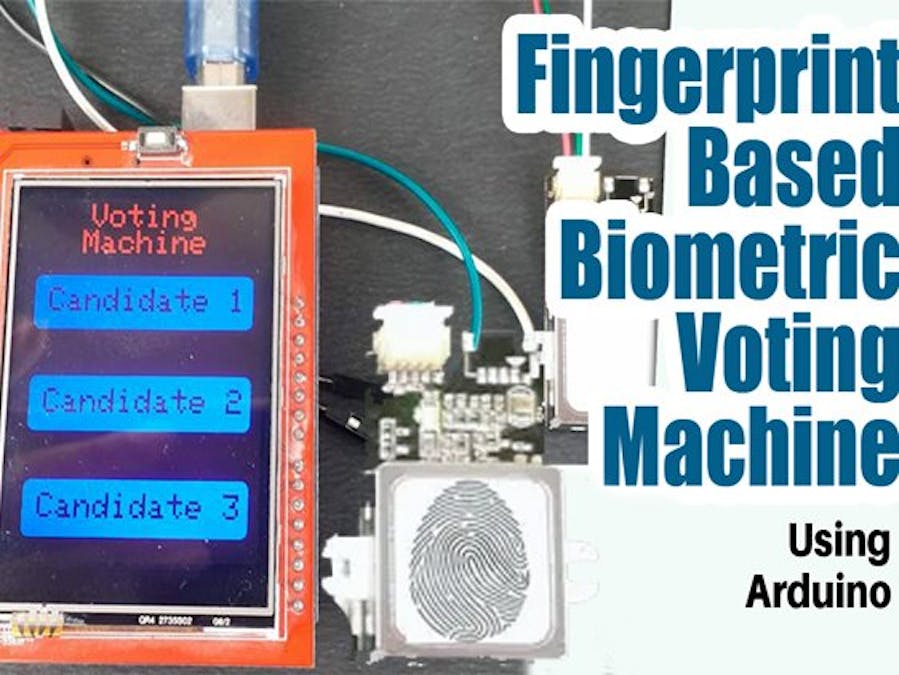

In this project, we are going to build a prototype of a Biometric voting machine using the Arduino Uno, TFT display, and Fingerprint Sensor

BeginnerFull instructions provided763
How to Make Biometric Voting Machine using Arduino?

Things used in this project

Hardware components

Arduino Uno
×1
2.4” TFT LCD Display Shield
×1
GT-511C3 Fingerprint Sensor
×1

Story

Read more

Schematics

Biometric Voting Machine Circuit Diagram

Code

Code for Fingerprint Voting System Project using Arduino

C/C++
#include <SPFD5408_Adafruit_GFX.h>    // Core graphics library
#include <SPFD5408_Adafruit_TFTLCD.h> // Hardware-specific library
#include <SPFD5408_TouchScreen.h>
#include "FPS_GT511C3.h"
#include "SoftwareSerial.h"
#include<EEPROM.h>
int vote1, vote2, vote3;
String msg  ;
#define YP A1  // must be an analog pin, use "An" notation!
#define XM A2  // must be an analog pin, use "An" notation!
#define YM 7   // can be a digital pin
#define XP 6   // can be a digital pin
#define TS_MINX 125
#define TS_MINY 85
#define TS_MAXX 965
#define TS_MAXY 905
TouchScreen ts = TouchScreen(XP, YP, XM, YM, 300);
#define LCD_CS A3
#define LCD_CD A2
#define LCD_WR A1
#define LCD_RD A0
// optional
#define LCD_RESET A4
#define REDBAR_MINX 80
#define GREENBAR_MINX 130
#define BLUEBAR_MINX 180
#define BAR_MINY 30
#define BAR_HEIGHT 250
#define BAR_WIDTH 30
Adafruit_TFTLCD tft(LCD_CS, LCD_CD, LCD_WR, LCD_RD, LCD_RESET);
#define BLACK   0x0000
int BLUE = tft.color565(50, 50, 255);
#define DARKBLUE 0x0010
#define VIOLET 0x8888
#define RED     0xF800
#define GREEN   0x07E0
#define CYAN    0x07FF
#define MAGENTA 0xF81F
#define YELLOW  0xFFE0
#define WHITE   0xFFFF
#define GREY   tft.color565(64, 64, 64);
#define GOLD 0xFEA0
#define BROWN 0xA145
#define SILVER 0xC618
#define LIME 0x07E0
FPS_GT511C3 fps(11, 12); // (Arduino SS_RX = pin 4, Arduino SS_TX = pin 5)
void drawHome()
{
  tft.fillScreen(WHITE);
  tft.drawRoundRect(0, 0, 319, 240, 8, WHITE);   //Page border
  tft.fillRoundRect(10, 70, 220, 50, 8, GOLD);
  tft.drawRoundRect(10, 70, 220, 50, 8, WHITE);  //Vote
  tft.fillRoundRect(10, 160, 220, 50, 8, GOLD);
  tft.drawRoundRect(10, 160, 220, 50, 8, WHITE);  //Enroll
  tft.fillRoundRect(10, 250, 220, 50, 8, GOLD);   //Result
  tft.drawRoundRect(10, 250, 220, 50, 8, WHITE);
  tft.setCursor(65, 5);
  tft.setTextSize(3);
  tft.setTextColor(CYAN);
  tft.print("Voting");
  tft.setCursor(57, 29);
  tft.print("Machine");
  tft.setTextSize(3);
  tft.setTextColor(WHITE);
  tft.setCursor(25, 82);
  tft.print("Candidate 1");
  tft.setCursor(25, 172);
  tft.print("Candidate 2");
  tft.setCursor(25, 262);
  tft.print("Candidate 3");
}
int oldcolor, currentcolor, currentpcolour;
void setup(void) {
  tft.reset();
  tft.begin(tft.readID());
  tft.setRotation(2);
  Serial.begin(9600);
  Serial.println();
  Serial.print("reading id...");
  delay(500);
  //Serial.println(tft.readID(), HEX);
  tft.fillScreen(BLACK);
  tft.setTextSize(3);
  tft.setTextColor(WHITE);
  tft.setCursor(50, 140);
  tft.print("Loading...");
  for (int i; i < 250; i++)
  {
    tft.fillRect(BAR_MINY - 10, BLUEBAR_MINX, i, 10, RED);
    delay(0.000000000000000000000000000000000000000000000000001);
  }
  tft.fillScreen(BLACK);
  drawHome();
  pinMode(13, OUTPUT);
  result();
}
#define MINPRESSURE 10
#define MAXPRESSURE 1000
void loop()
{
  digitalWrite(13, HIGH);
  digitalWrite(13, LOW);
  TSPoint p = ts.getPoint();
  // if sharing pins, you'll need to fix the directions of the touchscreen pins
  //pinMode(XP, OUTPUT);
  pinMode(XM, OUTPUT);
  pinMode(YP, OUTPUT);
  //pinMode(YM, OUTPUT);
  if (p.z > ts.pressureThreshhold)
    {
      p.x = map(p.x, TS_MAXX, TS_MINX, 0, 320);
      p.y = map(p.y, TS_MAXY, TS_MINY, 0, 240);
      //Serial.print("X:");  // I used this to get the accurate touch points for X and Y axis
      //Serial.print(p.x);
      //Serial.print("\n");
      //Serial.print("Y:");
      //Serial.print(p.y);

     if (p.x > 70 && p.x < 120 && p.y > 10 && p.y < 220  && p.z > MINPRESSURE && p.z < MAXPRESSURE)
      {
       Serial.println("Candidate 1");
       fps.Open();         //send serial command to initialize fps
       fps.SetLED(true);   //turn on LED so fps can see fingerprint
       screen();
       delay(3000);
       if (fps.IsPressFinger())
      {
        fps.CaptureFinger(false);
        int id = fps.Identify1_N();
        if (id < 200)
        {
          msg = "Candidate 1";
          Serial.println(msg);
          vote1++;
          EEPROM.write(0, vote1);
          Serial.print("Verified ID:");
          Serial.println(id);
         // delay(2000);
          tft.setCursor(42, 170);
          tft.print("Thank You");
          delay(3000);
          drawHome();
        }
       else
       {
        screen1();
      }
      }
       }
      if (p.x > 160 && p.x < 210 && p.y > 10 && p.y < 230)
      {
       Serial.println("Candidate 2");
       fps.Open();         //send serial command to initialize fps
       fps.SetLED(true);   //turn on LED so fps can see fingerprint
       screen();
       delay(3000);
       if (fps.IsPressFinger())
      {
        fps.CaptureFinger(false);
        int id = fps.Identify1_N();
        if (id <200)
        {
          msg = "Candidate 2";
          Serial.println(msg);
          vote2++;
          EEPROM.write(1, vote2);
          Serial.print("Verified ID:");
          Serial.println(id);
         // delay(2000);
          tft.setCursor(42, 170);
          tft.print("Thank You");
          delay(3000);
          drawHome();
        }
       else
       {
        screen1();
       }
      }
      }
      if (p.x > 260 && p.x < 300 && p.y > 10 && p.y < 220)
      {
       Serial.println("Candidate 3");
       fps.Open();         //send serial command to initialize fps
       fps.SetLED(true);   //turn on LED so fps can see fingerprint
       screen();
       delay(3000);
       if (fps.IsPressFinger())
      {
        fps.CaptureFinger(false);
        int id = fps.Identify1_N();
        if (id <200)
        {
          msg = "Candidate 3";
          Serial.println(msg);
          vote3++;
          EEPROM.write(2, vote3);
          Serial.print("Verified ID:");
          Serial.println(id);
        //  delay(2000);
          tft.setCursor(42, 170);
          tft.print("Thank You");
          delay(3000);
          drawHome();
        }
       else
       {
        screen1();
       }
      }
      }
    }
  }
void screen()
{
  tft.fillScreen(BLACK);
  tft.setTextSize(3);
  tft.setTextColor(WHITE);
  tft.setCursor(20, 40);
  tft.print("Please Scan");
  tft.setCursor(20, 90);
  tft.print("Your Finger");
  Serial.println("Please press finger");
}
void screen1()
{
  Serial.println("Finger not found");
  tft.fillScreen(BLACK);
  tft.setCursor(20, 40);
  tft.print("Sorry You");
  tft.setCursor(20, 90);
  tft.print("Can't Vote");
  delay(3000);
  drawHome();
}
void result()
{
  vote1=EEPROM.read(0);
  vote2=EEPROM.read(1);
  vote3=EEPROM.read(2);
  int vote=vote1+vote2+vote3;
  Serial.println(vote1);
  Serial.println(vote2);
  Serial.println(vote3);
 if(vote)
           {
            if((vote1 > vote2 && vote1 > vote3))
            {
             Serial.print("Candidate 1 Wins");
             delay(2000);
            }
            else if(vote2 > vote1 && vote2 > vote3)
            {
             Serial.print("Candidate 2 Wins");
             delay(2000);
            }
            else if((vote3 > vote1 && vote3 > vote2))
            {
             Serial.print("Candidate 3 Wins");
             delay(2000);
            }
           else
           {
             Serial.print("Tie Up Or");
             Serial.print("No Result");
             delay(1000);
           }
          }
           else
           {
             Serial.print("No Voting....");
             delay(1000);
           }
  }
